High Rigidity Structure: HT300 castings, box-type bed, and angled saddle design deliver strong support and stable heavy-duty cutting.

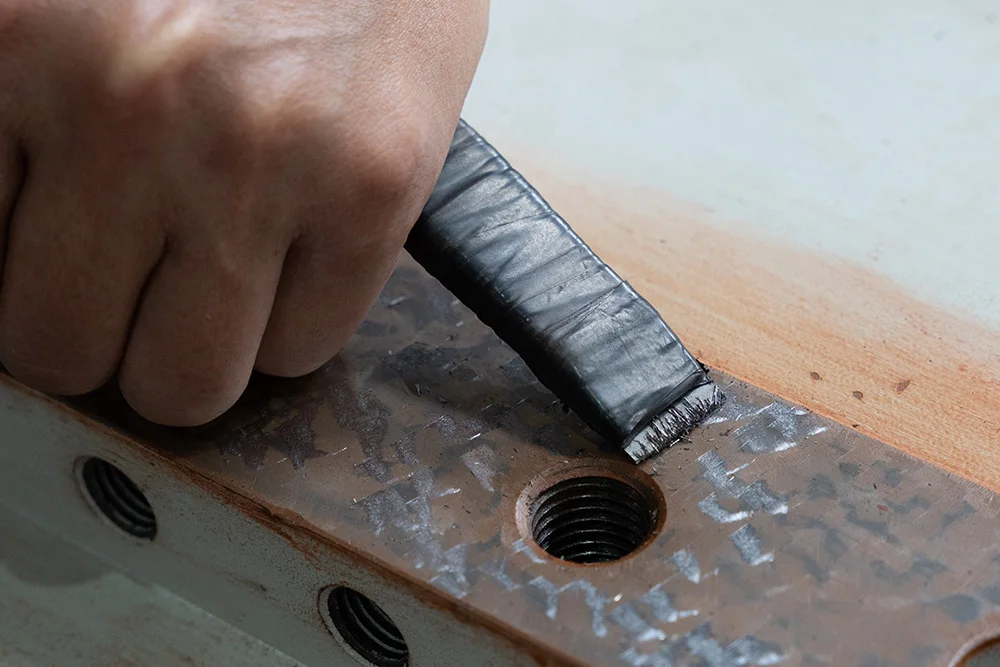

Precision Machining Control: Pre-tensioned screws, precision spindle assembly, and manual scraping ensure lasting accuracy and machining stability.

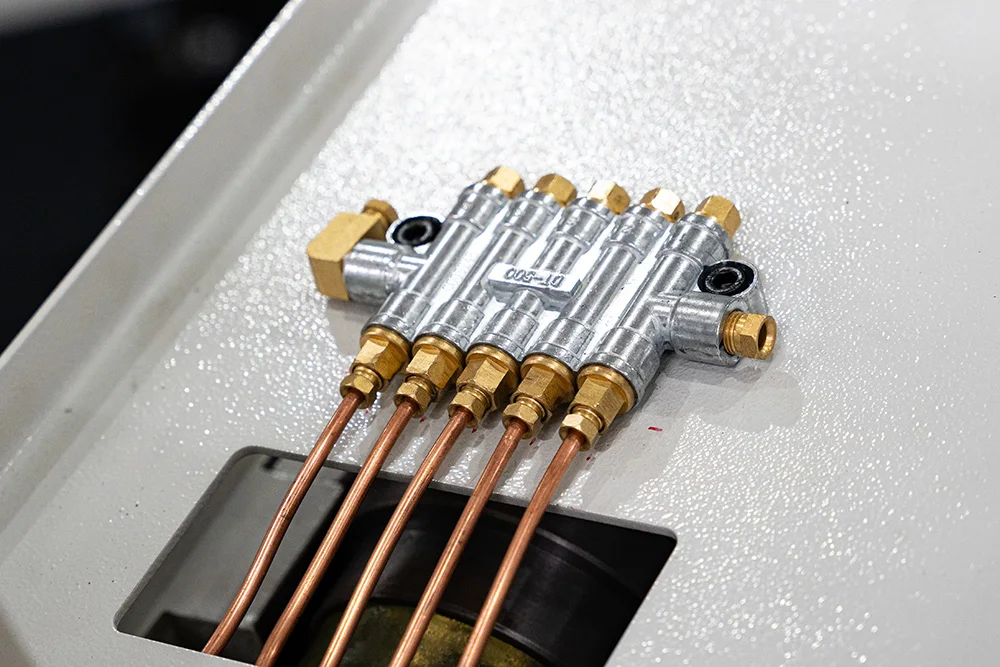

Efficient Smart Design: Compact layout, powered turret, protective guarding, and automation-ready interfaces improve productivity and reduce maintenance costs.

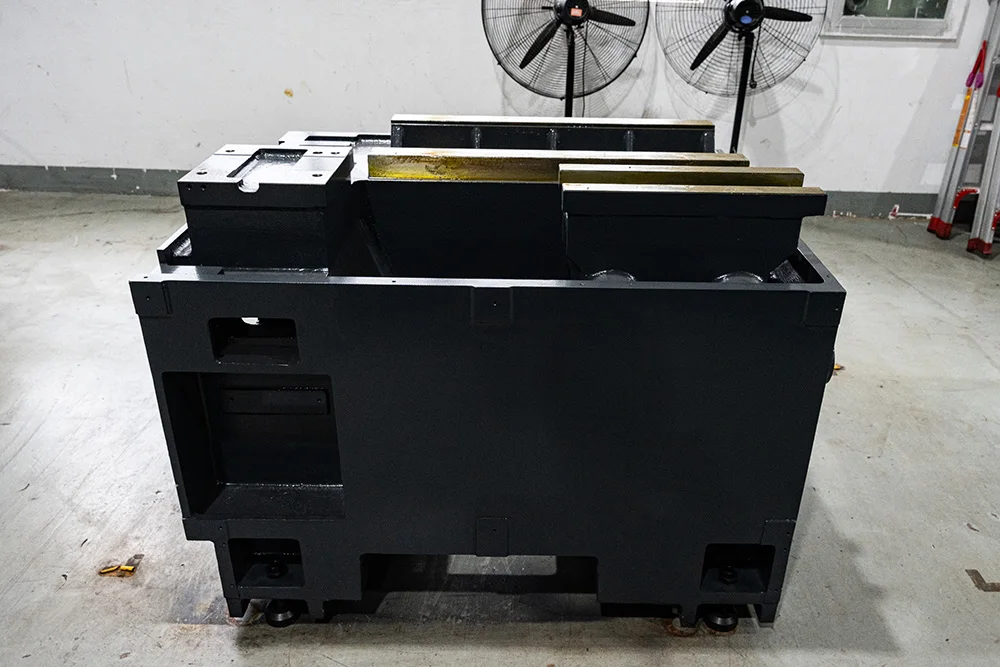

Made of HT300 gray cast iron and optimized through finite element analysis, it offers high density, rigidity, strength, shock absorption, wear resistance, precision retention, and long service life.

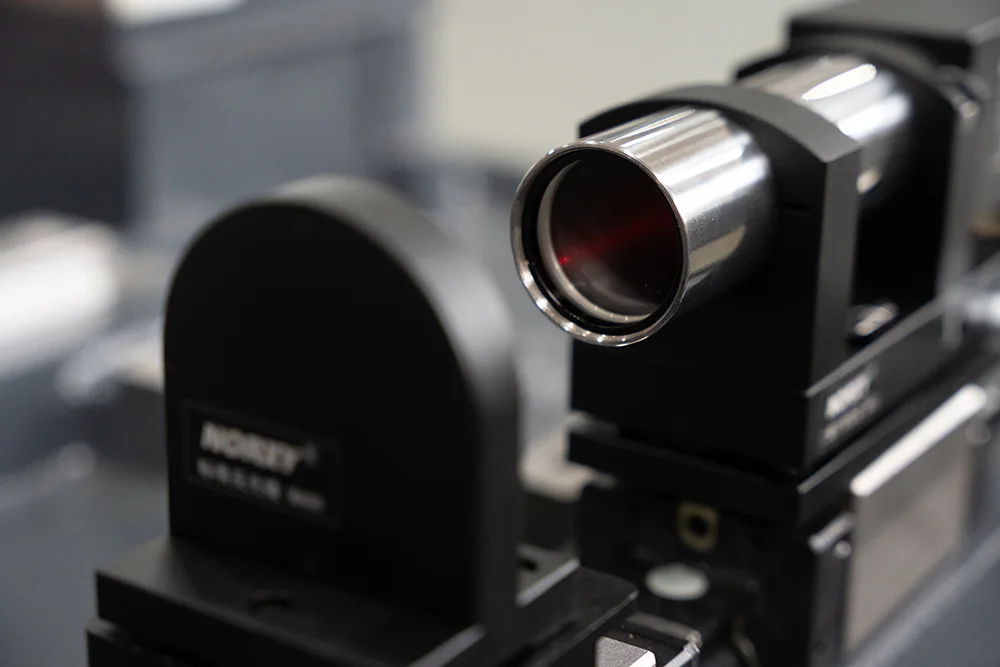

Photoelectric autocollimator.
The tool turret adopts a servo motor-driven two-stage transmission with a 1:16.5 gear ratio and withstands up to 70kgf/cm² cutting fluid pressure.
|
Project
|
Unit
|
Specifications/Parameters
|
|
|
Processing capacity
|
Chuck size
|
inch
|
8
|
|
The rotation diameter of the bed
|
Cmm
|
Ф510
|
|
|
The rotary diameter of the drag plate
|
mm
|
Ф260
|
|
|
Maximum processing length
|
mm
|
330
|
|
|
Maximum machined parts
|
mm
|
Ф360（8Station）/Ф350（12Station）
|
|
|
Main shaft
|
最高转速Maximum rotational speed
|
rpm
|
4000
|
|
Spindle end form
|
ISO
|
A2-6
|
|
|
Diameter of the main shaft through hole
|
mm
|
Ф66
|
|
|
The pull rod has a through hole
|
mm
|
Ф52
|
|
|
Main motor power
|
KW
|
11
|
|
|
Dota
|
Form
|
/
|
Servo tool turret
|
|
Number of workstations
|
piece
|
8/12
|
|
|
The rotation time of adjacent tool positions
|
S
|
0.28
|
|
|
The farthest tool position rotation time
|
S
|
0.4
|
|
|
The maximum size of the square knife handle
|
mm
|
25×25
|
|
|
The maximum size of the round knife handle
|
mm
|
φ40
|
|
|
Mobile
|
X-axis fast shift
|
m/min
|
30
|
|
Z-axis fast shift
|
m/min
|
30
|
|
|
X-axis travel
|
mm
|
180+20（8Station）/175+35（12Station）
|
|
|
Z-axis travel
|
mm
|
360
|
|
|
The width of the X/Z axis rail
|
|
30/35Rollers
|
|
|
X/ Z-axis lead screw
|
|
3210
|
|
|
Tailseat
|
Sleeve stroke
|
mm
|
90
|
|
Sleeve diameter
|
mm
|
Ф75
|
|
|
Sleeve conical hole
|
ISO
|
MT4
|
|
|
Cooling
|
Power
|
W
|
370
|
|
Traffic
|
m³/h
|
2.5～4.0
|
|
|
Precision
|
Precision turning outer circle accuracy
|
|
IT6
|
|
Surface roughness of precision machined parts
|
mm
|
Ra 0.4～1.6
|
|
|
The roundness of finely turned parts
|
mm
|
≤0.003
|
|
|
Positioning accuracy (X, Z)
|
mm
|
X：0.005 Z：0.008
|
|
|
Repeat positioning accuracy (X, Z)
|
mm
|
X：0.002 Z：0.004
|
|
|
Others
|
Weight
|
Kg
|
2950
|
|
Numerical control system
|
|
SYNTEC CNC System 22Ta
|
|
|
External dimensions (length, width, height)
|
mm
|
1810×1600×1690（No chip conveyor included）
|
|
|
