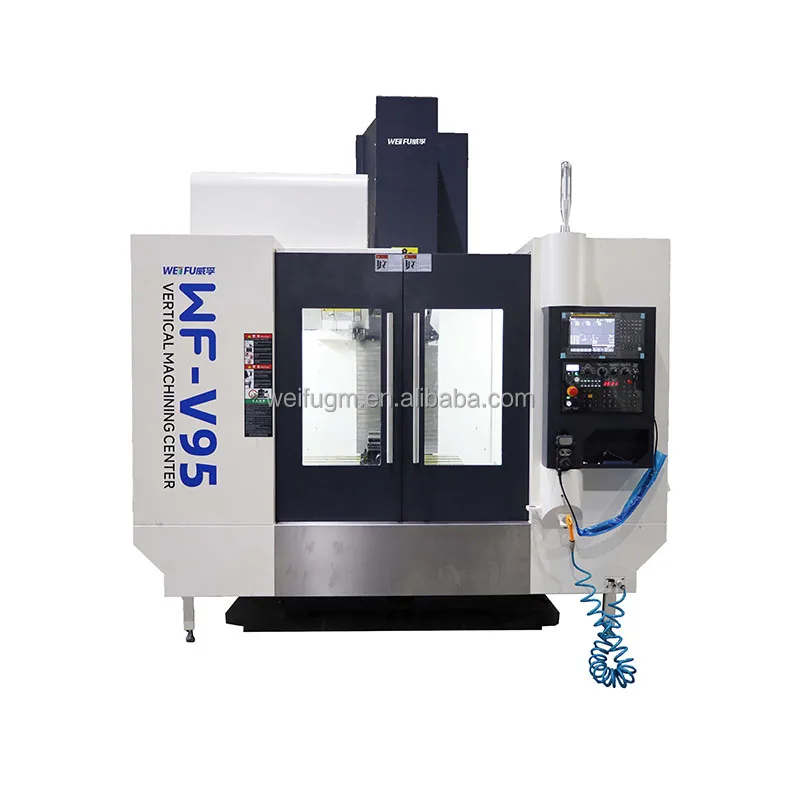

Home > Products > Machining centre > vertical machining centre > WF-V95

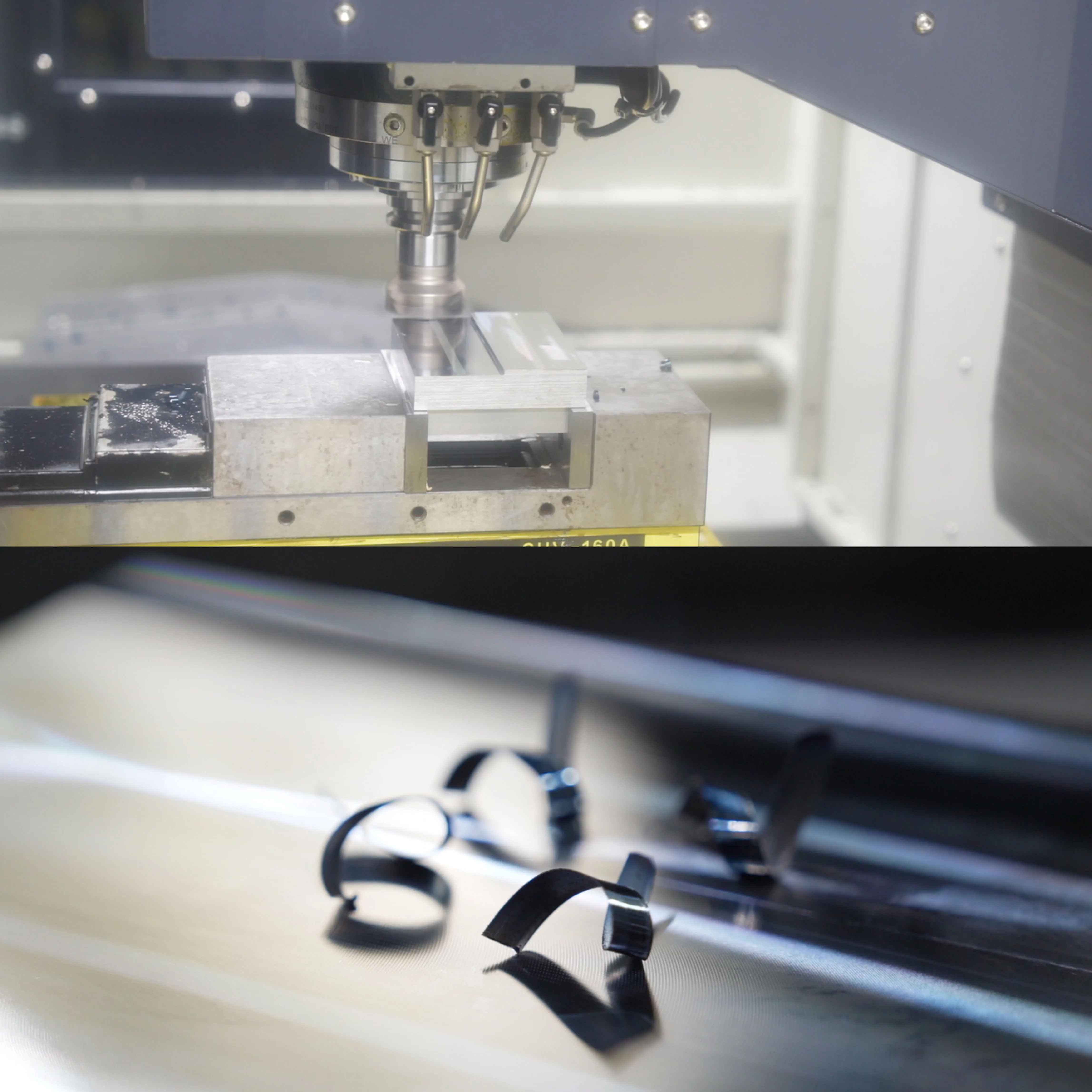

V95 heavy cutting equipment, 5mm per side, disc cutter diameter 63mm, rotation speed 1000r/min, feed rate 500mm/min.

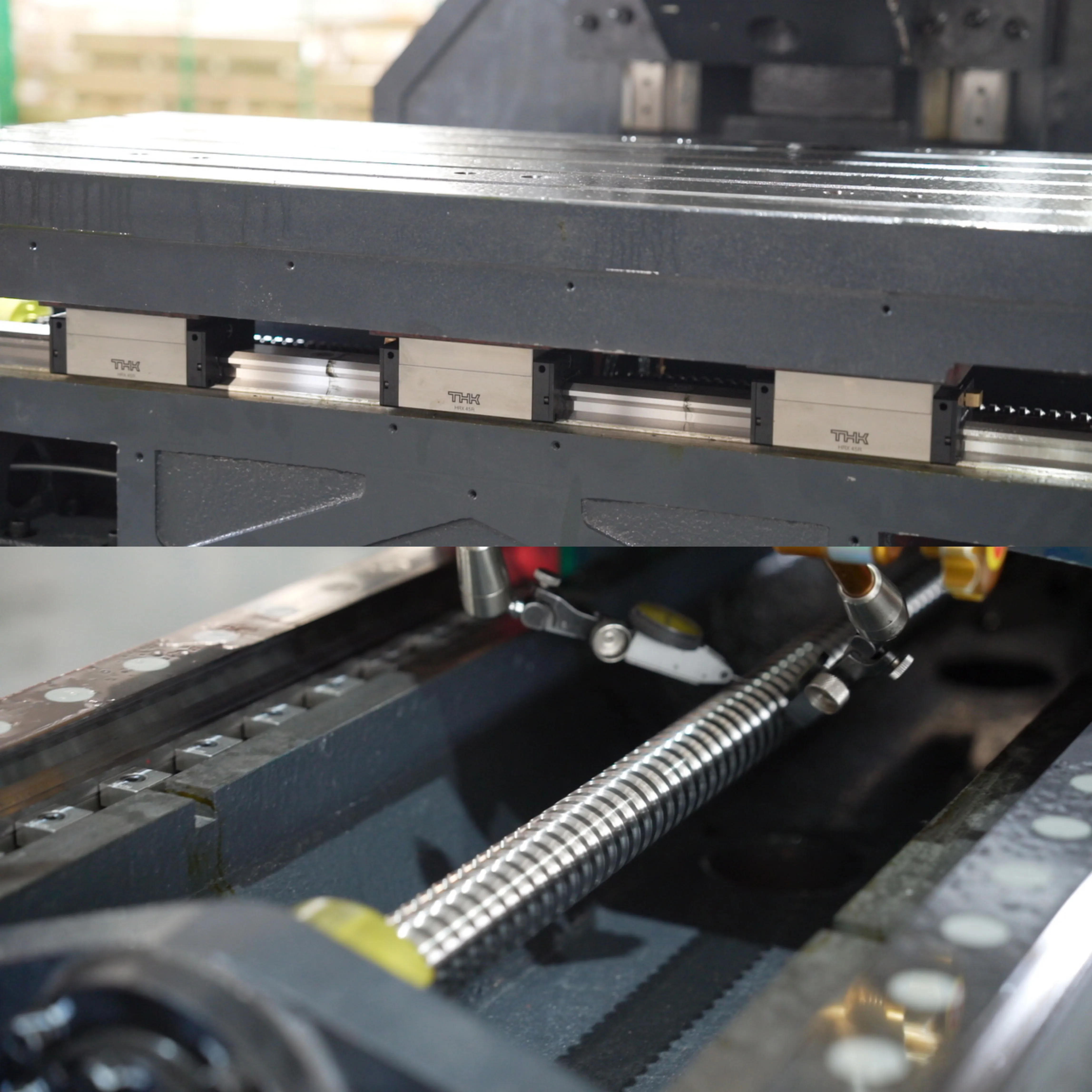

Japanese THK linear guide sliders; six sliders on the X-axis, lengthened and widened to enhance machine rigidity and stability.

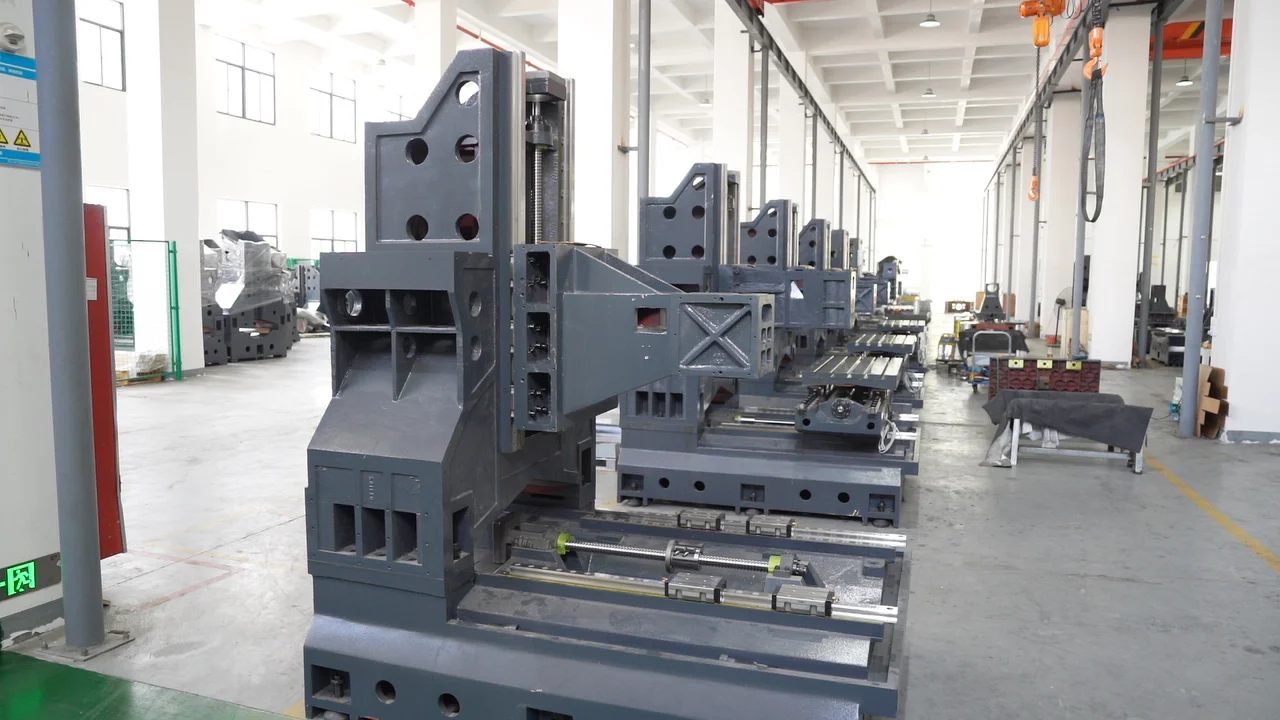

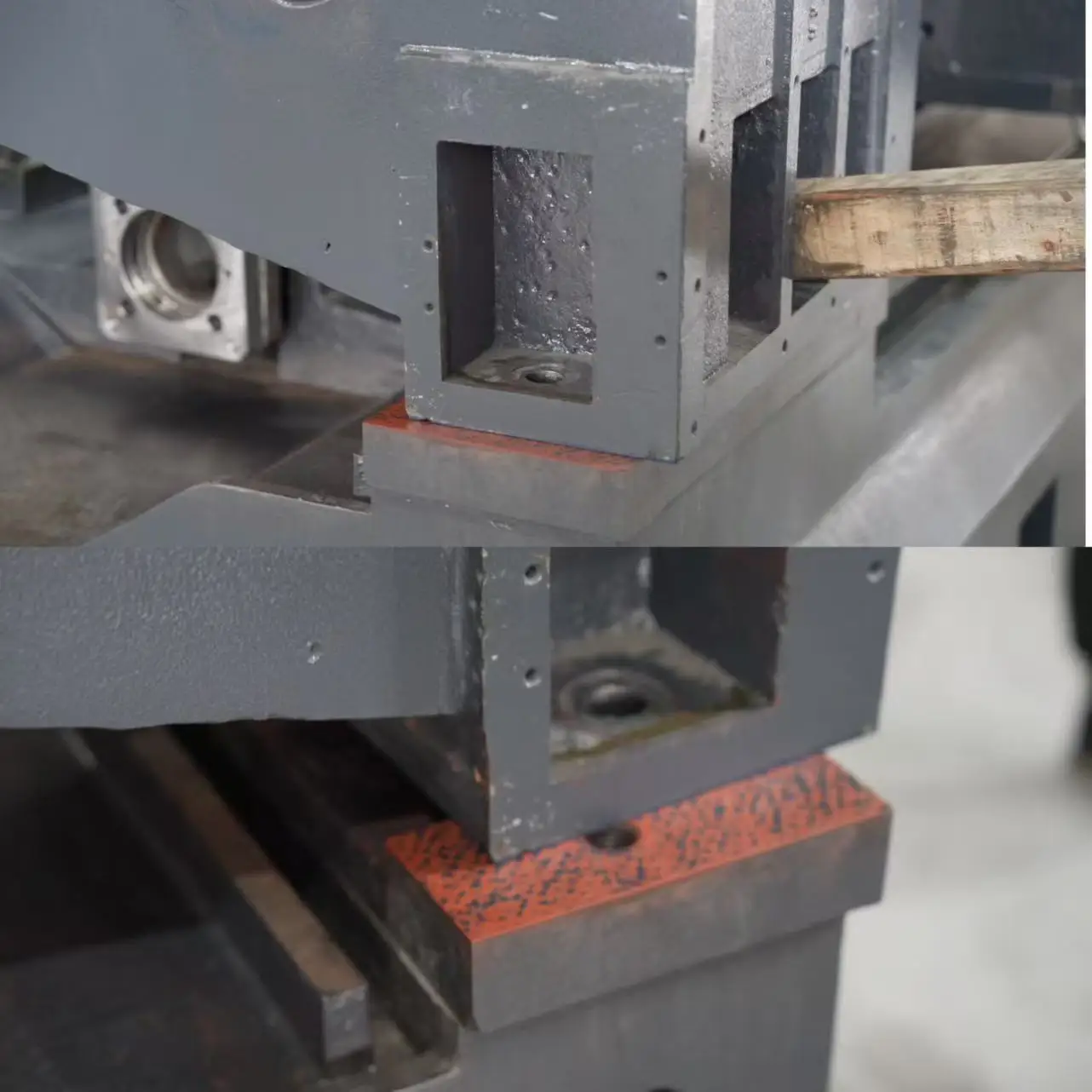

The column has 100% contact on both sides, which enhances the rigidity and stability of the machine.
V95 heavy cutting equipment, 5mm per side, disc cutter diameter 63mm, rotation speed 1000r/min, feed rate 500mm/min.
Japanese THK linear guide sliders; six sliders on the X-axis, lengthened and widened to enhance machine rigidity and stability.
The column has 100% contact on both sides, which enhances the rigidity and stability of the machine.
| Project | Single position | WF-V95 |
| X-axis travel | mm | 900 |
| Y-axis travel | mm | 550 |
| Z-axis travel | mm | 650 |
| Workbench area | mm | 1000*550 |
| Maximum load capacity of the workbench | kg | 800 |
| T-slot (slot - width X center distance) | mm | 5-18*100 |
| The distance from the nose end of the main shaft to the worktable surface | mm | 150-800 |
| The distance from the center of the spindle to the surface of the guide rail | mm | 610 |
| Spindle speed | Rpm | 12000 |
| Outer diameter of the main shaft | MM | 150-BT40 |
| Tool specification | BT40-45° | |
| Tool magazine form | Disc knife arm type | |
| The number of cutting tools | T | 24 |
| Maximum tool diameter/adjacent no tool | Mm | 75-150 |
| Maximum tool length | Mm | 300 |
| Maximum tool weight | Kg | 8 |
| Spindle motor | kw | BIL15 |
| X/Y/Z axis motor | kw | BIS30-30-30 |
| X-axis rapid displacement | m/min | 24 |
| Y-axis rapid displacement | m/min | 24 |
| Z-axis rapid displacement | m/min | 24 |
| Cutting feed rate | Mm /min | 1—36000 |
| Positioning accuracy | mm | ±0.005/300mm |
| Repeat positioning accuracy | mm | ±0.003/300mm |

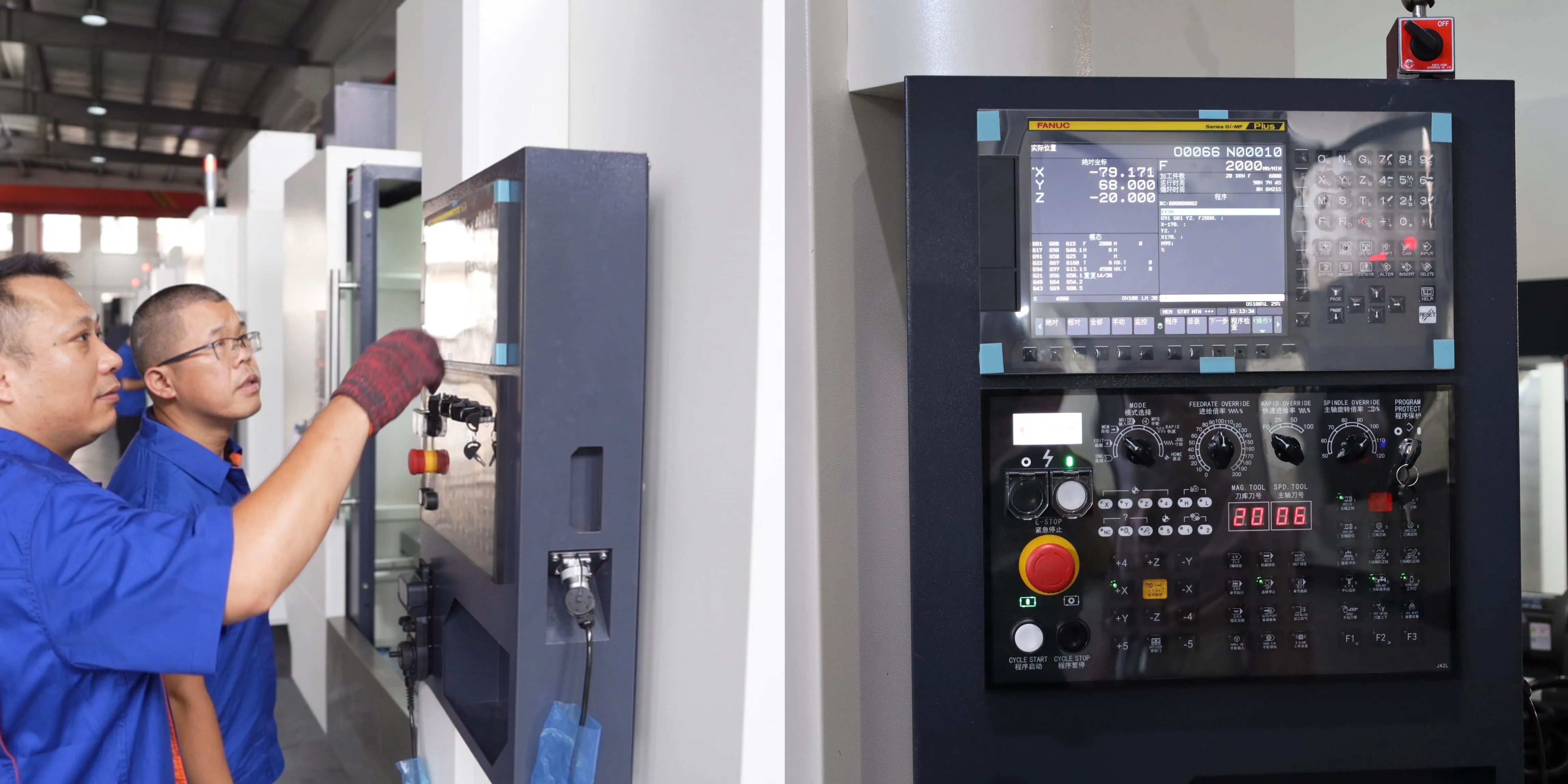

| Controller | Fanuc | OIMF |
| The weight of the machine is approximately | kg | 6500 |
| Power supply requirements | KVA | 40 |
| Water tank capacity | L | 250 |
| Air compressor source | kg/cm2 | 6 |
| Overall dimensions (length * width * height) | mm | 2700*3100*3200（It has the highest water tank） |
| The above parameters are for reference only. In case of any discrepancy in color or size, the actual product shall prevail. | ||
For standard products, payment is by T/T: 30% down payment upon ordering, and the remaining 70% balance to be paid before shipment.
For non-standard customized products, payment is by T/T: 50% down payment upon order placement, and the remaining 50% to be paid before shipment.
The minimum order quantity is one set, and the warranty period is one year.
The machine is normally packed in a plywood case.
Please tell us your requirements, and we will recommend the most suitable machine model according to your needs.
EXW, FOB, CFR, CIF, and other trade terms are acceptable.
Our factory is located in Wuxi City, Jiangsu Province, China. You are welcome to visit us.
Our main products include CNC milling machines, CNC machining centers, CNC turning centers, vertical drilling and tapping machines, 5-axis machines, CNC lathes, lathes, milling machines, and accessories.
