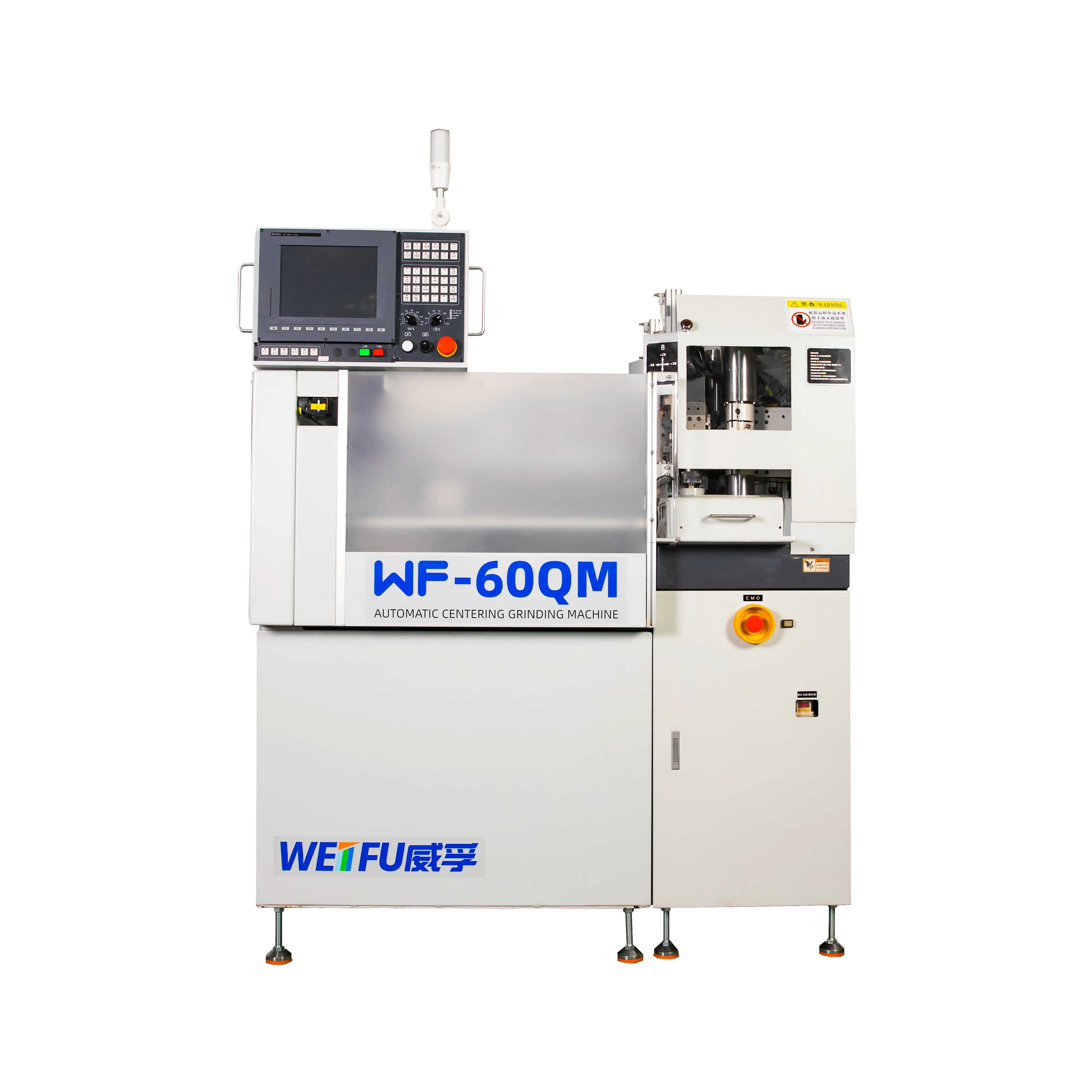

Dual-Station Efficiency:
Boosts productivity with continuous dual-station grinding for faster and more stable lens machining.
Precision Optical Grinding:
Ensures high-accuracy surface finishing for optical lenses with smooth and consistent grinding performance.

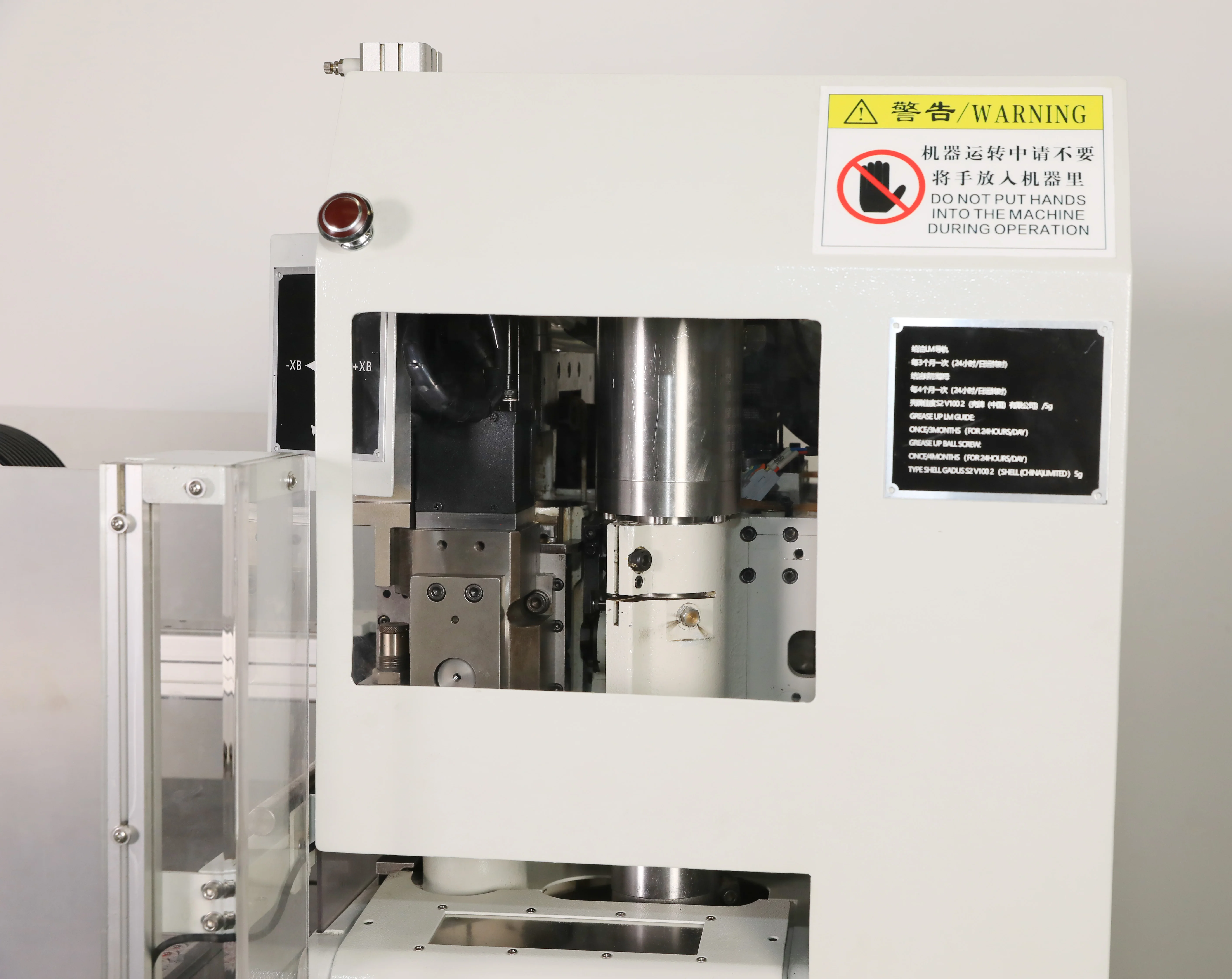

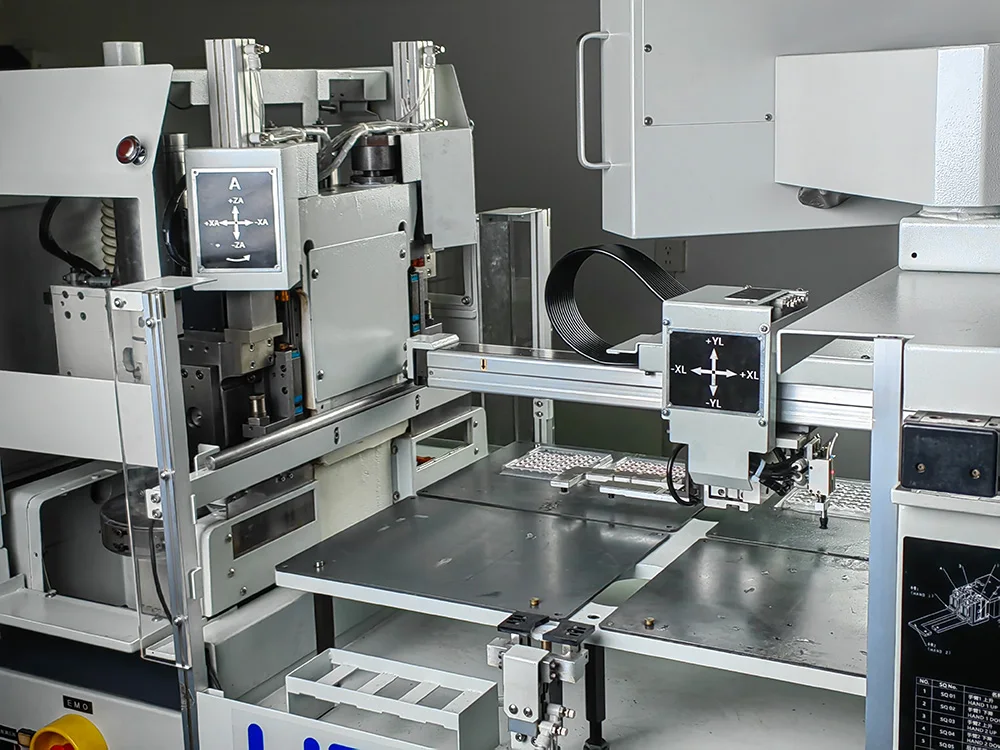

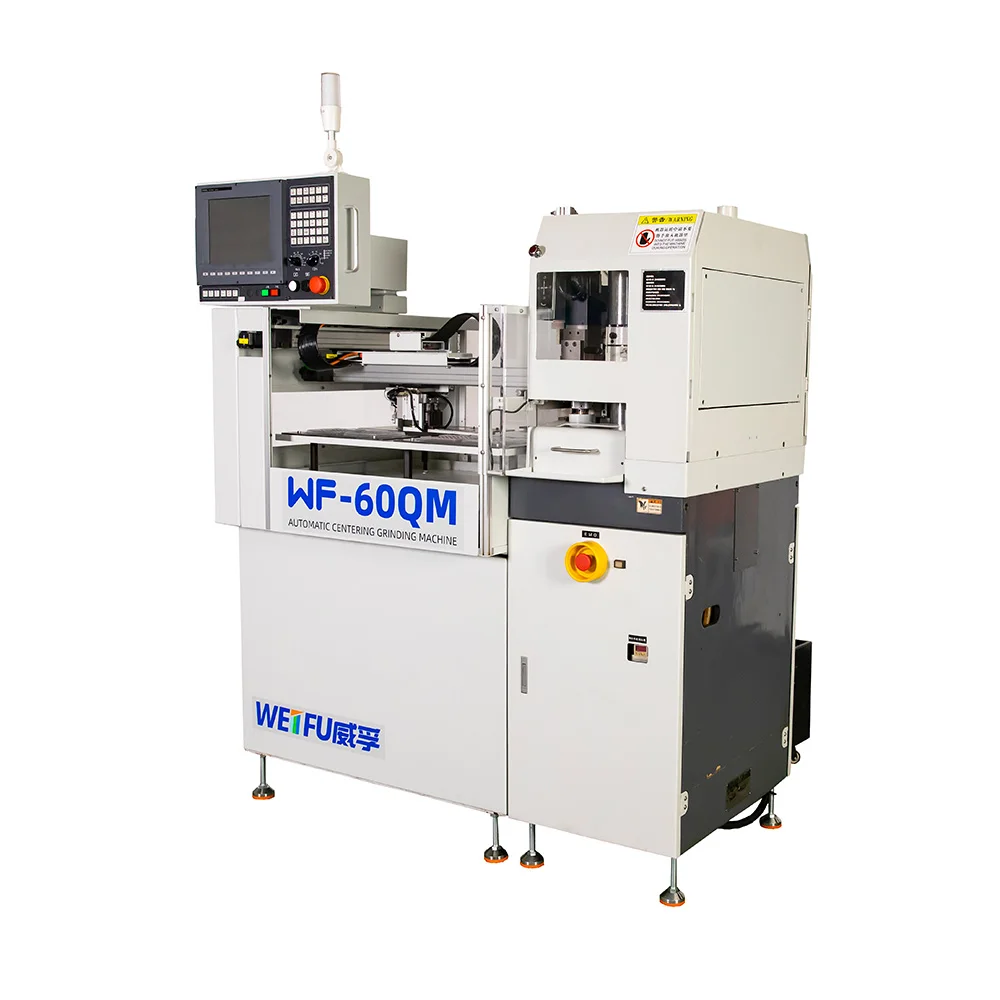

Dual-Station Workbench
Optical Lens Processing

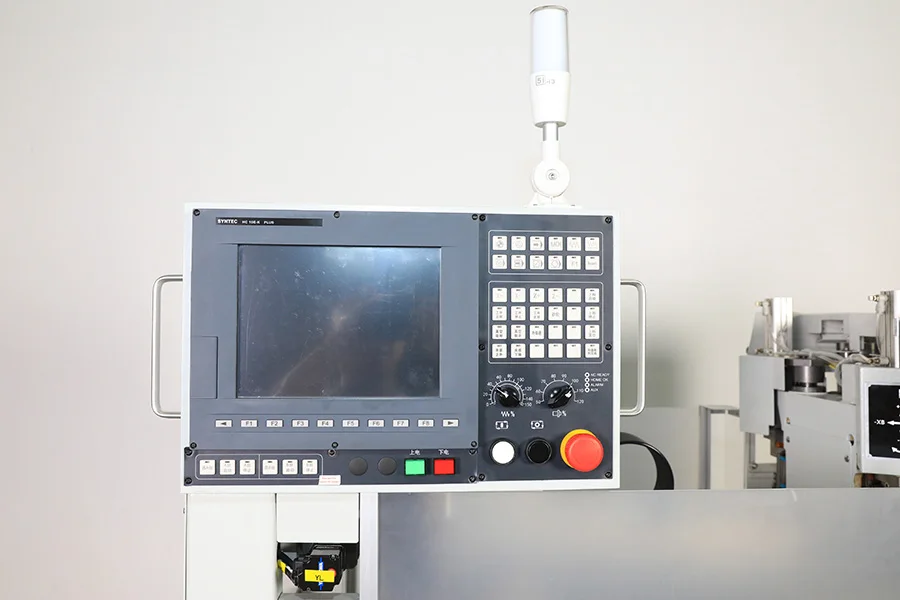

Syntec System
|
Processable Lens Dimensions
|
Project
|
Specifications/Parameters
|
|
Overall Dimensions(L×W×H)
|
1380×880×1880mm
|
|
|
Machine Weight
|
800Kg
|
|
|
Pneumatic Supply
|
0.6Mpa(6kg/c㎡)
|
|
|
Power Supply
|
Three-phase 380V, 50Hz
|
|
|
Number of Control Axes
|
12 Axes
|
|
|
Outer Diameter
|
φ2 - φ60mm Max
|
|
|
Thickness
|
Max 10 mm
|
|
|
Shape
|
Concave and Convex Lenses
|
|
|
Processing Time
|
Determined by lens grinding parameters
|
|
|
Workpiece Vertical Axis
|
Machining Speed
|
1.8～3000rpm (Stepless Speed Regulation)
|
|
Centering Speed
|
1000 rpm Max.
|
|
|
Drive Motor Specification
|
AC Servo Motor, 200W
|
|
|
Cylinder Specification
|
φ25 mm
|
|
|
Adjustment Stroke
|
25~45mm
|
|
|
Grinding Wheel Axis
|
Grinding Wheel Speed
|
8000 rpm
|
|
Grinding Wheel Motor
|
Permanent Magnet Synchronous Motor, 380V, 5kW, 400Hz, 6-Pole
|
|
|
Grinding Wheel Specification
|
Outer Diameter φ160 (φ125 Optional) / Shaft Hole φ30H6
|
|
|
Vertical Movement Range
|
31mm
|
|
|
Horizontal Movement Range
|
70mm
|
|
|
X-Axis
|
Total Stroke
|
600mm
|
|
Movement Resolution
|
0.01mm
|
|
|
Repeatability
|
±0.02mm
|
|
|
Product Placement Accuracy
|
±0.1mm
|
|
|
Drive Motor
|
AC Servo Motor / 100W
|
|
|
Y-Axis
|
Total Stroke
|
600mm
|
|
Movement Resolution
|
0.01mm
|
|
|
Repeatability
|
±0.02mm
|
|
|
Product Placement Accuracy
|
±0.1mm
|
|
|
Drive Motor
|
AC Servo Motor / 100W
|
|
|
Z-Axis
|
Drive Method
|
Pneumatic Cylinder
|
|
Positioning Mechanism
|
Clampable Lens Specification
|
Φ60mm (Max.)
|
|
Positioning Accuracy
|
±0.25mm
|
Spindle accuracy inspection
- Axial runout
Spindle accuracy inspection
- Radial runout
