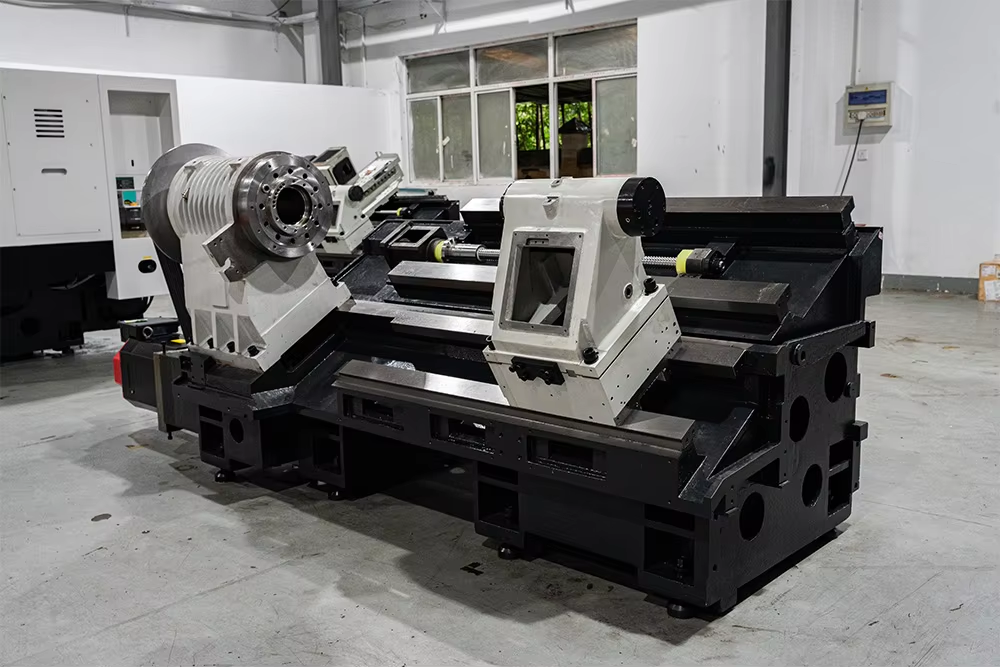

Project
|
Unit
|
Specifications/Parameters
|
|
|
Processing Ability
|
Chuck size
|
inch
|
8
|
|
The rotation diameter of the bed
|
mm
|
Ф700
|
|
|
The rotary diameter of the drag plate
|
mm
|
Ф200
|
|
|
Maximum processing length
|
mm
|
530
|
|
|
Maximum processing diameter
|
c
|
Ф370
|
|
|
Main shaft
|
Maximum rotational speed
|
rpm
|
4500
|
|
Spindle end form
|
ISO
|
A2-6
|
|
|
Diameter of the main shaft through hole
|
mm
|
Ф63
|
|
|
The pull rod has a through hole
|
mm
|
Ф52
|
|
|
Main motor power
|
KW
|
11/15
|
|
|
C-axis indexing capability
|
DEG
|
0.001°
|
|
|

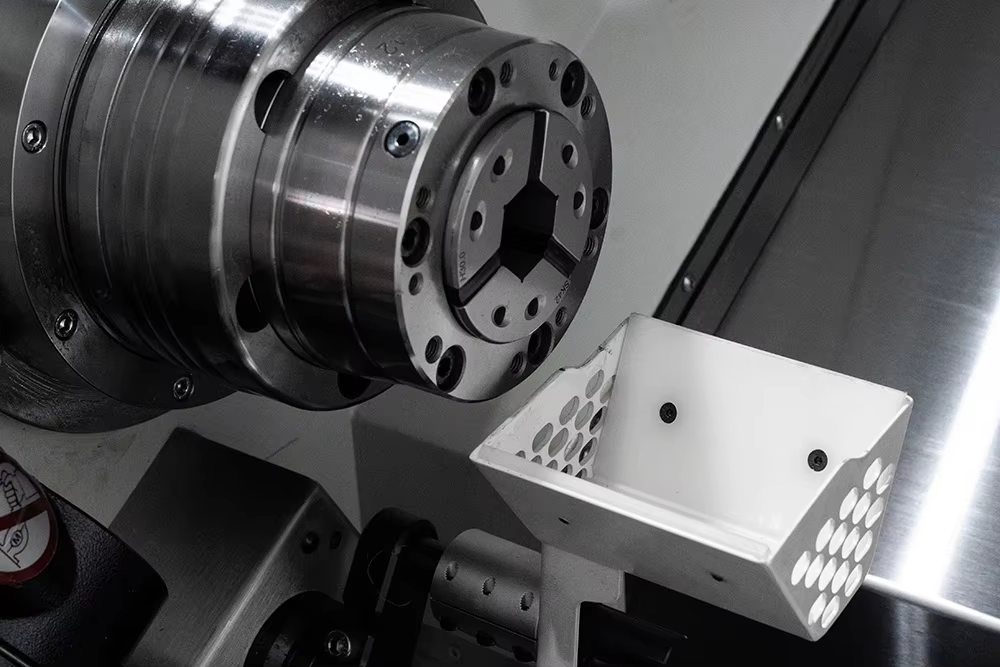

Face away Main shaft
|
Chuck size
|
inch
|
6
|
|
Rated rotational speed
|
RPM
|
1700
|
|
|
Maximum rotational speed
|
RPM
|
5000
|
|
|
Spindle end face form
|
ISO
|
A2-5
|
|
|
Diameter of the main shaft through hole
|
mm
|
Ф56
|
|
|
The pull rod has a through hole
|
mm
|
Ф45
|
|
|
Main motor power (electric spindle)
|
KW
|
13.2（Siemens/SYNTEC CNC System）/12.5（Fanuc）
|
|
|
Itinerary
|
mm
|
520
|
|
|
Fast shift speed
|
m/min
|
30
|
|
|

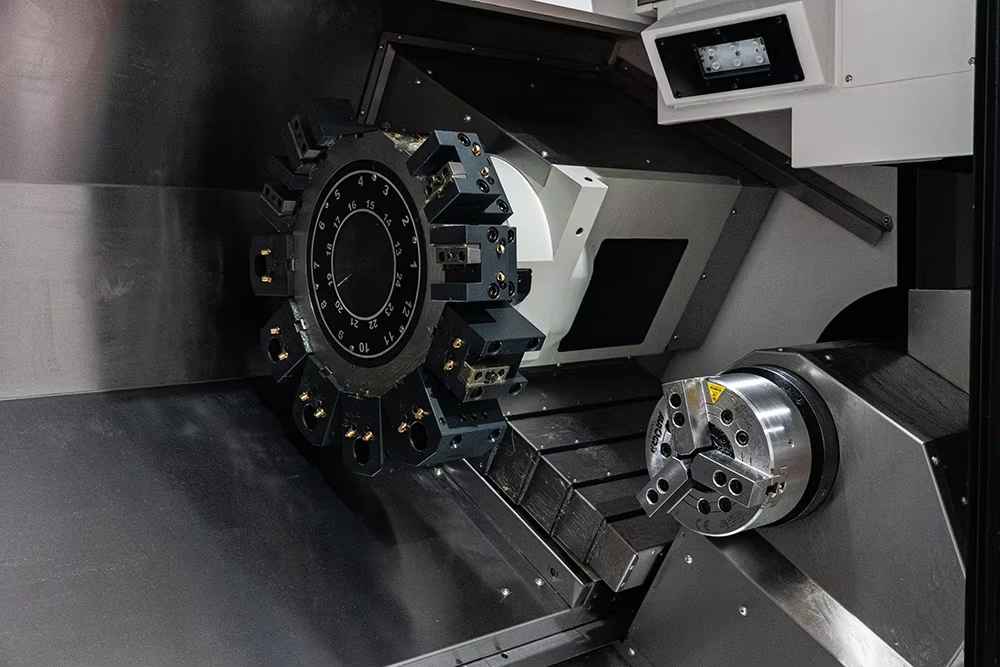

Dota
|
Form
|
/
|
Power tool turret
|
|
Number of workstations
|
a
|
12
|
|
|
Opposite the dota
|
mm
|
380
|
|
|
Center height of the boring tool seat
|
mm
|
85
|
|
|
The rotation time of adjacent tool positions
|
S
|
0.2
|
|
|
The farthest tool position rotation time
|
S
|
0.5
|
|
|
The maximum size of the square knife handle
|
mm
|
□25×25
|
|
|
The maximum size of the round knife handle
|
mm
|
φ40
|
|
|
Power cutting tools
|
Tool motor power
|
Kw
|
3.3（Siemens）/4.5（Fanuc）/3.1（SYNTEC CNC System）
|
|
Maximum rotational speed
|
rpm
|
4000（Siemens）/6000（Fanuc/SYNTEC CNC System）
|
|
|
Motor rated / Maximum torque
|
N.m
|
16（Siemens）/18（Fanuc）/15（SYNTEC CNC System）
|
|
|
Tool specification
|
|
BMT55
|
|
|

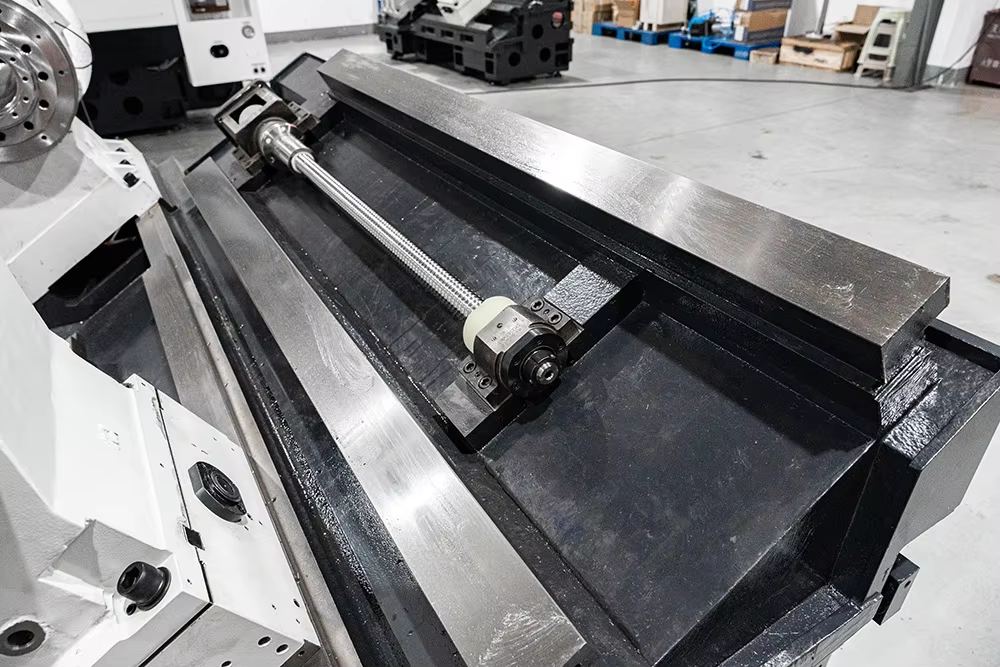

Mobile
|
X-axis fast shift
|
m/min
|
30
|
|
Z-axis fast shift
|
m/min
|
30
|
|
|
Y-axis fast shift
|
m/min
|
12
|
|
|
X-axis travel
|
mm
|
185+15
|
|
|
Maximum Z-axis stroke
|
mm
|
550
|
|
|
Y-axis travel
|
mm
|
±50
|
|
|
Cooling
|
Power
|
W
|
480
|
|
Traffic
|
m³/h
|
2.5
|
|
|
Precision
|
Precision turning outer circle accuracy
|
|
IT6
|
|
Surface roughness of precision machined parts
|
mm
|
Ra 0.4～1.6
|
|
|
The roundness of finely turned parts
|
mm
|
≤0.003
|
|
|
Positioning accuracy (X, Z, Y)
|
mm
|
X：0.005 Z：0.008 Y：0.008
|
|
|
Repeat positioning accuracy (X, Z, Y)
|
mm
|
X：0.002 Z：0.004 Y：0.004
|
|
|
Others
|
Weight
|
Kg
|
4530
|
|
Numerical control system
|
|
FANUC 0I TF/SYNTEC CNC System 22TB/ Siemens
|
|
|
External dimensions (length, width, height)
|
mm
|
2685×1750×1870(No chip conveyor included）
|
|
|
The above parameters are for reference only. In case of any discrepancy in color or size, the actual product shall prevail.
|
|||
 |
 |
1,What is the payment term?
For standard product: payment by T/T, 30% down payment upon ordering, 70% balance payment before shipment.
For non-standard customized products: payment by T/T, 50% down payment upon order placement, and the remaining 50% to be paid before shipment.
2,What are your minimum order quantity and warranty period?
MOQ is one set, and warranty is one year.
3,What is the packaging for the machine?
The machines standard will be packed in plywood case
4,How to choose the most suitable machine?
Please tell me your requirements, and I will recommend the most suitable machine model for you according to your needs.
5,What are your trade terms?
EXW，FOB, CFR, CIF or other terms are acceptable.
6,Where is your factory located?
It is located in Wuxi City, Jiangsu Province, China. Welcome you to visit us.
7,What are the main products of your company?
CNC Milling Machine，CNC Machining Center，CNC Turning Center，Vertical Drilling-Tapping Machine，5-Axis，CNC Lathe，Lathe，Milling Machine and Accessories.
