High Speed Efficiency:
Servo drive, fast shifting, and linear guides deliver rapid movement, high productivity, and low energy consumption.
Stable Precision Control:
Manual scraping, precision ball screws, and accurate positioning ensure high consistency and reliable machining accuracy.
Durable Structural Design:
HT300 castings, reinforced saddle, and double-layer protection extend machine life and maintain long-term performance

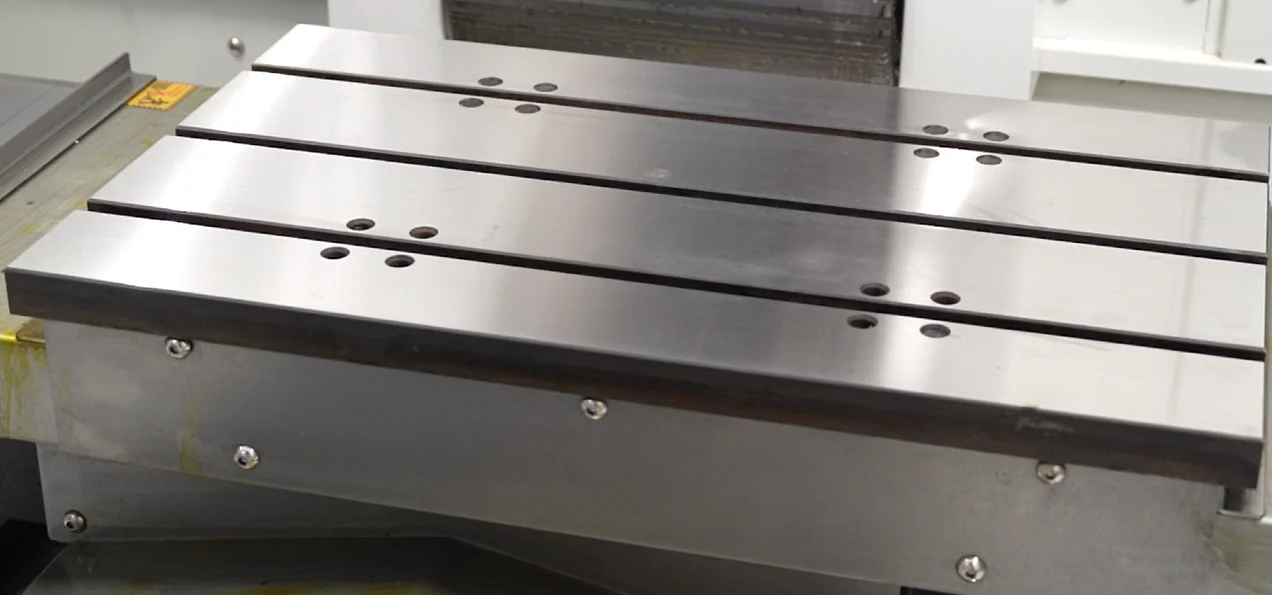

The worktable undergoes double-arm secondary quenching, offering pressure resistance, wear resistance and heavy load-bearing capacity.

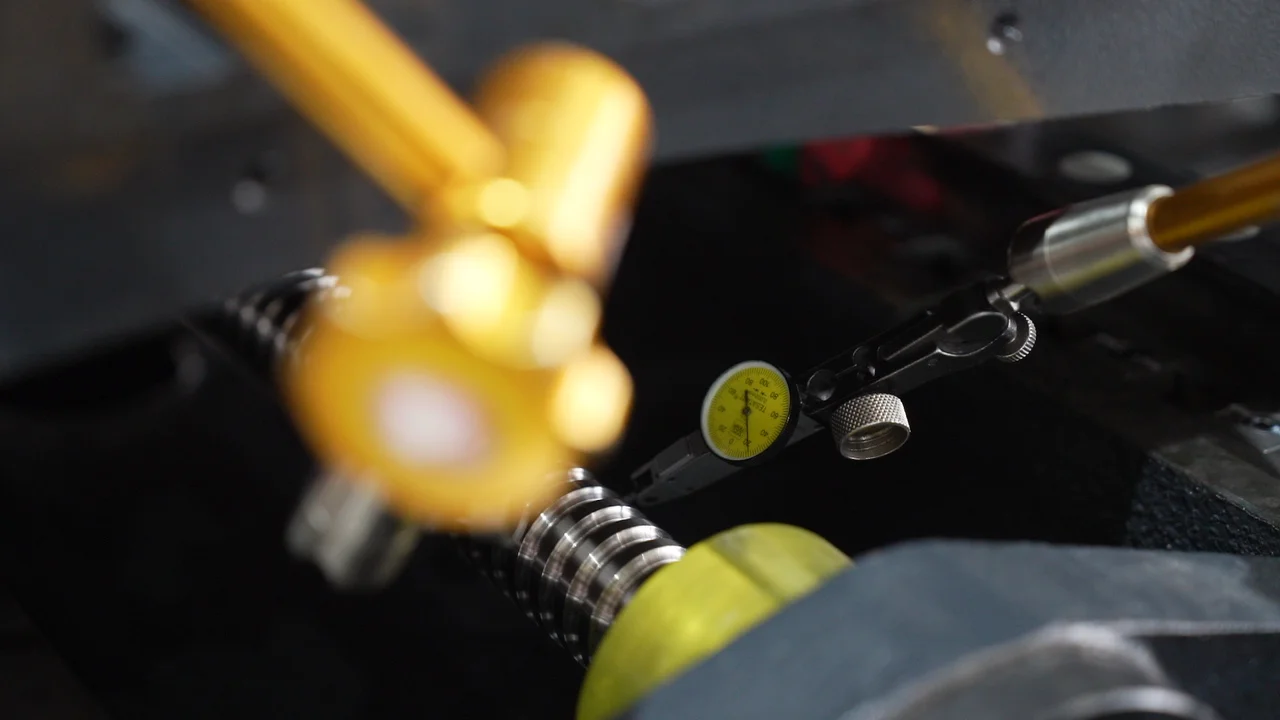

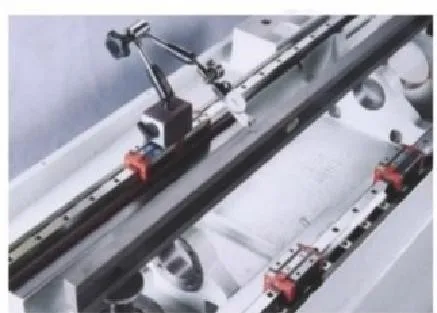

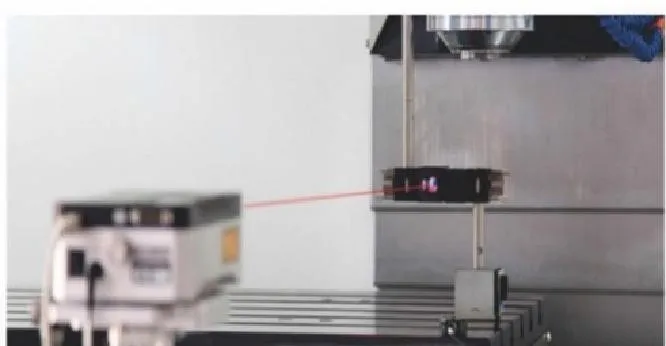

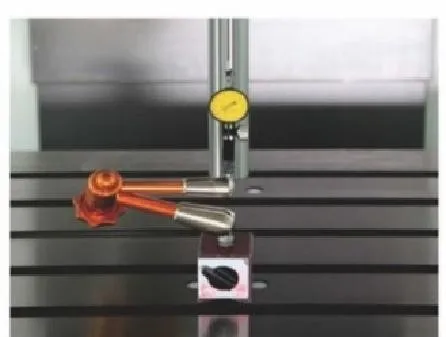

Screw accuracy test

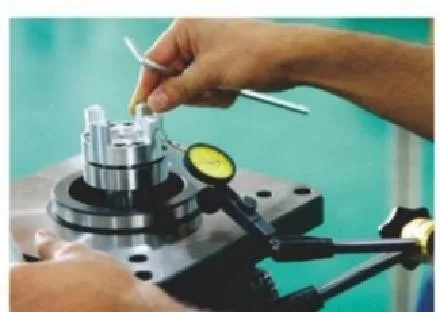

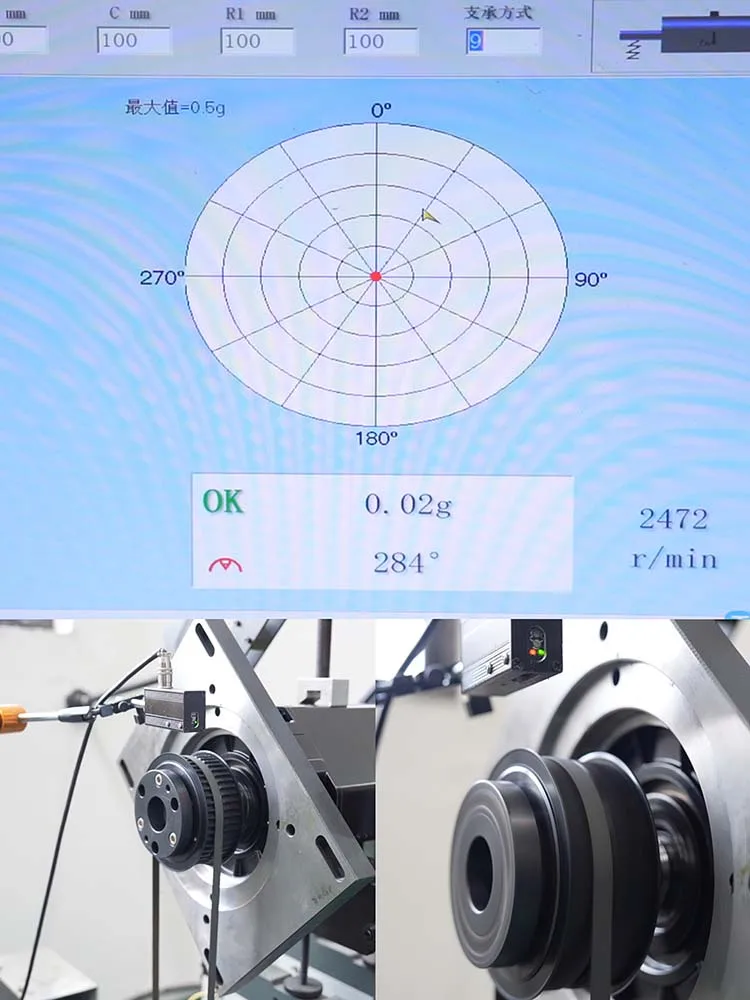

Spindle dynamic balance test

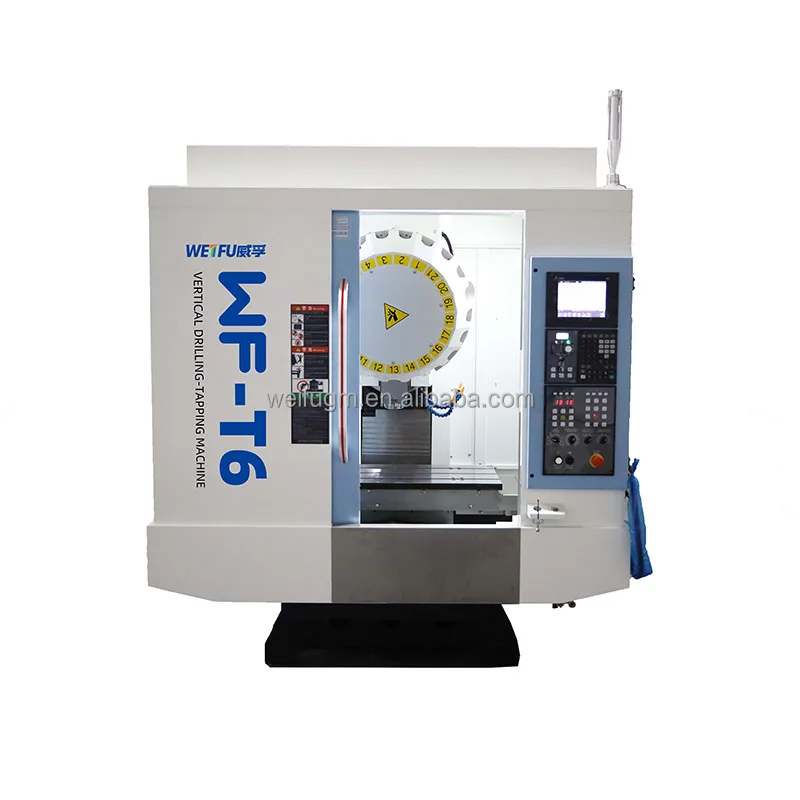

| Project | Single position | T600 drilling and tapping machine |
| X-axis travel | mm | 600 |
| Y-axis travel | mm | 400 |
| Z-axis travel | mm | 300 |
| Workbench area | mm | 700×420 |
| Maximum load capacity of the workbench | kg | 300 |
| T-slot (slot width × center distance) | mm | 3×18×120 |
| The distance from the nose end of the main shaft to the worktable surface | mm | 120 |
| The distance from the center of the main shaft to the surface of the column | mm | 450 |
| Spindle speed | rpm | 20000 |
| Spindle taper | BT30 | |
| Tool specification | BT-30 | |

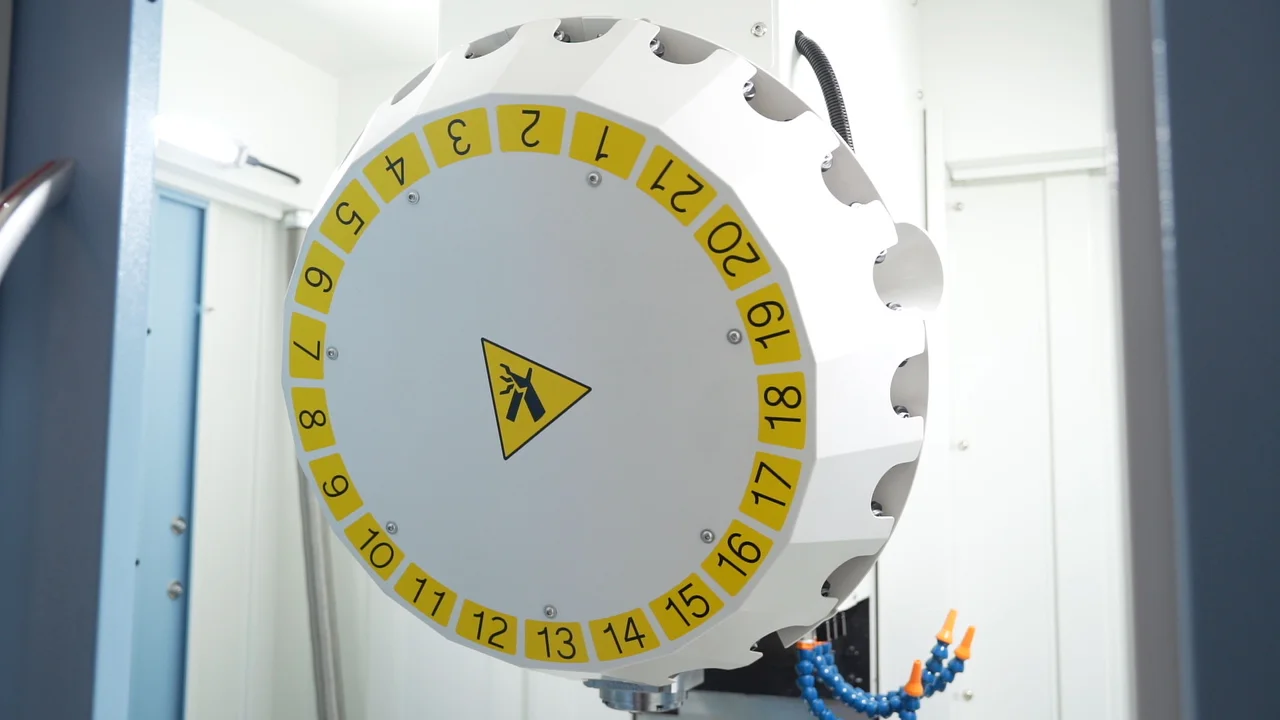

| Tool magazine form | Sun style | |
| The number of cutting tools | T | 21 |
| Tool holder specification | BT30-45° | |
| Maximum tool diameter / adjacent no tool | mm | |
| Maximum tool length | mm | |
| Maximum tool weight | kg | |
| Spindle motor | kW | 5.5 |
| X/Y/Z axis motor | kW | 1.5 / 1.5 / 3 |
| Rapid displacement of the X-axis | m/min | 48 |
| Rapid Y-axis displacement | m/min | 48 |
| Z-axis rapid displacement | m/min | 48 |
| Cutting feed rate | mm/min | 1—48000 |
| Positioning accuracy | mm | ±0.005 / 300mm (JIS standard) |
| Repeat positioning accuracy | mm | ±0.003 / 300mm (JIS standard) |
| Controller | SYNTEC CNC System | |
| The weight of the machine is approximately | kg | 2800 |
| Power supply requirements | KVA | 15 |
| Water tank capacity | L | |
| Air compressor source | kg/cm² | 5–7 |
| Overall dimensions (length × width × height) | mm | 1800×2100×2200 |
| The above parameters are for reference only. In case of any discrepancy in color or size, the actual product shall prevail. | ||
For standard products, payment is by T/T: 30% down payment upon ordering, and the remaining 70% balance to be paid before shipment.
For non-standard customized products, payment is by T/T: 50% down payment upon order placement, and the remaining 50% to be paid before shipment.
The minimum order quantity is one set, and the warranty period is one year.
The machine is normally packed in a plywood case.
Please tell us your requirements, and we will recommend the most suitable machine model according to your needs.
EXW, FOB, CFR, CIF, and other trade terms are acceptable.

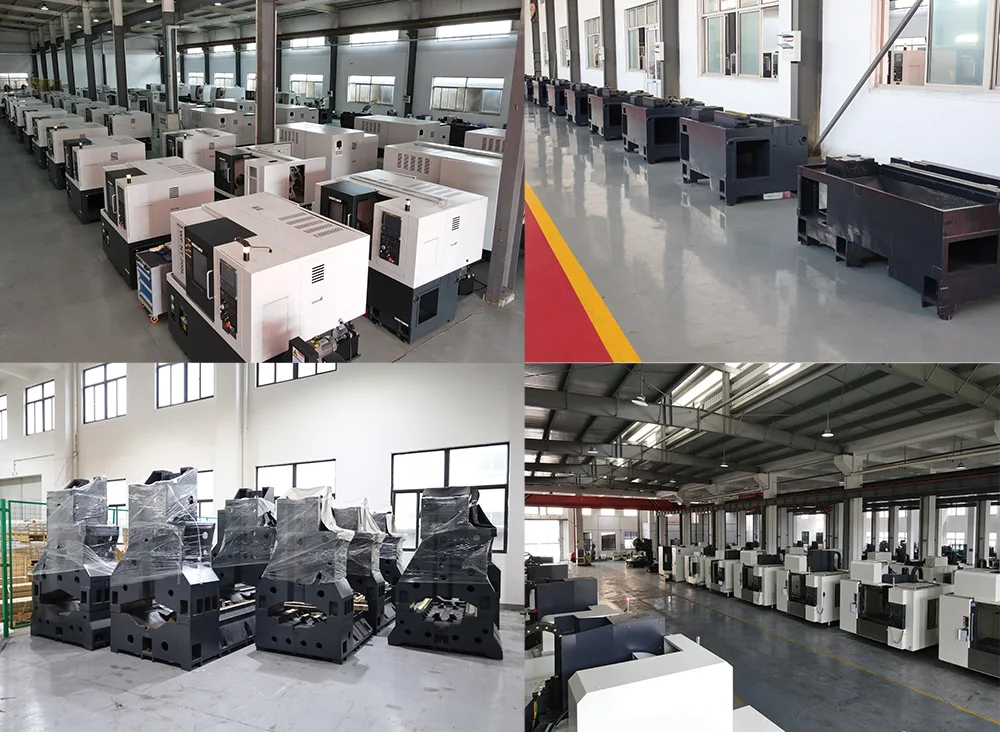

Our factory is located in Wuxi City, Jiangsu Province, China. You are welcome to visit us.
Our main products include CNC milling machines, CNC machining centers, CNC turning centers, vertical drilling and tapping machines, 5-axis machines, CNC lathes, lathes, milling machines, and accessories.
