project
|
Models
|
unit
|

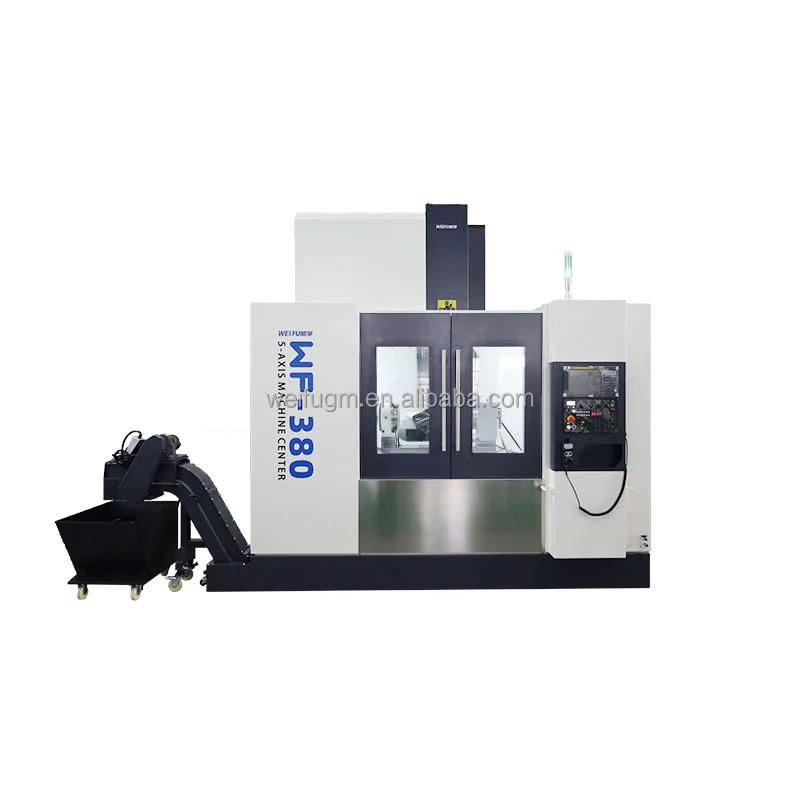

WF-380
|
|
itinerary
|
X-axis travel - saddle left and right
|
mm
|
550
|
|
Y-axis tool change stroke - front and rear of the beam
|
mm
|
650
|
|
|
Z-axis travel - up and down the headstock
|
mm
|
500
|
|
|
A-axis - rotary table swing angle
|
°
|
-45°~110°
|
|
|
C-axis - rotary table rotation angle
|
°
|
360°
|
|
|
Spindle end face distance from rotary table table (A-axis 0°)
|
mm
|
0-500
|
|
|
The end face of the spindle is 90° from the axis of rotation on the axis (90° on the axis of the A) axis.
|
mm
|
0-500
|
|
|
Spindle center distance from A-axis end face (A-axis 90°)
|
mm
|
front400 back500
|
|
|
Processing range
|
mm
|
φ500*H400
|
|
|

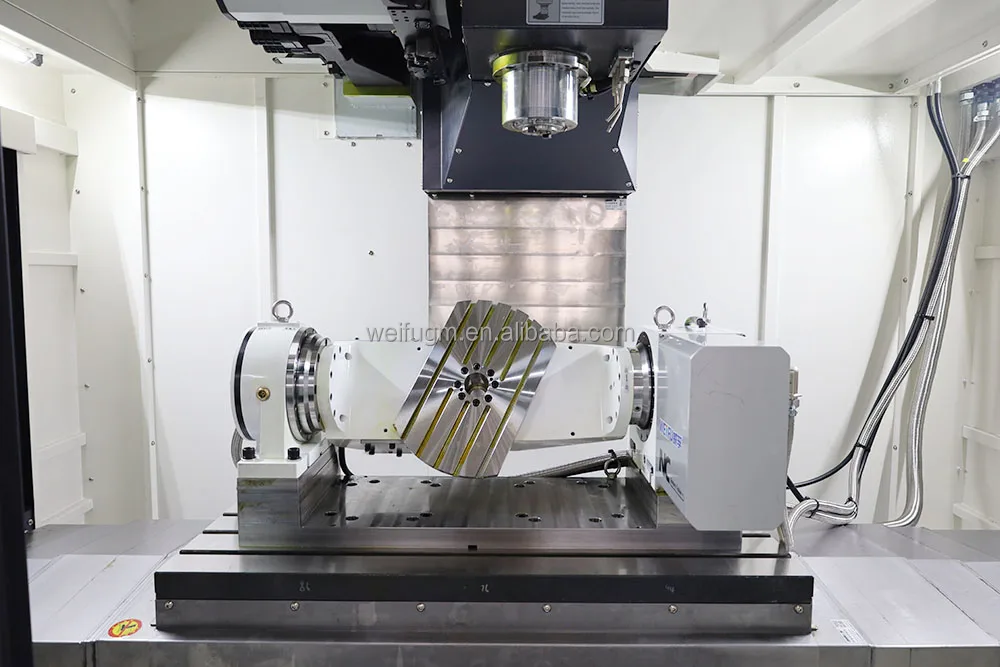

Turntable (AC axis dual direct drive)
|
Table size
|
mm
|
φ400
|
|
Maximum load allowed
|
kg
|
150
|
|
|
A/C axis - swing speed
|
rpm
|
33/88
|
|
|
Spindle
|
Taper hole
|
type
|
BBT40/HSK-A63
|
|
Range of revolutions
|
r/min
|
12000/optional 18000
|
|
|
Rated output torque
|
nm
|
35-47
|
|
|
Spindle motor power
|
kw
|
11
|
|
|
Feed
|
The XYZ axis moves quickly
|
m/min
|
36
|
|
Reference (without weight)
|

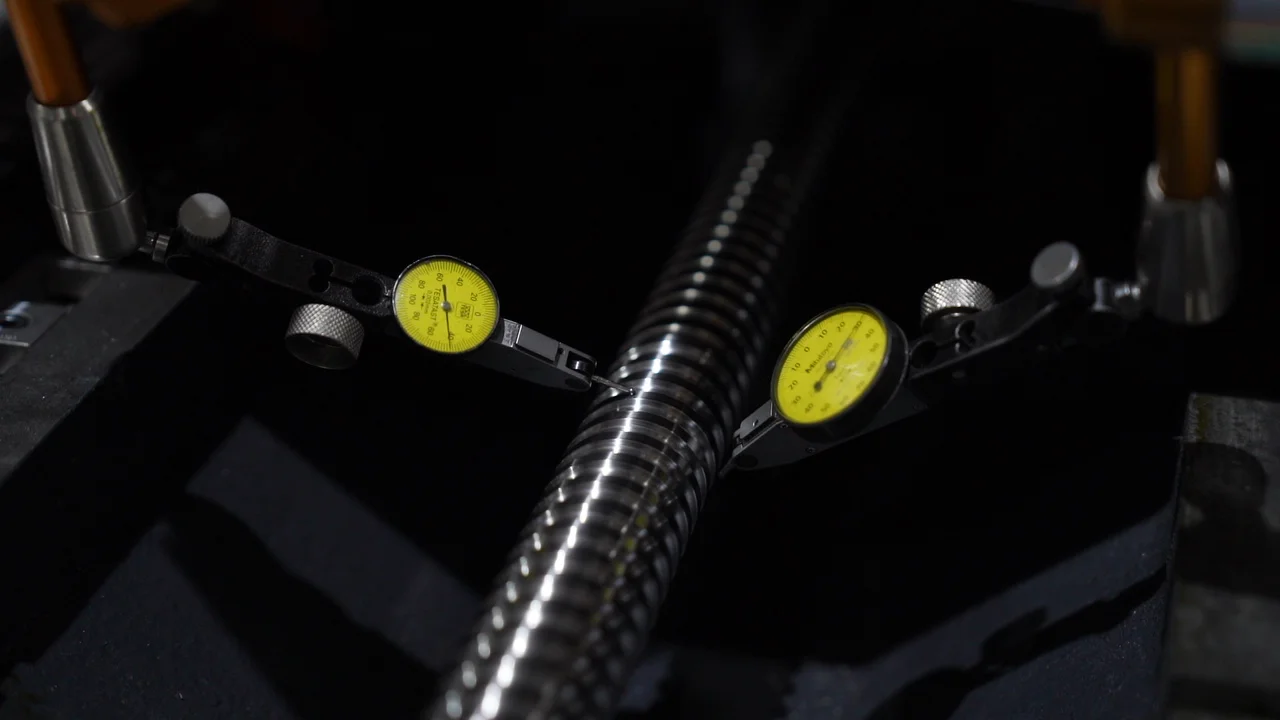

XYZ axis screw
|
type
|
4012
|
|
XYZ axis rail
|
type
|
45
|
|
|
X/Y/Z axis drag motor power
|
kw
|
3.0/3.0/3.0
|
|
|
X/Y/Z axis feed speed
|
m/min
|
10
|
|
|
Tool magazine (optional)
|
Tool magazine type
|
type
|
Disc/hat type
|
|
Tool magazine capacity
|
tools
|
24
|
|
|
Maximum diameter of the tool
|
mm
|
φ75
|
|
|
Maximum tool diameter (adjacent slots are free)
|
mm
|
φ150
|
|
|
Maximum tool length
|
mm
|
300
|
|
|
Maximum knife weight
|
kg
|
8
|
|
|

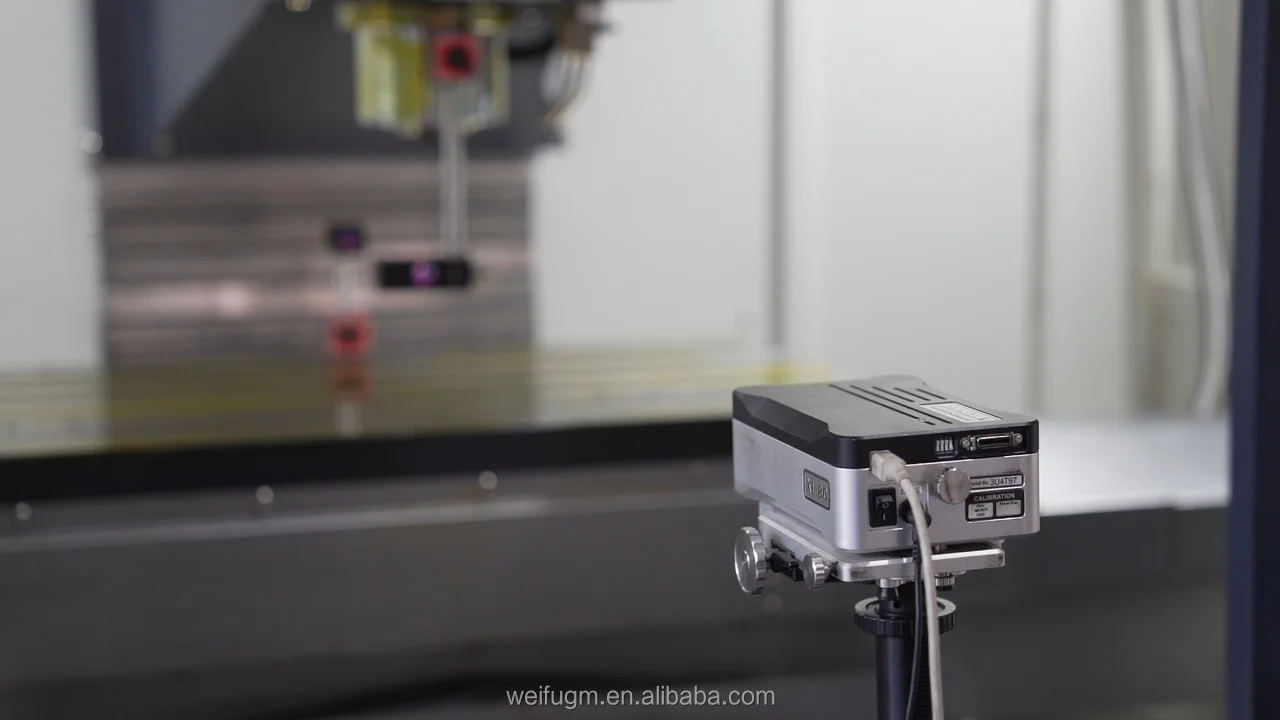

Positioning accuracy
|
X/Y/Z axis
|
mm
|
0.005/300
|
|
A/C axis
|
Corner seconds
|
±15/±10
|
|
|
Repeatable positioning accuracy
|
X/Y/Z axis
|
mm
|
0.005
|
|
A/C axis
|
Corner seconds
|
±15/±10
|
|
|
overall
|
Machine weight
|
kg
|
6500
|
|
Floor area
Width x depth x height |
m
|
3000*2550*2500
|
|
|
The above parameters are for reference only. In case of any discrepancy in color or size, the actual product shall prevail.
|
|||
1,What is the payment term?
For standard product: payment by T/T, 30% down payment upon ordering, 70% balance payment before shipment.
For non-standard customized products: payment by T/T, 50% down payment upon order placement, and the remaining 50% to be paid before shipment.
2,What are your minimum order quantity and warranty period?
MOQ is one set, and warranty is one year.
3,What is the packaging for the machine?
The machines standard will be packed in plywood case
4,How to choose the most suitable machine?
Please tell me your requirements, and I will recommend the most suitable machine model for you according to your needs.
5,What are your trade terms?
EXW，FOB, CFR, CIF or other terms are acceptable.
6,Where is your factory located?
It is located in Wuxi City, Jiangsu Province, China. Welcome you to visit us.
7,What are the main products of your company?
CNC Milling Machine，CNC Machining Center，CNC Turning Center，Vertical Drilling-Tapping Machine，5-Axis，CNC Lathe，Lathe，Milling Machine and Accessories.
