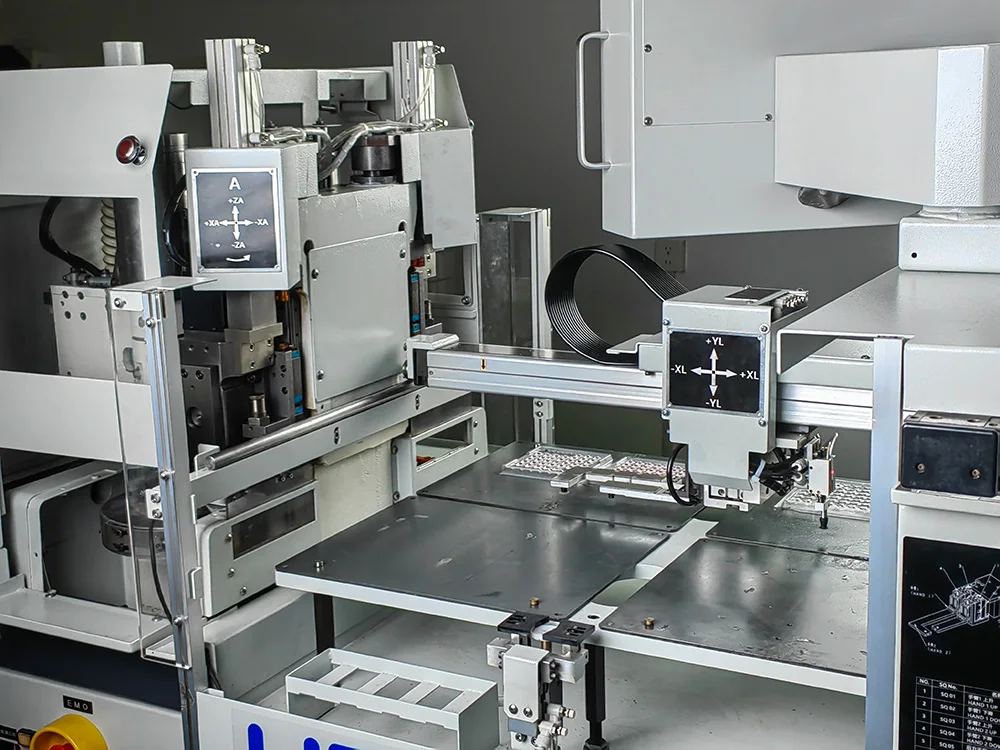

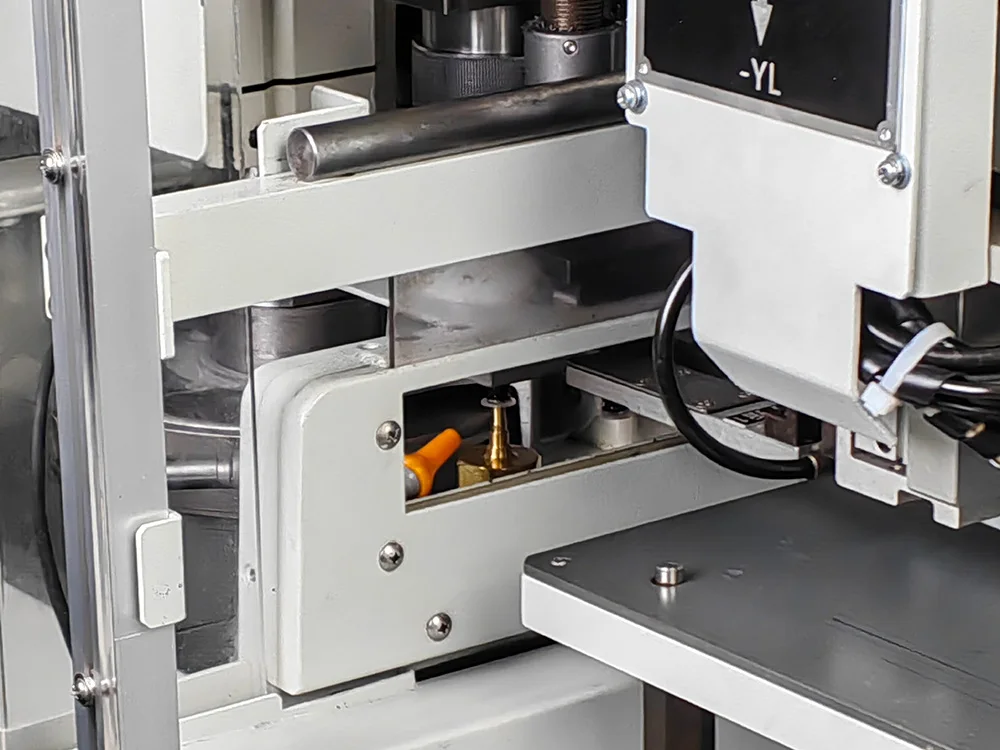

Equipment Overview

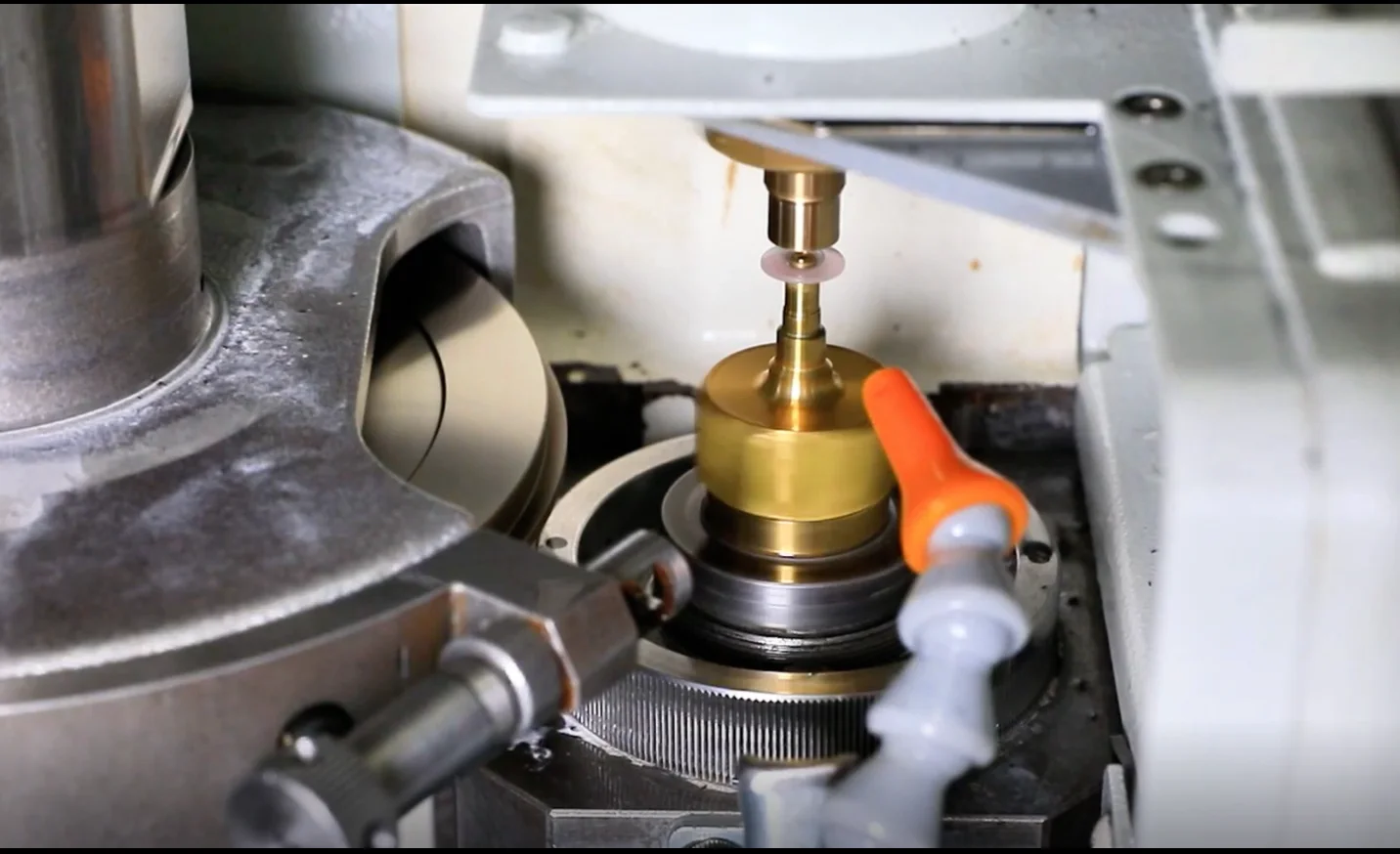

This equipment is mainly a dual - station vertical grinding machine designed for grinding the outer diameter, chamfer, and end face of optical concave - convex lenses, and it can also process special - shaped lenses.

The machine occupies a small volume. The product positioning has the function of automatic centering. It is easy to operate, and the product processing and positioning accuracy is good.

It is the best equipment for lens processing.

product full automatic cylinder grinding machine wf 60qm dual station lens grinding and polishing machines-5

product full automatic cylinder grinding machine wf 60qm dual station lens grinding and polishing machines-6

Equipment Features

Dual-station high-speed grinding:

Small footprint, with output equivalent to 2 single-station machines.
Grinding wheel spindle:

Adopts aerostatic synchronous direct-drive design, with a rotation accuracy of 0.3μm.

Optional function:

Ultrasonic-assisted grinding for sapphire lenses.

On-machine functions:

Supports fixture dressing and real-time measurement of diameter and thickness.

Control system:

AI intelligent network automatic control.

No wear, high precision, low vibration, long service life

product full automatic cylinder grinding machine wf 60qm dual station lens grinding and polishing machines-7

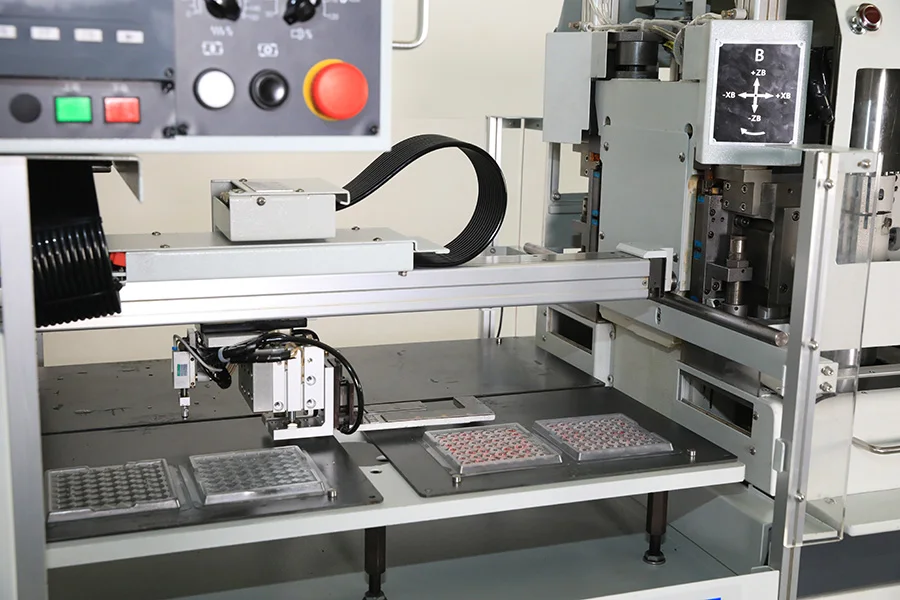

Dual-Station Workbench

product full automatic cylinder grinding machine wf 60qm dual station lens grinding and polishing machines-8

Syntec System

product full automatic cylinder grinding machine wf 60qm dual station lens grinding and polishing machines-9

Spindle

Product Paramenters

	Project	Specifications/Parameters
	Overall Dimensions(L×W×H)	1380×880×1880mm
	Machine Weight	800Kg
	Pneumatic Supply	0.6Mpa(6kg/c㎡)
	Power Supply	Three-phase 380V, 50Hz
	Number of Control Axes	12 Axes
Processable Lens Dimensions	Outer Diameter	φ2 - φ60mm Max
		Thickness	Max 10 mm
		Shape	Concave and Convex Lenses
		Processing Time	Determined by lens grinding parameters
Workpiece Vertical Axis	Machining Speed	1.8～3000rpm (Stepless Speed Regulation)
		Centering Speed	1000 rpm Max.
		Drive Motor Specification	AC Servo Motor, 200W
		Cylinder Specification	φ25 mm
		Adjustment Stroke	25~45mm
Grinding Wheel Axis	Grinding Wheel Speed	8000 rpm
		Grinding Wheel Motor	Permanent Magnet Synchronous Motor, 380V, 5kW, 400Hz, 6-Pole
		Grinding Wheel Specification	Outer Diameter φ160 (φ125 Optional) / Shaft Hole φ30H6
		Vertical Movement Range	31mm
		Horizontal Movement Range	70mm
X-Axis	Total Stroke	600mm
		Movement Resolution	0.01mm
		Repeatability	±0.02mm
		Product Placement Accuracy	±0.1mm
		Drive Motor	AC Servo Motor / 100W
Y-Axis	Total Stroke	600mm
		Movement Resolution	0.01mm
		Repeatability	±0.02mm
		Product Placement Accuracy	±0.1mm
		Drive Motor	AC Servo Motor / 100W
Z-Axis	Drive Method	Pneumatic Cylinder
Positioning Mechanism	Clampable Lens Specification	Φ60mm (Max.)
	Positioning Accuracy	±0.25mm

Quality inspection

product full automatic cylinder grinding machine wf 60qm dual station lens grinding and polishing machines-10

AE measurement

product full automatic cylinder grinding machine wf 60qm dual station lens grinding and polishing machines-11

Spindle accuracy inspection

- Axial runout

product full automatic cylinder grinding machine wf 60qm dual station lens grinding and polishing machines-12

Spindle accuracy inspection

- Radial runout
