High Precision Performance:
Pre-tensioned lead screws and manual scraping maintain long-term accuracy and stable machining quality.
Strong Structural Rigidity:
HT300 castings and reinforced structure support heavy cutting and stable high-speed machining.
Efficient Smart Operation:
Fast tool changes, automatic cleaning, and automation-ready design improve productivity and flexibility.

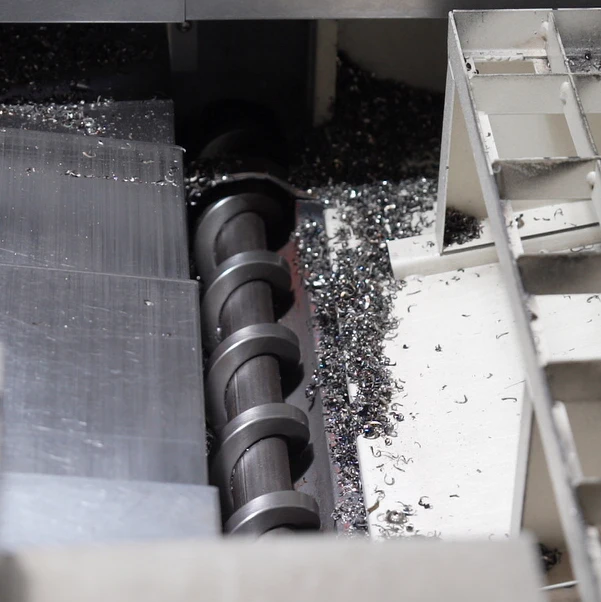

Equipped with a double-screw and single-chain chip conveyor, it automatically cleans machining chips, eliminating the trouble of manual cleaning, and is efficient and environmentally friendly.

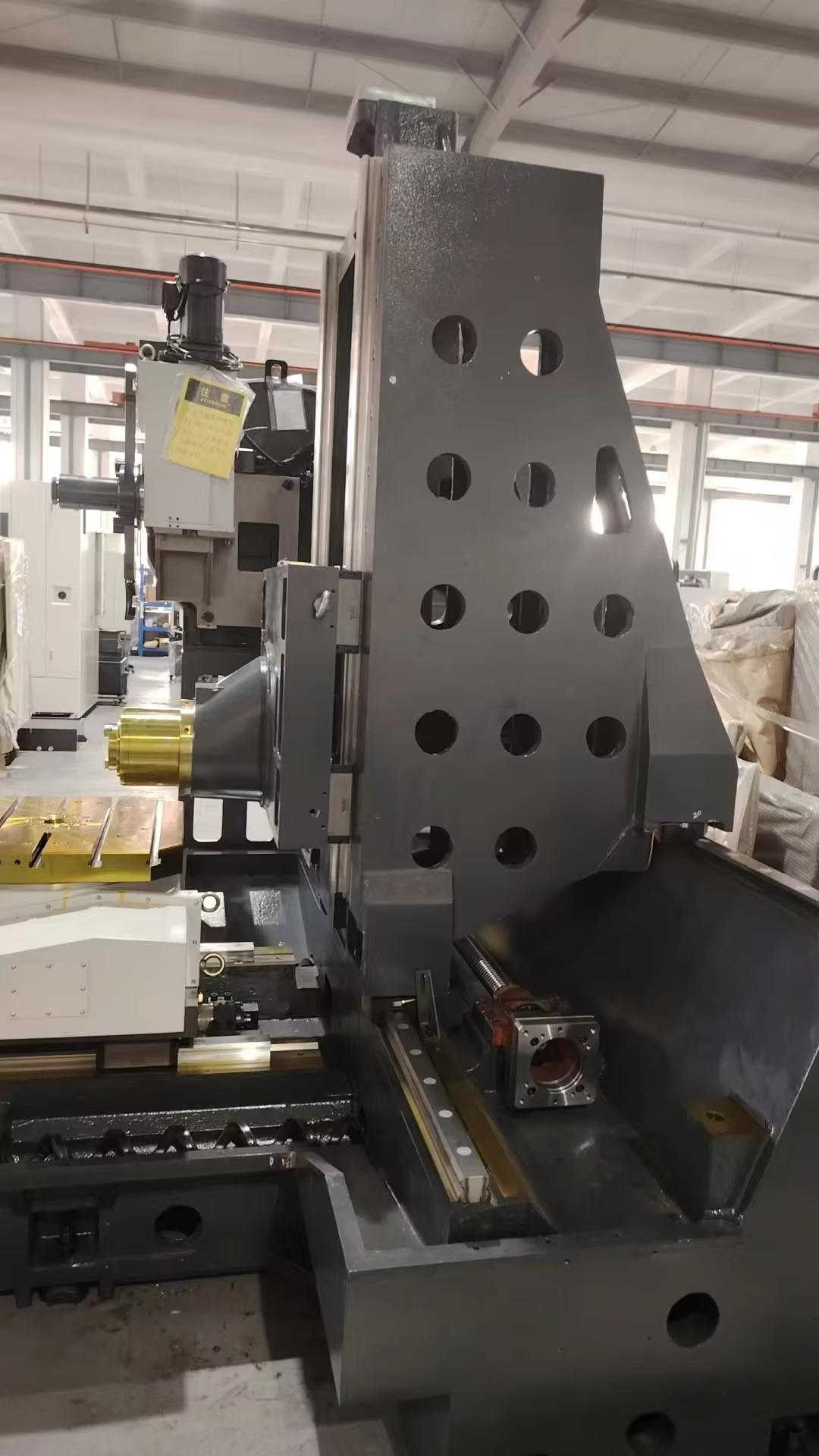

Positive T-integrated, multi-layer reinforced rib box-type base design. The base fully supports the X-axis and Z-axis, featuring high rigidity, excellent dynamic performance and stable high-speed machining.

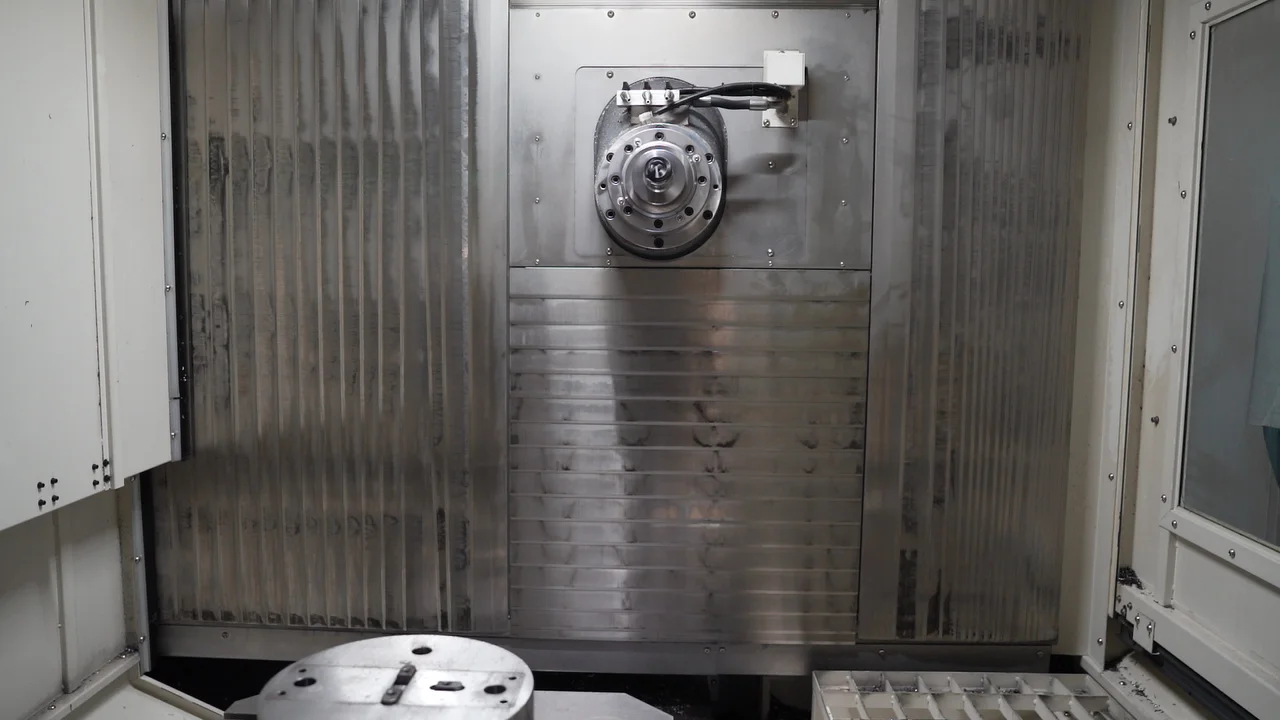

The XY integrated wall-type armor shield provides impenetrable protection for the machine tool, and the machine tool runs quietly at high speed.

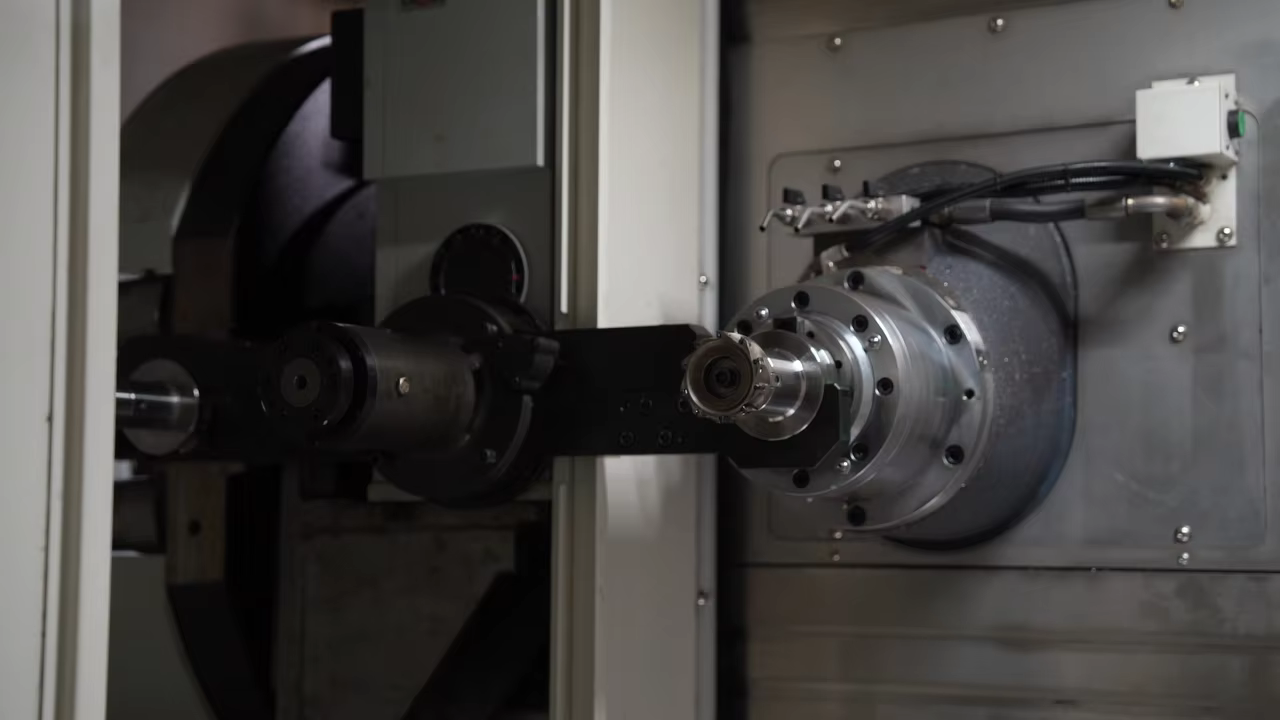

Heavy-duty cam, supporting a maximum tool weight of 25KG. The tool arm has a small radius, enabling fast and stable tool changing.

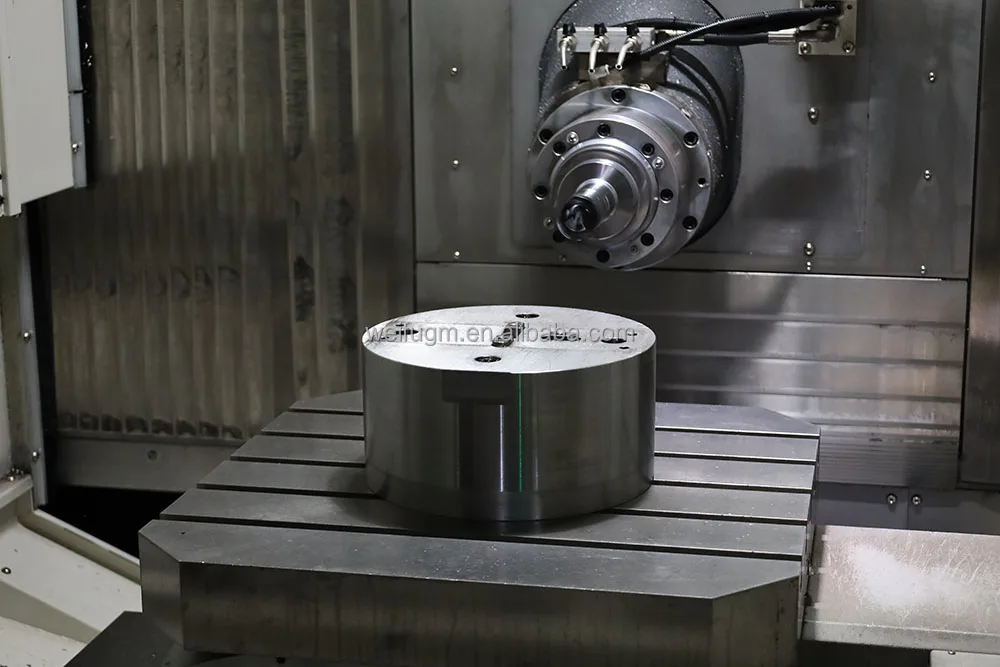

Original imported Taiwanese turntables (Baojiacheng, Tanjia) are adopted, with optional 1 degree 1 minute and 1/1000 degree. The turntable features high precision, high rigidity and long service life.

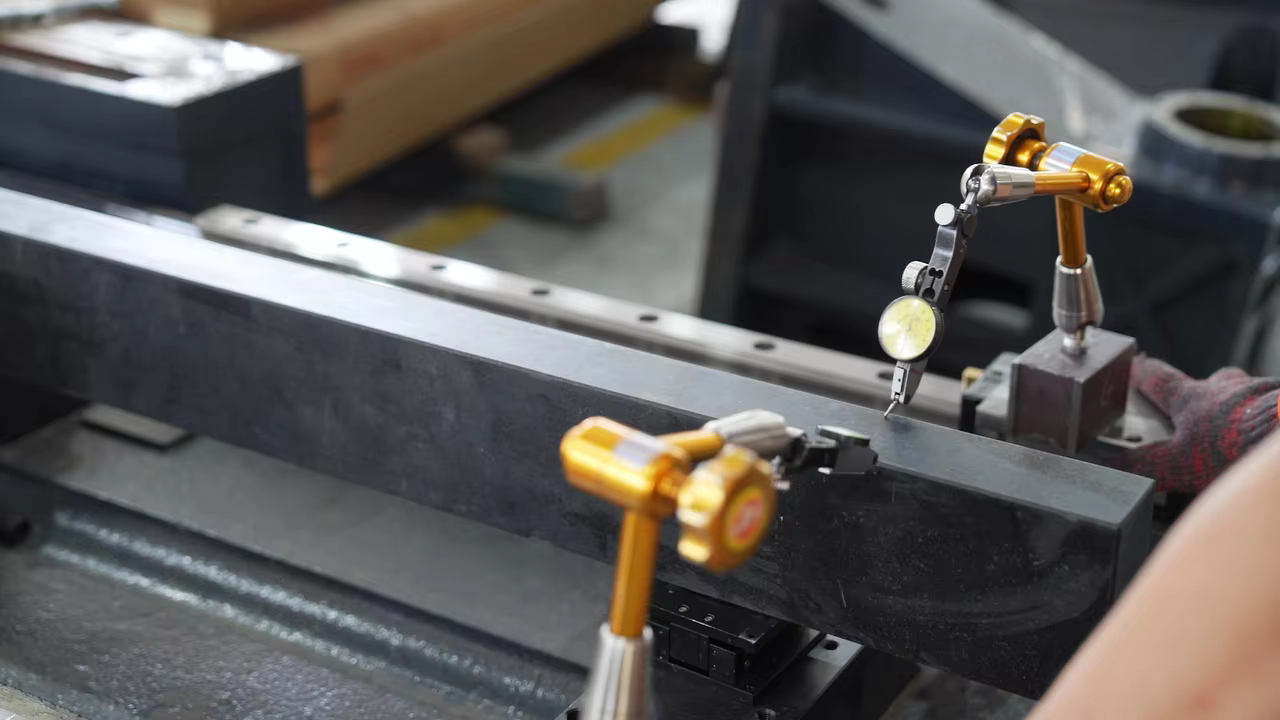

Straightness detection involves using precision instruments to inspect the accuracy of linear guideway sliders, ensuring high precision of the products.

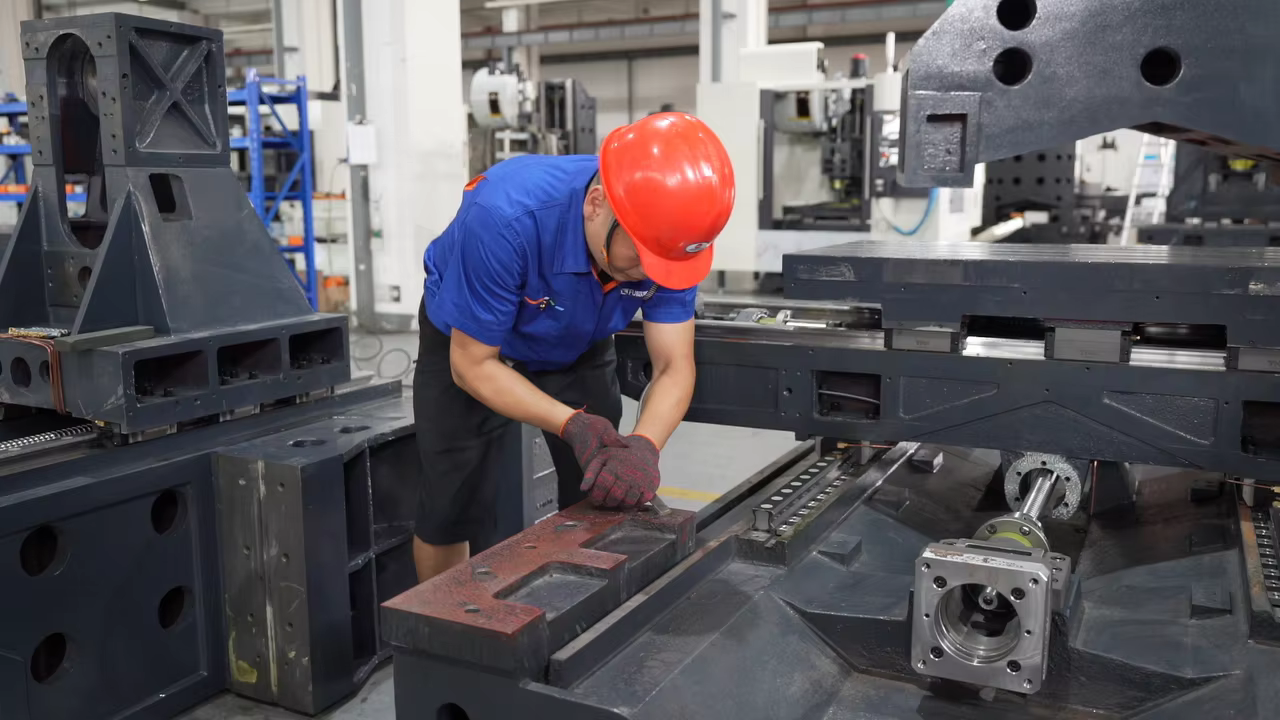

The base, mounting surface, bearings, etc., are 100% manually scraped, which improves the machine precision and enables the machine tool to maintain stability during long-term operation.
|
Project
|
Single position
|
WF-630
|
|
X-axis travel
|
mm
|
1000
|
|
Y-axis travel
|
mm
|
800
|
|
Z-axis travel
|
mm
|
800
|
|
Workbench area
|
mm
|
630*630
|
|
Maximum load capacity of the workbench
|
kg
|
1200
|
|
T-slot (slot - width X center distance)
|
mm
|
4*100/18H7
|
|
The distance from the nose end of the main shaft to the worktable surface
|
mm
|
150-950
|
|
The distance from the centerline of the main shaft to the worktable surface
|
mm
|
150-950
|
|
Maximum rotational diameter
|
mm
|
1500
|
|
Spindle speed
|
rpm
|
Belt 6000
|
|
Taper of the spindle diameter
|
|
190-BT50
|
|
Tool specification
|
|
BT-50
|
|
Tool magazine form
|
|
Knife arm type (700 arm length)
|
|
The number of cutting tools
|
T
|
24
|
|
Maximum tool diameter/adjacent no tool
|
Mm
|
100-200
|
|
Maximum tool length
|
Mm
|
400
|
|
Maximum tool weight
|
Kg
|
20
|
|
Spindle motor
|
kw
|
BIL-30
|
|
X/Y/Z axis motor
|
kw
|
BIS40-40-40B
|
|
X-axis rapid displacement
|
m/min
|
24
|
|
Y-axis rapid displacement
|
m/min
|
24
|
|
Z-axis rapid displacement
|
m/min
|
24
|
|
Cutting feed rate
|
mm/min
|
1—24000
|
|
Positioning accuracy
|
mm
|
±0.005/300mm
|
|
Repeat positioning accuracy
|
mm
|
±0.003/300mm
|
|
Controller
|
Fanuc
|
OI-MF
|
|
Machine weight
|
T
|
13
|
|
Power supply requirements
|
KVA
|
40
|
|
Water tank capacity
|
L
|
200
|
|
Air compressor source
|
kg/cm2
|
6
|
|
Overall dimensions (length * width * height)
|
mm
|
5000*4500*4350
|
|
The above parameters are for reference only. In case of any discrepancy in color or size, the actual product shall prevail.
|
||
