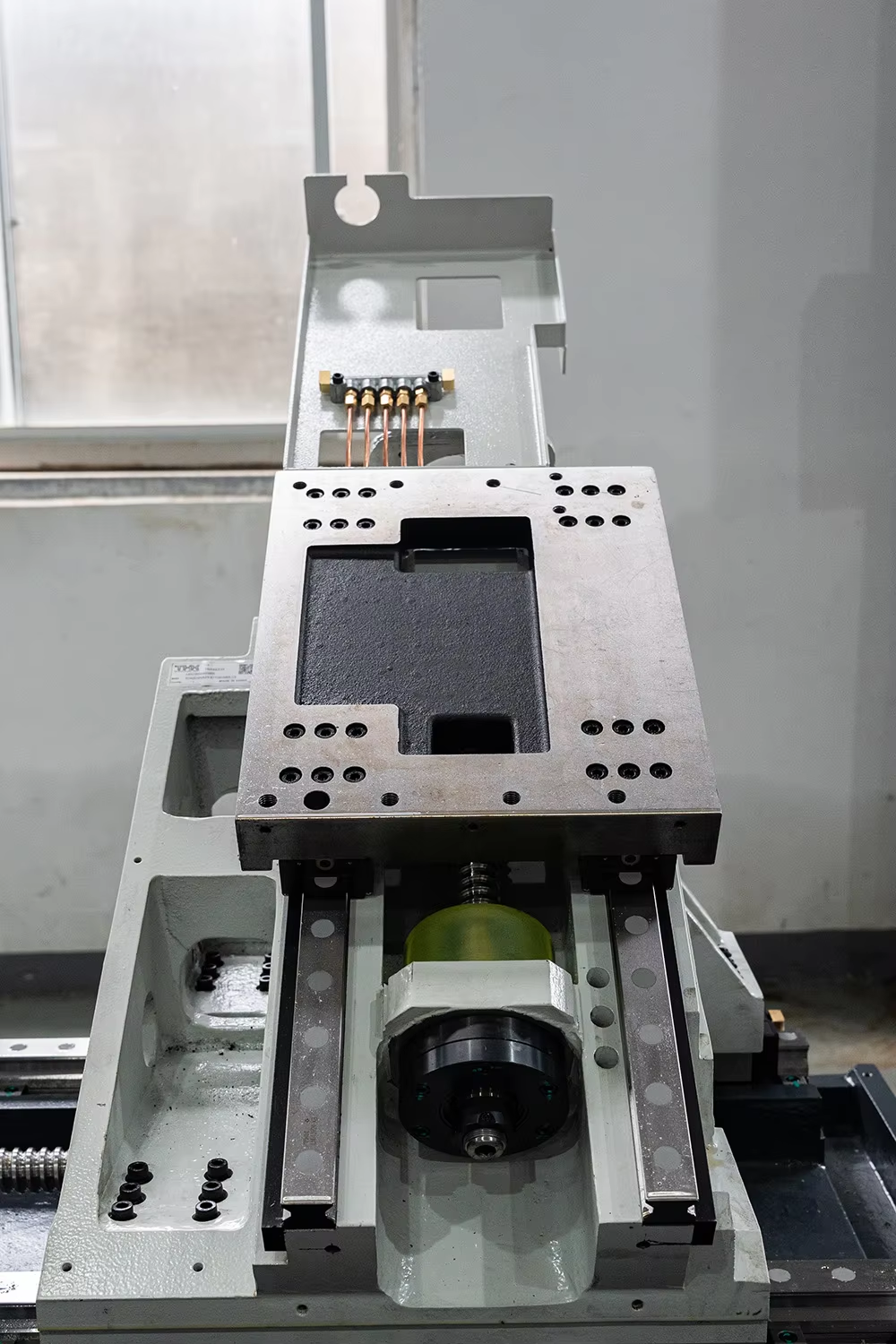

The lead screw is pre-tensioned to reduce its sagging deformation and enhance axial rigidity.

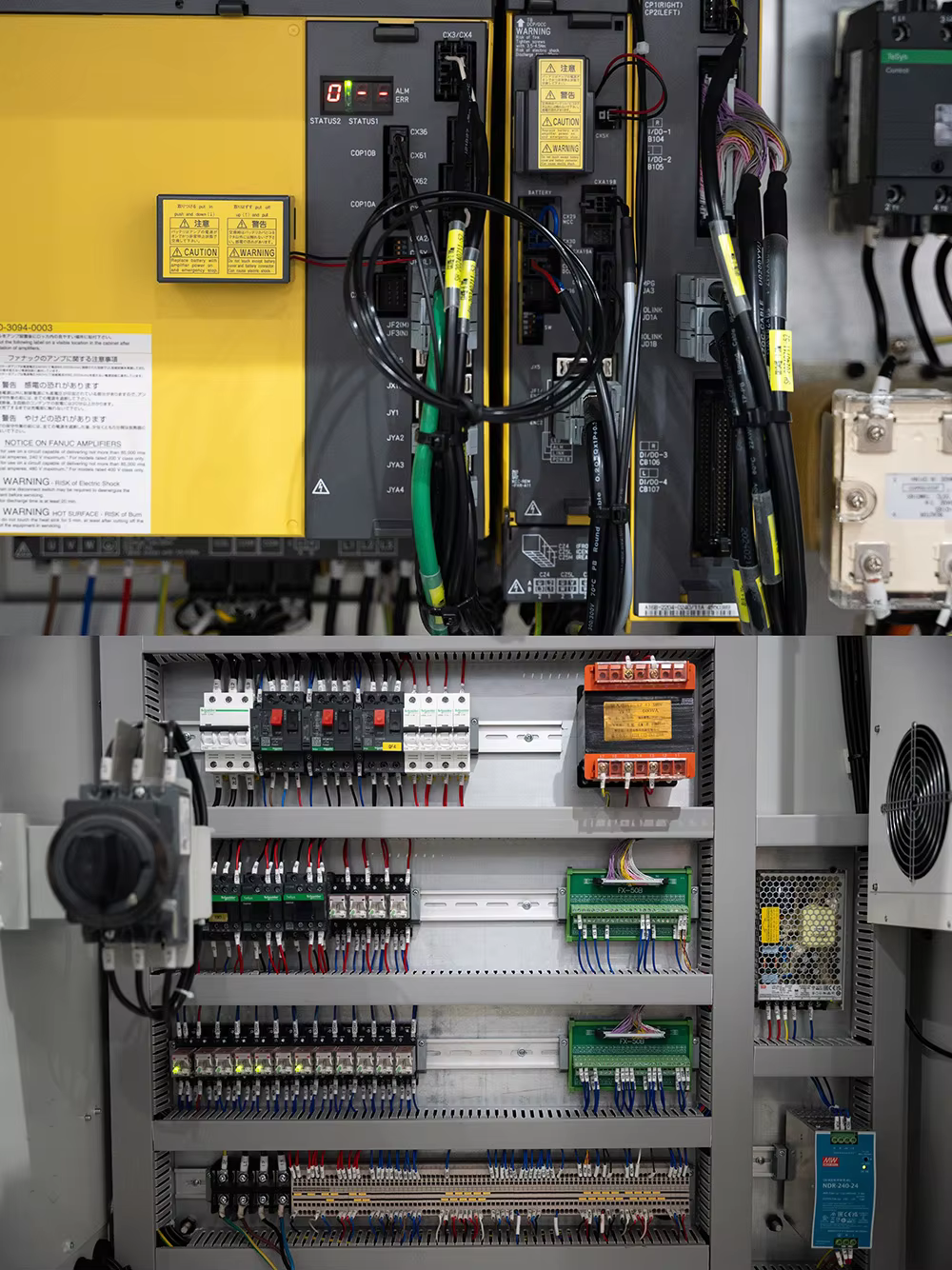

Electrical cabinet: Famous brand electrical components such as Schneider and Omron are adopted, and the overall protection level of the electrical cabinet is IP54.
The receiving tray can realize an automated module.

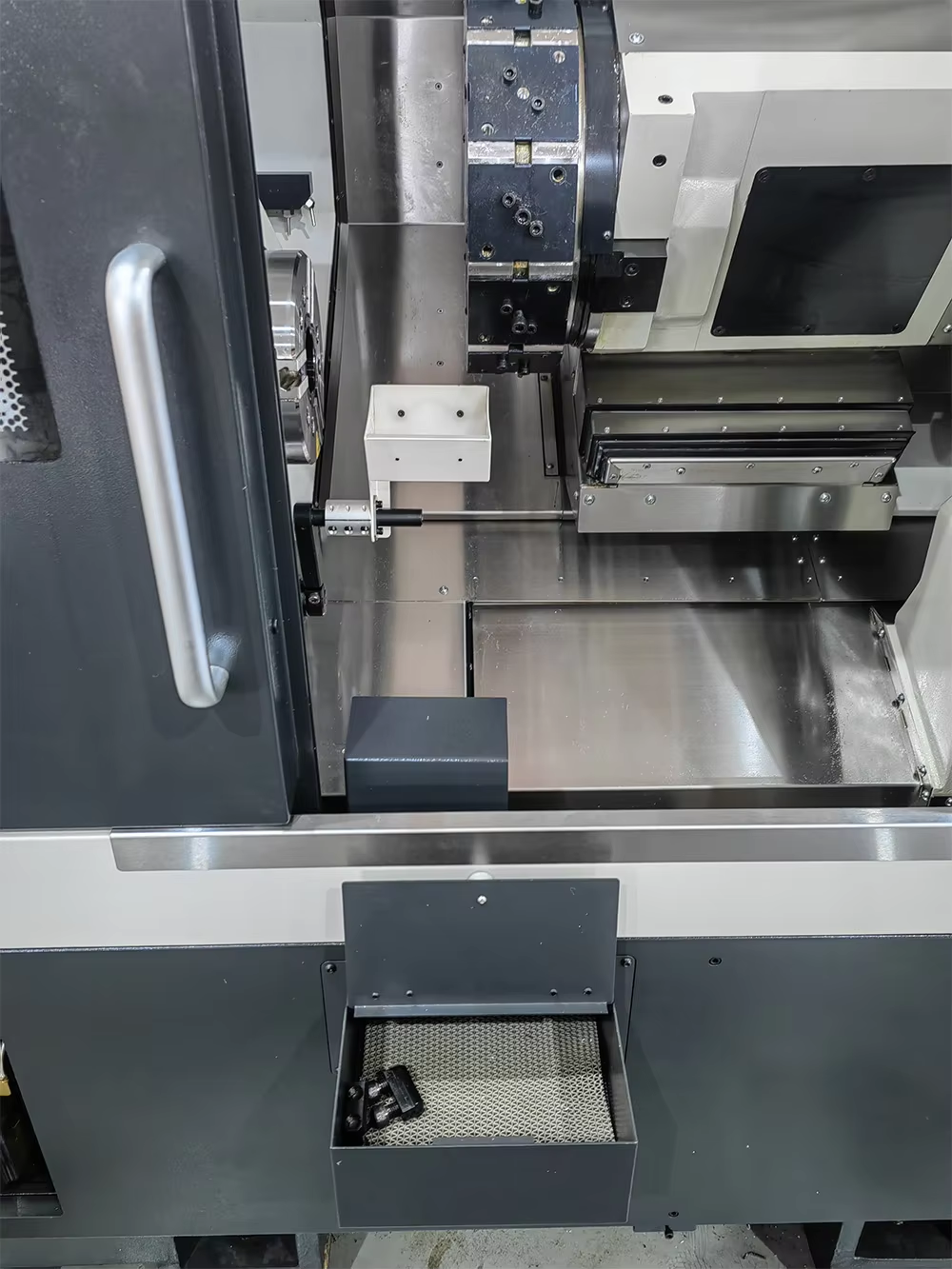

The XY axes are made of stainless steel, which is aesthetically pleasing. Secondary internal protection helps intercept chips, reduce cleaning and maintenance costs, and prevent iron chip splashing.
The product can be optionally equipped with a tool setter, tailstock, receiving tray, etc., which can be combined and matched in a modular way.
The product can be optionally equipped with a tool setter, tailstock, receiving tray, etc., which can be combined and matched in a modular way.
|
Project
|
Unit
|
Specifications/Parameters
|
||
|
Processing capacity
|
Chuck size
|
inch
|
8
|
|
|
The rotation diameter of the bed
|
mm
|
Ф700
|
||
|
The rotary diameter of the drag plate
|
mm
|
Ф200
|
||
|
Maximum processing length
|
mm
|
530
|
||
|
Maximum processing diameter
|
mm
|
Ф370
|
||
|
Main shaft
|
Maximum rotational speed
|
rpm
|
4500
|
|
|
Spindle end form
|
ISO
|
A2-6
|
||
|
Diameter of the main shaft through hole
|
mm
|
Ф63
|
||
|
The pull rod has a through hole
|
mm
|
Ф52
|
||
|
Main motor power
|
KW
|
11/15
|
||
|
C-axis indexing capability
|
Deg
|
0.001°
|
||
|
Dota
|
Form
|
/
|
Power tool turret
|
|
|
Number of workstations
|
a
|
12
|
||
|
The rotation time of adjacent tool positions
|
S
|
0.2
|
||
|
The farthest tool position rotation time
|
S
|
0.5
|
||
|
The maximum size of the square knife handle
|
mm
|
□25×25
|
||
|
The maximum size of the round knife handle
|
mm
|
φ40
|
||
|
Power cutting tools
|
Tool motor power
|
KW
|
3.3（Siemens）/4.5（Fanuc）/3.1（SYNTEC CNC System）
|
|
|
Maximum rotational speed
|
RPM
|
4000（Siemens）/6000（Fanuc/SYNTEC CNC System）
|
||
|
Motor torque
|
N.M
|
16（Siemens）/18（Fanuc）/15（SYNTEC CNC System）
|
||
|
Tool specification
|
BMT55
|
|||
|
Mobile
|
X-axis fast shift
|
m/min
|
30
|
|
|
Z-axis fast shift
|
m/min
|
30
|
||
|
Y-axis fast shift
|
m/min
|
12
|
||
|
X-axis travel
|
mm
|
185+15
|
||
|
Z-axis travel
|
mm
|
550
|
||
|
Y-axis travel
|
mm
|
±50
|
||
|
Tailseat
|
Tailstock movement range (programmable range)
|
mm
|
500
|
|
|
Tailstock quick shift speed
|
Servo tailstock
|
m/min
|
30
|
|
|
Hydraulic tailstock
|
m/min
|
10
|
||
|
Sleeve conical hole
|
ISO
|
MT4
|
||
|
Cooling
|
Power
|
W
|
480
|
|
|
Traffic
|
m³/h
|
2.5
|
||
|
Precision
|
Precision turning outer circle accuracy
|
IT6
|
||
|
Surface roughness of precision machined parts
|
mm
|
Ra 0.4～1.6
|
||
|
The roundness of finely turned parts
|
mm
|
≤0.003
|
||
|
Positioning accuracy (X, Z)
|
mm
|
X：0.005 Z：0.008
|
||
|
Repeat positioning accuracy (X, Z）
|
mm
|
X：0.002 Z：0.004
|
||
|
Others
|
Weight
|
Kg
|
4150
|
|
|
Numerical control system
|
FANUC 0I TF / SYNTEC CNC System22TB / Siemens
|
|||
|
External dimensions (length, width, height)
|
mm
|
2585×1750×1870No chip conveyor included）
|
||
|
