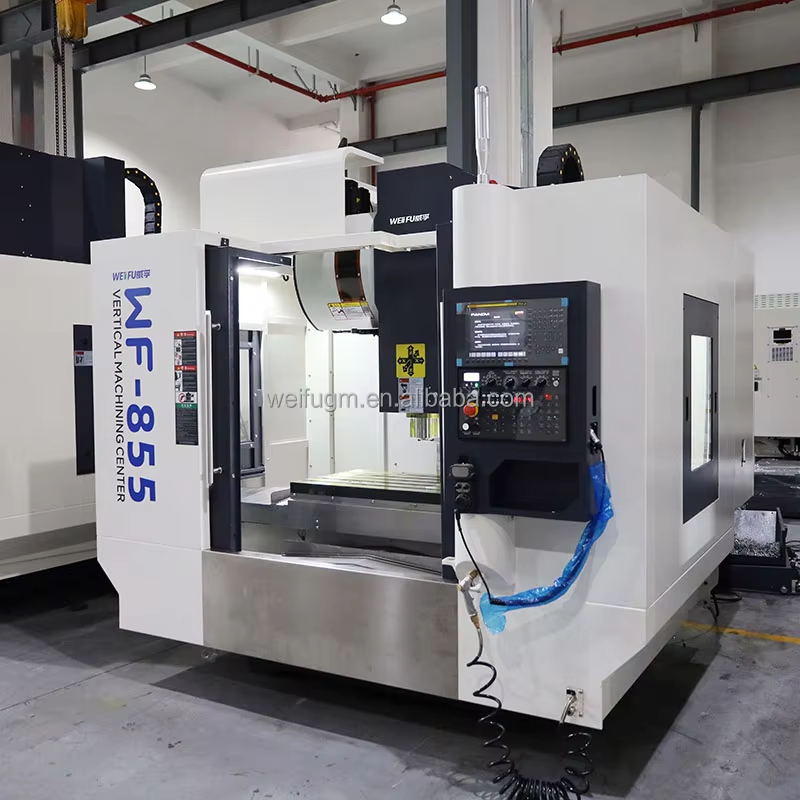

Home > Products > Machining centre > vertical machining centre > WF-855

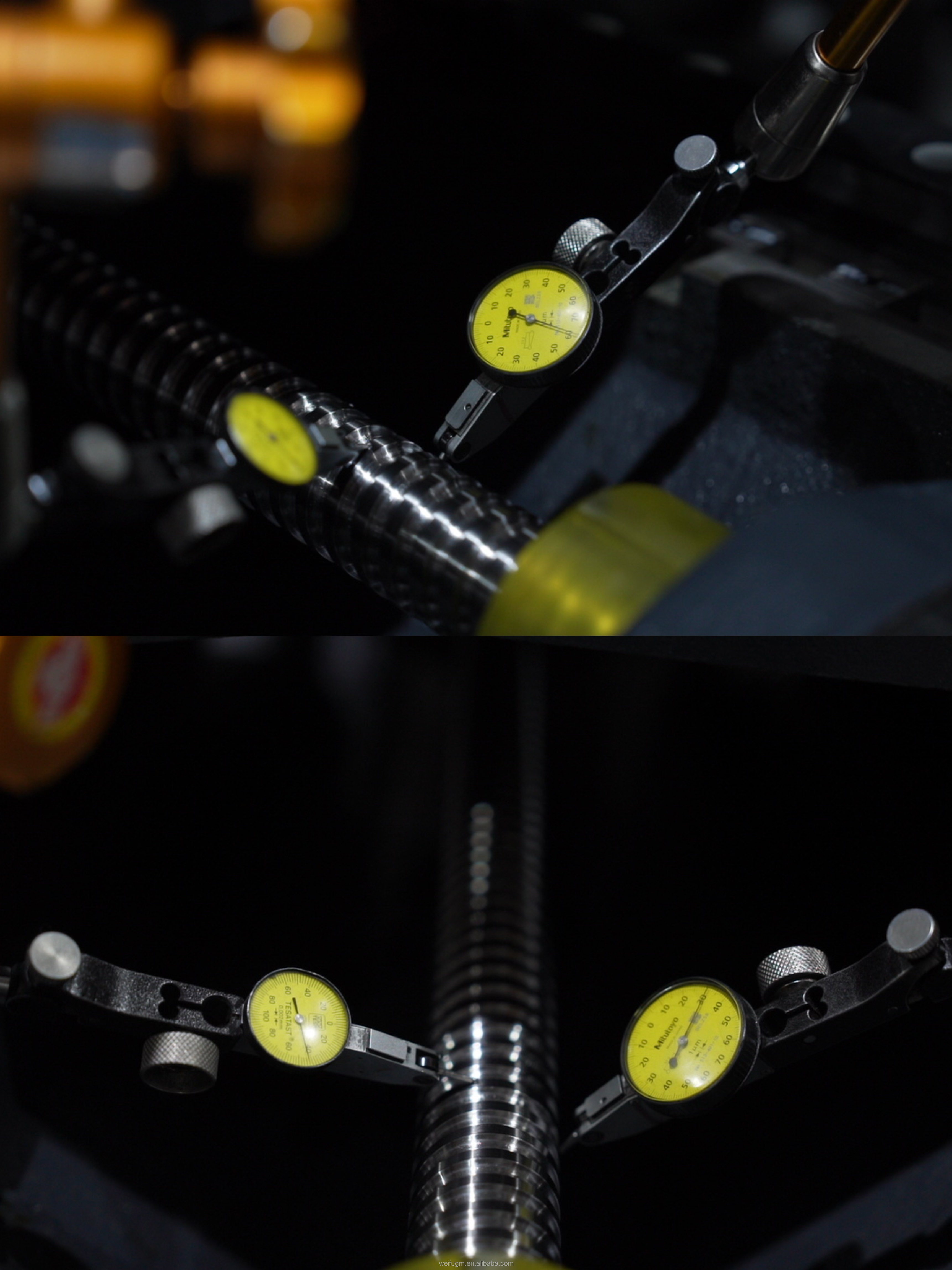

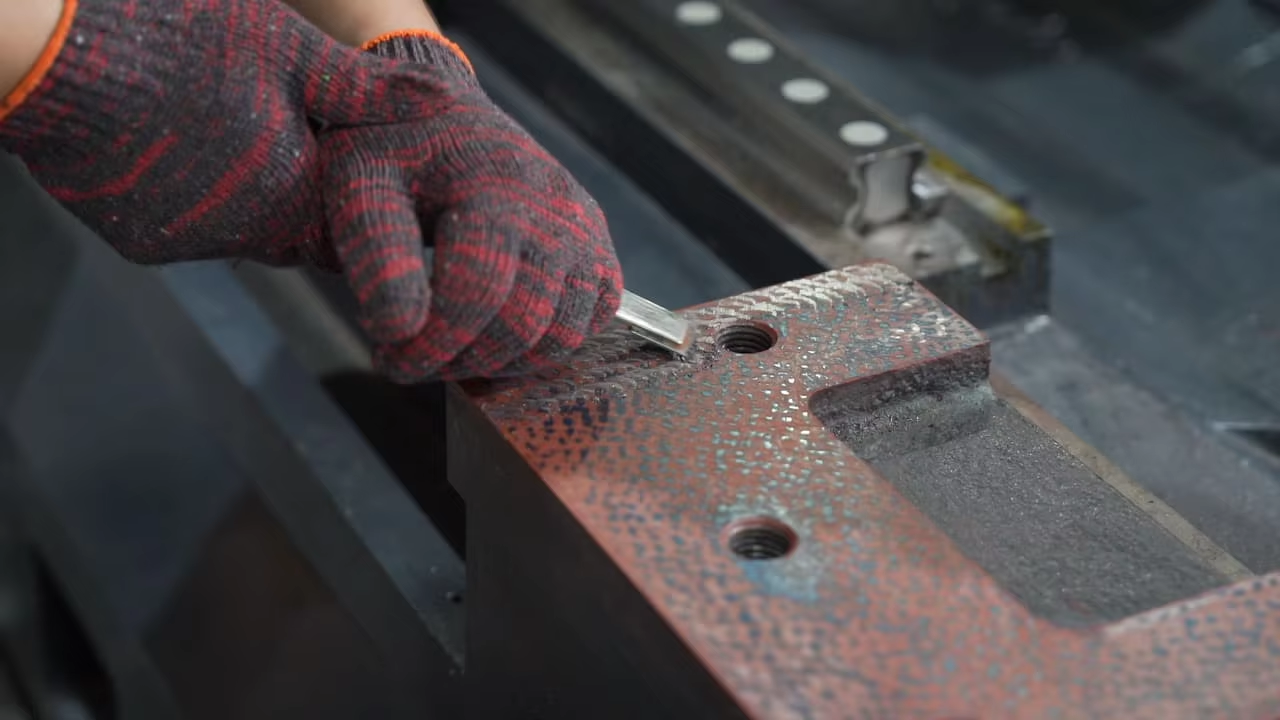

Pre-tensioned screws and hand-scraped surfaces ensure lasting accuracy and stable machining results.

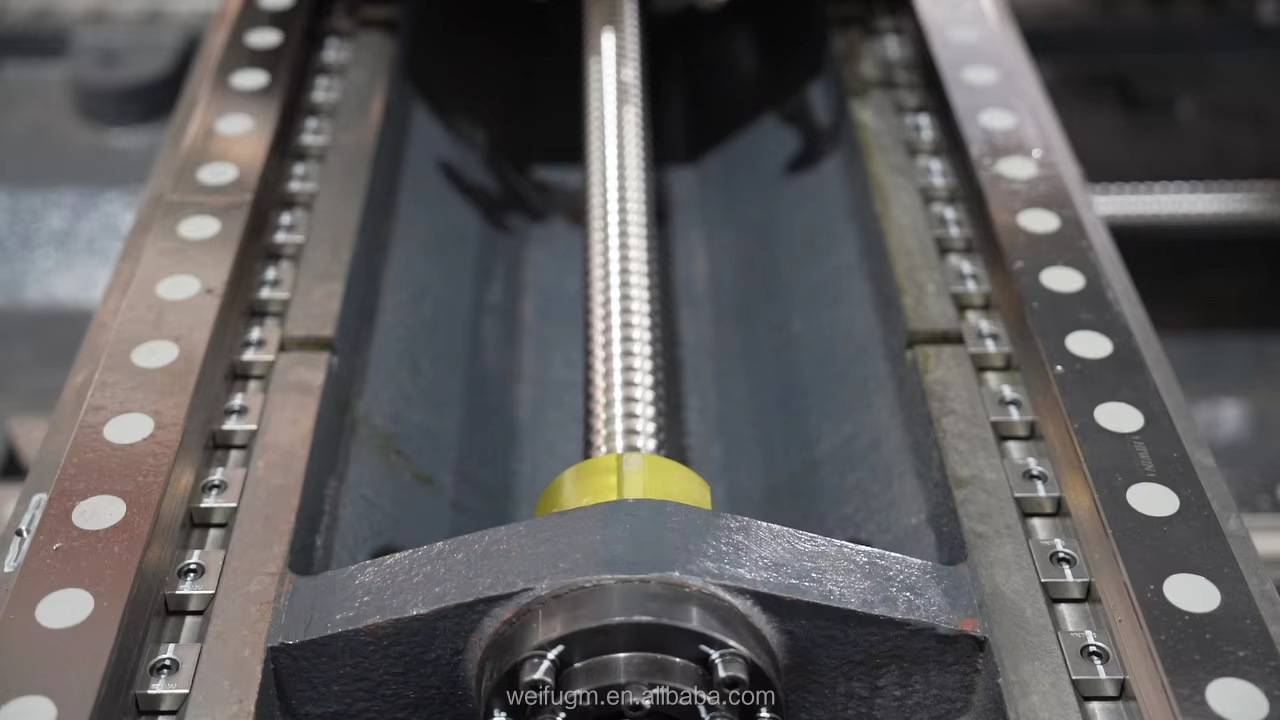

THK guides, double-arm casting, and integrated saddle deliver superior rigidity and vibration resistance.
HT300 castings, enclosed protection, and automation-ready design ensure durability, efficiency, and future scalability.
![H3bc74ceb55f440b59e38f67fe3685111o[1][1].png](https://shopcdnpro.grainajz.com/category/461728/4046/ae955ff44a41d9fce1f0e24e487a296c/H3bc74ceb55f440b59e38f67fe3685111o%5B1%5D%5B1%5D.png)

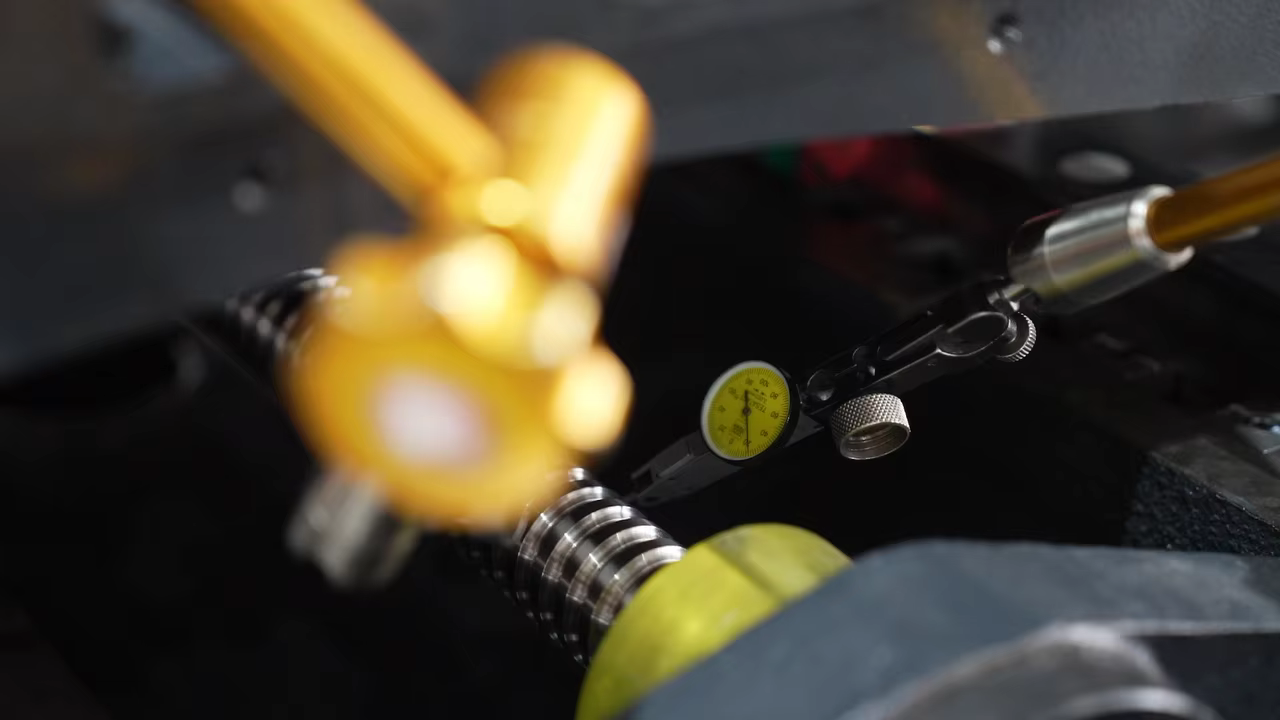

Screw accuracy inspection

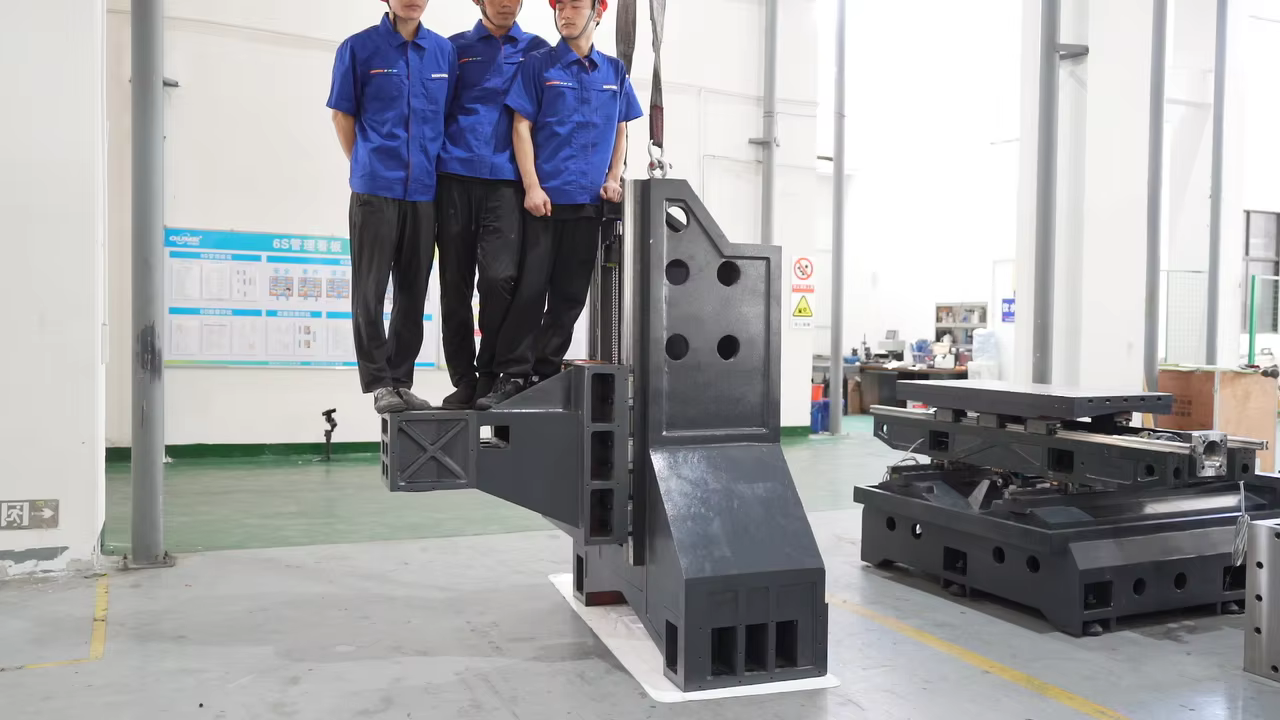

The headstock has high load-bearing capacity and good stability.

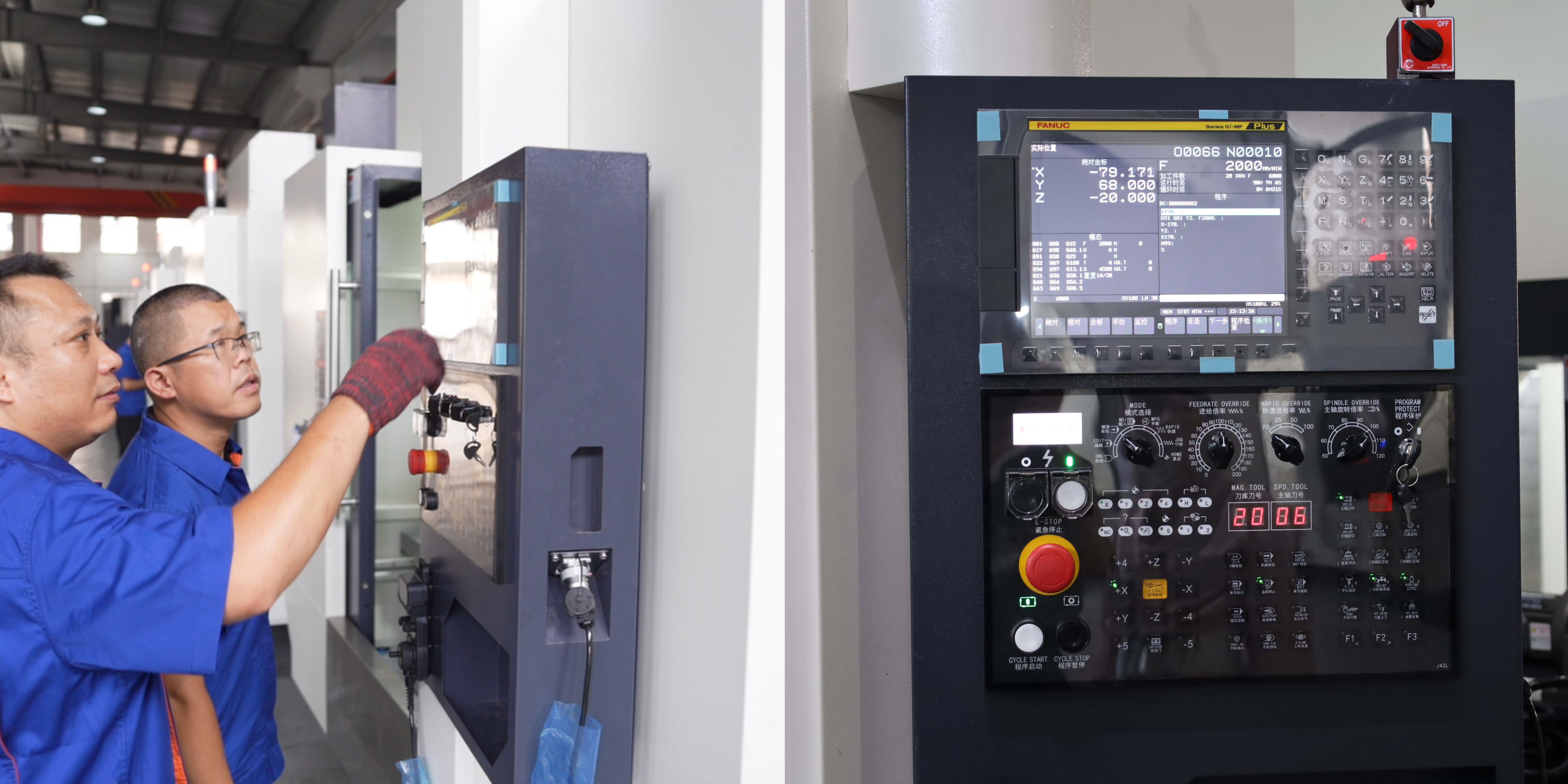

The operation interface features a large screen with a liquid crystal display. The interface is concise and clear, enabling convenient operation.
|
Project
|
Single position
|
WF-855
|
|
X-axis travel
|
mm
|
850
|
|
Y-axis travel
|
mm
|
550
|
|
Z-axis travel
|
mm
|
550
|
|
Workbench area
|
mm
|
1000*500
|
|
Maximum load capacity of the workbench
|
kg
|
800
|
|
T-slot (slot - width X center distance)
|
mm
|
5-18*100
|
|
The distance from the nose end of the main shaft to the worktable surface
|
mm
|
100/650
|
|
The distance from the center of the main shaft to the surface of the column
|
mm
|
580
|
|
Spindle speed
|
rpm
|
12000
|
|
Spindle taper
|
|
BT-40
|
|
Tool specification
|
|
BT-40
|
|
Tool magazine form
|
|
Knife arm type
|
|
The number of cutting tools
|
T
|
24
|
|
Pull nail form
|
|
MAS407 P40T-1
|
|
Maximum tool diameter/adjacent no tool
|
Mm
|
75/150
|
|
Maximum tool length
|
Mm
|
300
|
|
Maximum tool weight
|
Kg
|
8
|
|
Spindle motor
|
kw
|
7.5/11
|
|
X/Y/Z axis motor
|
kw
|
2.0/2.0/3.0
|
|
Rapid X-axis displacement
|
m/min
|
48
|
|
Rapid Y-axis displacement
|
m/min
|
48
|
|
Rapid Z-axis displacement
|
m/min
|
48
|
|
Cutting feed rate
|
mm/min
|
1—10000
|
|
Positioning accuracy
|
mm
|
±0.003/300mm(JIS standard)
|
|
Repeat positioning accuracy
|
mm
|
±0.002/300mm(JIS standard)
|
|
Controller
|
Fanuc
|
mf
|
|
Machine weight
|
kg
|
5300
|
|
Power supply requirements
|
KVA
|
20
|
|
Water tank capacity
|
L
|
200
|
|
Air compressor source
|
kg/cm2
|
6
|
|
Overall dimensions (length * width * height)
|
mm
|
2600*2000*2500
|
|
The above parameters are for reference only. In case of any discrepancy in color or size, the actual product shall prevail.
|
||
For standard products, payment is by T/T: 30% down payment upon ordering, and the remaining 70% balance to be paid before shipment.
For non-standard customized products, payment is by T/T: 50% down payment upon order placement, and the remaining 50% to be paid before shipment.
The minimum order quantity is one set, and the warranty period is one year.
The machine is normally packed in a plywood case.
Please tell us your requirements, and we will recommend the most suitable machine model according to your needs.
EXW, FOB, CFR, CIF, and other trade terms are acceptable.
Our factory is located in Wuxi City, Jiangsu Province, China. You are welcome to visit us.
Our main products include CNC milling machines, CNC machining centers, CNC turning centers, vertical drilling and tapping machines, 5-axis machines, CNC lathes, lathes, milling machines, and accessories.
