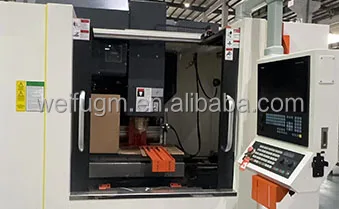

Optical Machine
Designed for stable and precise optical component grinding with reliable machining performance.
Internal Three Grinding Heads

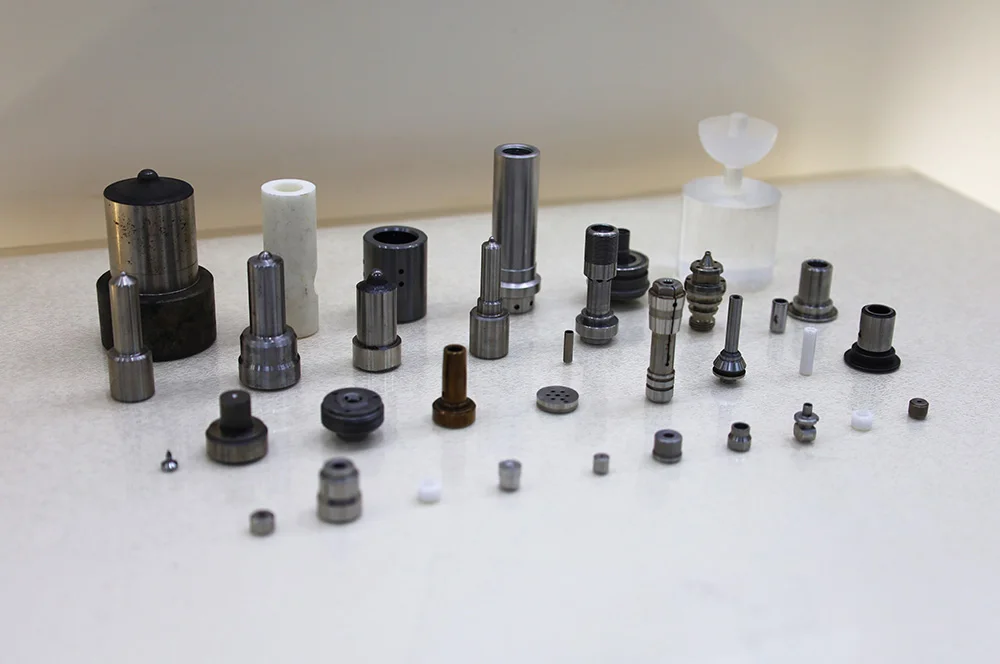

Supports efficient internal grinding operations with flexible processing for complex workpiece requirements.
Optical Machine
Designed for stable and precise optical component grinding with reliable machining performance.

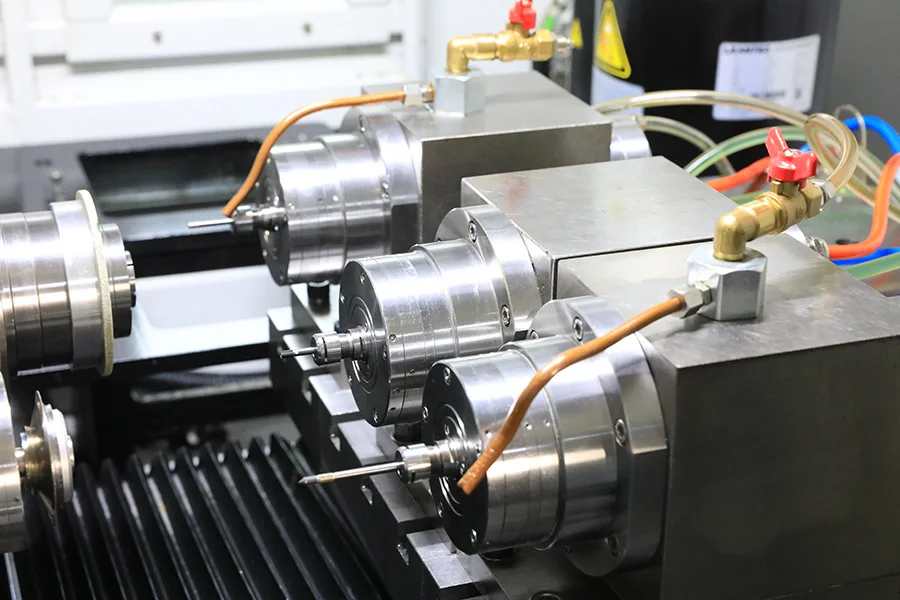

Internal Three Grinding Heads
Supports efficient internal grinding operations with flexible processing for complex workpiece requirements.

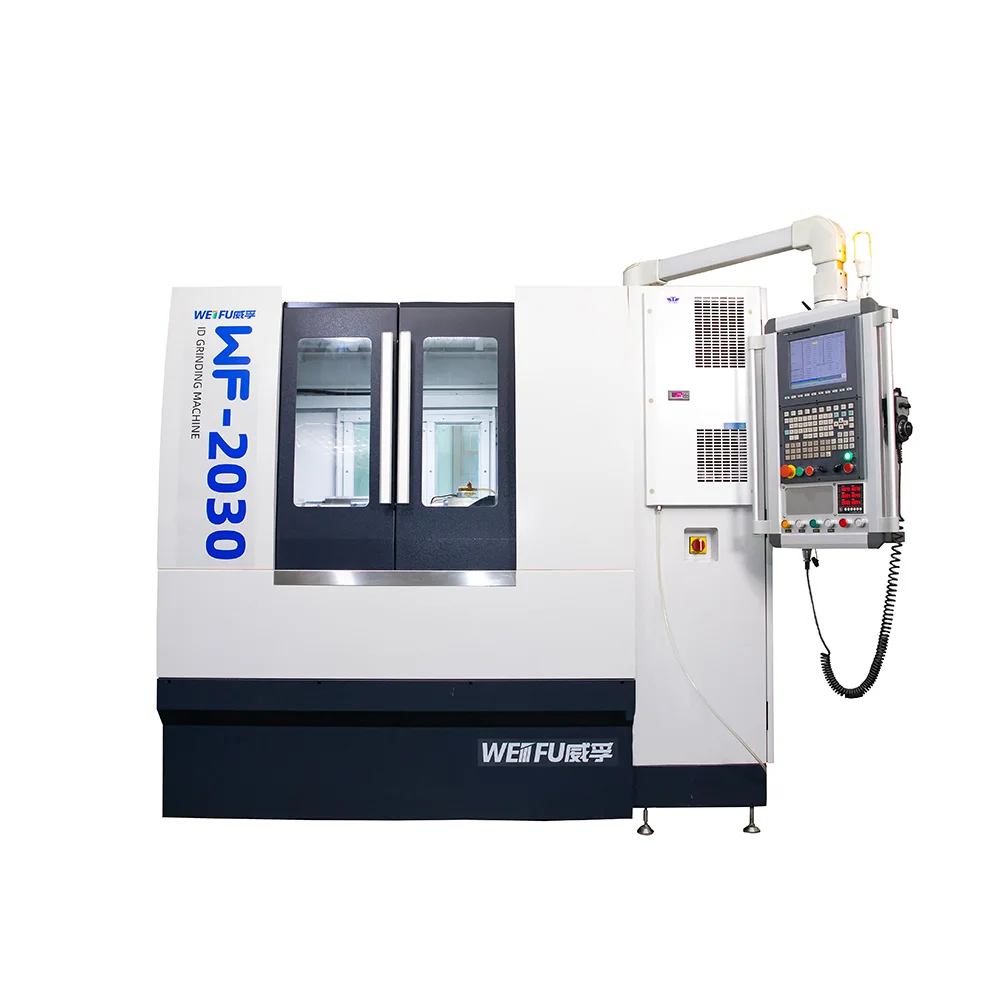

| Center Height | 100mm |
| Maximum Grinding Inner Diameter | 100mm |
| Minimum Grinding Diameter | 2mm |
| Maximum Workpiece Weight | 5Kg |
| Grinding Hole Diameter Range | φ2mm~φ50mm |
| Maximum Grinding Length | 100mm |
| Taper Angle Range | 15°~180° |
| Maximum Taper Depth | 60mm |
| Workpiece Headstock Swivel Angle | 45° |
| Roundness | 0.5μm |
| Cylindricity | 1μm |
| Surface Roughness | 0.1Ra/μm |
| Internal Grinding Wheel Motor Spindle | — |
| Rotational Accuracy | ＜0.2μm |
| Shaft Nose Radial Runout | ≤0.3μm |
| Axial Runout | ≤0.3μm |
| Workpiece Motor Spindle | — |
| Grinding Wheel Dressing Motor Spindle | — |
| X-Axis Guide Rail | Ultra-precision aerostatic guide rails, straightness of 1μm over the entire stroke |
| Z-Axis Guide Rail | Ultra-precision aerostatic guide rails, straightness of 1μm over the entire stroke |
| X-Axis | Maximum stroke of 400mm |
| Z-Axis | Maximum stroke of 300mm |
| Compressed Air Pressure | 0.5Mpa～0.7Mpa |
| Power Supply | 380V, 50Hz |
| Total Installed Power | 22KW |
| Overall Dimensions (L×W×H) | 2040×1240×2000mm |
| Machine Net Weight | 3400Kg |
| Numerical Control System | Syntec |

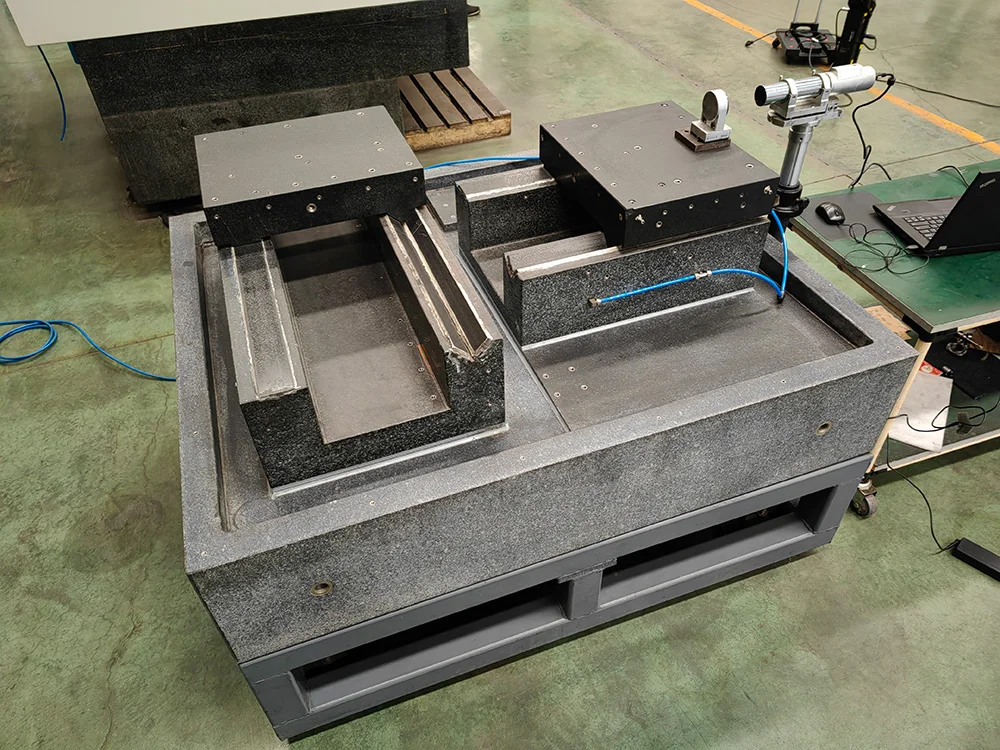

AE Measurement
Accurately measures key parameters to ensure stable machining quality and reliable grinding performance.

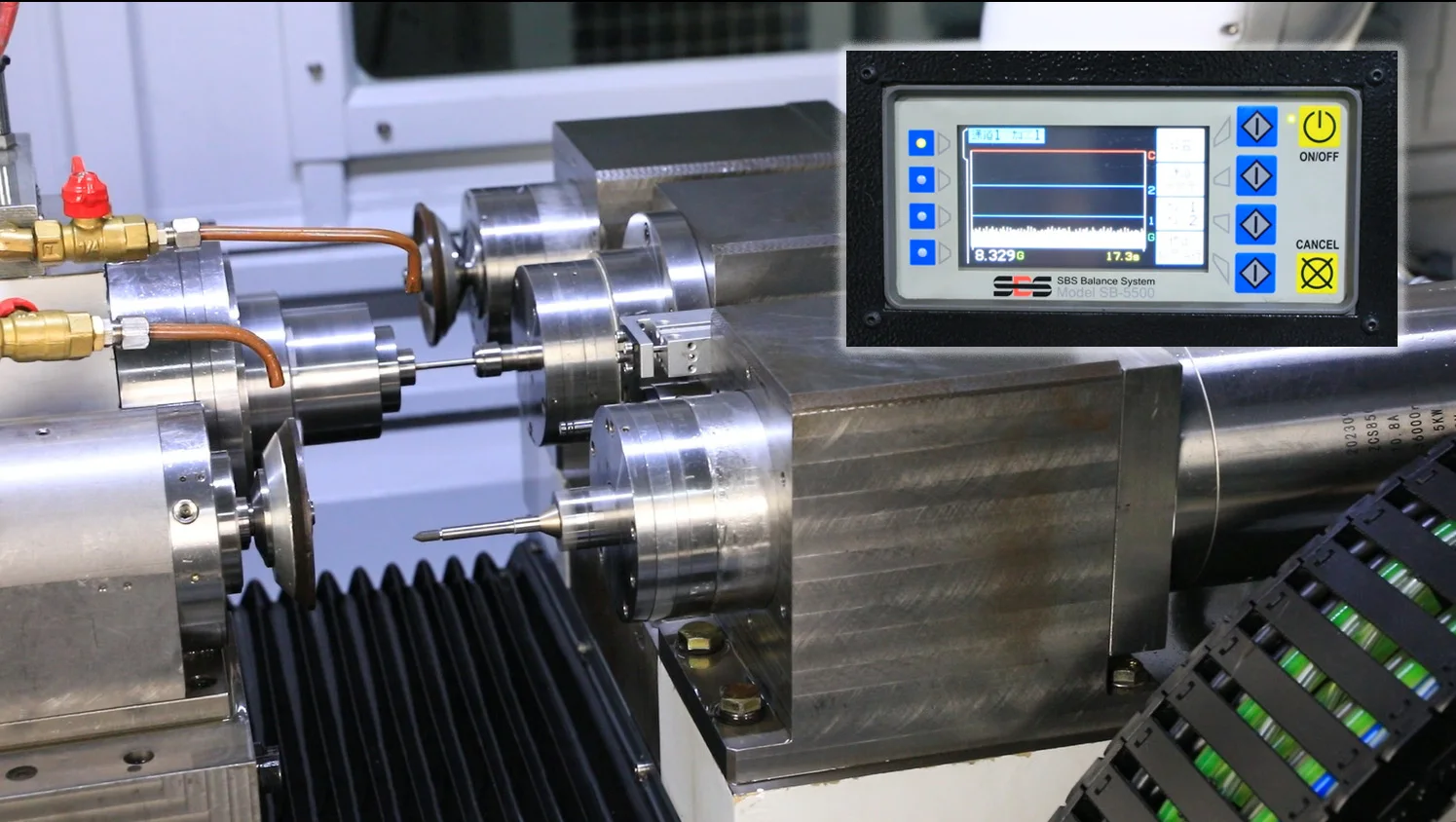

Axial Runout Inspection
Checks spindle axial accuracy for smoother operation and higher precision optical lens grinding.

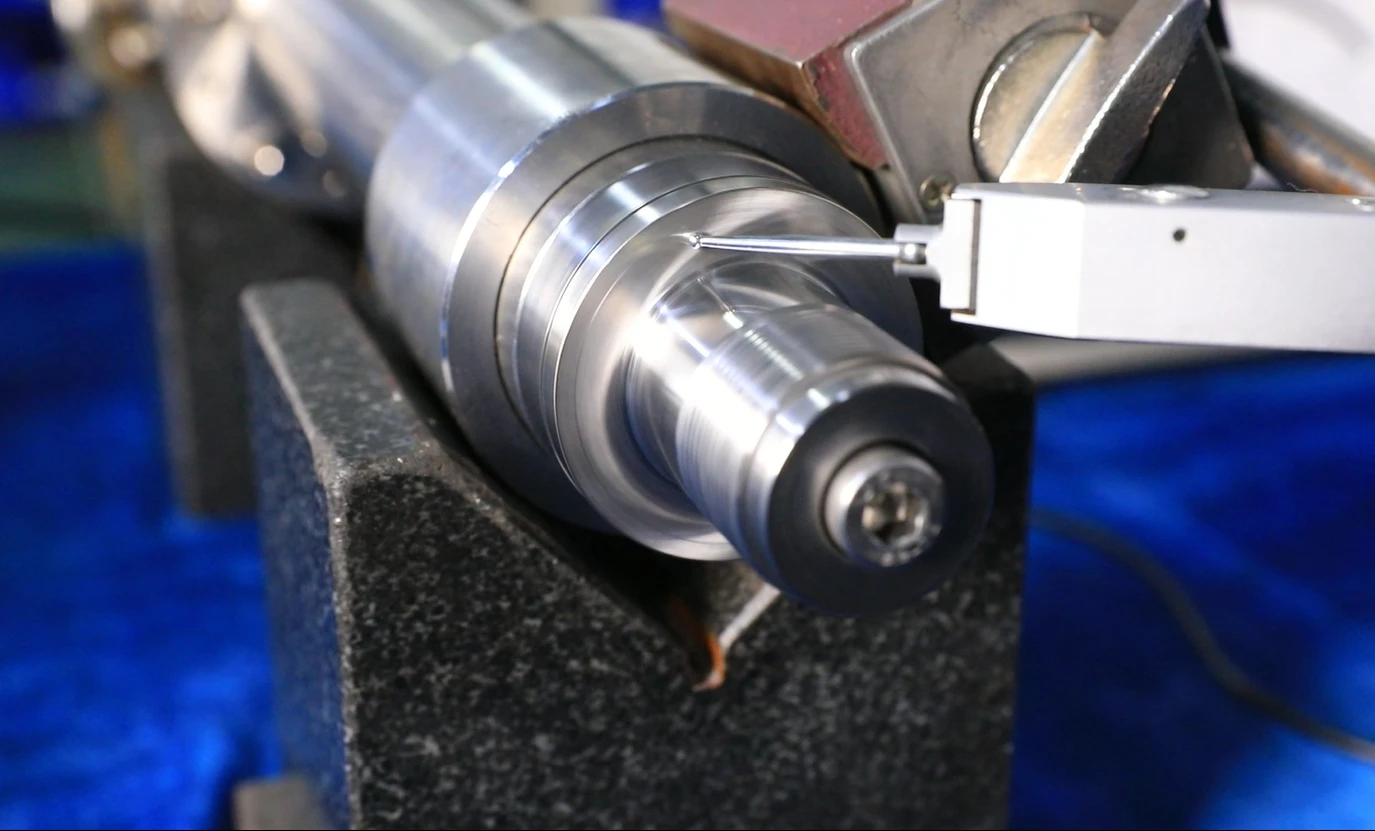

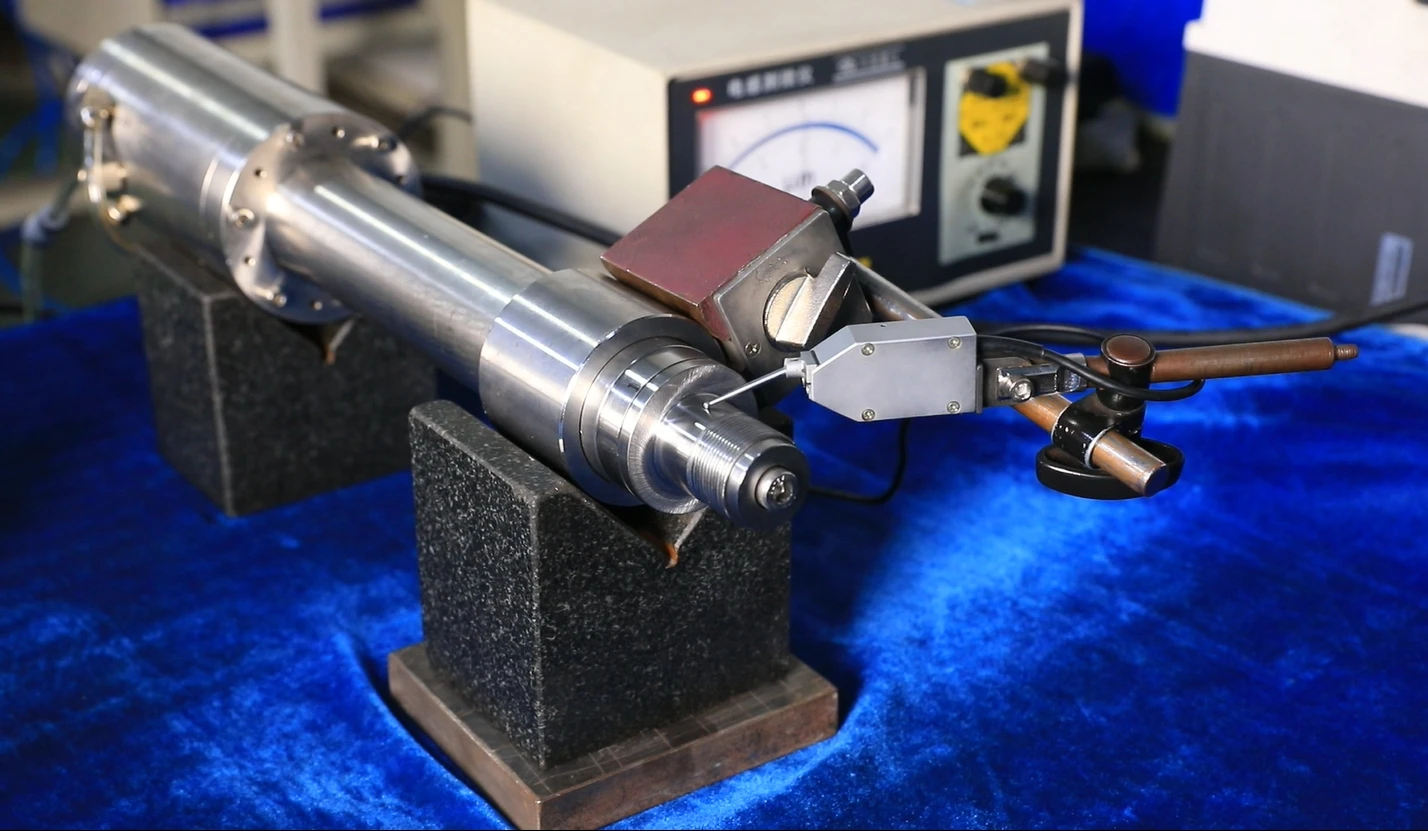

Radial Runout Inspection
Verifies spindle radial stability to support consistent grinding accuracy and surface finish.
