Project
|
unit
|

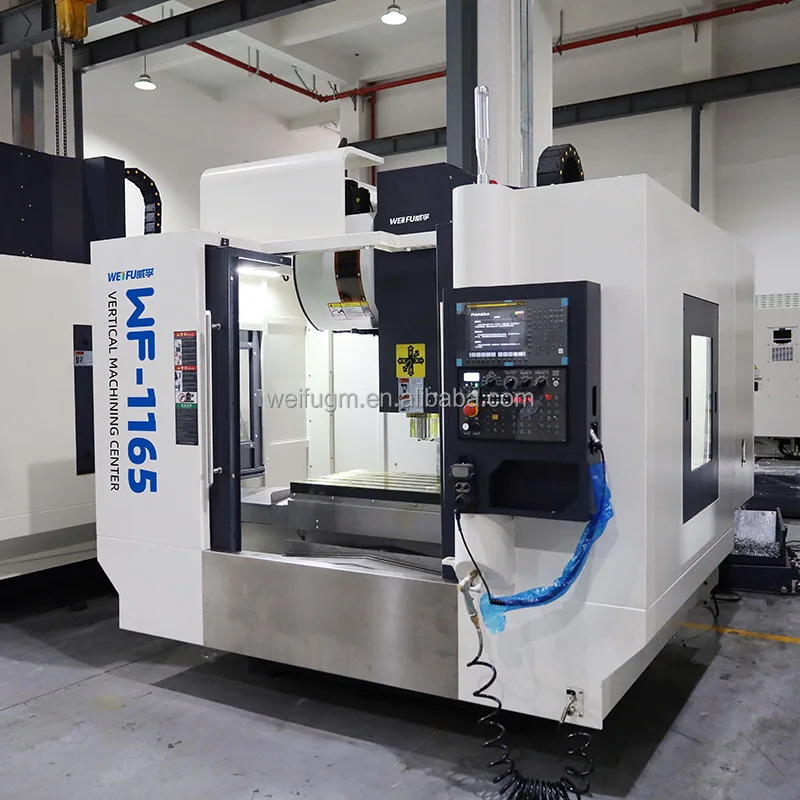

WF-1165
|
|
X-axis travel
|
mm
|
1100
|
|
Y-axis travel
|
mm
|
650
|
|
Z-axis travel
|
mm
|
650
|
|
Workbench area
|
mm
|
1200*600
|
|
Maximum load capacity of the workbench
|
kg
|
800
|
|
T-slot (slot - width X center distance)
|
mm
|
5-18*125
|
|
The distance from the nose end of the main shaft to the worktable surface
|
mm
|
120/770
|
|
The distance from the center of the main shaft to the surface of the column
|
mm
|
702
|
|
Spindle speed
|
|
12000
|
|
Outer diameter of the main shaft
|
MM
|
150
|
|
Tool specification
|
|
BT-40
|
|
Tool magazine form
|
|
Knife arm type
|
|
The number of cutting tools
|
T
|
24
|
|
Pull nail form
|
|
MAS407 P50T-1
|
|
Maximum tool diameter/adjacent no tool
|
Mm
|
75/250
|
|
Maximum tool length
|
Mm
|
300
|
|
Maximum tool weight
|
Kg
|
15
|
|
Spindle motor
|
kw
|
11/15
|
|
X/Y/Z axis motor
|
kw
|
3.0/3.0/3.0
|
|
X-axis rapid displacement
|
m/min
|
32
|
|
Y-axis rapid displacement
|
m/min
|
32
|
|
Z-axis rapid displacement
|
m/min
|
32
|
|
Cutting feed rate
|
mm/min
|
1—36000
|
|
Positioning accuracy
|
mm
|
±0.005/300mm(JIS standard)
|
|
Repeat positioning accuracy
|
mm
|
±0.003/300mm(JIS standard)
|
|
Controller
|
FANUC
|
oimf
|
|
The weight of the machine is approximately
|
kg
|
7200
|
|
Power supply requirements
|
KVA
|
25
|
|
Water tank capacity
|
L
|
200
|
|
Air compressor source
|
kg/cm2
|
6
|
|
Overall dimensions (length * width * height)
|
mm
|
2700*3050*2900（Including water tank）
|
|
The above parameters are for reference only. In case of any discrepancy in color or size, the actual product shall prevail.
|
||
1,What is the payment term?
For standard product: payment by T/T, 30% down payment upon ordering, 70% balance payment before shipment.
For non-standard customized products: payment by T/T, 50% down payment upon order placement, and the remaining 50% to be paid before shipment.
2,What are your minimum order quantity and warranty period?
MOQ is one set, and warranty is one year.
3,What is the packaging for the machine?
The machines standard will be packed in plywood case
4,How to choose the most suitable machine?
Please tell me your requirements, and I will recommend the most suitable machine model for you according to your needs.
5,What are your trade terms?
EXW，FOB, CFR, CIF or other terms are acceptable.
6,Where is your factory located?
It is located in Wuxi City, Jiangsu Province, China. Welcome you to visit us.
7,What are the main products of your company?
CNC Milling Machine，CNC Machining Center，CNC Turning Center，Vertical Drilling-Tapping Machine，5-Axis，CNC Lathe，Lathe，Milling Machine and Accessories.
