High-accuracy Gantry Machining Center WF-2518 BT50 Siemens Heavy Duty
High-accuracy Gantry Machining Center WF-2518 BT50 Siemens Heavy Duty
High-accuracy Gantry Machining Center WF-2518 BT50 Siemens Heavy Duty
High-accuracy Gantry Machining Center WF-2518 BT50 Siemens Heavy Duty
High-accuracy Gantry Machining Center WF-2518 BT50 Siemens Heavy Duty
High-accuracy Gantry Machining Center WF-2518 BT50 Siemens Heavy Duty
High-accuracy Gantry Machining Center WF-2518 BT50 Siemens Heavy Duty
High-accuracy Gantry Machining Center WF-2518 BT50 Siemens Heavy Duty
High-accuracy Gantry Machining Center WF-2518 BT50 Siemens Heavy Duty
High-accuracy Gantry Machining Center WF-2518 BT50 Siemens Heavy Duty
High-accuracy Gantry Machining Center WF-2518 BT50 Siemens Heavy Duty
High-accuracy Gantry Machining Center WF-2518 BT50 Siemens Heavy Duty

High-accuracy Gantry Machining Center WF-2518 BT50 Siemens Heavy Duty

Get a Quote Contact Us
  • Description
  • Product Paramenters
  • Optional configuration
  • Company Profile
  • Packaging
  • Quality inspection
  • FAQ
Is there a problem? Please contact us to serve you!

Is there a problem? Please contact us to serve you!

0510-80509544
[email protected]
Inquiry
product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-0
product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-1
product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-2 product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-3

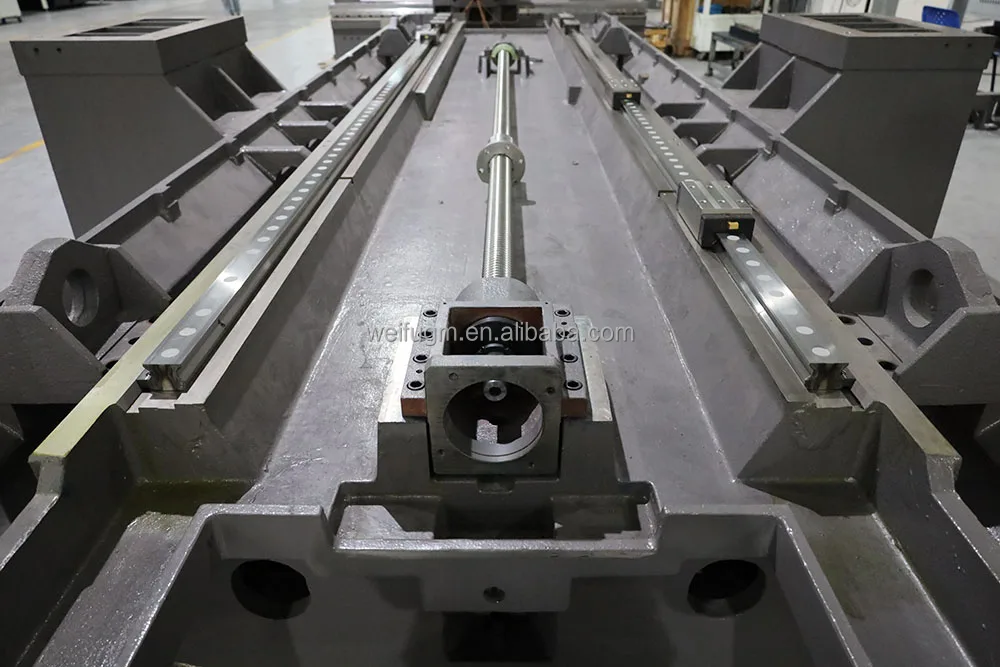

Straightness detection

Straightness detection involves using precision instruments to inspect the accuracy of linear guideway sliders, ensuring high precision of the products.

Full Manual Scraping Boosts Precision & Stability

The base, mounting surface, bearings, etc., are 100% manually scraped, which improves the machine precision and enables the machine tool to maintain stability during long-term operation.
Project
Unit
WF-2518
X-axis travel
mm
2500
Y-axis travel
mm
1800 (2000 tool change)
Z-axis travel
mm
800
Table area
mm
2500*1600
Maximum load of the table
T
7
Gantry width/overheight
mm
1800/1200
T-slot (slot-wide x center distance)
mm
9-22-180
The distance from the nose end of the spindle to the table surface
mm
200-1000
Spindle speed
rpm
6000（Belt type）
Spindle taper
BT50-190
Tool specifications
BT-50/45°
Knife magazine form
Disc knife arm style
Number of tools
T
24
Maximum tool diameter/adjacent no knife
Mm
100-200
Maximum tool length
Mm
400
Maximum tool weight
Kg
15
Spindle motor
kw
15-18.5KW（rated143NM）
X/Y/Z axis motor
kw
3.0KW（36NM）
Fast displacement of the X-axis
m/min
16
Rapid displacement of the Y-axis
m/min
16
Rapid displacement of the Z-axis
m/min
16
Cutting feed speed
mm/min
1—10000
Positioning accuracy
mm
±0.003/300mm
Repeatable positioning accuracy
mm
±0.005/300mm
controller
FANUC
0I-MF
Machine weight
T
23
Power requirements
KVA
40
Air pressure source
kg/cm2
6
Dimensions (L*W*H)
mm
7000*3600*3500
The above parameters are for reference only. In case of any discrepancy in color or size, the actual product shall prevail.
product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-4 product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-5 product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-6
Spindle Through-spindle coolant Linear scale
product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-7 product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-8 product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-9
4 axis Control system Tool magazine
product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-10 product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-11 product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-12
Chip conveyor Tool setter Dual worktable
product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-13
Workpiece inspection

product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-14

product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-15 product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-16
·Factory with ISO, IAF, IAS, EAC, ZZEC, BCZ, ISD, Intertek, and SONCAP ·Over 33,000 m2 of the factory with more than 300 employees ·Strict quality control is implemented with over 24 testing steps ·20+ years CNC machine manufacturing experience ·24/7 online service is available at any time ·ODM and OEM are supported ·Trade with more than 100 countries worldwide ·Cooperate with well-known brands such as Siemens, Fanuc, Mitsubishi, and Heidenhain ·A professional elite team is engaged in manufacturing machine tools, machinery, numerical control equipment, production equipment, etc ·The warranty period is 18 months.
Our certificates
product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-17 product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-18 product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-19 product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-20
product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-21 product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-22 product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-23 product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-24
Exhibitions and customer visits
product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-25 product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-26 product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-27
product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-28 product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-29 product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-30
product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-31 product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-32
product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-33 product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-34 product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-35
PACKING AND TRANSPORTATION
All our machine include cnc lathe machine, cnc milling machine , lathemachine , milling machine , drilling machine will running 24hours .And ithave finished all test , then we will arrange package
product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-36 product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-37 product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-38
01
Machine tool leveling
02
Spindle vibration detection
03
Processing inspection
product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-39 product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-40 product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-41
04
Spindle coupling inspection, balance test inspection
05
Spindle deflection detection
06
Precision linear guide rail straightness inspection
product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-42 product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-43 product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-44
07
X/Y verticality detection
08
Electrical cabinet air conditioning
09

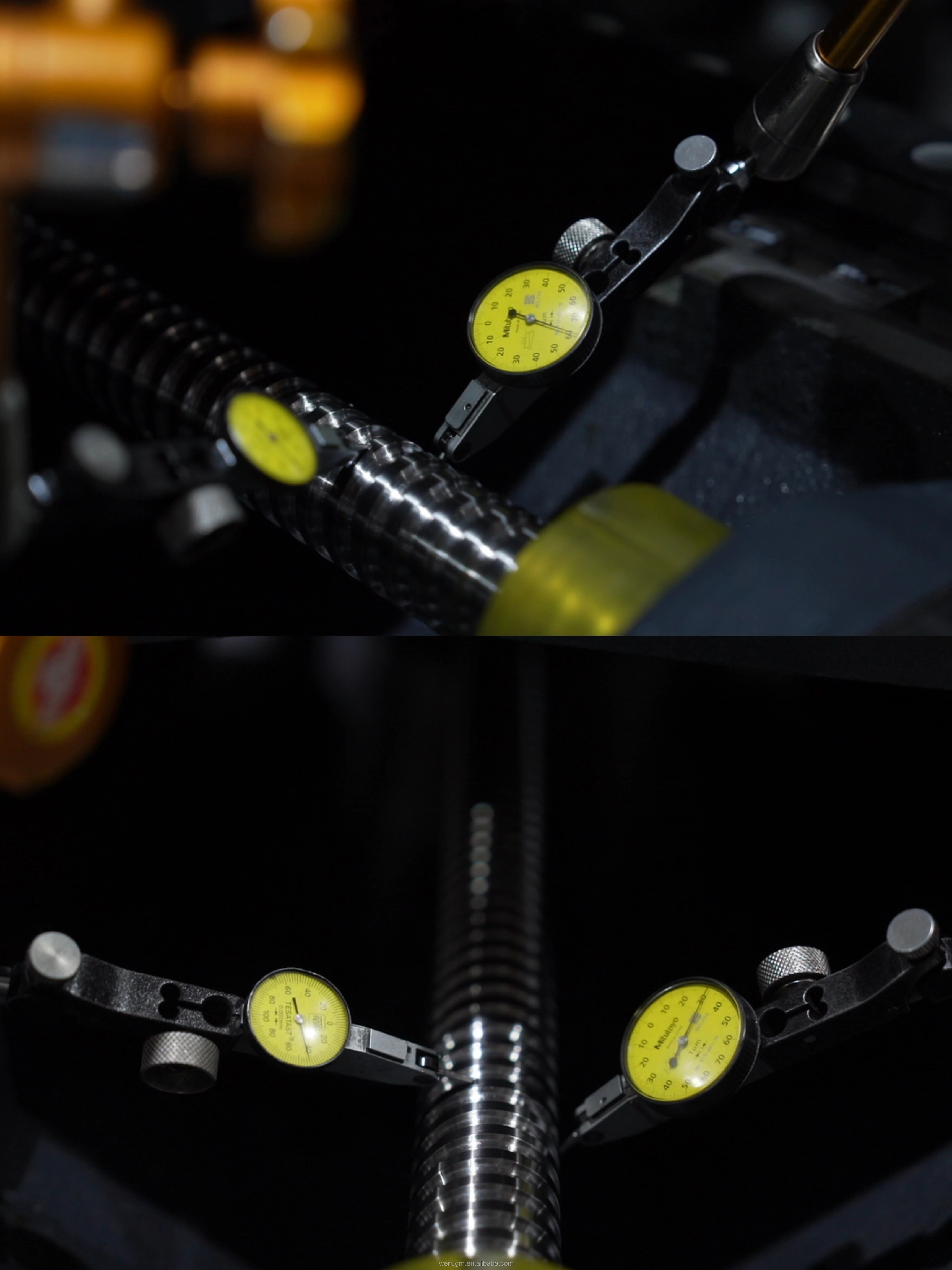

Precision screw inspection
product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-45 product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-46 product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-47
10
Table flatness
11
Laser Inspection (Correction Compensation)
12
Noise detection
product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-48 product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-49 product high accuracy gantry machining center wf 2518 bt50 siemens heavy duty-50
13
48h tool change test in the factory tool magazine
14
3D detection
15
Hardness testing

1,What is the payment term?
For standard product: payment by T/T, 30% down payment upon ordering, 70% balance payment before shipment.
For non-standard customized products: payment by T/T, 50% down payment upon order placement, and the remaining 50% to be paid before shipment.
2,What are your minimum order quantity and warranty period?
MOQ is one set, and warranty is one year.
3,What is the packaging for the machine?
The machines standard will be packed in plywood case
4,How to choose the most suitable machine?
Please tell me your requirements, and I will recommend the most suitable machine model for you according to your needs.
5,What are your trade terms?
EXW，FOB, CFR, CIF or other terms are acceptable.
6,Where is your factory located?
It is located in Wuxi City, Jiangsu Province, China. Welcome you to visit us.
7,What are the main products of your company?
CNC Milling Machine，CNC Machining Center，CNC Turning Center，Vertical Drilling-Tapping Machine，5-Axis，CNC Lathe，Lathe，Milling Machine and Accessories.
