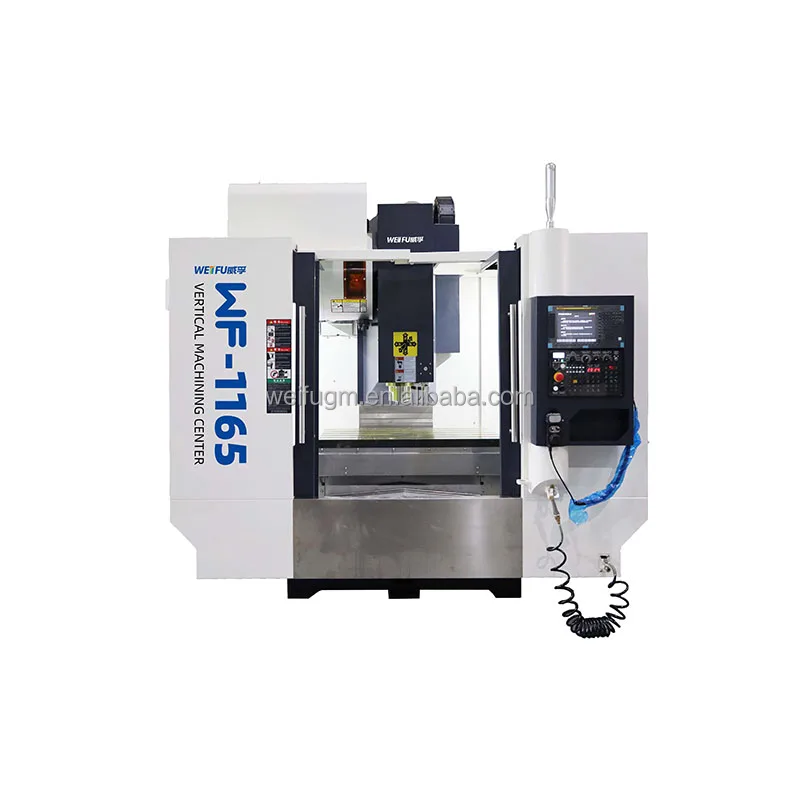

Home > Products > Machining centre > vertical machining centre > WF-1165
Precision Control:

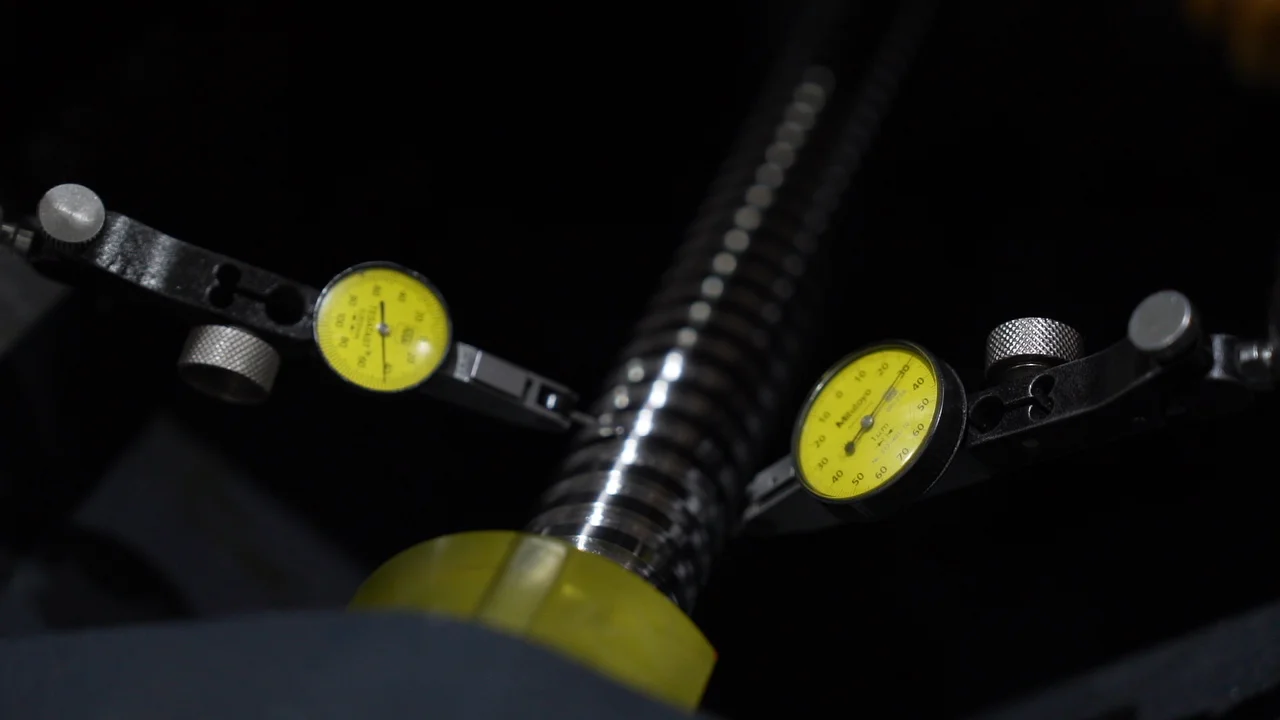

THK guides, screw pre-tensioning, and manual scraping ensure stable accuracy and lasting precision retention.
Robust Structure:
Double-arm casting, HT300 material, and double-ribbed saddle deliver rigidity, durability, and vibration resistance.
Efficient Expansion:
Compact design, ergonomic interface, enclosed guarding, and automation-ready features improve efficiency and scalability.

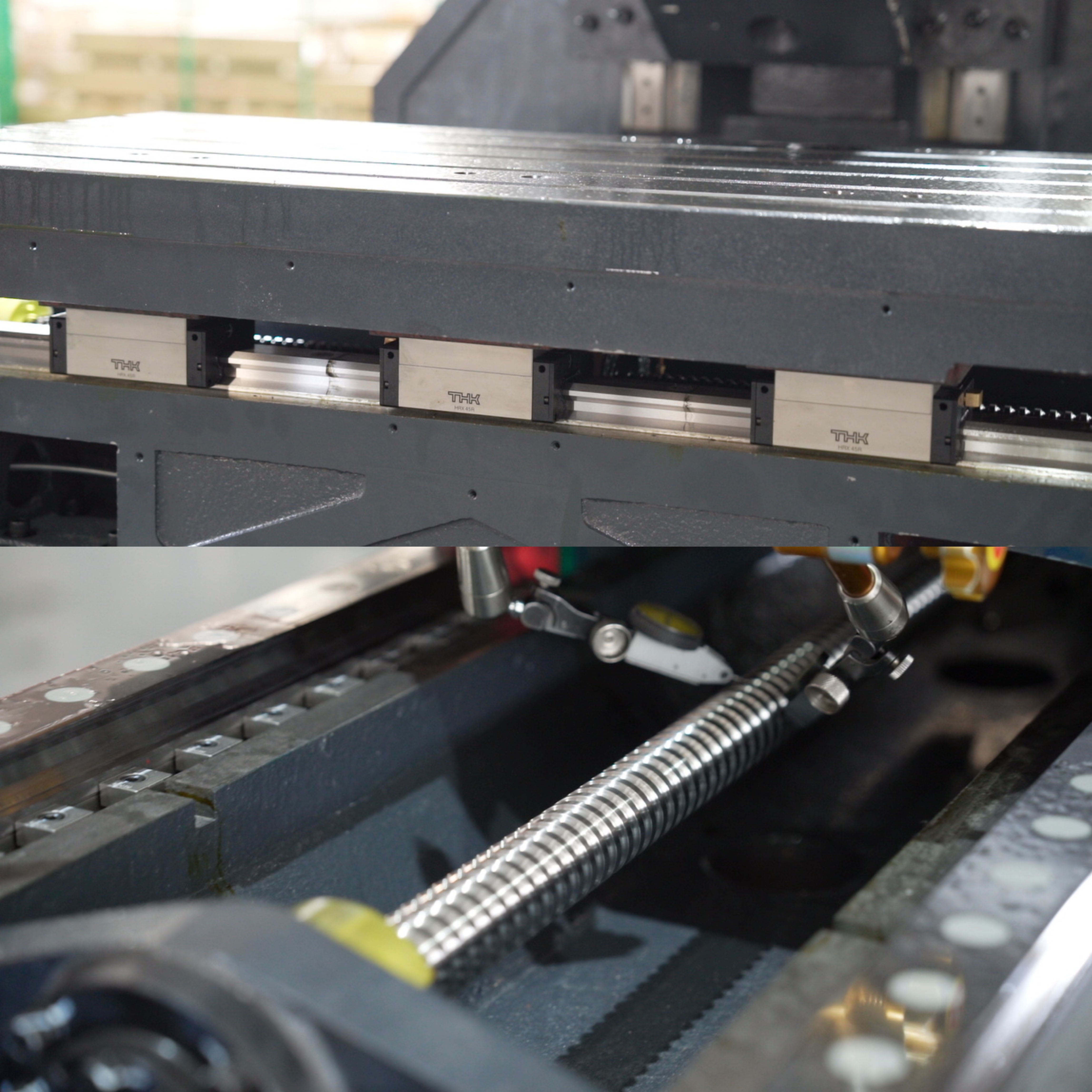

Japanese THK linear guide sliders; six sliders on the X-axis, which are lengthened and widened to enhance the rigidity and stability of the machine.

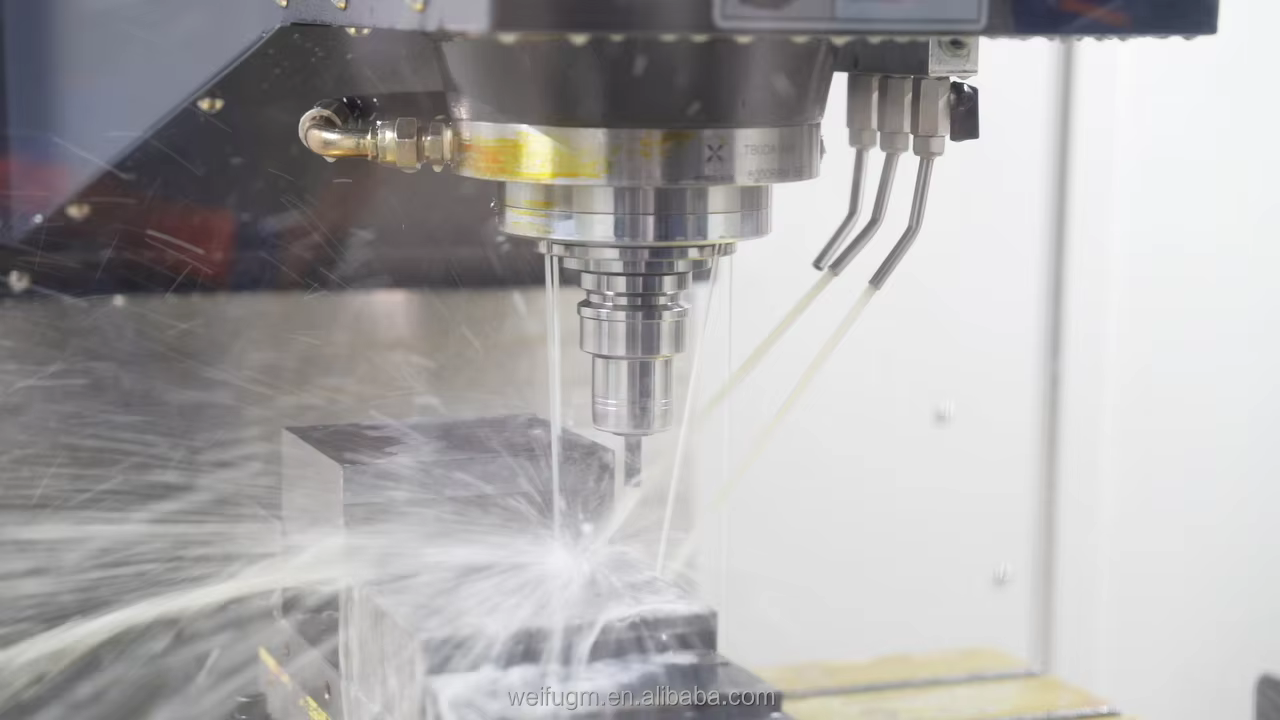

Dual water pumps for high-pressure and large-flow flushing, cooling and lubrication.

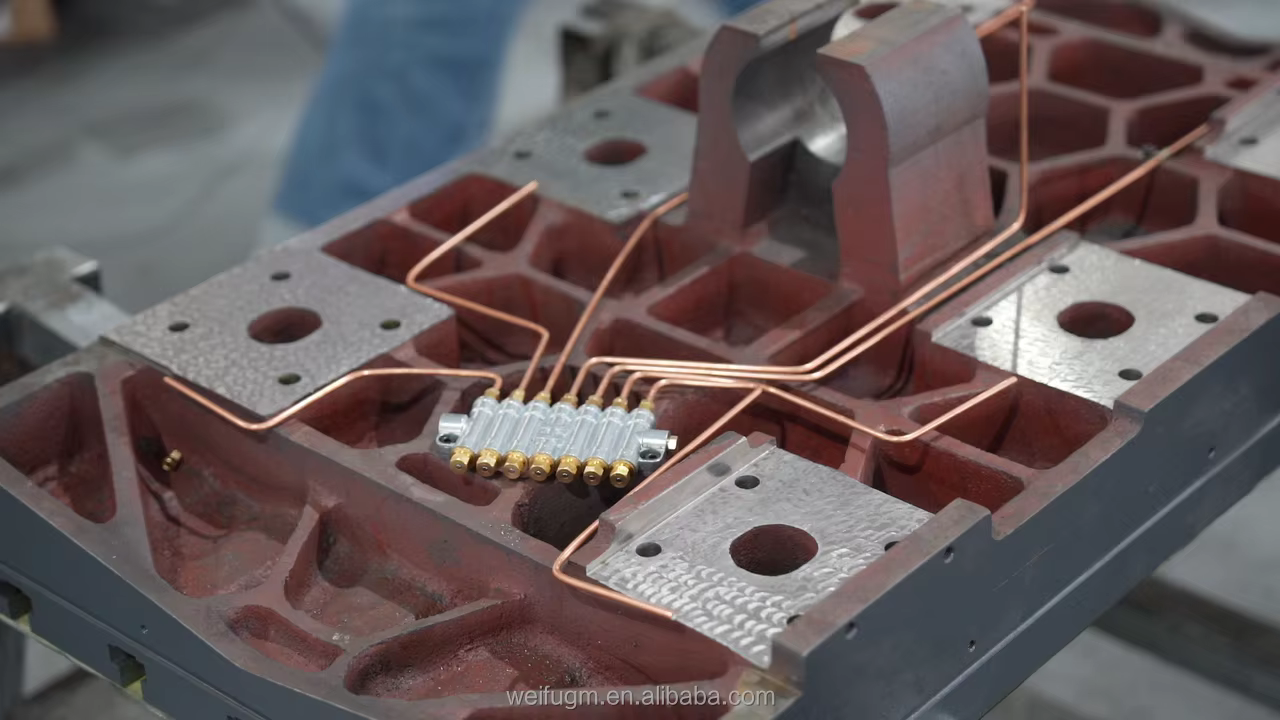

Copper has excellent thermal conductivity and strong corrosion resistance.
|
Project
|
unit
|
WF-1165
|
|
X-axis travel
|
mm
|
1100
|
|
Y-axis travel
|
mm
|
650
|
|
Z-axis travel
|
mm
|
650
|
|
Workbench area
|
mm
|
1200*600
|
|
Maximum load capacity of the workbench
|
kg
|
800
|
|
T-slot (slot - width X center distance)
|
mm
|
5-18*125
|
|
The distance from the nose end of the main shaft to the worktable surface
|
mm
|
120/770
|
|
The distance from the center of the main shaft to the surface of the column
|
mm
|
702
|
|
Spindle speed
|
|
12000
|
|
Outer diameter of the main shaft
|
MM
|
150
|
|
Tool specification
|
|
BT-40
|
|
Tool magazine form
|
|
Knife arm type
|
|
The number of cutting tools
|
T
|
24
|
|
Pull nail form
|
|
MAS407 P50T-1
|
|
Maximum tool diameter/adjacent no tool
|
Mm
|
75/250
|
|
Maximum tool length
|
Mm
|
300
|
|
Maximum tool weight
|
Kg
|
15
|
|
Spindle motor
|
kw
|
11/15
|
|
X/Y/Z axis motor
|
kw
|
3.0/3.0/3.0
|
|
X-axis rapid displacement
|
m/min
|
32
|
|
Y-axis rapid displacement
|
m/min
|
32
|
|
Z-axis rapid displacement
|
m/min
|
32
|
|
Cutting feed rate
|
mm/min
|
1—36000
|
|
Positioning accuracy
|
mm
|
±0.005/300mm(JIS standard)
|
|
Repeat positioning accuracy
|
mm
|
±0.003/300mm(JIS standard)
|
|

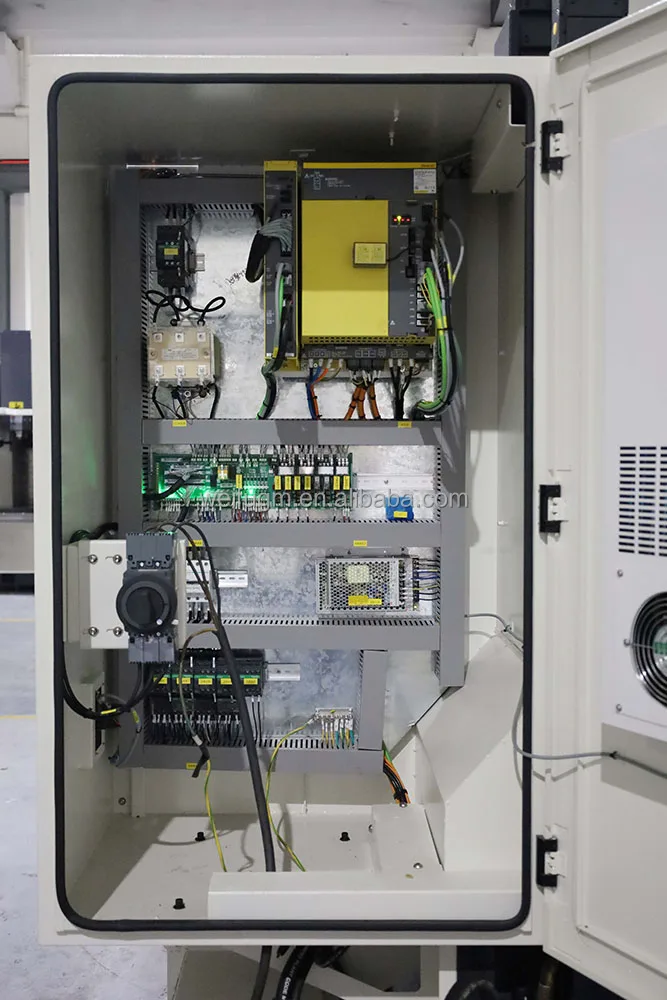

Controller
|
FANUC
|
oimf
|
|
The weight of the machine is approximately
|
kg
|
7200
|
|
Power supply requirements
|
KVA
|
25
|
|
Water tank capacity
|
L
|
200
|
|
Air compressor source
|
kg/cm2
|
6
|
|
Overall dimensions (length * width * height)
|
mm
|
2700*3050*2900（Including water tank）
|
|
The above parameters are for reference only. In case of any discrepancy in color or size, the actual product shall prevail.
|
||
Spindle
Through-spindle coolant
Linear scale
4 axis
Control system
Tool magazine
Chip conveyor
Tool setter
Dual worktable
Workpiece inspection
For standard products, payment is by T/T: 30% down payment upon ordering, and the remaining 70% balance to be paid before shipment.
For non-standard customized products, payment is by T/T: 50% down payment upon order placement, and the remaining 50% to be paid before shipment.
The minimum order quantity is one set, and the warranty period is one year.
The machine is normally packed in a plywood case.
Please tell us your requirements, and we will recommend the most suitable machine model according to your needs.
EXW, FOB, CFR, CIF, and other trade terms are acceptable.

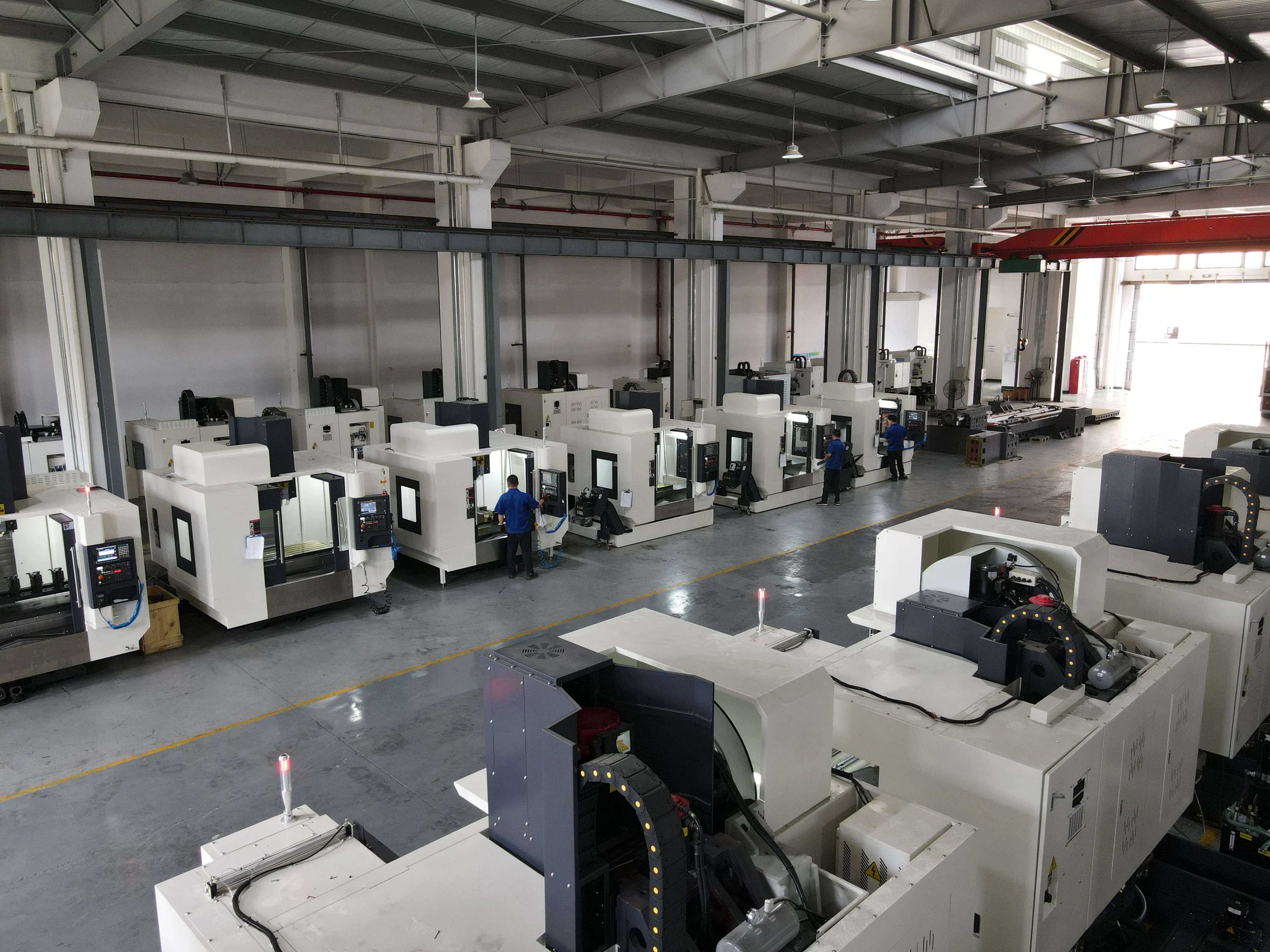

Our factory is located in Wuxi City, Jiangsu Province, China. You are welcome to visit us.
