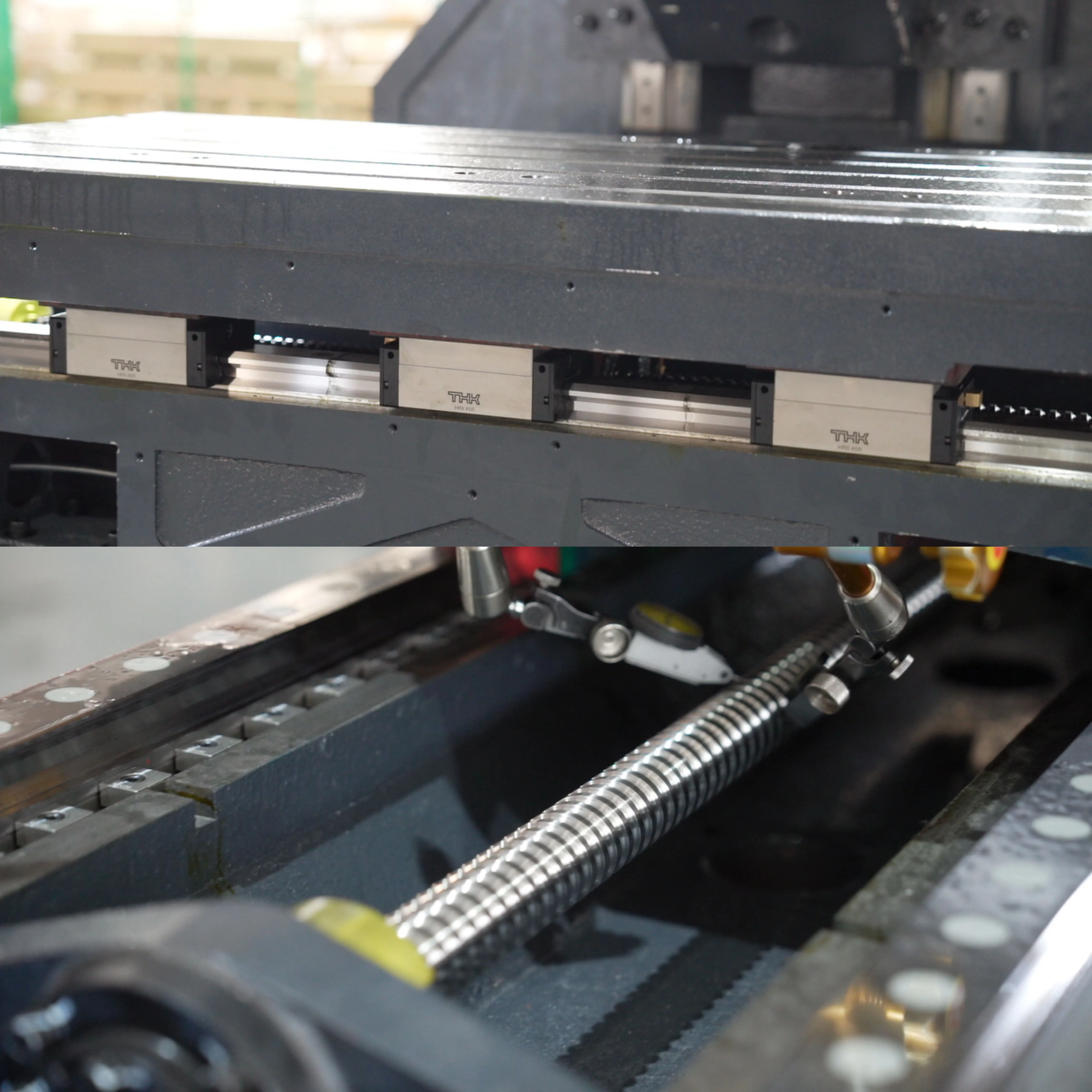

Straightness detection uses precision instruments to inspect linear guideway slider accuracy and ensure high product precision.
Copper offers excellent thermal conductivity and strong corrosion resistance for reliable long-term performance.

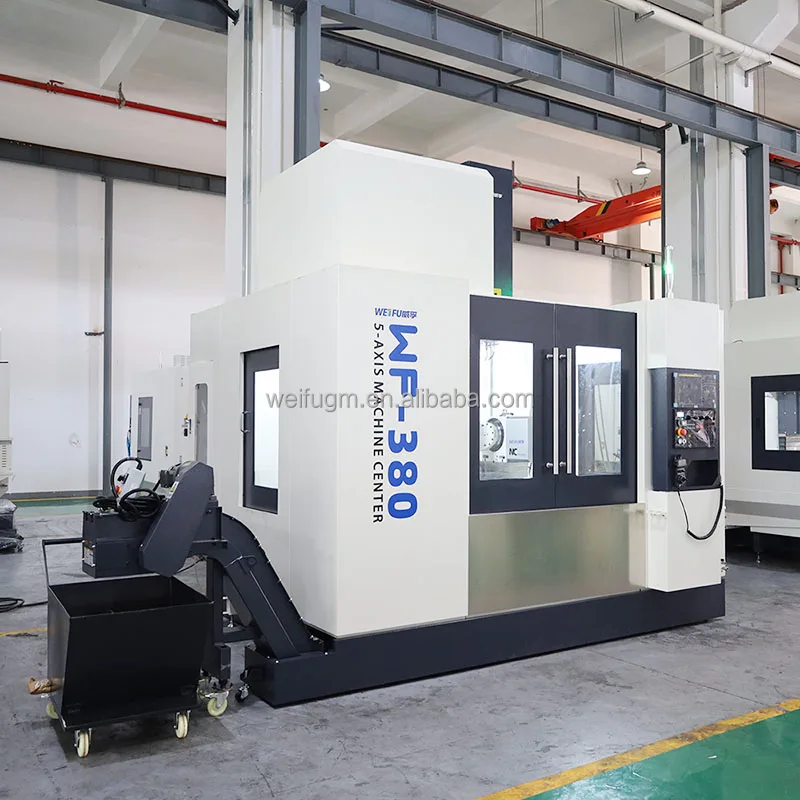

Equipped with a double-screw and single-chain chip conveyor, it automatically cleans machining chips, eliminating manual cleaning while improving efficiency and environmental performance.

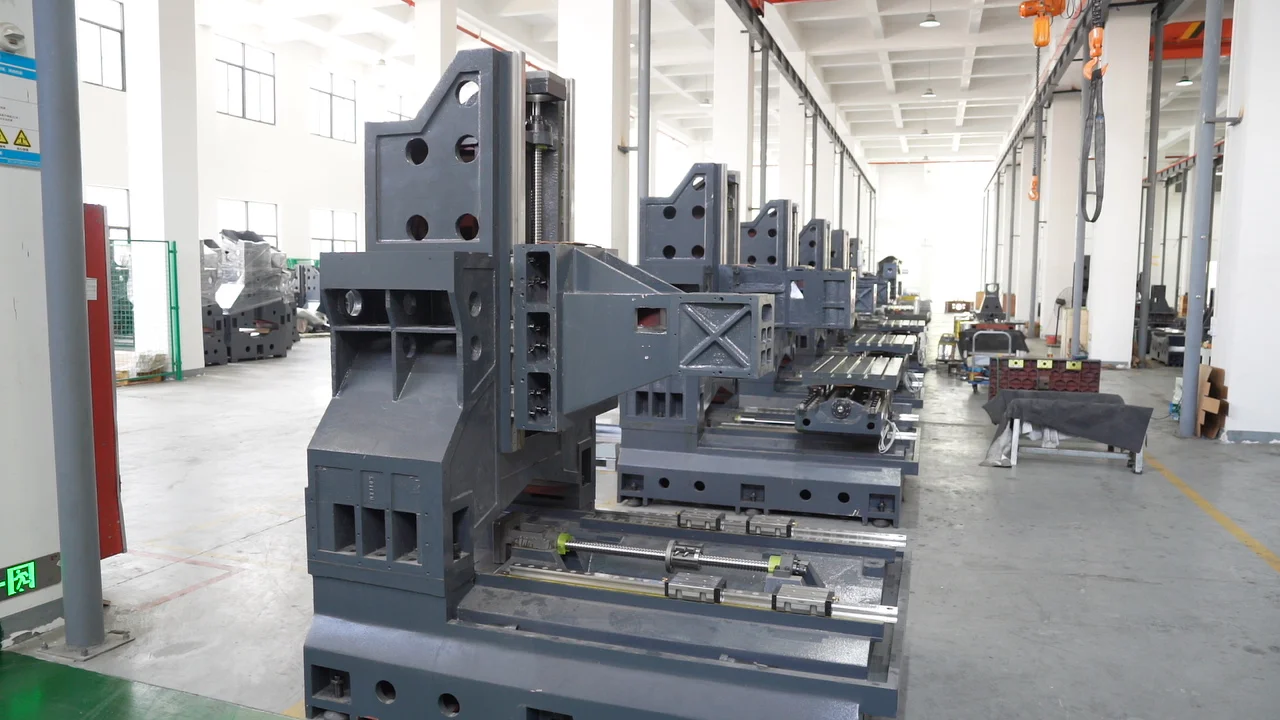

Positive T-integrated, multi-layer reinforced rib box-type base design delivers high rigidity, excellent dynamic performance, and stable high-speed machining.

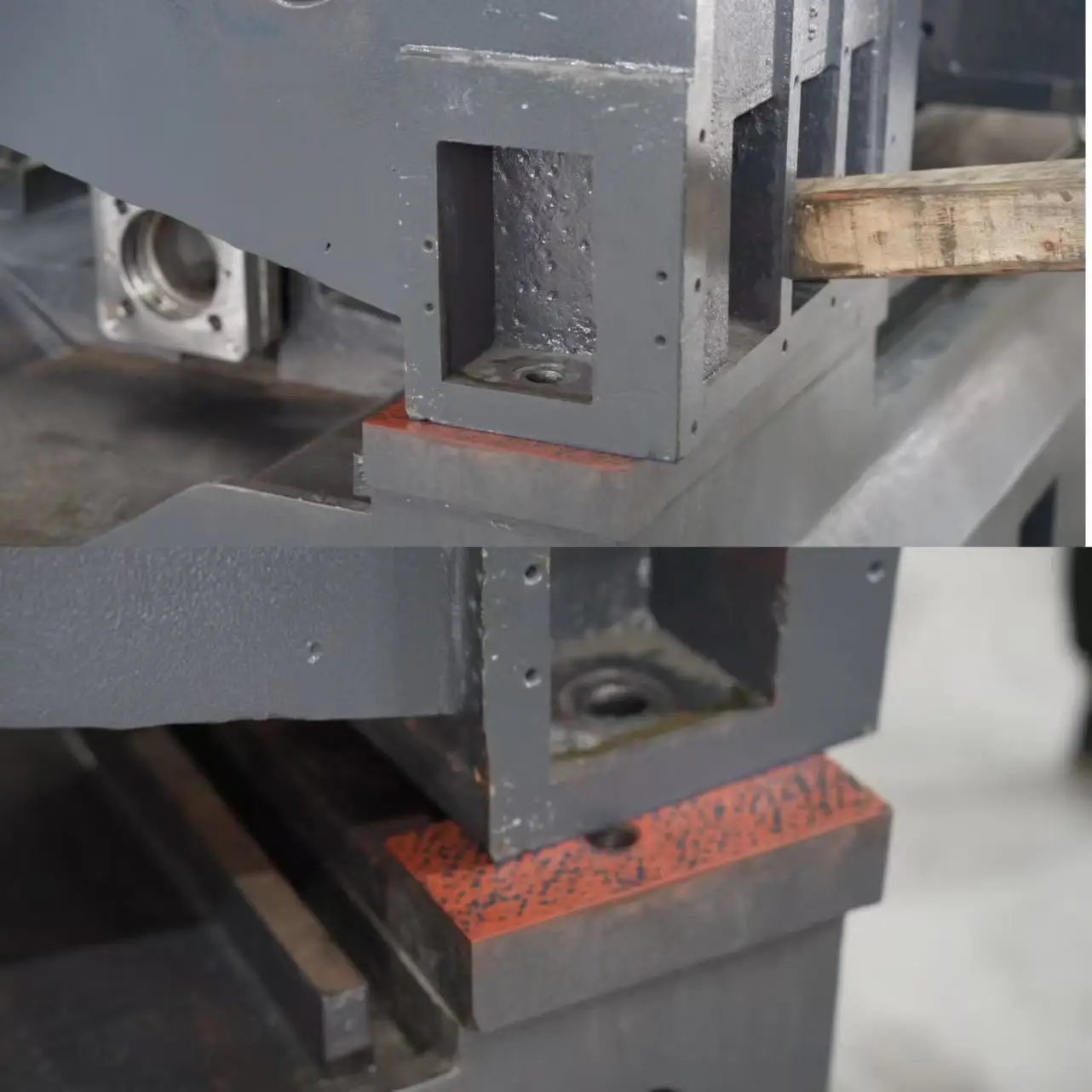

The column has 100% contact on both sides, enhancing machine rigidity and overall operating stability.
Straightness detection uses precision instruments to inspect linear guideway slider accuracy and ensure high product precision.
Copper offers excellent thermal conductivity and strong corrosion resistance for reliable long-term performance.
|
project
|
Models
|
unit
|
WF-380
|
|
itinerary
|
X-axis travel - saddle left and right
|
mm
|
550
|
|
Y-axis tool change stroke - front and rear of the beam
|
mm
|
650
|
|
|
Z-axis travel - up and down the headstock
|
mm
|
500
|
|
|

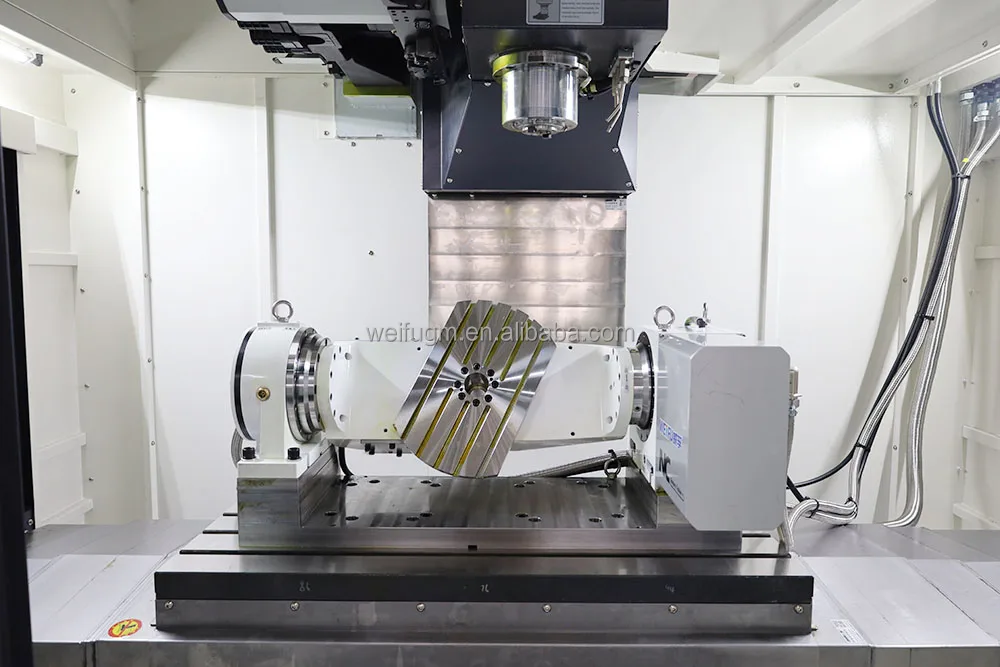

A-axis - rotary table swing angle
|
°
|
-45°~110°
|
|
|
C-axis - rotary table rotation angle
|
°
|
360°
|
|
|
Spindle end face distance from rotary table table (A-axis 0°)
|
mm
|
0-500
|
|
|
The end face of the spindle is 90° from the axis of rotation on the axis (90° on the axis of the A) axis.
|
mm
|
0-500
|
|
|
Spindle center distance from A-axis end face (A-axis 90°)
|
mm
|
front400 back500
|
|
|
Processing range
|
mm
|
φ500*H400
|
|
|
Turntable (AC axis dual direct drive)
|
Table size
|
mm
|
φ400
|
|
Maximum load allowed
|
kg
|
150
|
|
|
A/C axis - swing speed
|
rpm
|
33/88
|
|
|
Spindle
|
Taper hole
|
type
|
BBT40/HSK-A63
|
|
Range of revolutions
|
r/min
|
12000/optional 18000
|
|
|
Rated output torque
|
nm
|
35-47
|
|
|
Spindle motor power
|
kw
|
11
|
|
|
Feed
|
The XYZ axis moves quickly
|
m/min
|
36
|
|
Reference (without weight)
|
XYZ axis screw
|
type
|
4012
|
|
XYZ axis rail
|
type
|
45
|
|
|
X/Y/Z axis drag motor power
|
kw
|
3.0/3.0/3.0
|
|
|
X/Y/Z axis feed speed
|
m/min
|
10
|
|
|
Tool magazine (optional)
|
Tool magazine type
|
type
|
Disc/hat type
|
|
Tool magazine capacity
|
tools
|
24
|
|
|
Maximum diameter of the tool
|
mm
|
φ75
|
|
|
Maximum tool diameter (adjacent slots are free)
|
mm
|
φ150
|
|
|
Maximum tool length
|
mm
|
300
|
|
|
Maximum knife weight
|
kg
|
8
|
|
|
Positioning accuracy
|
X/Y/Z axis
|
mm
|
0.005/300
|
|
A/C axis
|
Corner seconds
|
±15/±10
|
|
|
Repeatable positioning accuracy
|
X/Y/Z axis
|
mm
|
0.005
|
|
A/C axis
|
Corner seconds
|
±15/±10
|
|
|
overall
|
Machine weight
|
kg
|
6500
|
|
Floor area
Width x depth x height |
m
|
3000*2550*2500
|
|
|
The above parameters are for reference only. In case of any discrepancy in color or size, the actual product shall prevail.
|
|||
For standard products, payment is by T/T: 30% down payment upon ordering, and the remaining 70% balance to be paid before shipment.
For non-standard customized products, payment is by T/T: 50% down payment upon order placement, and the remaining 50% to be paid before shipment.
The minimum order quantity is one set, and the warranty period is one year.
The machine is normally packed in a plywood case.
Please tell us your requirements, and we will recommend the most suitable machine model according to your needs.
EXW, FOB, CFR, CIF, and other trade terms are acceptable.
Our factory is located in Wuxi City, Jiangsu Province, China. You are welcome to visit us.
Our main products include CNC milling machines, CNC machining centers, CNC turning centers, vertical drilling and tapping machines, 5-axis machines, CNC lathes, lathes, milling machines, and accessories.
