Slant Bed Rigid Structure
HT300 gray cast iron bed, optimized by finite element analysis

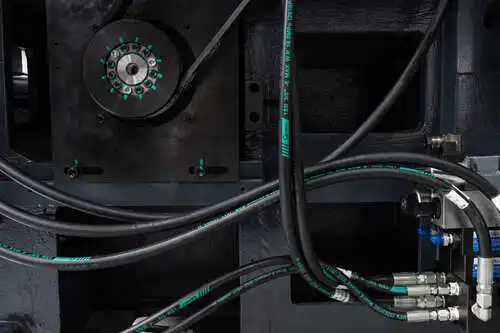

High-Performance Spindle System

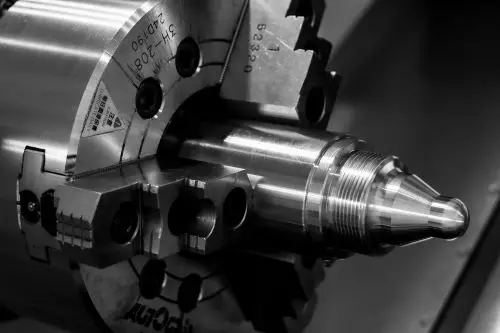

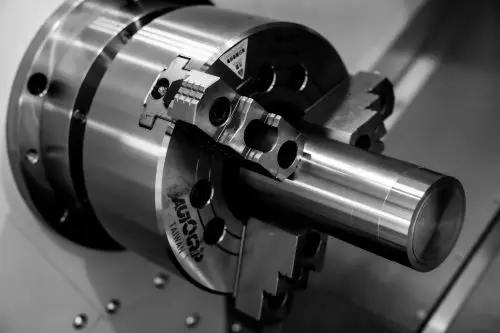

ISO A2-6 spindle nose, max speed 4000 rpm

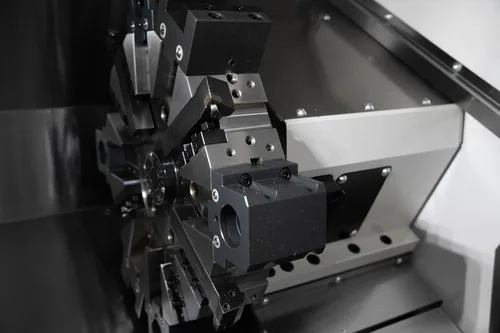

The tool turret adopts a servo motor-driven two-stage transmission to realize the tool changing function, with a gear transmission ratio of 1:16.5; The turret can withstand a maximum cutting fluid water pressure of 70kgf/cm².

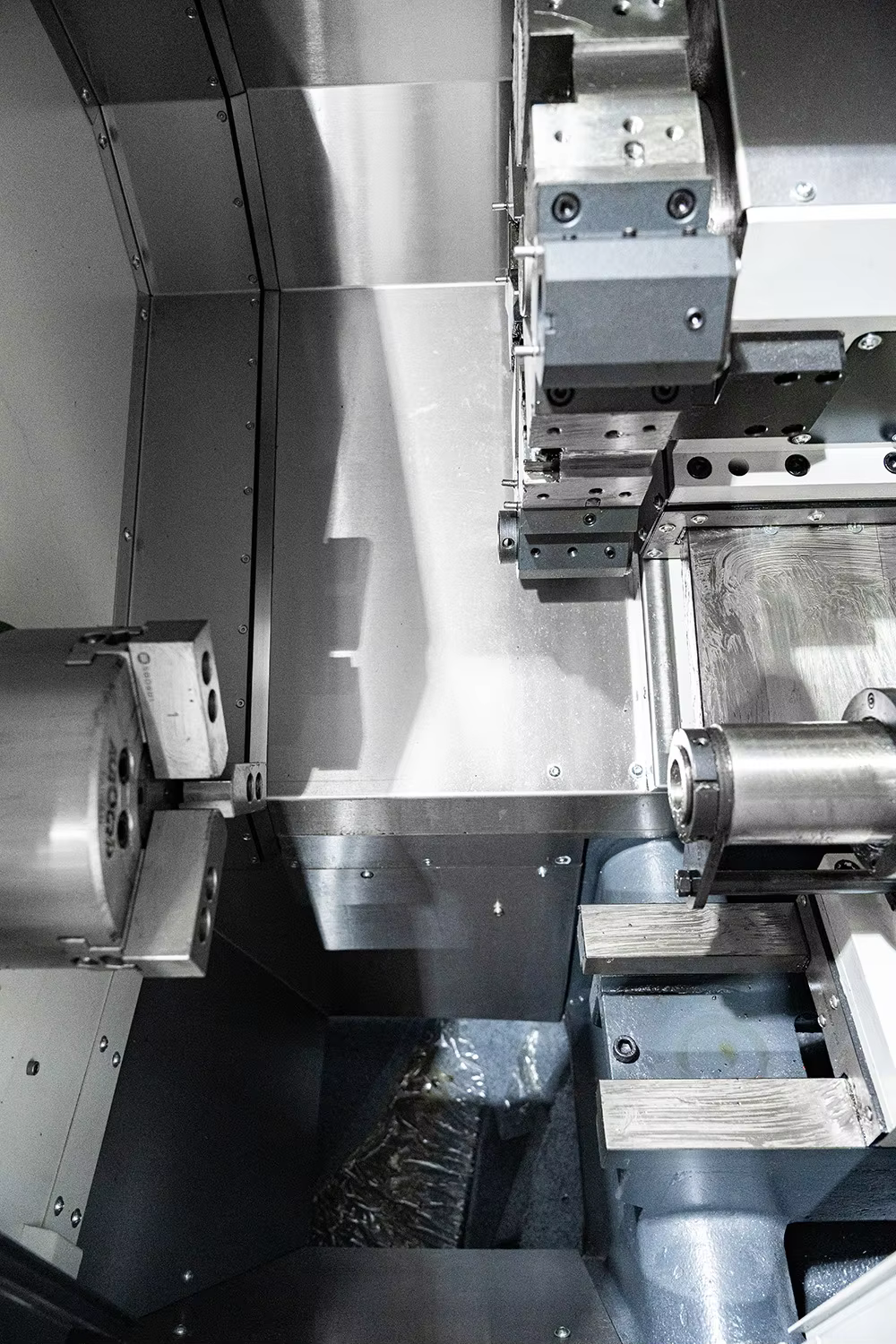

Secondary protection is added, and stainless steel protective materials are used to ensure smooth discharge of waste chips, with reliable protection and easy chip removal.
Made of HT300 gray cast iron, designed through finite element analysis, it features high density, high rigidity, high strength, shock absorption and wear resistance, strong precision retention, and long service life.
The equipment can be equipped with a tool detection function, which effectively ensures the machining accuracy of products.
The internal honeycomb structure of the casting enhances the rigidity and stability of the equipment.
Copper has excellent thermal conductivity and strong corrosion resistance, being able to resist the erosion of various chemical substances.
Concentricity of the spindle and tailstock
Concentricity of the spindle and tailstock
Photoelectric autocollimator
|
Project |
Unit
|
Specifications/Parameters
|
|
|
Processing capacity
|
Chuck size
|
inch
|
8
|
|
The rotation diameter of the bed
|
mm
|
Ф510
|
|
|
The rotary diameter of the drag plate
|
mm
|
Ф260
|
|
|
Maximum processing length
|
mm
|
500
|
|
|
Maximum machined parts
|
mm
|
Ф360（8Station）/Ф350（12Station）
|
|
|
Main shaft
|
Maximum rotational speed
|
rpm
|
4000
|
|
Spindle end form
|
ISO
|
A2-6
|
|
|
Diameter of the main shaft through hole
|
mm
|
Ф66
|
|
|
The pull rod has a through hole
|
mm
|
Ф52
|
|
|
Main motor power
|
KW
|
11
|
|
|
Dota
|
Form
|
/
|
Servo tool turret
|
|
Number of workstations
|
个
|
8/12
|
|
|
The rotation time of adjacent tool positions
|
S
|
0.28
|
|
|
The farthest tool position rotation time
|
S
|
0.4
|
|
|
The maximum size of the square knife handle
|
mm
|
□25×25
|
|
|
The maximum size of the round knife handle
|
mm
|
φ40
|
|
|
Mobile
|
X-axis fast shift
|
m/min
|
30
|
|
Z-axis fast shift
|
m/min
|
30
|
|
|
X-axis travel
|
mm
|
180+20（8Station）/175+35（12Station）
|
|
|
Z-axis travel
|
mm
|
540（8Station）/500（12Station）
|
|
|
The width of the X/Z axis rail
|
30/35Roller
|
||
|
X/ Z-axis lead screw
|
3210
|
||
|
Tailseat
|
Sleeve stroke
|
mm
|
90
|
|
Sleeve diameter
|
mm
|
Ф75
|
|
|
Sleeve conical hole
|
ISO
|
MT4
|
|
|
Cooling
|
Power
|
W
|
370
|
|
Traffic
|
m³/h
|
2.5～4.0
|
|
|
Precision
|
Precision turning outer circle accuracy
|
IT6
|
|
|
Surface roughness of precision machined parts
|
mm
|
Ra 0.4～1.6
|
|
|
The roundness of finely turned parts
|
mm
|
≤0.003
|
|
|
Positioning accuracy (X, Z）
|
mm
|
X：0.005 Z：0.008
|
|
|
Repeat positioning accuracy (X, Z）
|
mm
|
X：0.002 Z：0.004
|
|
|
Others
|
Weight
|
Kg
|
3200
|
|
Numerical control system
|
SYNTEC CNC System 22Ta
|
||
|
External dimensions (length, width, height)
|
mm
|
2022×1600×1690（No chip conveyor included）
|
|
|
The above parameters are for reference only. In case of any discrepancy in color or size, the actual product shall prevail.
|
|||

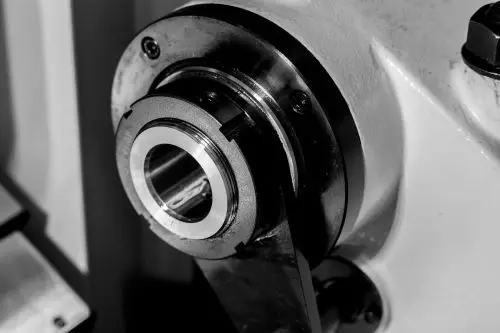

Hydraulic Tailstock
Tool Presetter
Electrical Cabinet Air Conditioner
Robot
Oil Mist Collector
Parts Catcher
Optional 12-Station Turret

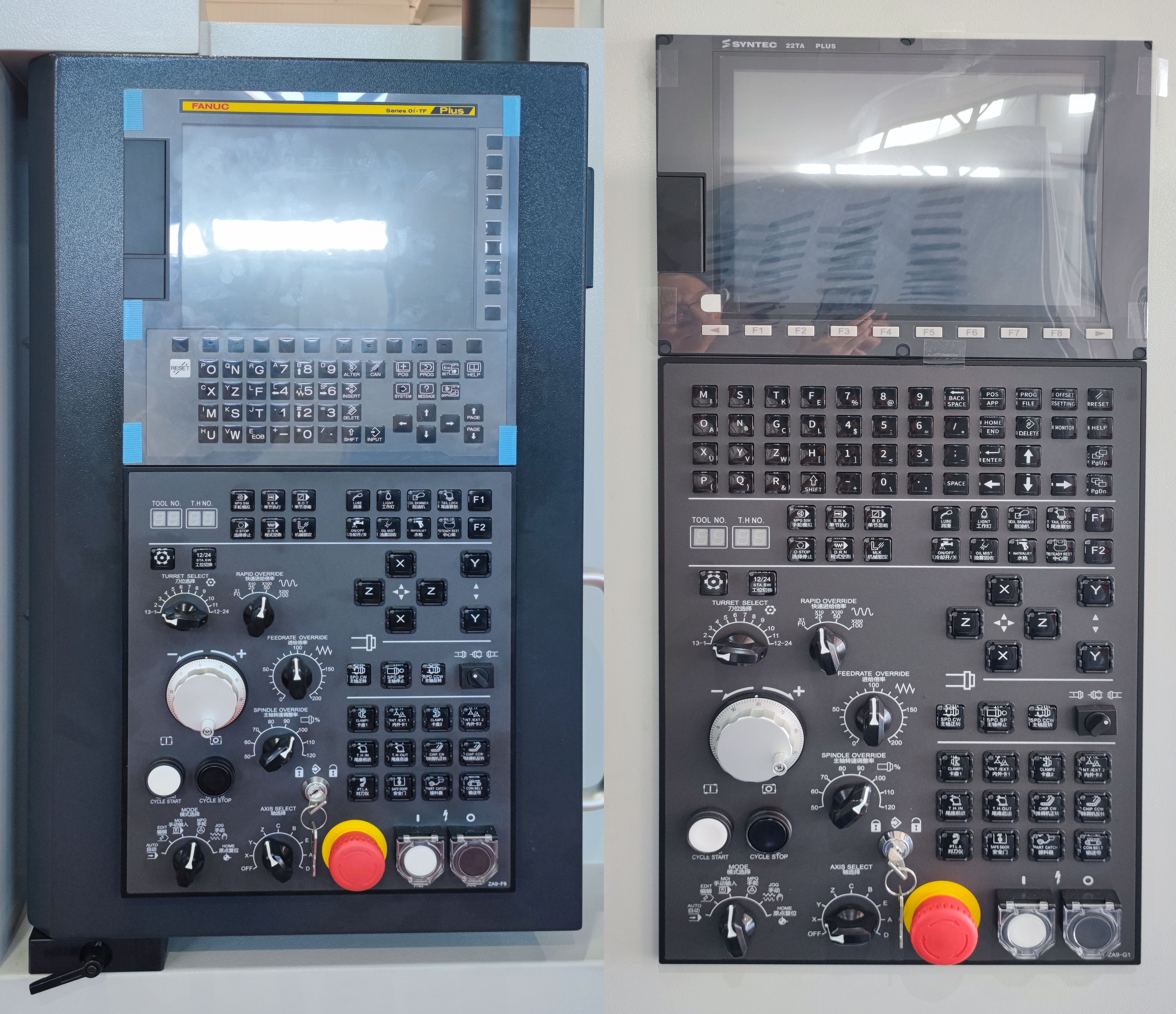

CNC System
·Factory with ISO, IAF, IAS, EAC, ZZEC, BCZ, ISD, Intertek, and SONCAP ·Over 33,000 m2 of the factory with more than 300 employees ·Strict quality control is implemented with over 24 testing steps ·20+ years CNC machine manufacturing experience ·24/7 online service is available at any time ·ODM and OEM are supported ·Trade with more than 100 countries worldwide ·Cooperate with well-known brands such as Siemens, Fanuc, Mitsubishi, and Heidenhain ·A professional elite team is engaged in manufacturing machine tools, machinery, numerical control equipment, production equipment, etc ·The warranty period is 18 months.
01

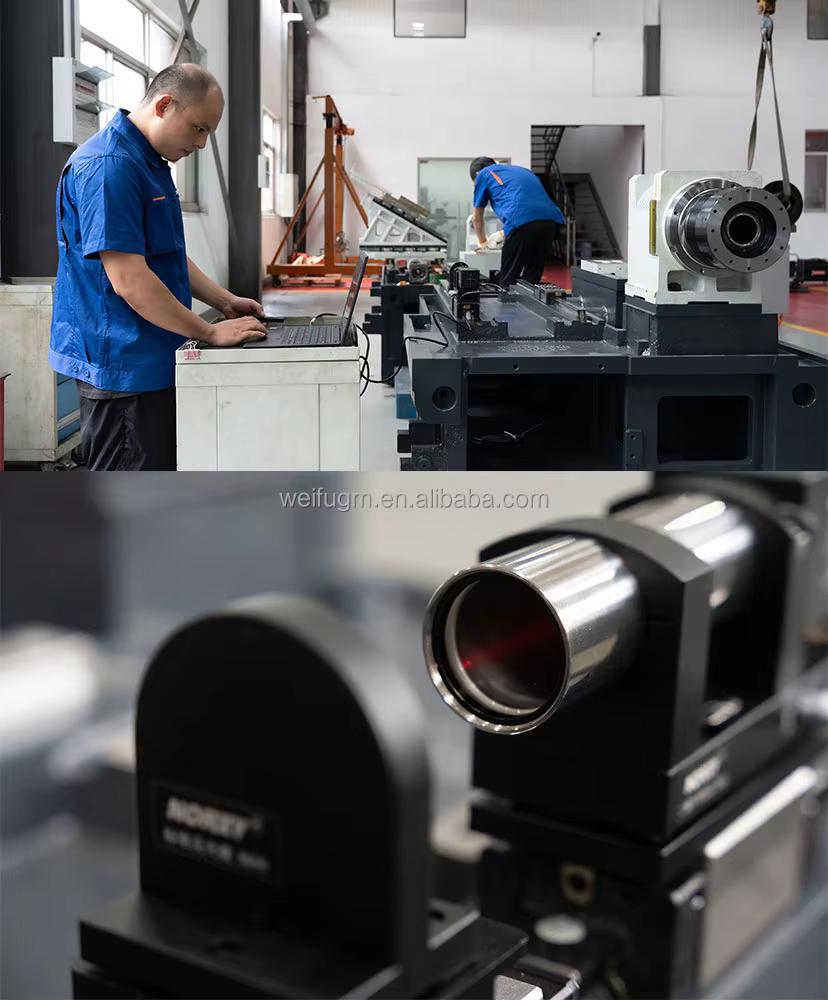

Photoelectric Autocollimator
