Dual Spindle Efficiency：
High precision machining with dual spindles for faster, more stable production.
Stable Cooling Performance：
Forced oil cooling reduces vibration and keeps spindle running smoothly at high speed.

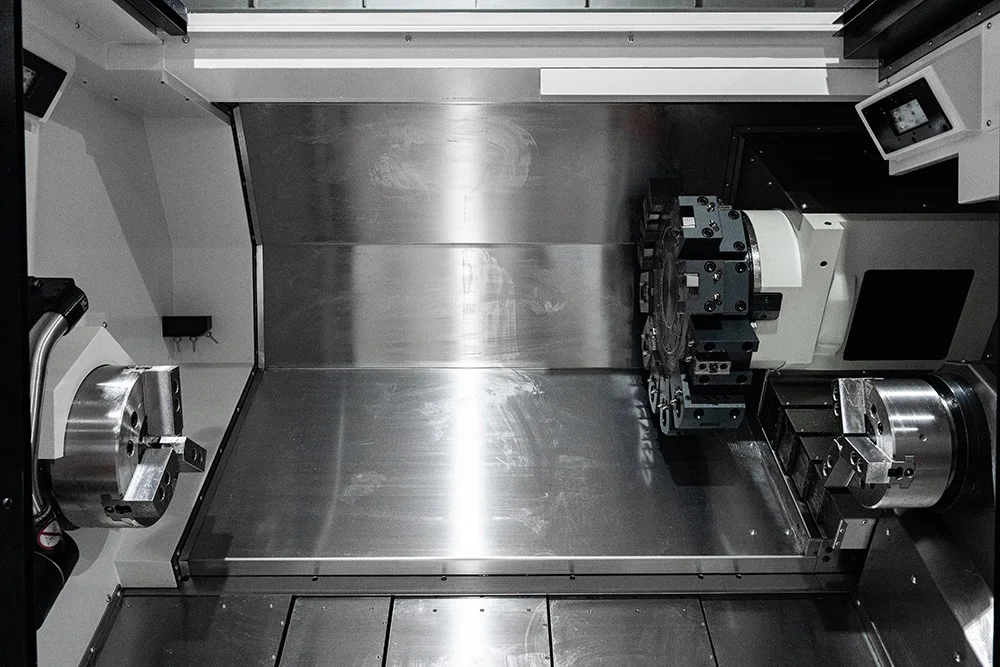

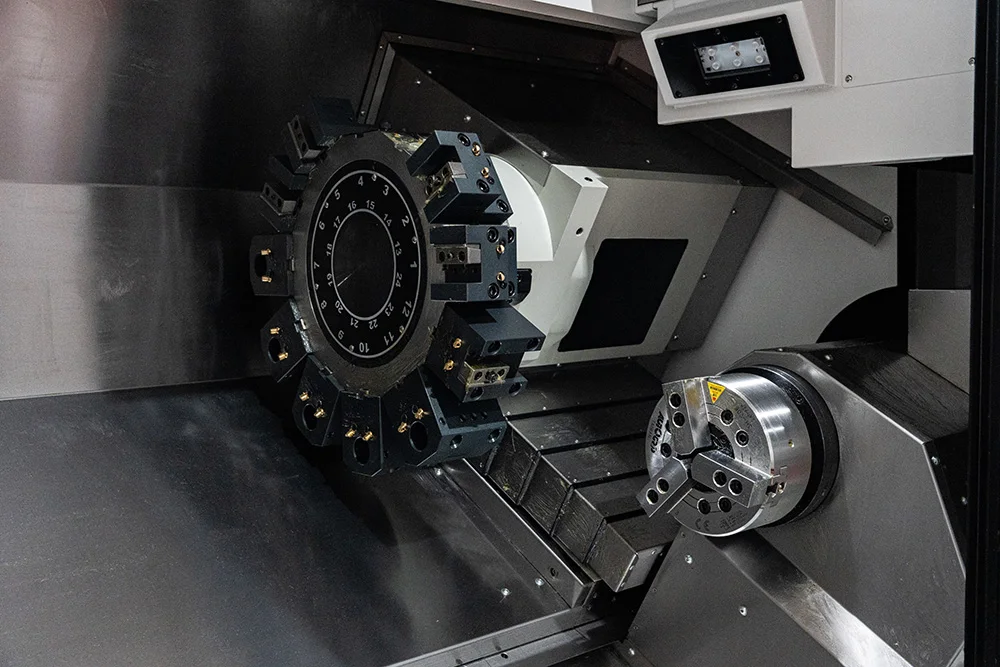

Dual spindles for high efficiency and high precision; the turret can withstand a maximum cutting fluid water pressure of 70kgf/cm².

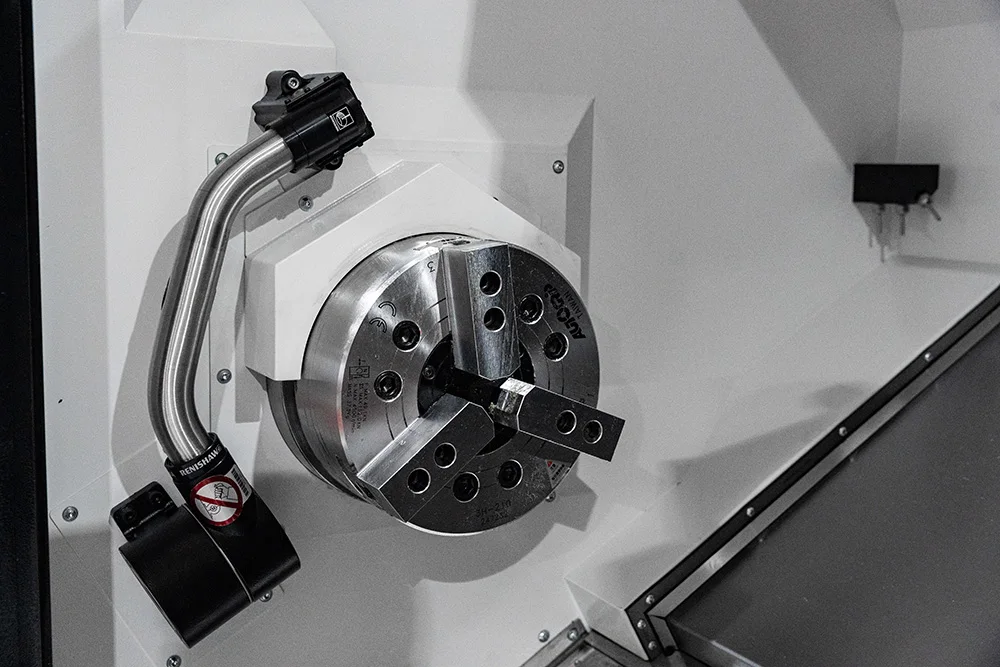

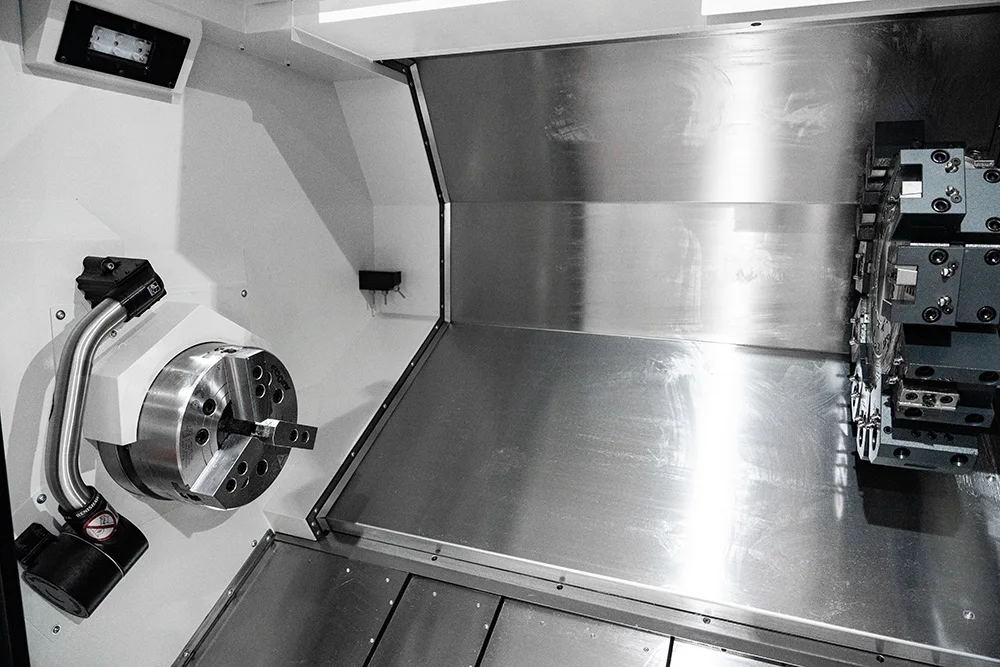

The SY sub-spindle adopts an A2-5 spindle, a 6-inch hydraulic chuck, and a 12.5kw built-in electric spindle. The maximum spindle speed can reach 5000 rpm, with stable rotation and low vibration. The spindle cooling adopts a forced oil cooling circulation structure.

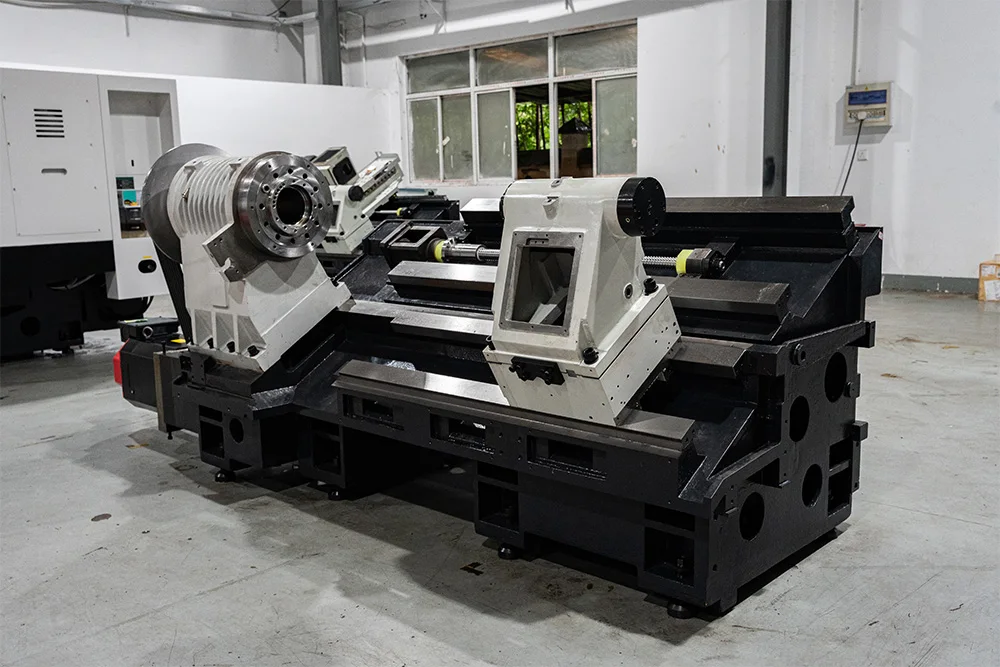

The lead screw is pre-tensioned to reduce its sagging and enhance axial rigidity.
|
Project
|
Unit
|
Specifications/Parameters
|
|
|
Processing Ability
|
Chuck size
|
inch
|
8
|
|
The rotation diameter of the bed
|
mm
|
Ф700
|
|
|
The rotary diameter of the drag plate
|
mm
|
Ф200
|
|
|
Maximum processing length
|
mm
|
530
|
|
|
Maximum processing diameter
|
c
|
Ф370
|
|
|
Main shaft
|
Maximum rotational speed
|
rpm
|
4500
|
|
Spindle end form
|
ISO
|
A2-6
|
|
|
Diameter of the main shaft through hole
|
mm
|
Ф63
|
|
|
The pull rod has a through hole
|
mm
|
Ф52
|
|
|
Main motor power
|
KW
|
11/15
|
|
|
C-axis indexing capability
|
DEG
|
0.001°
|
|
|
Face away Main shaft
|
Chuck size
|
inch
|
6
|
|
Rated rotational speed
|
RPM
|
1700
|
|
|
Maximum rotational speed
|
RPM
|
5000
|
|
|
Spindle end face form
|
ISO
|
A2-5
|
|
|
Diameter of the main shaft through hole
|
mm
|
Ф56
|
|
|
The pull rod has a through hole
|
mm
|
Ф45
|
|
|
Main motor power (electric spindle)
|
KW
|
13.2（Siemens/SYNTEC CNC System）/12.5（Fanuc）
|
|
|
Itinerary
|
mm
|
520
|
|
|
Fast shift speed
|
m/min
|
30
|
|
|
Dota
|
Form
|
/
|
Power tool turret
|
|
Number of workstations
|
a
|
12
|
|
|
Opposite the dota
|
mm
|
380
|
|
|
Center height of the boring tool seat
|
mm
|
85
|
|
|
The rotation time of adjacent tool positions
|
S
|
0.2
|
|
|
The farthest tool position rotation time
|
S
|
0.5
|
|
|
The maximum size of the square knife handle
|
mm
|
□25×25
|
|
|
The maximum size of the round knife handle
|
mm
|
φ40
|
|
|
Power cutting tools
|
Tool motor power
|
Kw
|
3.3（Siemens）/4.5（Fanuc）/3.1（SYNTEC CNC System）
|
|
Maximum rotational speed
|
rpm
|
4000（Siemens）/6000（Fanuc/SYNTEC CNC System）
|
|
|
Motor rated / Maximum torque
|
N.m
|
16（Siemens）/18（Fanuc）/15（SYNTEC CNC System）
|
|
|
Tool specification
|
|
BMT55
|
|
|
Mobile
|
X-axis fast shift
|
m/min
|
30
|
|
Z-axis fast shift
|
m/min
|
30
|
|
|
Y-axis fast shift
|
m/min
|
12
|
|
|
X-axis travel
|
mm
|
185+15
|
|
|
Maximum Z-axis stroke
|
mm
|
550
|
|
|
Y-axis travel
|
mm
|
±50
|
|
|
Cooling
|
Power
|
W
|
480
|
|
Traffic
|
m³/h
|
2.5
|
|
|
Precision
|
Precision turning outer circle accuracy
|
|
IT6
|
|
Surface roughness of precision machined parts
|
mm
|
Ra 0.4～1.6
|
|
|
The roundness of finely turned parts
|
mm
|
≤0.003
|
|
|
Positioning accuracy (X, Z, Y)
|
mm
|
X：0.005 Z：0.008 Y：0.008
|
|
|
Repeat positioning accuracy (X, Z, Y)
|
mm
|
X：0.002 Z：0.004 Y：0.004
|
|
|
Others
|
Weight
|
Kg
|
4530
|
|
Numerical control system
|
|
FANUC 0I TF/SYNTEC CNC System 22TB/ Siemens
|
|
|
External dimensions (length, width, height)
|
mm
|
2685×1750×1870(No chip conveyor included）
|
|
|
The above parameters are for reference only. In case of any discrepancy in color or size, the actual product shall prevail.
|
|||
