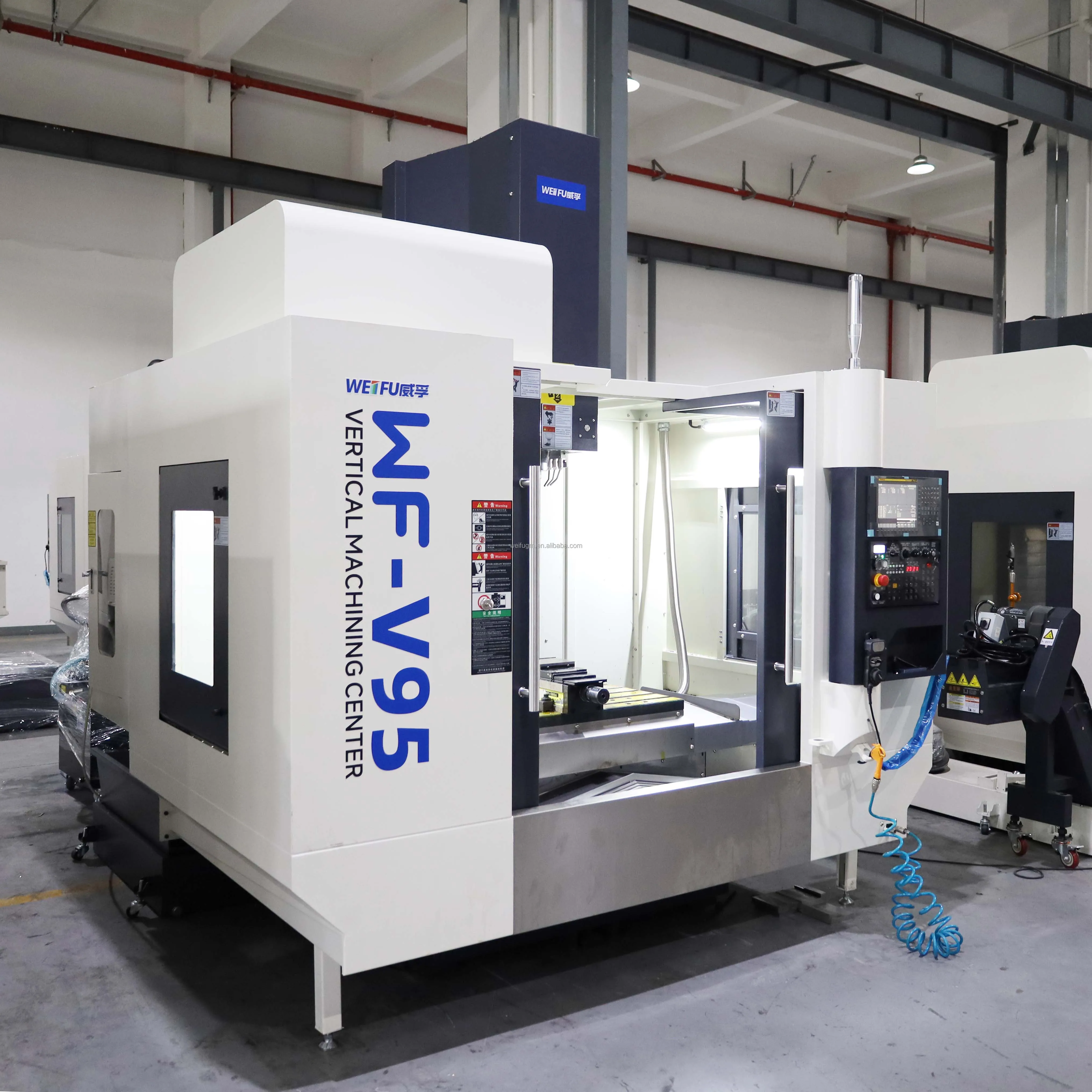

Home > Products > Machining centre > vertical machining centre > WF-V95

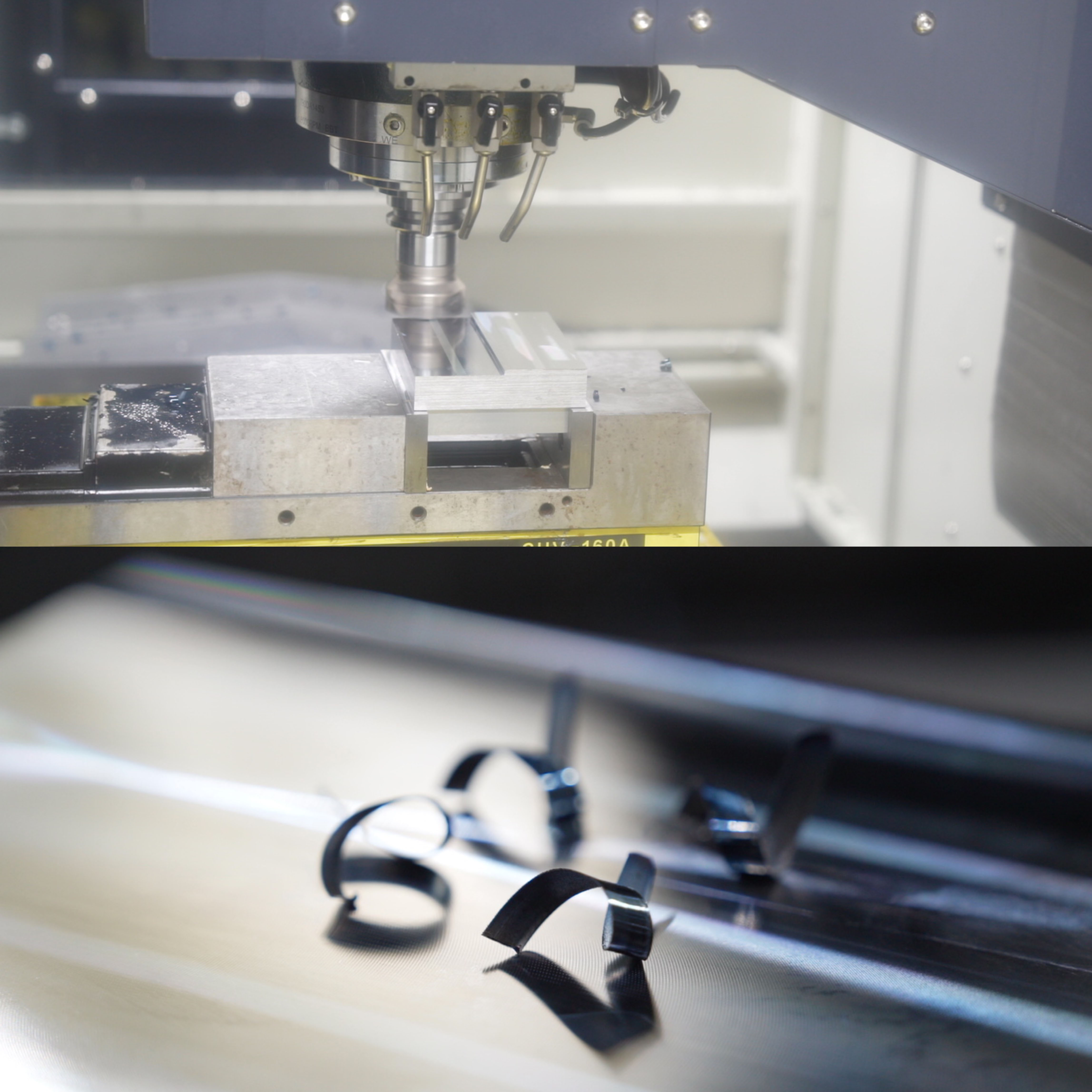

V95 heavy cutting test
5 mm per side, cutter diameter 63 mm, spindle speed 1000 rpm, feed rate 500 mm/min.

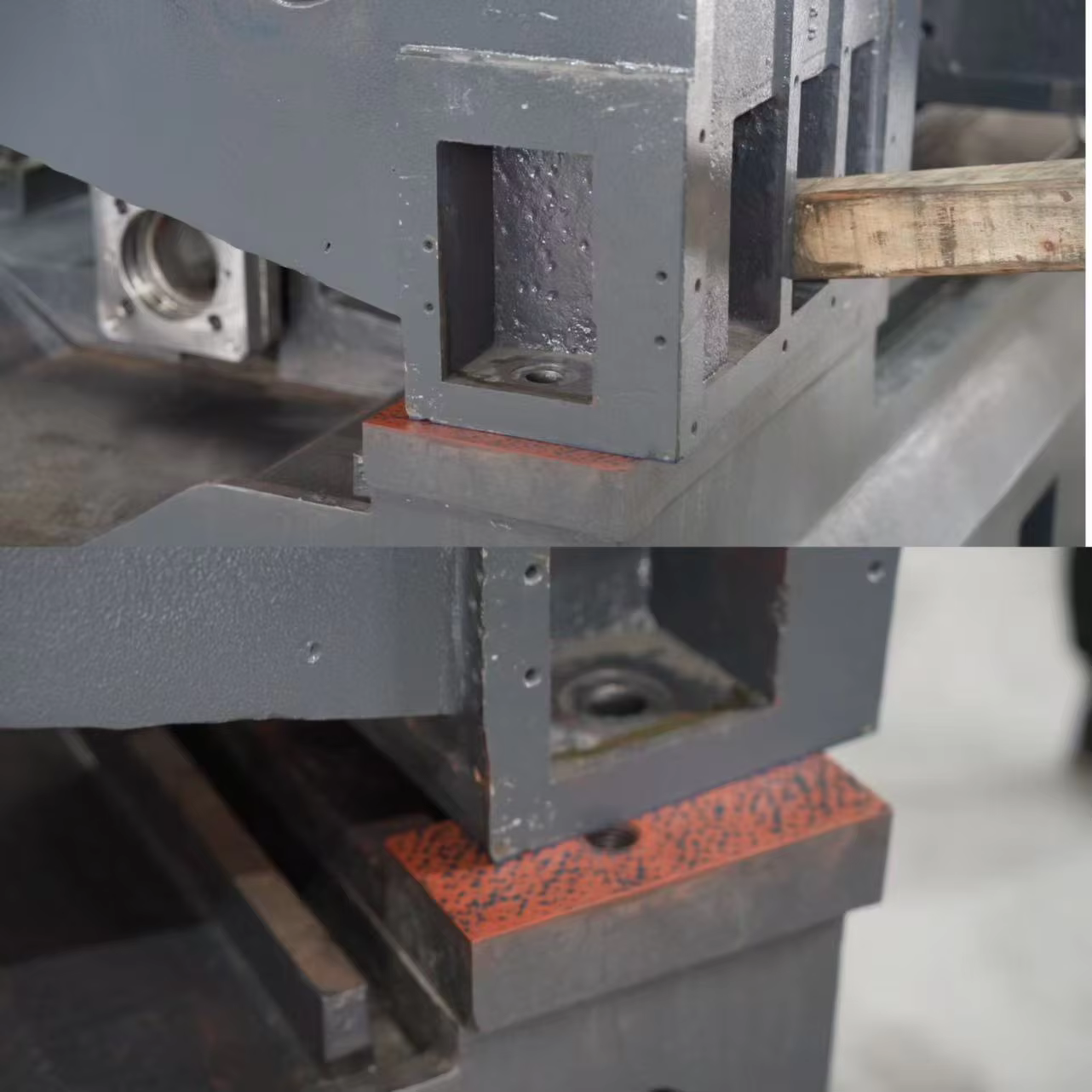

THK Linear Guide System
Equipped with Japanese THK linear guide rails. Six sliders on the X-axis enhance rigidity and ensure high stability.

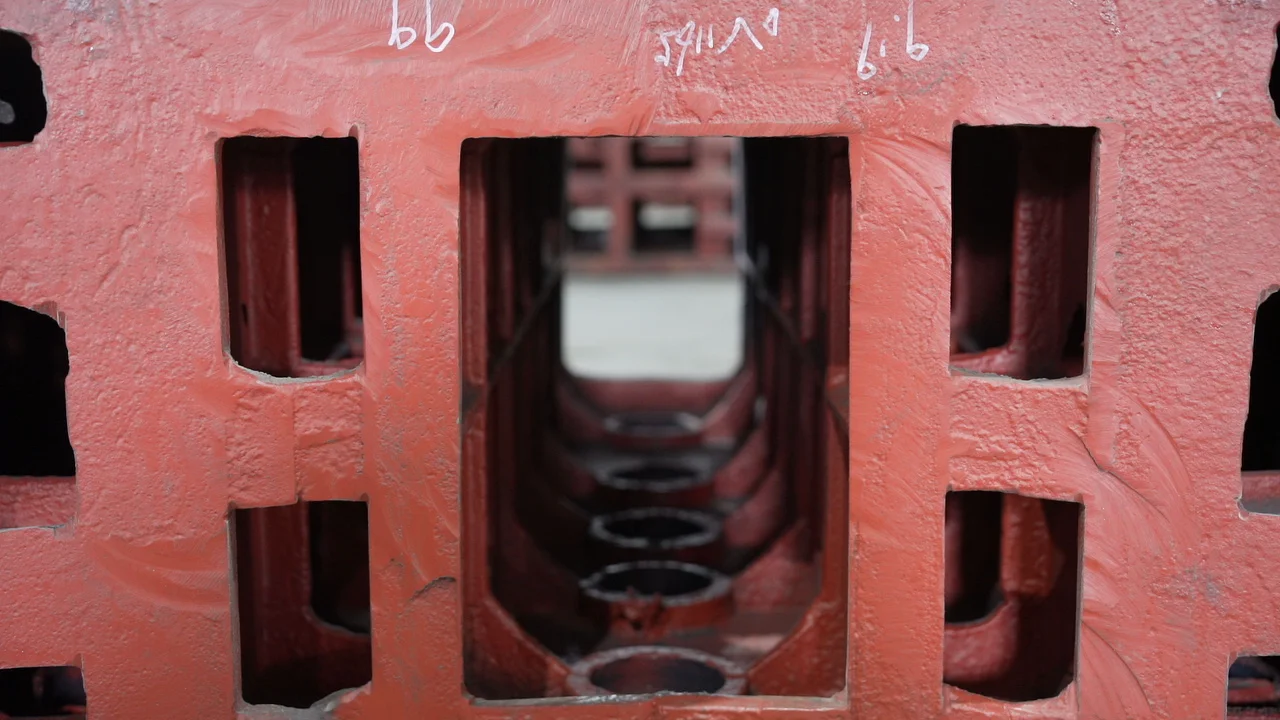

Machine Column Structure
The column features a full-contact structure on both sides, greatly improving machine rigidity and stability.
![H3bc74ceb55f440b59e38f67fe3685111o[1][1].png](https://shopcdnpro.grainajz.com/category/461728/4046/ae955ff44a41d9fce1f0e24e487a296c/H3bc74ceb55f440b59e38f67fe3685111o%5B1%5D%5B1%5D.png)
|
Project
|
Single position
|
WF-V95
|
|
X-axis travel
|
mm
|
900
|
|
Y-axis travel
|
mm
|
550
|
|
Z-axis travel
|
mm
|
650
|
|
Workbench area
|
mm
|
1000*550
|
|
Maximum load capacity of the workbench
|
kg
|
800
|
|
T-slot (slot - width X center distance)
|
mm
|
5-18*100
|
|
The distance from the nose end of the main shaft to the worktable surface
|
mm
|
150-800
|
|
The distance from the center of the spindle to the surface of the guide rail
|
mm
|
610
|
|
Spindle speed
|
Rpm
|
12000
|
|
Outer diameter of the main shaft
|
MM
|
150-BT40
|
|
Tool specification
|
|
BT40-45°
|
|
Tool magazine form
|
|
Disc knife arm type
|
|
The number of cutting tools
|
T
|
24
|
|
Maximum tool diameter/adjacent no tool
|
Mm
|
75-150
|
|
Maximum tool length
|
Mm
|
300
|
|
Maximum tool weight
|
Kg
|
8
|
|
Spindle motor
|
kw
|
BIL15
|
|
X/Y/Z axis motor
|
kw
|
BIS30-30-30
|
|
X-axis rapid displacement
|
m/min
|
24
|
|
Y-axis rapid displacement
|
m/min
|
24
|
|
Z-axis rapid displacement
|
m/min
|
24
|
|
Cutting feed rate
|
Mm /min
|
1—36000
|
|
Positioning accuracy
|
mm
|
±0.005/300mm
|
|
Repeat positioning accuracy
|
mm
|
±0.003/300mm
|
|

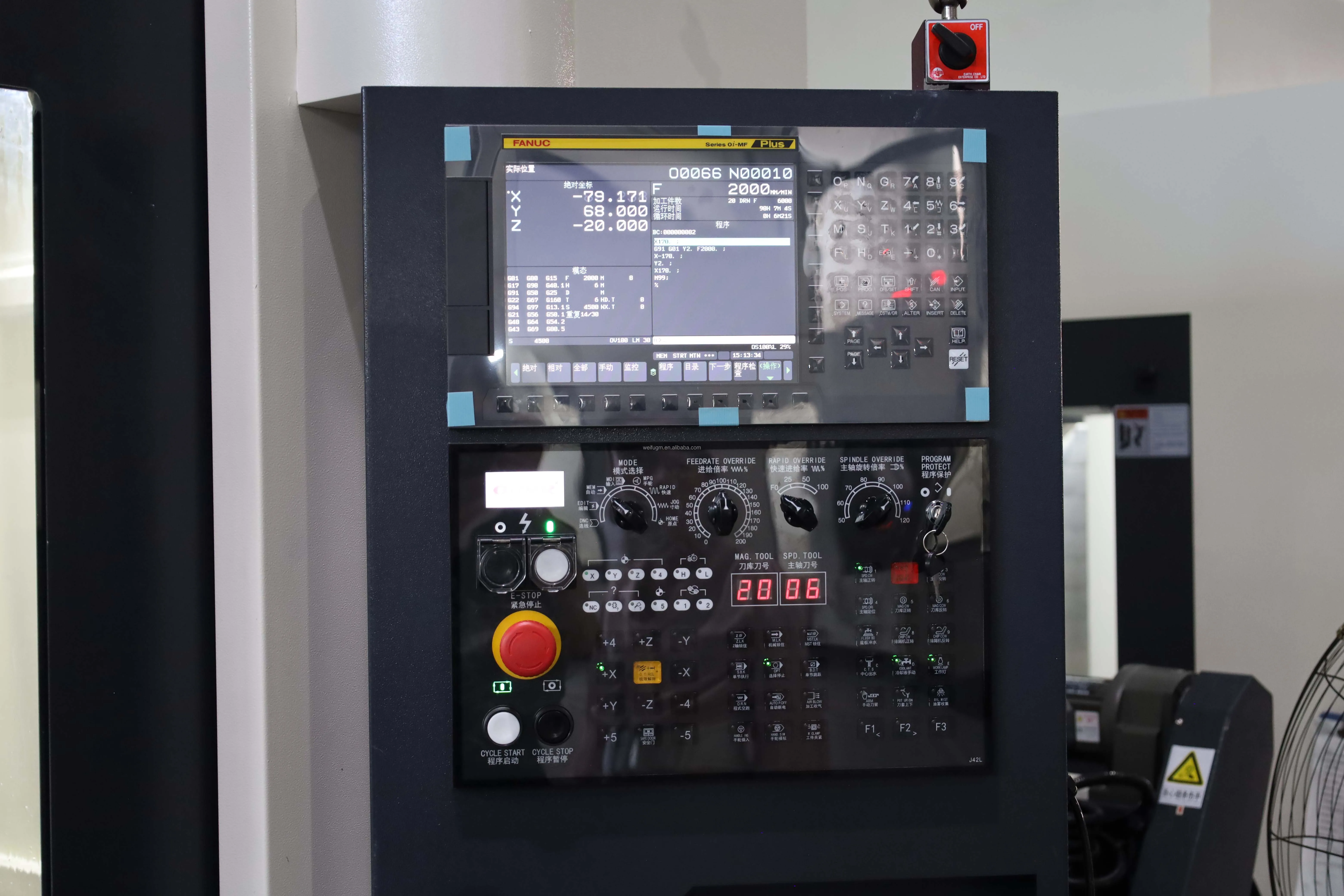

Controller
|
Fanuc
|
OIMF
|
|
The weight of the machine is approximately
|
kg
|
6500
|
|
Power supply requirements
|
KVA
|
40
|
|
Water tank capacity
|
L
|
250
|
|
Air compressor source
|
kg/cm2
|
6
|
|
Overall dimensions (length * width * height)
|
mm
|
2700*3100*3200（It has the highest water tank）
|
|
The above parameters are for reference only. In case of any discrepancy in color or size, the actual product shall prevail.
|
||
For standard products, payment is by T/T: 30% down payment upon ordering, and the remaining 70% balance to be paid before shipment.
For non-standard customized products, payment is by T/T: 50% down payment upon order placement, and the remaining 50% to be paid before shipment.
The minimum order quantity is one set, and the warranty period is one year.
The machine is normally packed in a plywood case.
Please tell us your requirements, and we will recommend the most suitable machine model according to your needs.
EXW, FOB, CFR, CIF, and other trade terms are acceptable.
Our factory is located in Wuxi City, Jiangsu Province, China. You are welcome to visit us.
