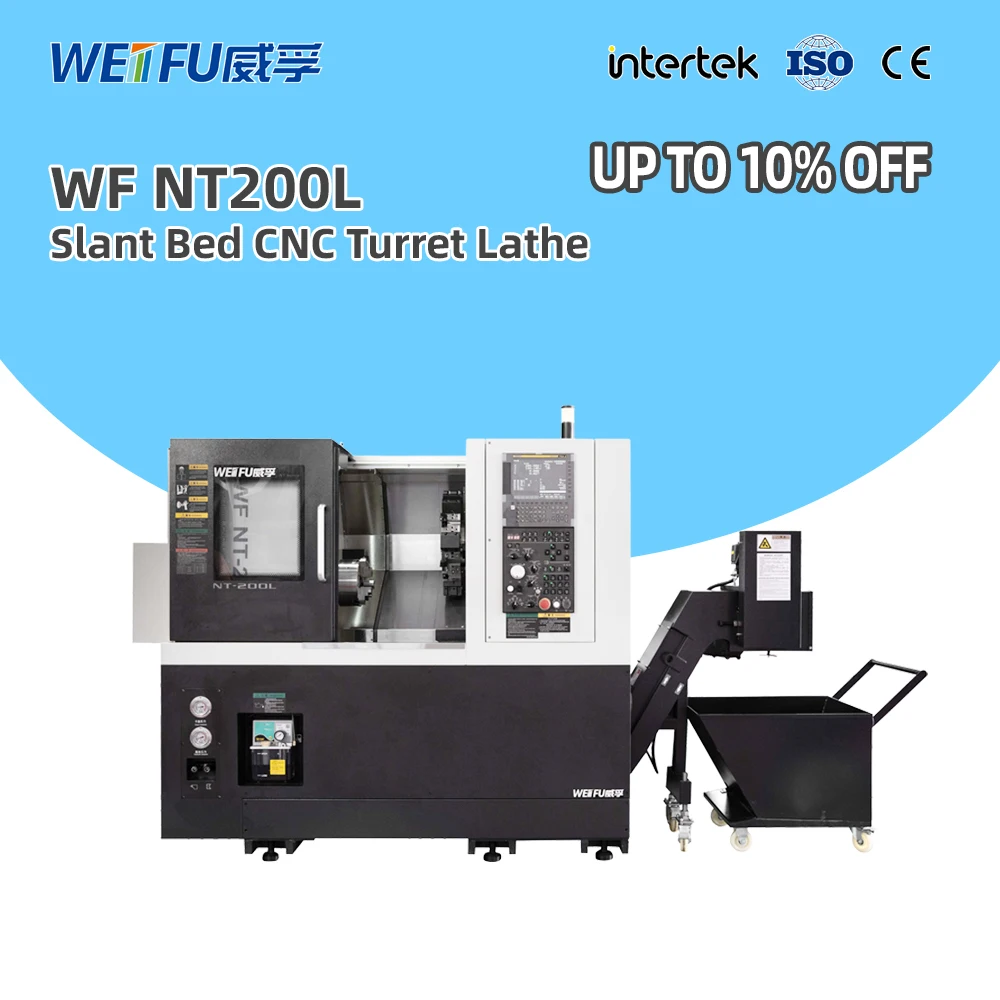

Home > Products > CNC lathe > Turret lathe > WF-NT200L

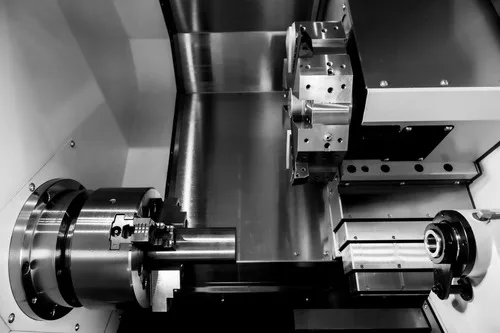

1.Hydraulic 8-position turret
2.NSK spindle bearings and X/Z axis bearings
3.X/Z ball screws&linear guideways 4.Non through-hole
hydraulic chuck

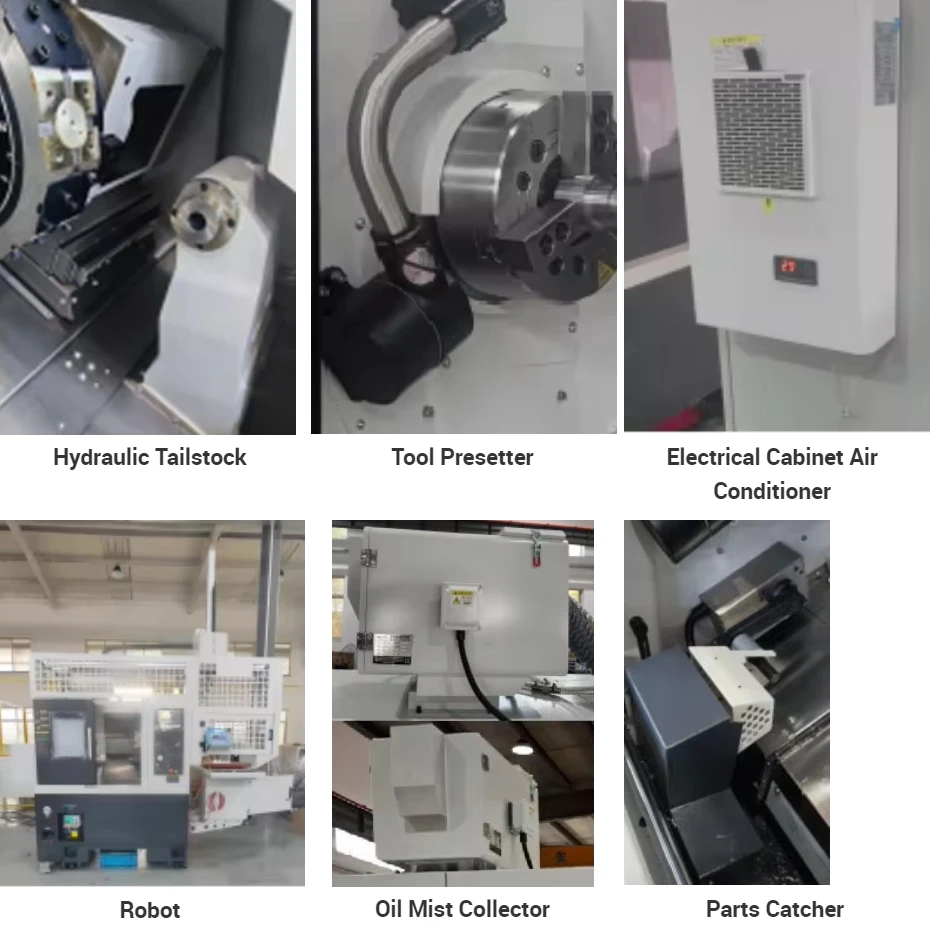

5.Hydraulic tailstock
6.Heat exchanger
7.Chip collection box
8.Automatic lubrication system 9.Standard toolkit
|
|
Project
|
Unit
|
Specifications/Parameters
|
|
Processing capacity
|
Chuck size
|
inch
|
8
|
|
The rotation diameter of the bed
|
mm
|
Ф510
|
|
|
The rotary diameter of the drag plate
|
mm
|
Ф260
|
|
|
Maximum processing length
|
mm
|
500
|
|
|
Maximum machined parts
|
mm
|
Ф360（8Station）/Ф350（12Station）
|
|
|
Main shaft
|
Maximum rotational speed
|
rpm
|
4000
|
|
Spindle end form
|
ISO
|
A2-6
|
|
|
Diameter of the main shaft through hole
|
mm
|
Ф66
|
|
|
The pull rod has a through hole
|
mm
|
Ф52
|
|
|
Main motor power
|
KW
|
11
|
|
|
Dota
|
Form
|
/
|
Servo tool turret
|
|
Number of workstations
|
piece
|
8/12
|
|
|
The rotation time of adjacent tool positions
|
S
|
0.28
|
|
|
The farthest tool position rotation time
|
S
|
0.4
|
|
|
The maximum size of the square knife handle
|
mm
|
□25×25
|
|
|
The maximum size of the round knife handle
|
mm
|
φ40
|
|
|
Mobile
|
X-axis fast shift
|
m/min
|
30
|
|
Z-axis fast shift
|
m/min
|
30
|
|
|
X-axis travel
|
mm
|
180+20（8Station）/175+35（12Station）
|
|
|
Z-axis travel
|
mm
|
540（8Station）/500（12Station）
|
|
|
The width of the X/Z axis rail
|
|
30/35Roller
|
|
|
X/ Z-axis lead screw
|
|
3210
|
|
|
Tailseat
|
Sleeve stroke
|
mm
|
90
|
|
Sleeve diameter
|
mm
|
Ф75
|
|
|
Sleeve conical hole
|
ISO
|
MT4
|
|
|
Cooling
|
Power
|
W
|
370
|
|
Traffic
|
m³/h
|
2.5～4.0
|
|
|
Precision
|
Precision turning outer circle accuracy
|
|
IT6
|
|
Surface roughness of precision machined parts
|
mm
|
Ra 0.4～1.6
|
|
|
The roundness of finely turned parts
|
mm
|
≤0.003
|
|
|
Positioning accuracy (X, Z）
|
mm
|
X：0.005 Z：0.008
|
|
|
Repeat positioning accuracy (X, Z）
|
mm
|
X：0.002 Z：0.004
|
|
|
Others
|
Weight
|
Kg
|
3200
|
|
Numerical control system
|
|
SYNTEC CNC System 22Ta
|
|
|
External dimensions (length, width, height)
|
mm
|
2022×1600×1690（No chip conveyor included）
|
|
|
The above parameters are for reference only. In case of any discrepancy in color or size, the actual product shall prevail.
|
|||
For standard products, payment is by T/T: 30% down payment upon ordering, and the remaining 70% balance to be paid before shipment.
For non-standard customized products, payment is by T/T: 50% down payment upon order placement, and the remaining 50% to be paid before shipment.
The minimum order quantity is one set, and the warranty period is one year.
The machine is normally packed in a plywood case.
Please tell us your requirements, and we will recommend the most suitable machine model according to your needs.
EXW, FOB, CFR, CIF, and other trade terms are acceptable.

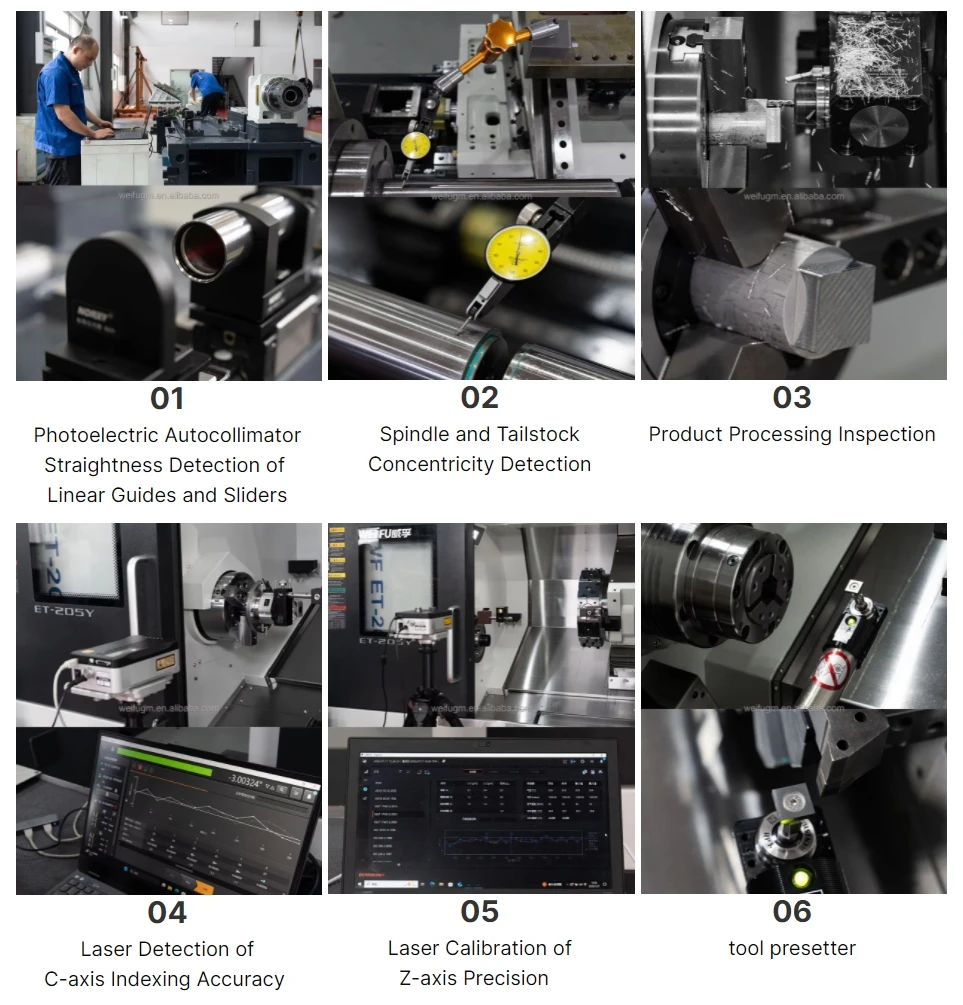

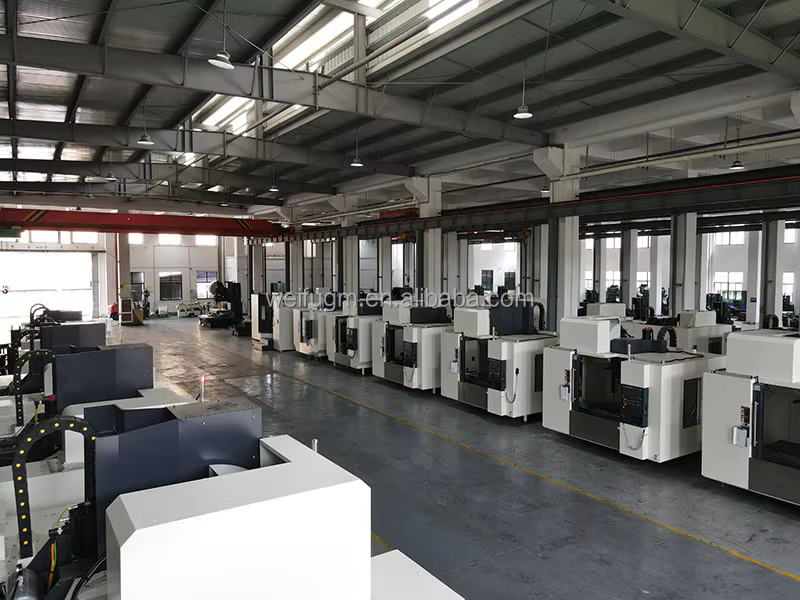

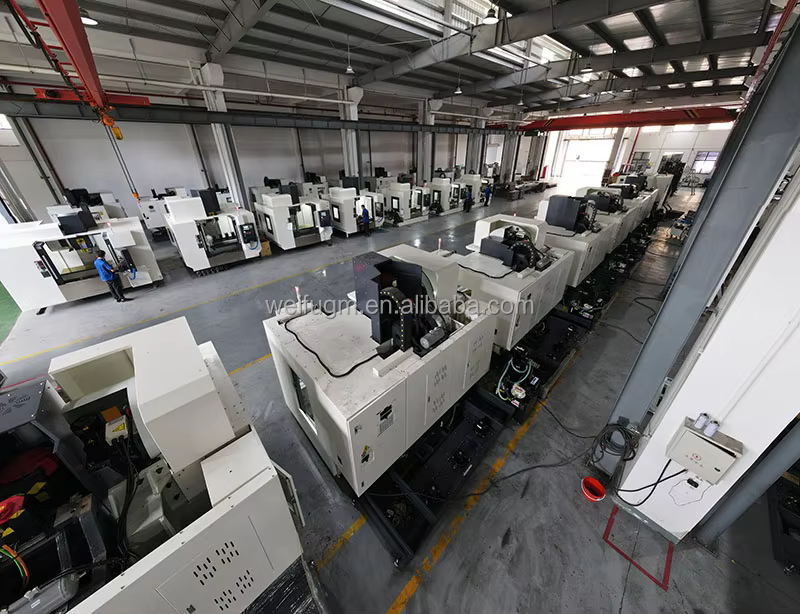

Our factory is located in Wuxi City, Jiangsu Province, China. You are welcome to visit us.

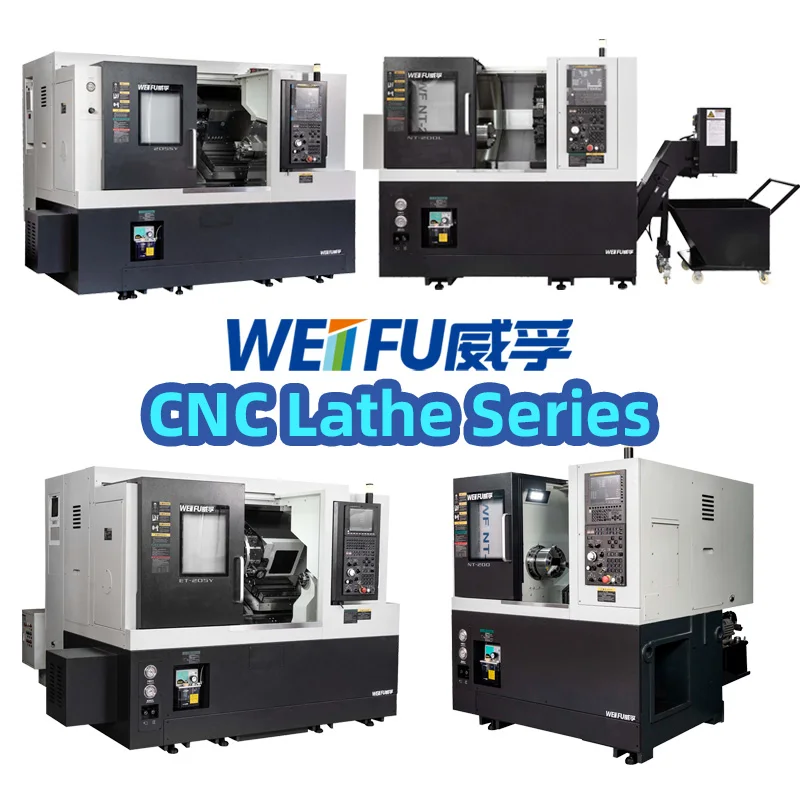

Our main products include CNC milling machines, CNC machining centers, CNC turning centers, vertical drilling and tapping machines, 5-axis machines, CNC lathes, lathes, milling machines, and accessories.
