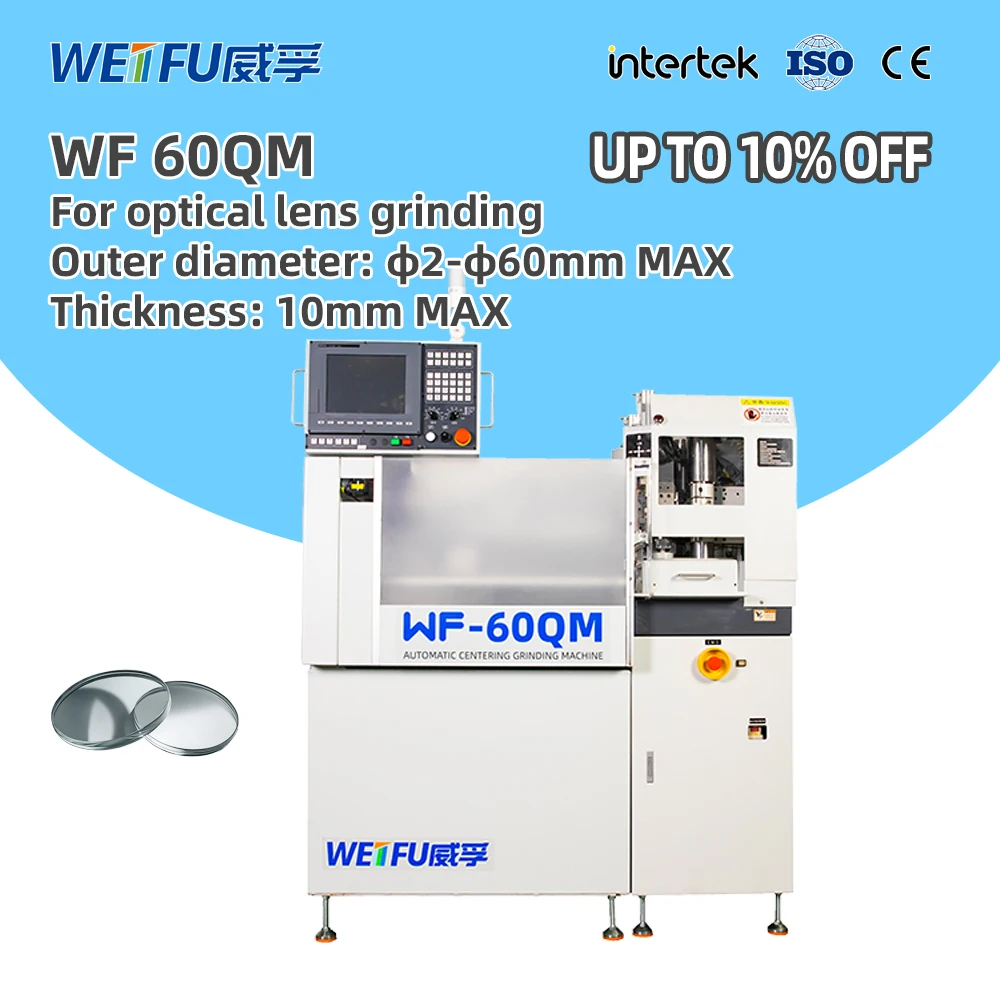

Home > Products > Grinding Machines > Optical Lenses Grinder

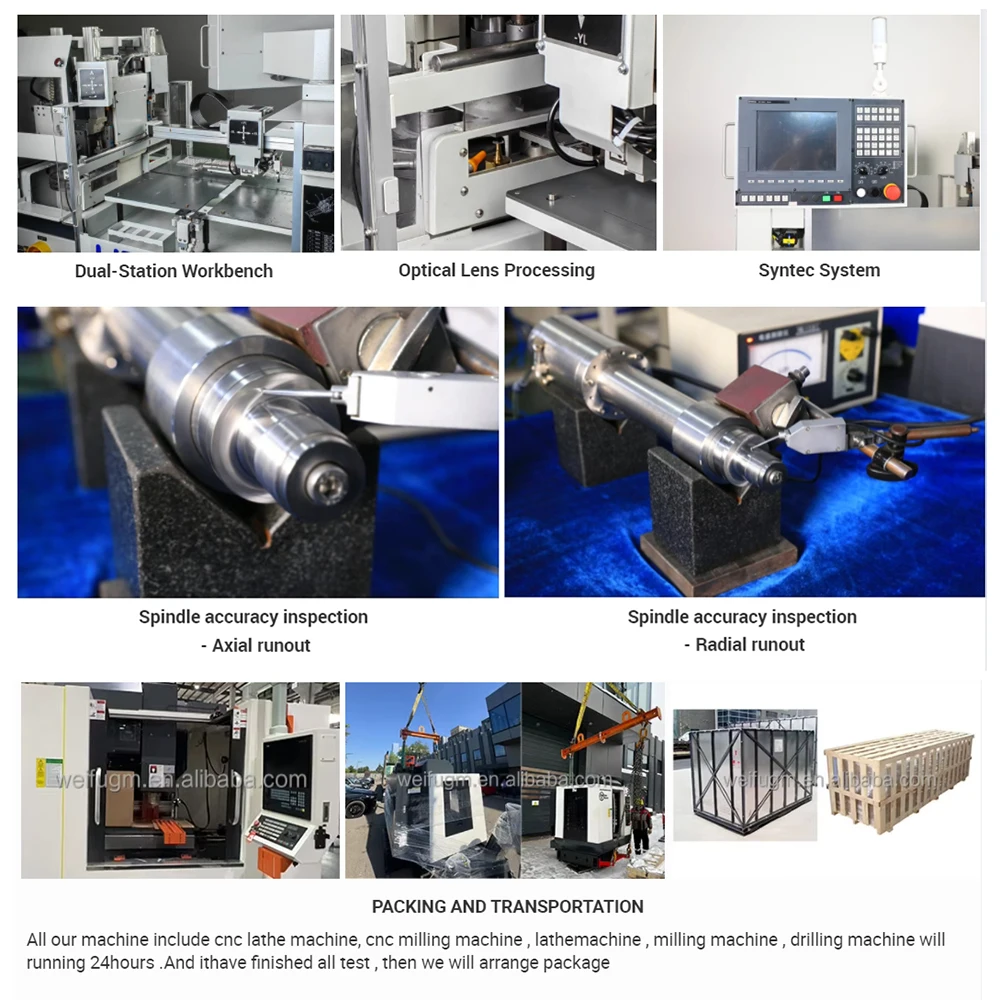

Dual-Station Efficiency:
Boosts productivity with continuous dual-station grinding for faster and more stable lens machining.
Precision Optical Grinding:
Ensures high-accuracy surface finishing for optical lenses with smooth and consistent grinding performance.
|
Project
|
Specifications/Parameters
|
|
Overall Dimensions(L×W×H)
|
1380×880×1880mm
|
|
Machine Weight
|
800Kg
|
|
Pneumatic Supply
|
0.6Mpa(6kg/c㎡)
|
|
Power Supply
|
Three-phase 380V, 50Hz
|
|
Number of Control Axes
|
12 Axes
|
|
Outer Diameter
|
φ2 - φ60mm Max
|
|
Thickness
|
Max 10 mm
|
|
Shape
|
Concave and Convex Lenses
|
|
Processing Time
|
Determined by lens grinding parameters
|
|
Machining Speed
|
1.8～3000rpm (Stepless Speed Regulation)
|
|
Centering Speed
|
1000 rpm Max.
|
|
Drive Motor Specification
|
AC Servo Motor, 200W
|
|
Cylinder Specification
|
φ25 mm
|
|
Adjustment Stroke
|
25~45mm
|
|
Grinding Wheel Speed
|
8000 rpm
|
|
Grinding Wheel Motor
|
Permanent Magnet Synchronous Motor, 380V, 5kW, 400Hz, 6-Pole
|
|
Grinding Wheel Specification
|
Outer Diameter φ160 (φ125 Optional) / Shaft Hole φ30H6
|
|
Vertical Movement Range
|
31mm
|
|
Horizontal Movement Range
|
70mm
|
|
Total Stroke
|
600mm
|
|
Movement Resolution
|
0.01mm
|
|
Repeatability
|
±0.02mm
|
|
Product Placement Accuracy
|
±0.1mm
|
|
Drive Motor
|
AC Servo Motor / 100W
|
|
Total Stroke
|
600mm
|
|
Movement Resolution
|
0.01mm
|
|
Repeatability
|
±0.02mm
|
|
Product Placement Accuracy
|
±0.1mm
|
|
Drive Motor
|
AC Servo Motor / 100W
|
|
Drive Method
|
Pneumatic Cylinder
|
|
Clampable Lens Specification
|
Φ60mm (Max.)
|
|
Positioning Accuracy
|
±0.25mm
|
1. What is the payment term?
For standard product: payment by T/T, 30% down payment upon ordering, 70% balance payment before shipment.
For non-standard customized products: payment by T/T, 50% down payment upon order placement, and the remaining 50% to be paid before shipment.
2. What are your minimum order quantity and warranty period?
MOQ is one set, and the warranty is one year.
3. What is the packaging for the machine?
The machines standard will be packed in a plywood case.
4. How to choose the most suitable machine?
Please tell me your requirements, and I will recommend the most suitable machine model for you according to your needs.
5. What are your trade terms?
EXW, FOB, CFR, CIF, or other terms are acceptable.
6. Where is your factory located?
It is located in Wuxi City, Jiangsu Province, China. Welcome to visit us.
7. What are the main products of your company?
CNC Milling Machine, CNC Machining Center, CNC Turning Center, Vertical Drilling-Tapping Machine, 5-Axis, CNC Lathe, Lathe, Milling Machine, and Accessories.
