Project
|
Unit
|

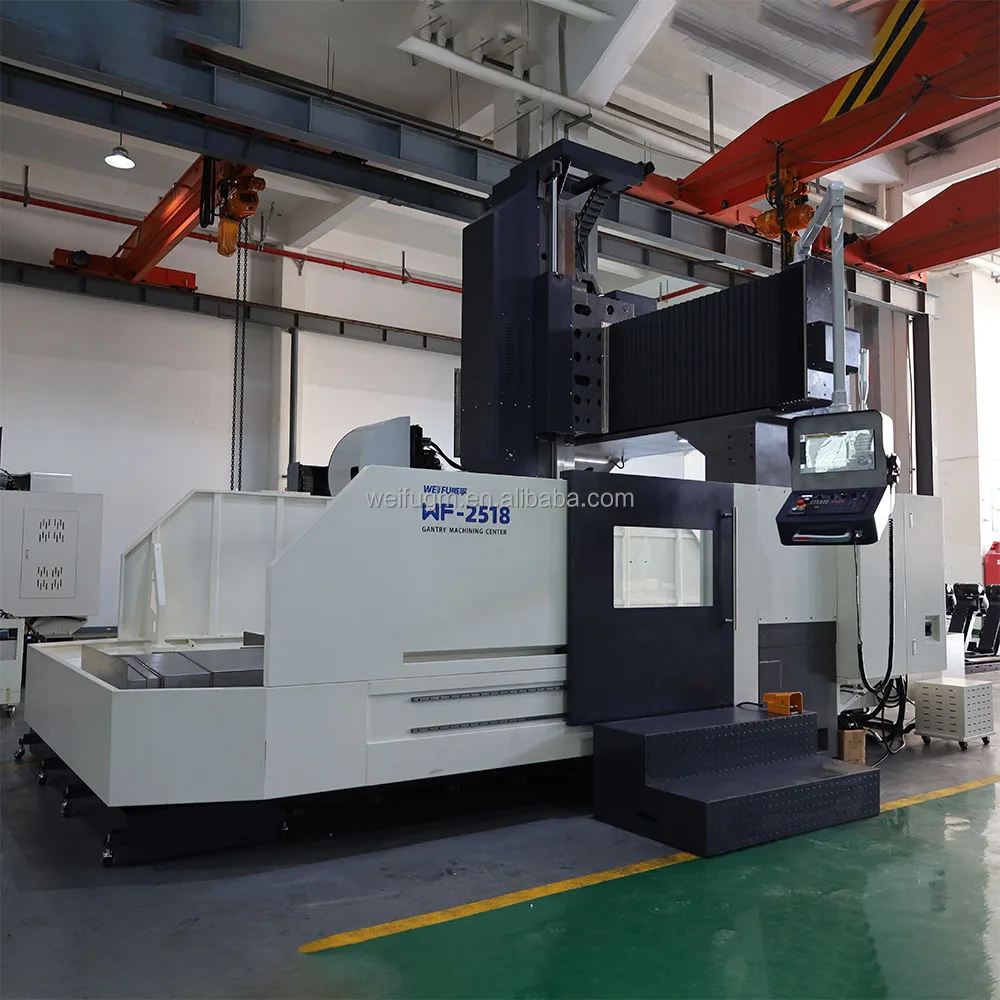

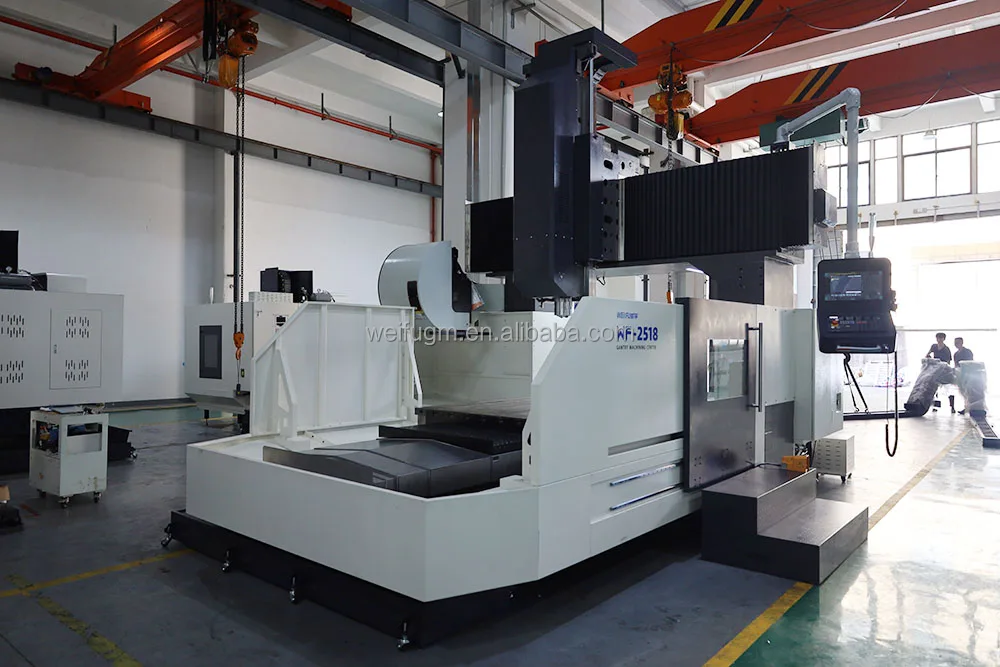

WF-2518
|
|
X-axis travel
|
mm
|
2500
|
|
Y-axis travel
|
mm
|
1800 (2000 tool change)
|
|
Z-axis travel
|
mm
|
800
|
|
Table area
|
mm
|
2500*1600
|
|
Maximum load of the table
|
T
|
7
|
|
Gantry width/overheight
|
mm
|
1800/1200
|
|
T-slot (slot-wide x center distance)
|
mm
|
9-22-180
|
|
The distance from the nose end of the spindle to the table surface
|
mm
|
200-1000
|
|
Spindle speed
|
rpm
|
6000（Belt type）
|
|
Spindle taper
|
|
BT50-190
|
|
Tool specifications
|
|
BT-50/45°
|
|
Knife magazine form
|
|
Disc knife arm style
|
|
Number of tools
|
T
|
24
|
|
Maximum tool diameter/adjacent no knife
|
Mm
|
100-200
|
|
Maximum tool length
|
Mm
|
400
|
|
Maximum tool weight
|
Kg
|
15
|
|
Spindle motor
|
kw
|
15-18.5KW（rated143NM）
|
|
X/Y/Z axis motor
|
kw
|
3.0KW（36NM）
|
|
Fast displacement of the X-axis
|
m/min
|
16
|
|
Rapid displacement of the Y-axis
|
m/min
|
16
|
|
Rapid displacement of the Z-axis
|
m/min
|
16
|
|
Cutting feed speed
|
mm/min
|
1—10000
|
|
Positioning accuracy
|
mm
|
±0.003/300mm
|
|
Repeatable positioning accuracy
|
mm
|
±0.005/300mm
|
|

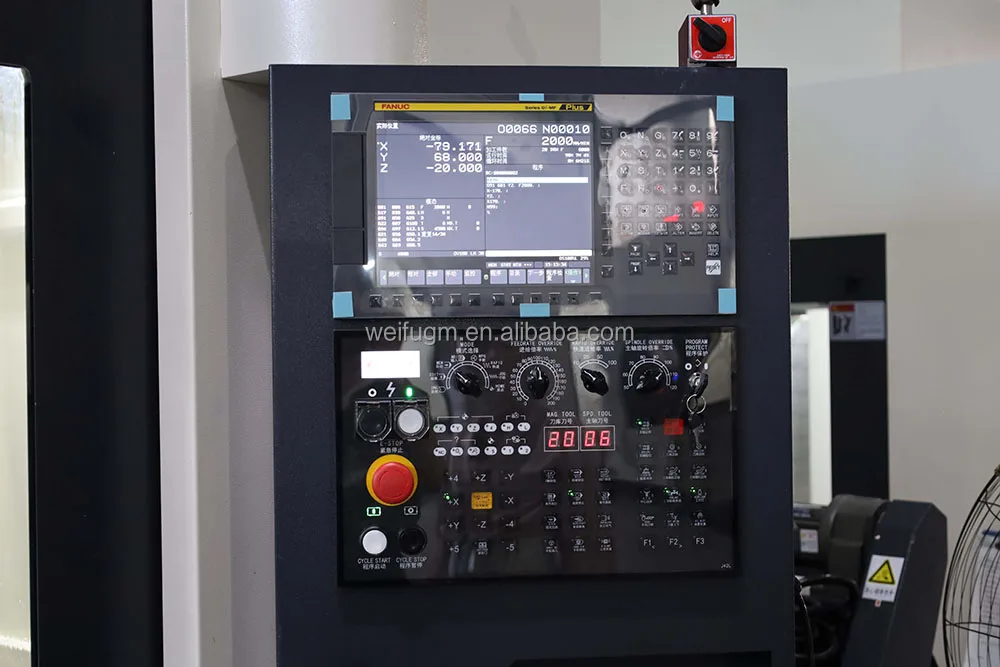

controller
|
FANUC
|
0I-MF
|
|
Machine weight
|
T
|
23
|
|
Power requirements
|
KVA
|
40
|
|
Air pressure source
|
kg/cm2
|
6
|
|
Dimensions (L*W*H)
|
mm
|
7000*3600*3500
|
|
The above parameters are for reference only. In case of any discrepancy in color or size, the actual product shall prevail.
|
||
1,What is the payment term?
For standard product: payment by T/T, 30% down payment upon ordering, 70% balance payment before shipment.
For non-standard customized products: payment by T/T, 50% down payment upon order placement, and the remaining 50% to be paid before shipment.
2,What are your minimum order quantity and warranty period?
MOQ is one set, and warranty is one year.
3,What is the packaging for the machine?
The machines standard will be packed in plywood case
4,How to choose the most suitable machine?
Please tell me your requirements, and I will recommend the most suitable machine model for you according to your needs.
5,What are your trade terms?
EXW，FOB, CFR, CIF or other terms are acceptable.
6,Where is your factory located?
It is located in Wuxi City, Jiangsu Province, China. Welcome you to visit us.
7,What are the main products of your company?
CNC Milling Machine，CNC Machining Center，CNC Turning Center，Vertical Drilling-Tapping Machine，5-Axis，CNC Lathe，Lathe，Milling Machine and Accessories.
