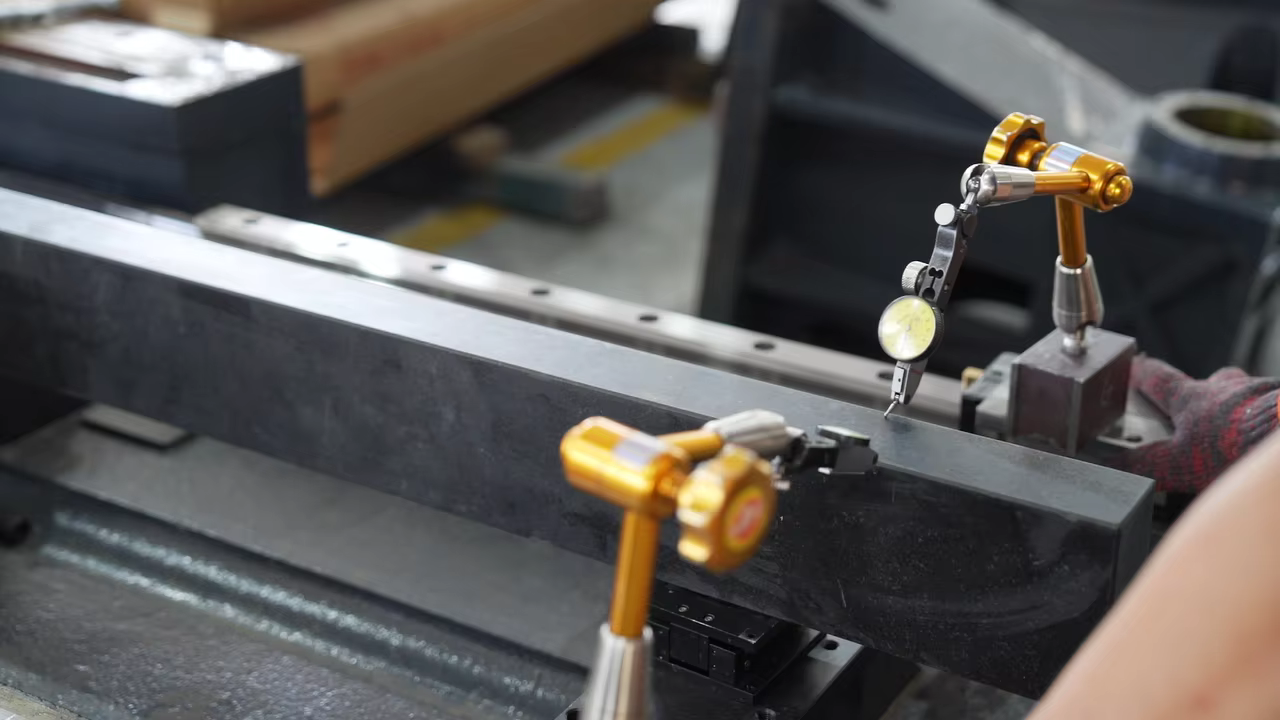

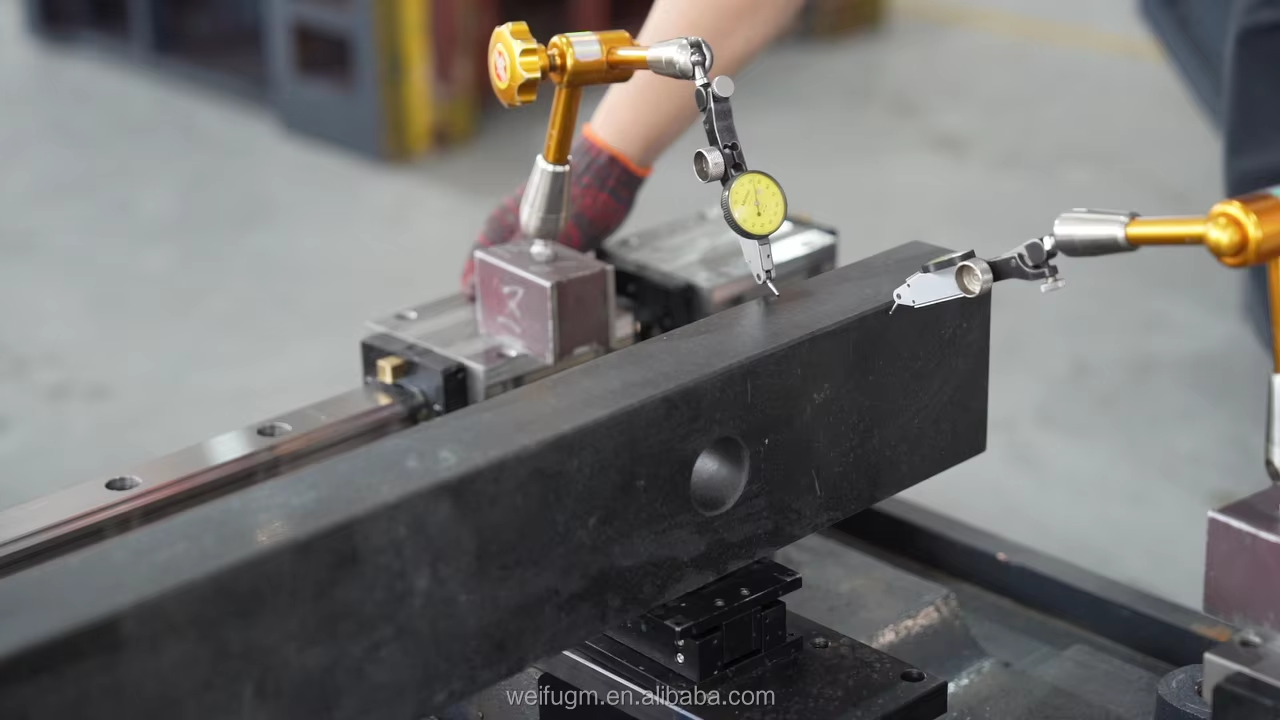

Straightness detection involves using precision instruments to inspect the accuracy of linear guideway sliders, ensuring high precision of the products.

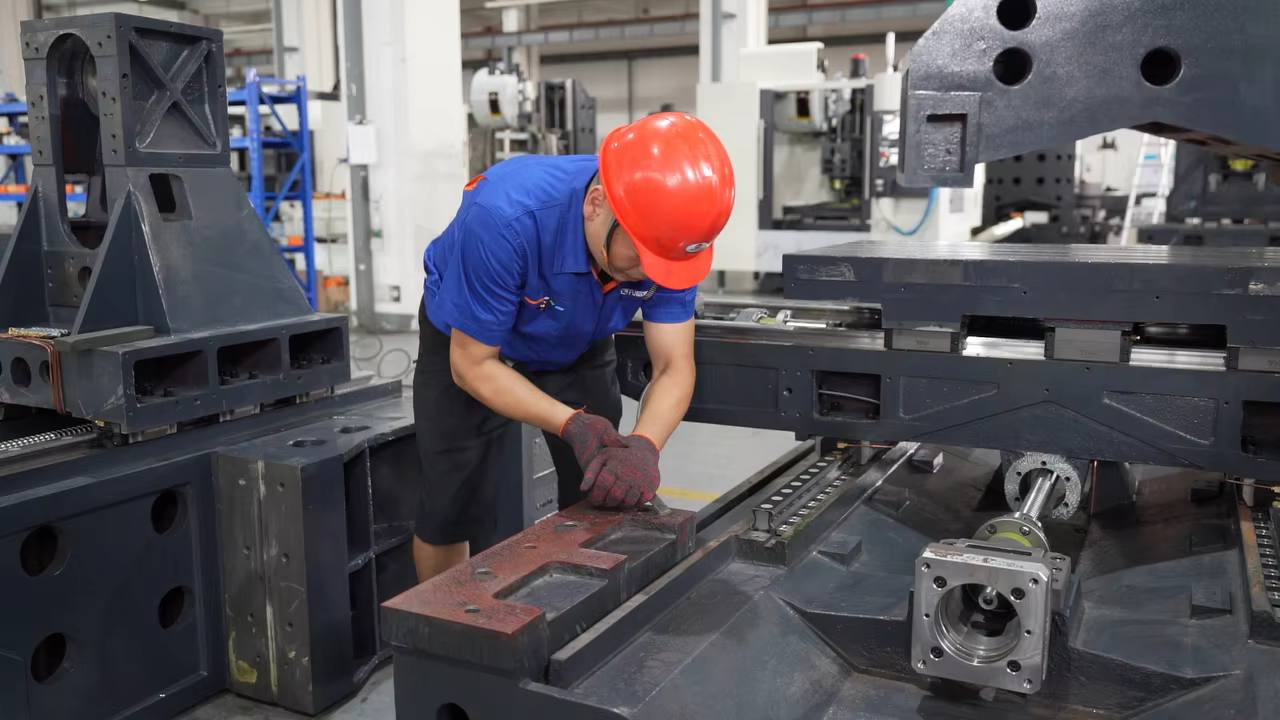

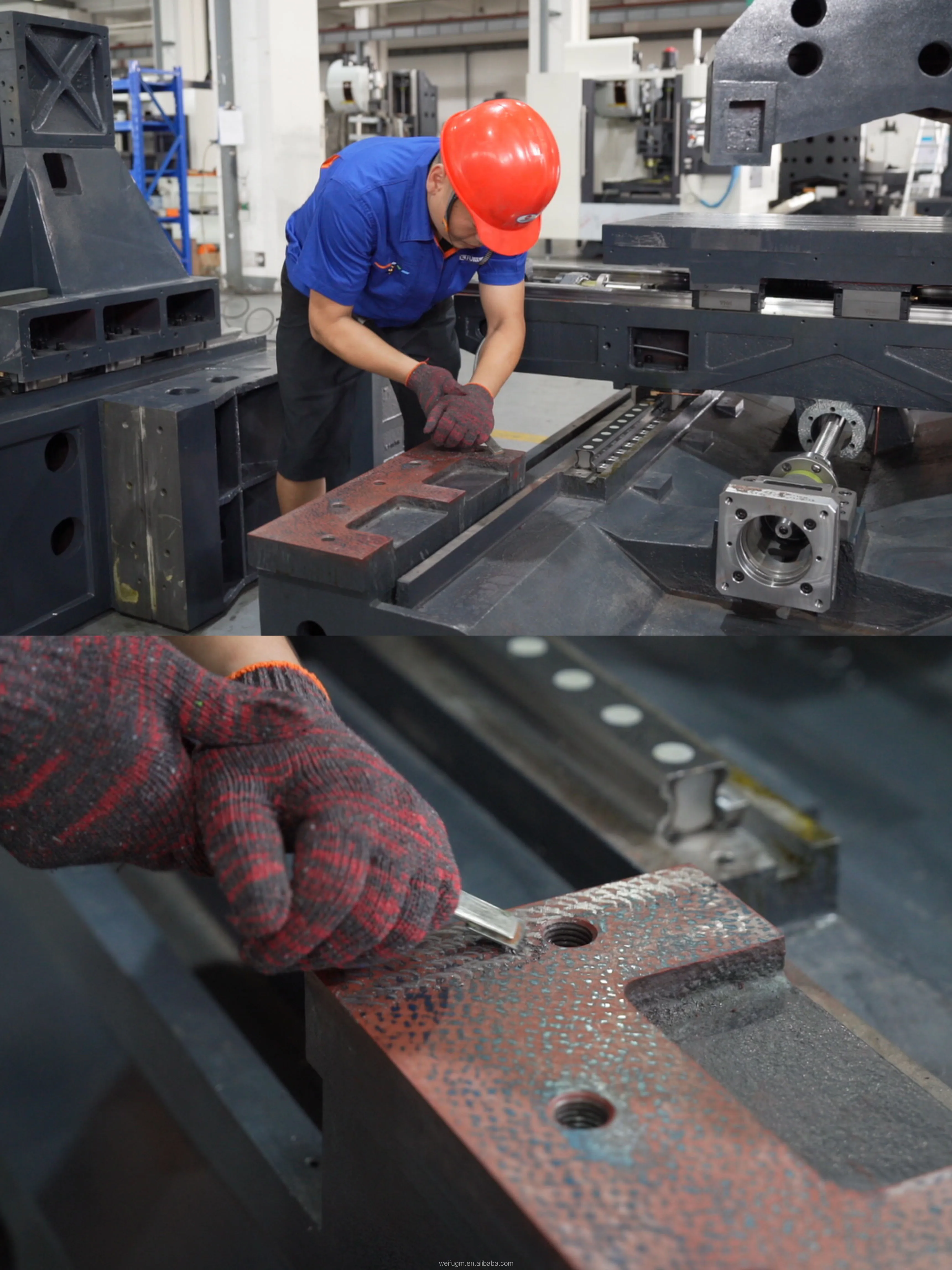

The base, mounting surface, bearings, etc., are 100% manually scraped, which improves machine precision and maintains stability during long-term operation.
|
Project
|
Unit
|
WF-2518
|
|
X-axis travel
|
mm
|
2500
|
|
Y-axis travel
|
mm
|
1800 (2000 tool change)
|
|
Z-axis travel
|
mm
|
800
|
|
Table area
|
mm
|
2500*1600
|
|
Maximum load of the table
|
T
|
7
|
|
Gantry width/overheight
|
mm
|
1800/1200
|
|
T-slot (slot-wide x center distance)
|
mm
|
9-22-180
|
|
The distance from the nose end of the spindle to the table surface
|
mm
|
200-1000
|
|
Spindle speed
|
rpm
|
6000（Belt type）
|
|
Spindle taper
|
|
BT50-190
|
|
Tool specifications
|
|
BT-50/45°
|
|
Knife magazine form
|
|
Disc knife arm style
|
|
Number of tools
|
T
|
24
|
|
Maximum tool diameter/adjacent no knife
|
Mm
|
100-200
|
|
Maximum tool length
|
Mm
|
400
|
|
Maximum tool weight
|
Kg
|
15
|
|
Spindle motor
|
kw
|
15-18.5KW（rated143NM）
|
|
X/Y/Z axis motor
|
kw
|
3.0KW（36NM）
|
|
Fast displacement of the X-axis
|
m/min
|
16
|
|
Rapid displacement of the Y-axis
|
m/min
|
16
|
|
Rapid displacement of the Z-axis
|
m/min
|
16
|
|
Cutting feed speed
|
mm/min
|
1—10000
|
|
Positioning accuracy
|
mm
|
±0.003/300mm
|
|
Repeatable positioning accuracy
|
mm
|
±0.005/300mm
|
|
controller
|
FANUC
|
0I-MF
|
|
Machine weight
|
T
|
23
|
|
Power requirements
|
KVA
|
40
|
|
Air pressure source
|
kg/cm2
|
6
|
|
Dimensions (L*W*H)
|
mm
|
7000*3600*3500
|
|
The above parameters are for reference only. In case of any discrepancy in color or size, the actual product shall prevail.
|
||
For standard products, payment is by T/T: 30% down payment upon ordering, and the remaining 70% balance to be paid before shipment.
For non-standard customized products, payment is by T/T: 50% down payment upon order placement, and the remaining 50% to be paid before shipment.
The minimum order quantity is one set, and the warranty period is one year.
The machine is normally packed in a plywood case.
Please tell us your requirements, and we will recommend the most suitable machine model according to your needs.
EXW, FOB, CFR, CIF, and other trade terms are acceptable.
Our factory is located in Wuxi City, Jiangsu Province, China. You are welcome to visit us.
Our main products include CNC milling machines, CNC machining centers, CNC turning centers, vertical drilling and tapping machines, 5-axis machines, CNC lathes, lathes, milling machines, and accessories.
