WF-ET205Y CNC Horizontal Lathe Machine with FANUC Control System Slant Bed Fanuc Control System for WEIFU Processing

Description

product wf et205y cnc horizontal lathe machine with fanuc control system slant bed fanuc control system for weifu processing-1

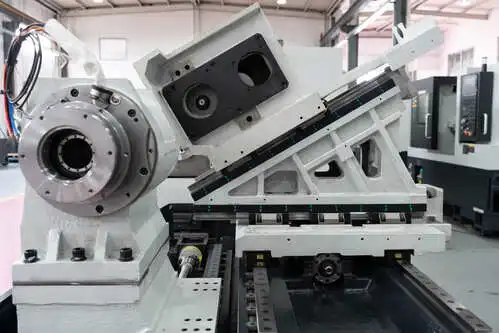

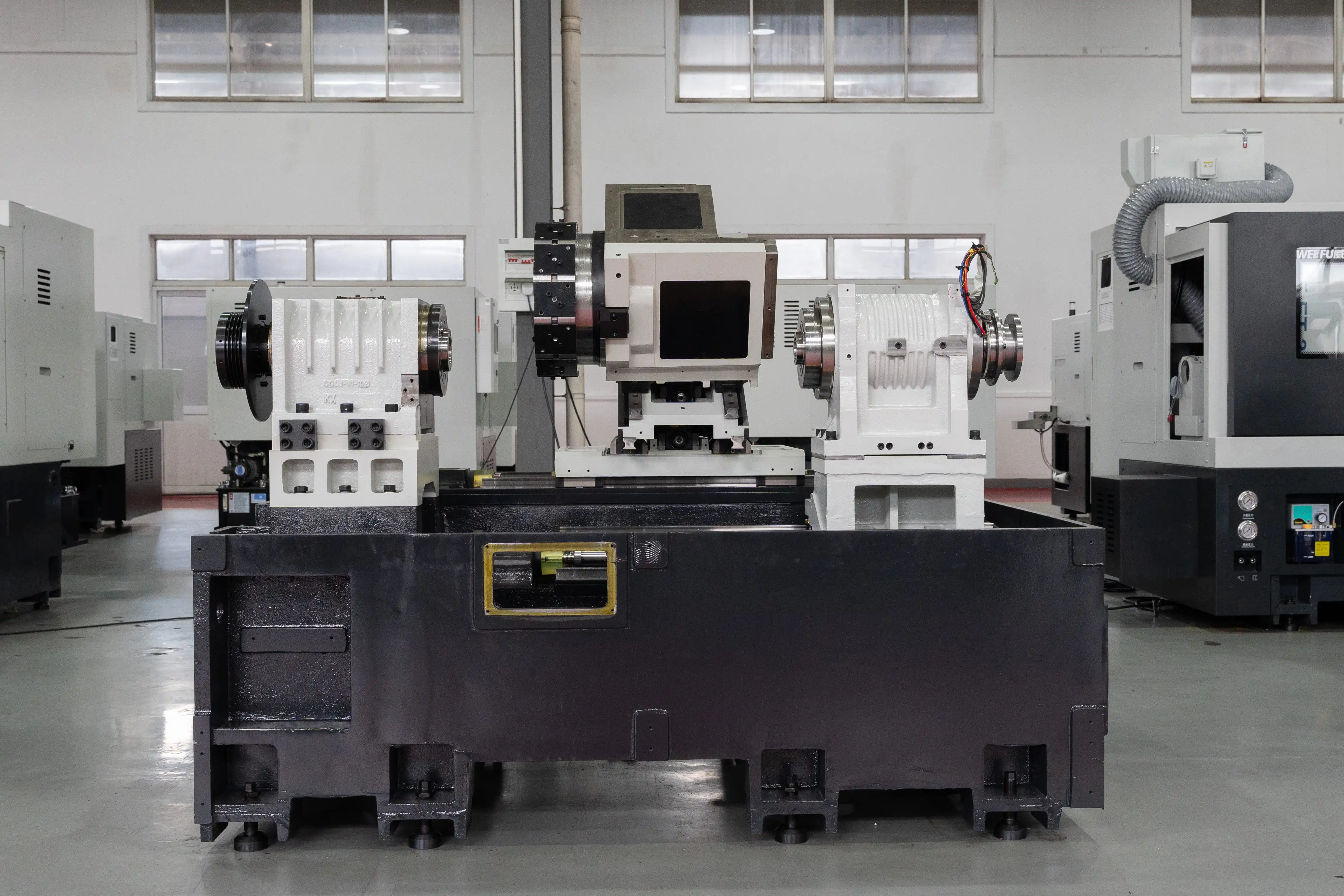

The lead screw is pre-tensioned to reduce its sagging deformation and enhance axial rigidity.	Electrical cabinet: Famous brand electrical components such as Schneider and Omron are adopted, and the overall protection level of the electrical cabinet is IP54.	The receiving tray can realize an automated module.

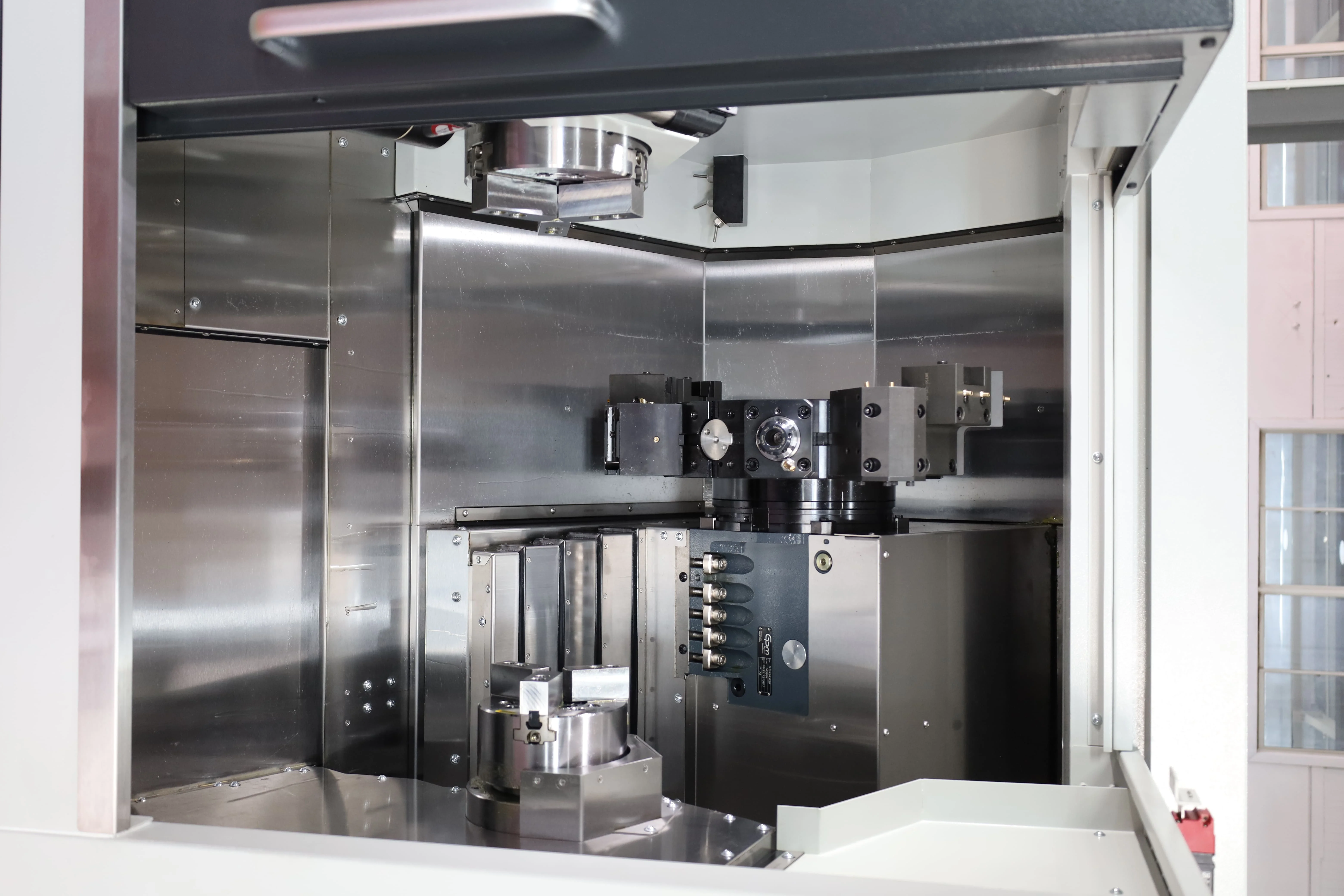

The XY axes are made of stainless steel, which is aesthetically pleasing. Secondary internal protection is provided around them, enabling precise interception, reducing cleaning costs and maintenance costs, and effectively preventing iron chips from splashing.	The product can be optionally equipped with a tool setter, tailstock, receiving tray, etc., which can be combined and matched in a modular way.	The product can be optionally equipped with a tool setter, tailstock, receiving tray, etc., which can be combined and matched in a modular way.

Product Paramenters

	Project		Unit	Specifications/Parameters

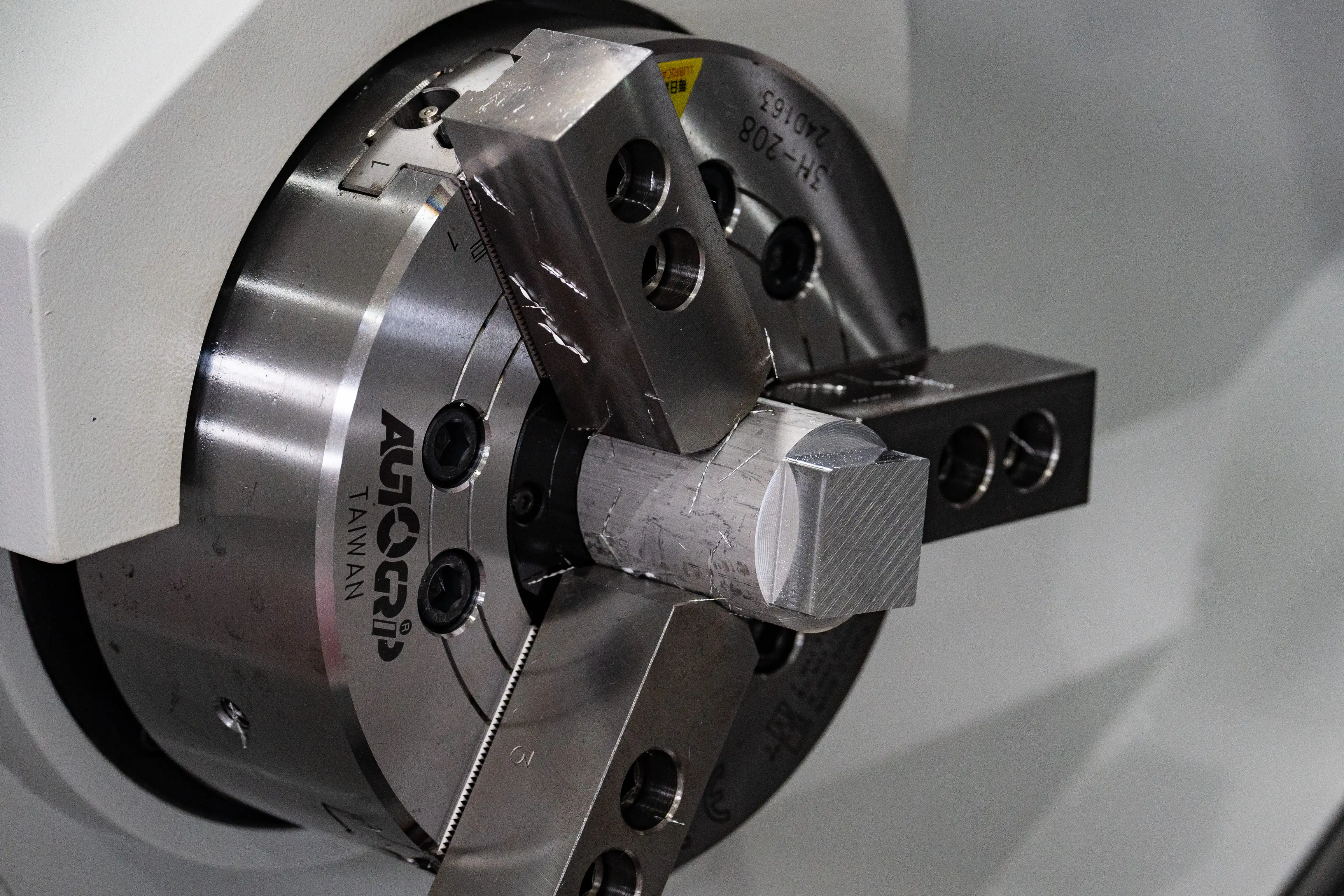

Processing capacity	Chuck size		inch	8
	The rotation diameter of the bed		mm	Ф700
	The rotary diameter of the drag plate		mm	Ф200
	Maximum processing length		mm	530
	Maximum processing diameter		mm	Ф370
Main shaft	Maximum rotational speed		rpm	4500
	Spindle end form		ISO	A2-6
	Diameter of the main shaft through hole		mm	Ф63
	The pull rod has a through hole		mm	Ф52
	Main motor power		KW	11/15
	C-axis indexing capability		Deg	0.001°
Dota	Form		/	Power tool turret
	Number of workstations		a	12
	The rotation time of adjacent tool positions		S	0.2
	The farthest tool position rotation time		S	0.5
	The maximum size of the square knife handle		mm	□25×25
	The maximum size of the round knife handle		mm	φ40
Power cutting tools	Tool motor power		KW	3.3（Siemens）/4.5（Fanuc）/3.1（SYNTEC CNC System）
	Maximum rotational speed		RPM	4000（Siemens）/6000（Fanuc/SYNTEC CNC System）
	Motor torque		N.M	16（Siemens）/18（Fanuc）/15（SYNTEC CNC System）
	Tool specification			BMT55
Mobile	X-axis fast shift		m/min	30
	Z-axis fast shift		m/min	30
	Y-axis fast shift		m/min	12
	X-axis travel		mm	185+15
	Z-axis travel		mm	550
	Y-axis travel		mm	±50
Tailseat	Tailstock movement range (programmable range)		mm	500
	Tailstock quick shift speed	Servo tailstock	m/min	30
		Hydraulic tailstock	m/min	10
	Sleeve conical hole		ISO	MT4
Cooling	Power		W	480
	Traffic		m³/h	2.5
Precision	Precision turning outer circle accuracy			IT6
	Surface roughness of precision machined parts		mm	Ra 0.4～1.6
	The roundness of finely turned parts		mm	≤0.003
	Positioning accuracy (X, Z)		mm	X：0.005 Z：0.008
	Repeat positioning accuracy (X, Z）		mm	X：0.002 Z：0.004
Others	Weight		Kg	4150
	Numerical control system			FANUC 0I TF / SYNTEC CNC System22TB / Siemens
	External dimensions (length, width, height)		mm	2585×1750×1870No chip conveyor included）
The above parameters are for reference only. In case of any discrepancy in color or size, the actual product shall prevail.

Optional configuration


Hydraulic Tailstock	Tool Presetter	Electrical Cabinet Air Conditioner

Robot	Oil Mist Collector	Parts Catcher

	CNC System
