WEIFU WF-ET205SY Heavy Duty 5-Axis machine tool equipment Cast Iron Y-Axis Slant Bed FANUC Control 380V 4500rpm High-Accuracy

WEIFU WF-ET205SY Heavy Duty 5-Axis machine tool equipment Cast Iron Y-Axis Slant Bed FANUC Control 380V 4500rpm High-Accuracy

Description

Is there a problem? Please contact us to serve you!

0510-80509544

[email protected]

Description

Products Description

product weifu wf et205sy heavy duty 5 axis machine tool equipment cast iron y axis slant bed fanuc control 380v 4500rpm high accuracy-0

product weifu wf et205sy heavy duty 5 axis machine tool equipment cast iron y axis slant bed fanuc control 380v 4500rpm high accuracy-1

product weifu wf et205sy heavy duty 5 axis machine tool equipment cast iron y axis slant bed fanuc control 380v 4500rpm high accuracy-2

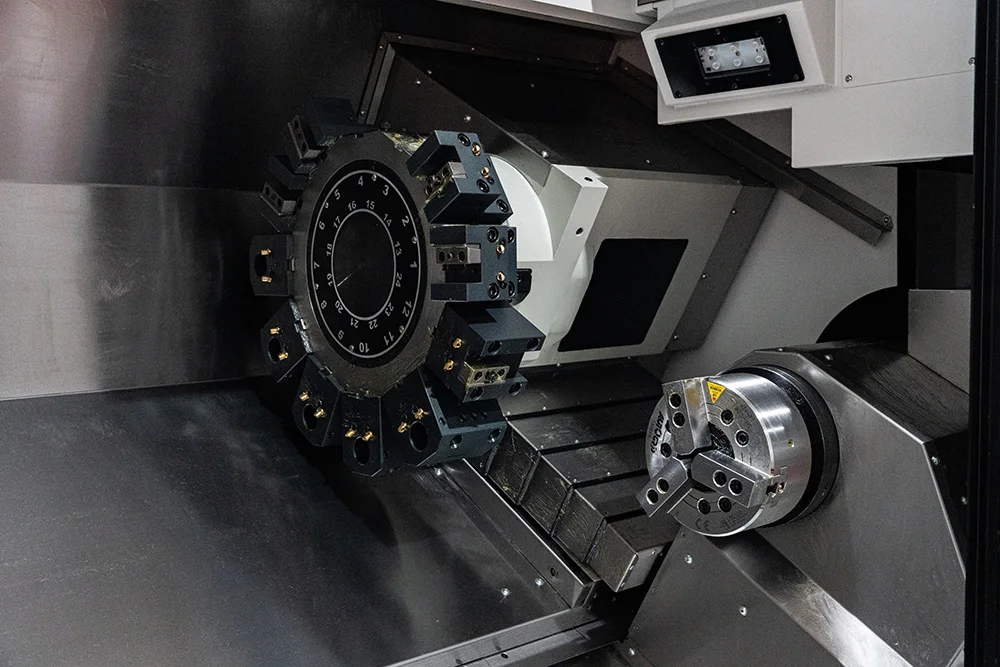

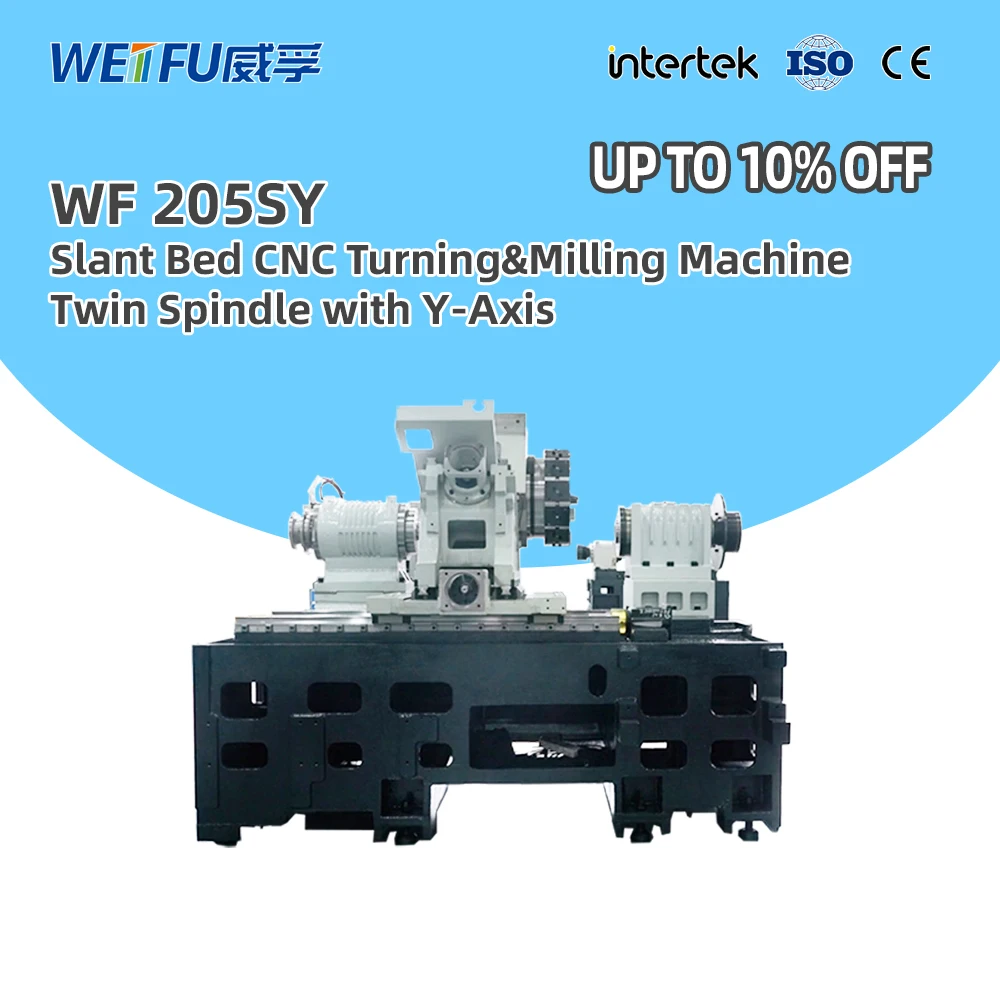

Dual spindles for high efficiency and high precision; the turret can withstand a maximum cutting fluid water pressure of 70kgf/cm².

product weifu wf et205sy heavy duty 5 axis machine tool equipment cast iron y axis slant bed fanuc control 380v 4500rpm high accuracy-3

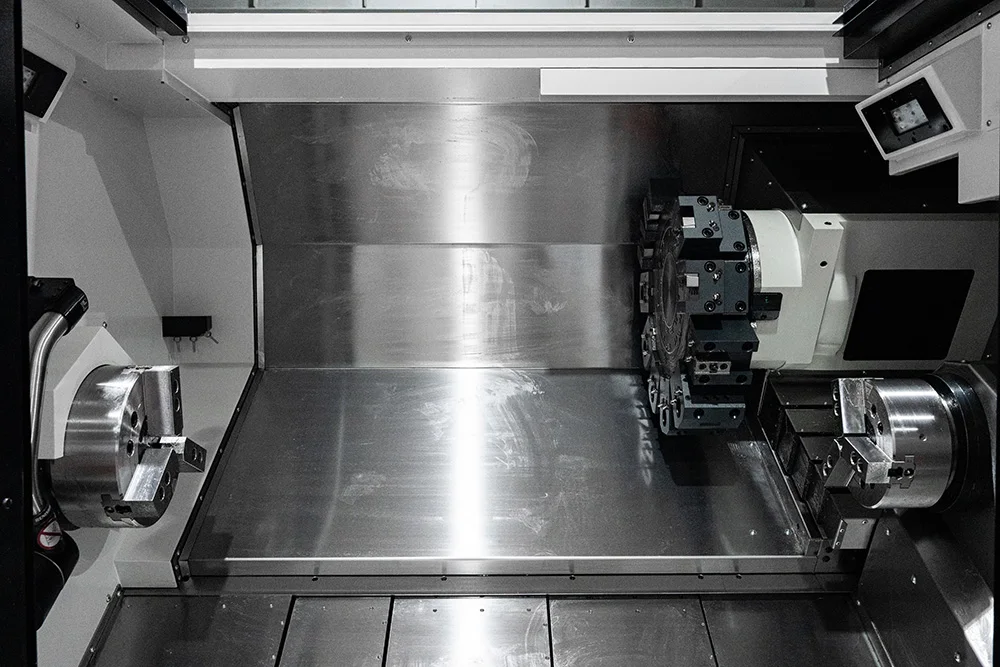

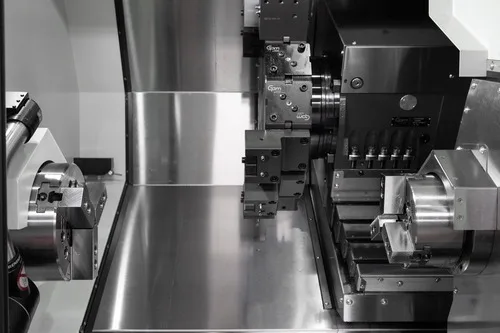

The SY sub-spindle adopts an A2-5 spindle, a 6-inch hydraulic chuck, and a 12.5kw built-in electric spindle. The maximum spindle speed can reach 5000 rpm, with stable rotation and low vibration. The spindle cooling adopts a forced oil cooling circulation structure.

product weifu wf et205sy heavy duty 5 axis machine tool equipment cast iron y axis slant bed fanuc control 380v 4500rpm high accuracy-4

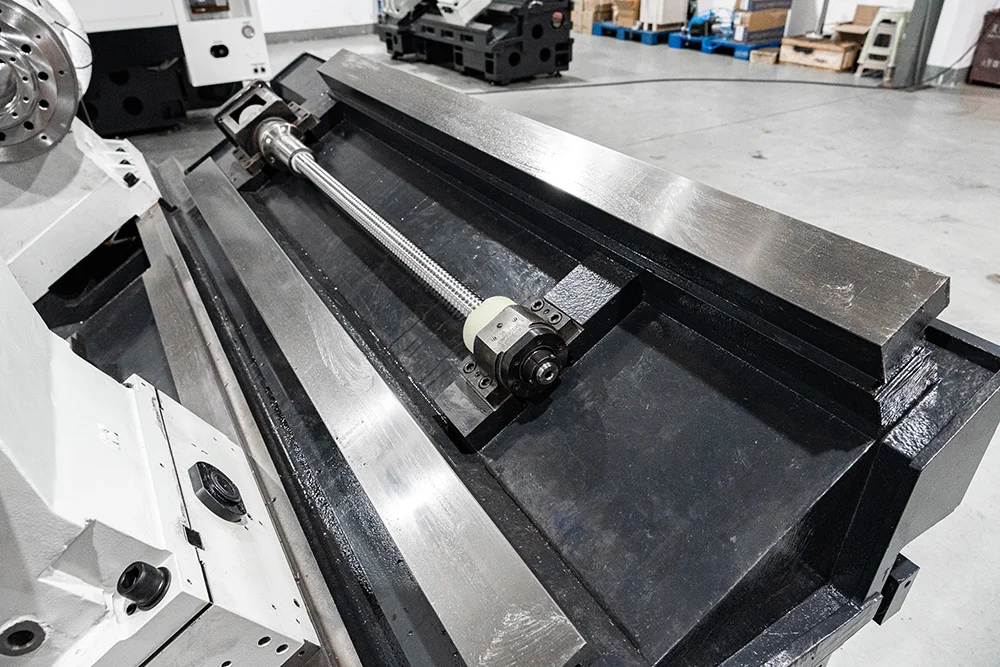

The lead screw is pre-tensioned to reduce its sagging and enhance axial rigidity.

Product Paramenters

	Project	Unit	Specifications/Parameters
Processing Ability	Chuck size	inch	8
		The rotation diameter of the bed	mm	Ф700
		The rotary diameter of the drag plate	mm	Ф200
		Maximum processing length	mm	530
		Maximum processing diameter	c	Ф370
Main shaft	Maximum rotational speed	rpm	4500
		Spindle end form	ISO	A2-6
		Diameter of the main shaft through hole	mm	Ф63
		The pull rod has a through hole	mm	Ф52
		Main motor power	KW	11/15
		C-axis indexing capability	DEG	0.001°
Face away Main shaft	Chuck size	inch	6
		Rated rotational speed	RPM	1700
		Maximum rotational speed	RPM	5000
		Spindle end face form	ISO	A2-5
		Diameter of the main shaft through hole	mm	Ф56
		The pull rod has a through hole	mm	Ф45
		Main motor power (electric spindle)	KW	13.2（Siemens/SYNTEC CNC System）/12.5（Fanuc）
		Itinerary	mm	520
		Fast shift speed	m/min	30
Dota	Form	/	Power tool turret
		Number of workstations	a	12
		Opposite the dota	mm	380
		Center height of the boring tool seat	mm	85
		The rotation time of adjacent tool positions	S	0.2
		The farthest tool position rotation time	S	0.5
		The maximum size of the square knife handle	mm	□25×25
		The maximum size of the round knife handle	mm	φ40
Power cutting tools	Tool motor power	Kw	3.3（Siemens）/4.5（Fanuc）/3.1（SYNTEC CNC System）
		Maximum rotational speed	rpm	4000（Siemens）/6000（Fanuc/SYNTEC CNC System）
		Motor rated / Maximum torque	N.m	16（Siemens）/18（Fanuc）/15（SYNTEC CNC System）
		Tool specification		BMT55
Mobile	X-axis fast shift	m/min	30
		Z-axis fast shift	m/min	30
		Y-axis fast shift	m/min	12
		X-axis travel	mm	185+15
		Maximum Z-axis stroke	mm	550
		Y-axis travel	mm	±50
Cooling	Power	W	480
Cooling		Traffic	m³/h	2.5
Precision	Precision turning outer circle accuracy		IT6
		Surface roughness of precision machined parts	mm	Ra 0.4～1.6
		The roundness of finely turned parts	mm	≤0.003
		Positioning accuracy (X, Z, Y)	mm	X：0.005 Z：0.008 Y：0.008
		Repeat positioning accuracy (X, Z, Y)	mm	X：0.002 Z：0.004 Y：0.004
Others	Weight	Kg	4530
		Numerical control system		FANUC 0I TF/SYNTEC CNC System 22TB/ Siemens
		External dimensions (length, width, height)	mm	2685×1750×1870(No chip conveyor included）
The above parameters are for reference only. In case of any discrepancy in color or size, the actual product shall prevail.

Optional configuration

product weifu wf et205sy heavy duty 5 axis machine tool equipment cast iron y axis slant bed fanuc control 380v 4500rpm high accuracy-5

Tool Presetter

product weifu wf et205sy heavy duty 5 axis machine tool equipment cast iron y axis slant bed fanuc control 380v 4500rpm high accuracy-6

Electrical Cabinet Air Conditioner

product weifu wf et205sy heavy duty 5 axis machine tool equipment cast iron y axis slant bed fanuc control 380v 4500rpm high accuracy-7

Robot

product weifu wf et205sy heavy duty 5 axis machine tool equipment cast iron y axis slant bed fanuc control 380v 4500rpm high accuracy-8

Oil Mist Collector

product weifu wf et205sy heavy duty 5 axis machine tool equipment cast iron y axis slant bed fanuc control 380v 4500rpm high accuracy-9

Parts Catcher

product weifu wf et205sy heavy duty 5 axis machine tool equipment cast iron y axis slant bed fanuc control 380v 4500rpm high accuracy-10

CNC System

Company Profile

product weifu wf et205sy heavy duty 5 axis machine tool equipment cast iron y axis slant bed fanuc control 380v 4500rpm high accuracy-11

product weifu wf et205sy heavy duty 5 axis machine tool equipment cast iron y axis slant bed fanuc control 380v 4500rpm high accuracy-12

product weifu wf et205sy heavy duty 5 axis machine tool equipment cast iron y axis slant bed fanuc control 380v 4500rpm high accuracy-13

·Factory with ISO, IAF, IAS, EAC, ZZEC, BCZ, ISD, Intertek, and SONCAP ·Over 33,000 m2 of the factory with more than 300 employees ·Strict quality control is implemented with over 24 testing steps ·20+ years CNC machine manufacturing experience ·24/7 online service is available at any time ·ODM and OEM are supported ·Trade with more than 100 countries worldwide ·Cooperate with well-known brands such as Siemens, Fanuc, Mitsubishi, and Heidenhain ·A professional elite team is engaged in manufacturing machine tools, machinery, numerical control equipment, production equipment, etc ·The warranty period is 18 months.

Certificate

Our certificates

product weifu wf et205sy heavy duty 5 axis machine tool equipment cast iron y axis slant bed fanuc control 380v 4500rpm high accuracy-14

product weifu wf et205sy heavy duty 5 axis machine tool equipment cast iron y axis slant bed fanuc control 380v 4500rpm high accuracy-15

product weifu wf et205sy heavy duty 5 axis machine tool equipment cast iron y axis slant bed fanuc control 380v 4500rpm high accuracy-16

product weifu wf et205sy heavy duty 5 axis machine tool equipment cast iron y axis slant bed fanuc control 380v 4500rpm high accuracy-17

product weifu wf et205sy heavy duty 5 axis machine tool equipment cast iron y axis slant bed fanuc control 380v 4500rpm high accuracy-18

product weifu wf et205sy heavy duty 5 axis machine tool equipment cast iron y axis slant bed fanuc control 380v 4500rpm high accuracy-19

product weifu wf et205sy heavy duty 5 axis machine tool equipment cast iron y axis slant bed fanuc control 380v 4500rpm high accuracy-20

product weifu wf et205sy heavy duty 5 axis machine tool equipment cast iron y axis slant bed fanuc control 380v 4500rpm high accuracy-21

Exhibitions and customer visits

product weifu wf et205sy heavy duty 5 axis machine tool equipment cast iron y axis slant bed fanuc control 380v 4500rpm high accuracy-22

product weifu wf et205sy heavy duty 5 axis machine tool equipment cast iron y axis slant bed fanuc control 380v 4500rpm high accuracy-23

product weifu wf et205sy heavy duty 5 axis machine tool equipment cast iron y axis slant bed fanuc control 380v 4500rpm high accuracy-24

product weifu wf et205sy heavy duty 5 axis machine tool equipment cast iron y axis slant bed fanuc control 380v 4500rpm high accuracy-25

product weifu wf et205sy heavy duty 5 axis machine tool equipment cast iron y axis slant bed fanuc control 380v 4500rpm high accuracy-26

product weifu wf et205sy heavy duty 5 axis machine tool equipment cast iron y axis slant bed fanuc control 380v 4500rpm high accuracy-27

product weifu wf et205sy heavy duty 5 axis machine tool equipment cast iron y axis slant bed fanuc control 380v 4500rpm high accuracy-28

product weifu wf et205sy heavy duty 5 axis machine tool equipment cast iron y axis slant bed fanuc control 380v 4500rpm high accuracy-29

Quality inspection

product weifu wf et205sy heavy duty 5 axis machine tool equipment cast iron y axis slant bed fanuc control 380v 4500rpm high accuracy-30

01

Photoelectric Autocollimator

Straightness Detection of Linear Guides and Sliders

product weifu wf et205sy heavy duty 5 axis machine tool equipment cast iron y axis slant bed fanuc control 380v 4500rpm high accuracy-31

02

Spindle and Tailstock

Concentricity Detection

product weifu wf et205sy heavy duty 5 axis machine tool equipment cast iron y axis slant bed fanuc control 380v 4500rpm high accuracy-32

03

Product Processing Inspection

product weifu wf et205sy heavy duty 5 axis machine tool equipment cast iron y axis slant bed fanuc control 380v 4500rpm high accuracy-33

04

Laser Detection of

C-axis Indexing Accuracy

product weifu wf et205sy heavy duty 5 axis machine tool equipment cast iron y axis slant bed fanuc control 380v 4500rpm high accuracy-34

05

Laser Calibration of

Z-axis Precision

product weifu wf et205sy heavy duty 5 axis machine tool equipment cast iron y axis slant bed fanuc control 380v 4500rpm high accuracy-35

06

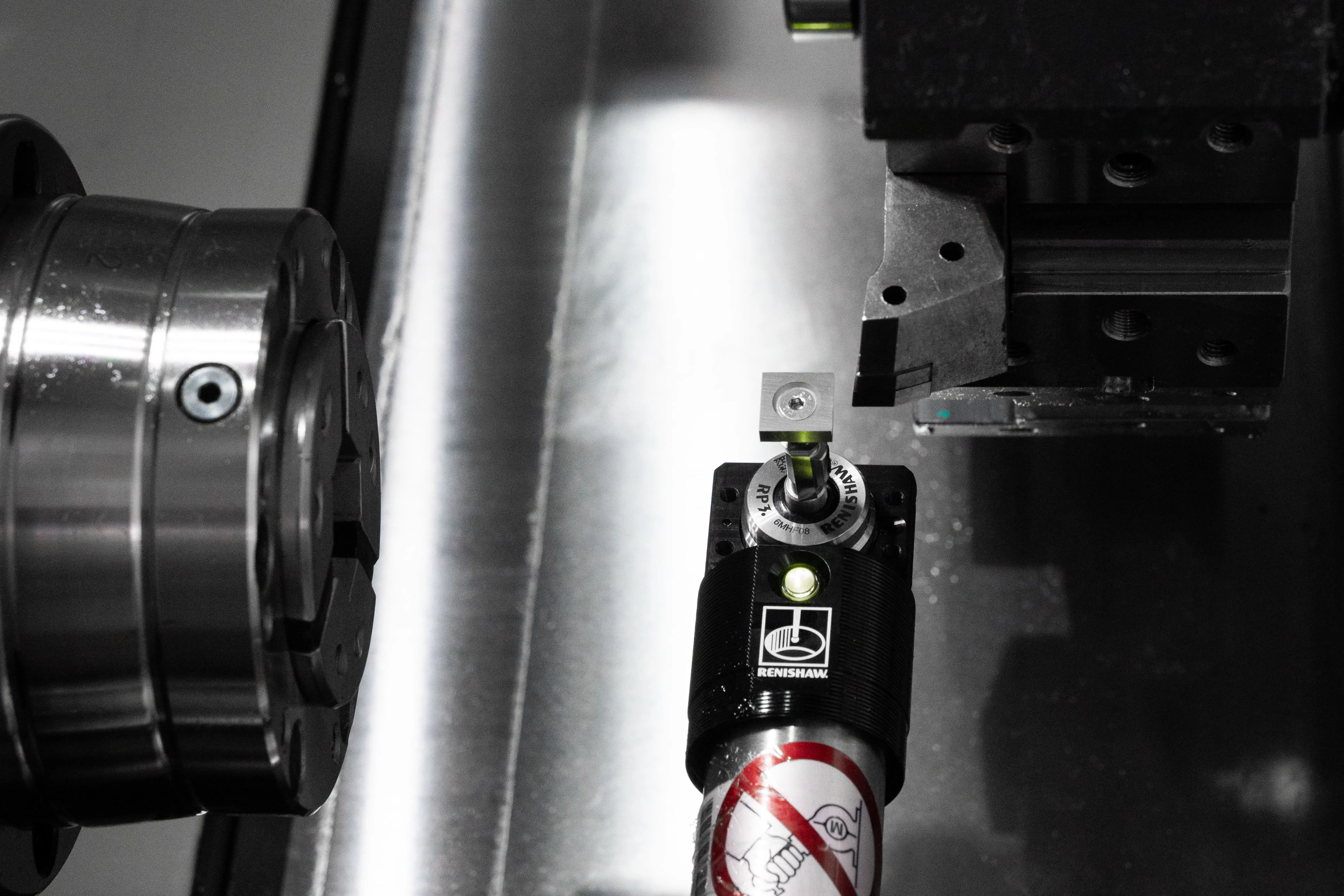

tool presetter
