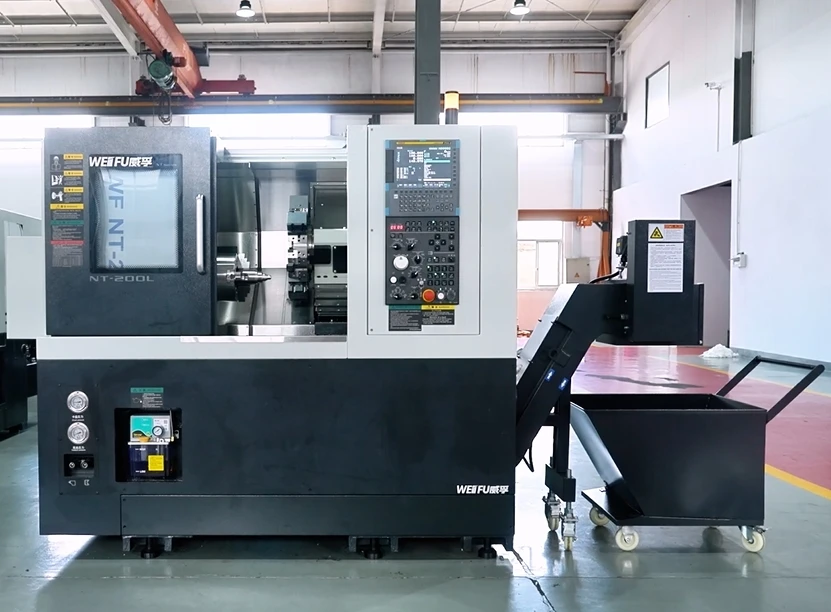

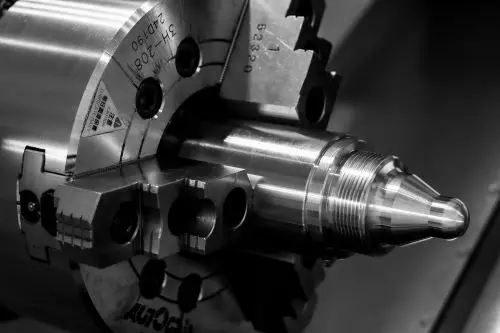

Non-standard WF-NT200L Single Spindle CNC Lathe Slant Bed Design Siemens System Automatic Turning Machine Including Pump

Description

product non standard wf nt200l single spindle cnc lathe slant bed design siemens system automatic turning machine including pump-1


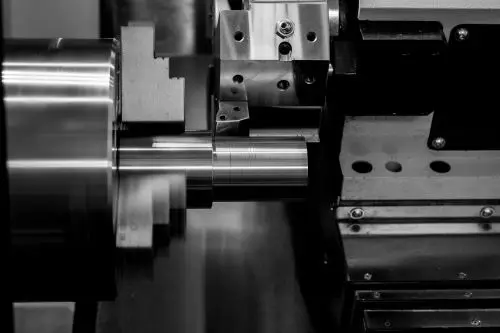

The tool turret adopts a servo motor-driven two-stage transmission to realize the tool changing function, with a gear transmission ratio of 1:16.5; The turret can withstand a maximum cutting fluid water pressure of 70kgf/cm².	Secondary protection is added, and stainless steel protective materials are used to ensure smooth discharge of waste chips, with reliable protection and easy chip removal.	Made of HT300 gray cast iron, designed through finite element analysis, it features high density, high rigidity, high strength, shock absorption and wear resistance, strong precision retention, and long service life.

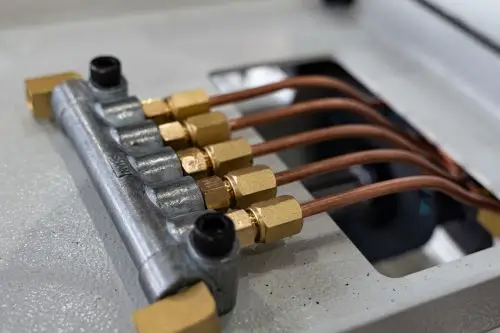

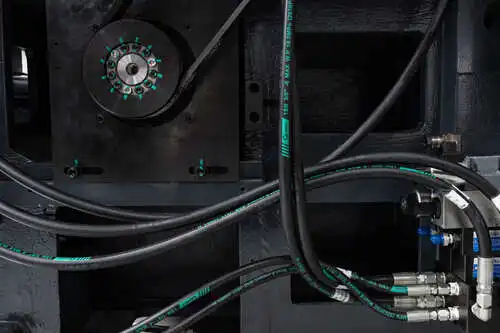

The equipment can be equipped with a tool detection function, which effectively ensures the machining accuracy of products.	The internal honeycomb structure of the casting enhances the rigidity and stability of the equipment.	Copper has excellent thermal conductivity and strong corrosion resistance, being able to resist the erosion of various chemical substances.

Concentricity of the spindle and tailstock	Concentricity of the spindle and tailstock	Photoelectric autocollimator

Product Paramenters

	Project	Unit	Specifications/Parameters
Processing capacity	Chuck size	inch	8
	The rotation diameter of the bed	mm	Ф510
	The rotary diameter of the drag plate	mm	Ф260
	Maximum processing length	mm	500
	Maximum machined parts	mm	Ф360（8Station）/Ф350（12Station）
Main shaft	Maximum rotational speed	rpm	4000
	Spindle end form	ISO	A2-6
	Diameter of the main shaft through hole	mm	Ф66
	The pull rod has a through hole	mm	Ф52
	Main motor power	KW	11
Dota	Form	/	Servo tool turret
	Number of workstations	个	8/12
	The rotation time of adjacent tool positions	S	0.28
	The farthest tool position rotation time	S	0.4
	The maximum size of the square knife handle	mm	□25×25
	The maximum size of the round knife handle	mm	φ40
Mobile	X-axis fast shift	m/min	30
	Z-axis fast shift	m/min	30
	X-axis travel	mm	180+20（8Station）/175+35（12Station）
	Z-axis travel	mm	540（8Station）/500（12Station）
	The width of the X/Z axis rail		30/35Roller
	X/ Z-axis lead screw		3210
Tailseat	Sleeve stroke	mm	90
	Sleeve diameter	mm	Ф75
	Sleeve conical hole	ISO	MT4
Cooling	Power	W	370
Cooling	Traffic	m³/h	2.5～4.0
Precision	Precision turning outer circle accuracy		IT6
	Surface roughness of precision machined parts	mm	Ra 0.4～1.6
	The roundness of finely turned parts	mm	≤0.003
	Positioning accuracy (X, Z）	mm	X：0.005 Z：0.008
	Repeat positioning accuracy (X, Z）	mm	X：0.002 Z：0.004
Others	Weight	Kg	3200
	Numerical control system		SYNTEC CNC System 22Ta
	External dimensions (length, width, height)	mm	2022×1600×1690（No chip conveyor included）
The above parameters are for reference only. In case of any discrepancy in color or size, the actual product shall prevail.

Optional configuration


Hydraulic Tailstock	Tool Presetter	Electrical Cabinet Air Conditioner

Robot	Oil Mist Collector	Parts Catcher

Optional 12-Station Turret	CNC System
