Non-standard WF-ET205Y Medium Duty 4-Axis CNC Turning Center FANUC Control System Slant Bed WEIFU Processing 12 Tool Stations

Non-standard WF-ET205Y Medium Duty 4-Axis CNC Turning Center FANUC Control System Slant Bed WEIFU Processing 12 Tool Stations

Description

Is there a problem? Please contact us to serve you!

0510-80509544

[email protected]

Description

Products Description

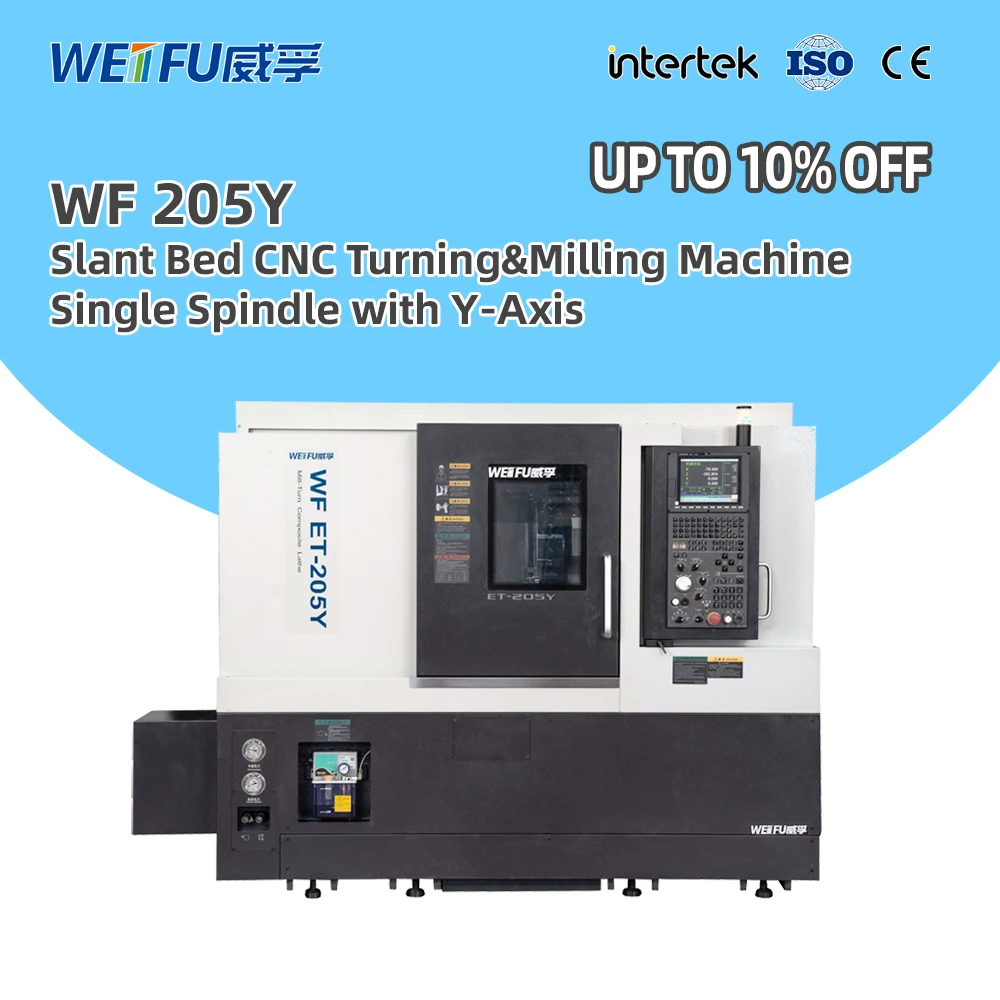

Non-standard WF-ET205Y Medium Duty 4-Axis CNC Turning Center FANUC Control System Slant Bed WEIFU Processing 12 Tool Stations manufacture

Non-standard WF-ET205Y Medium Duty 4-Axis CNC Turning Center FANUC Control System Slant Bed WEIFU Processing 12 Tool Stations supplier

Non-standard WF-ET205Y Medium Duty 4-Axis CNC Turning Center FANUC Control System Slant Bed WEIFU Processing 12 Tool Stations factory

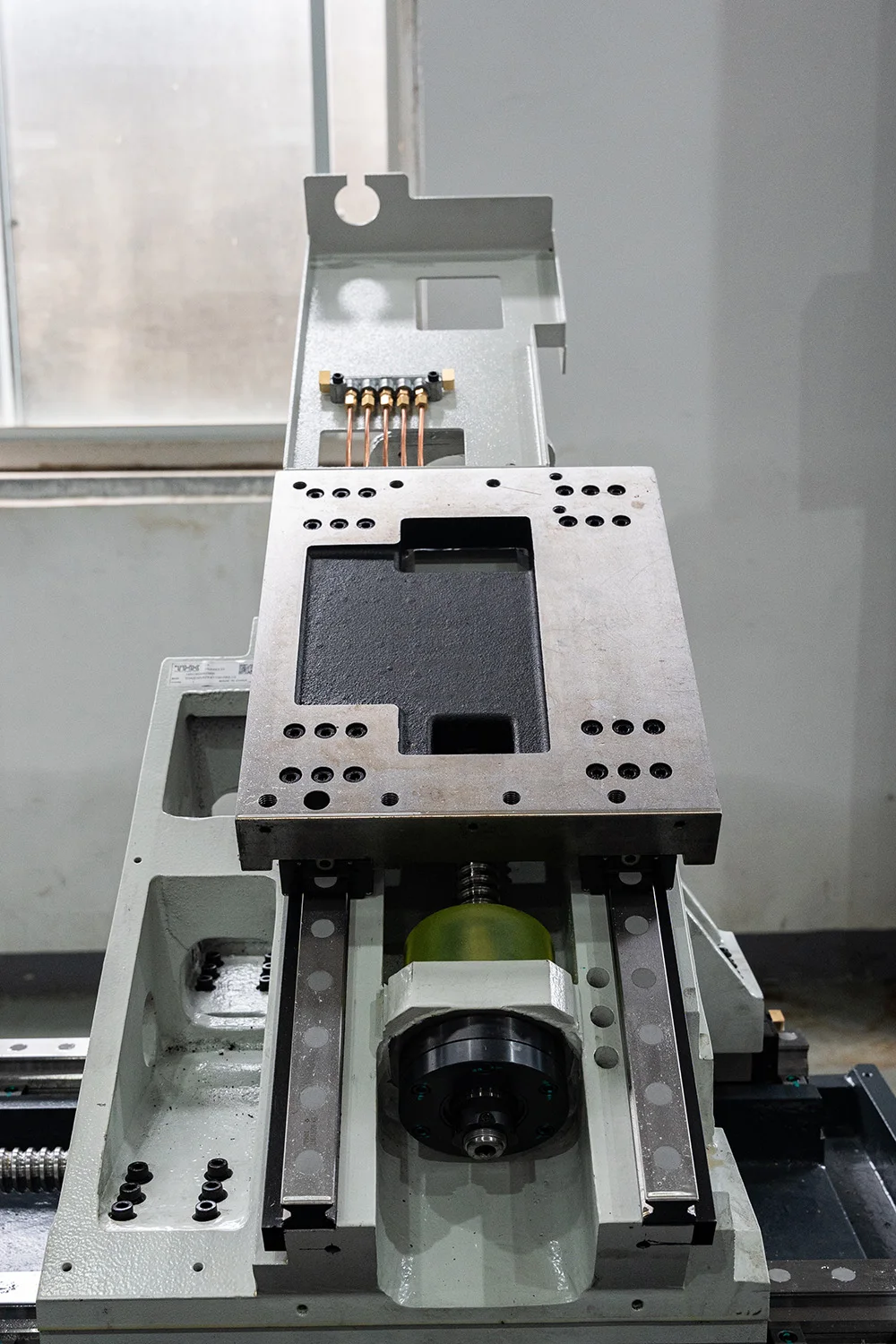

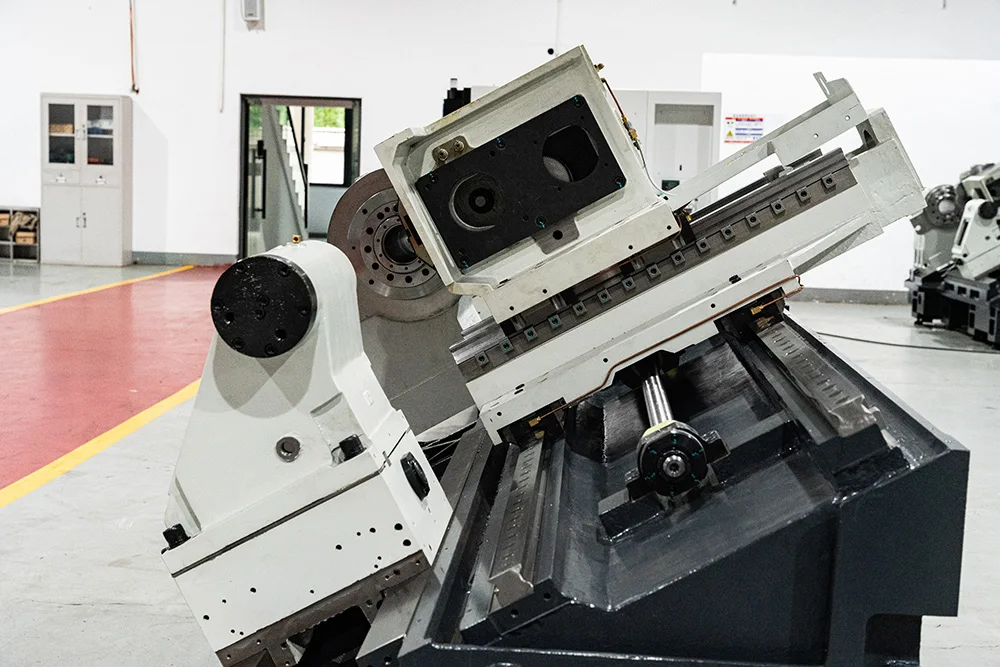

The lead screw is pre-tensioned to reduce its sagging deformation and enhance axial rigidity.

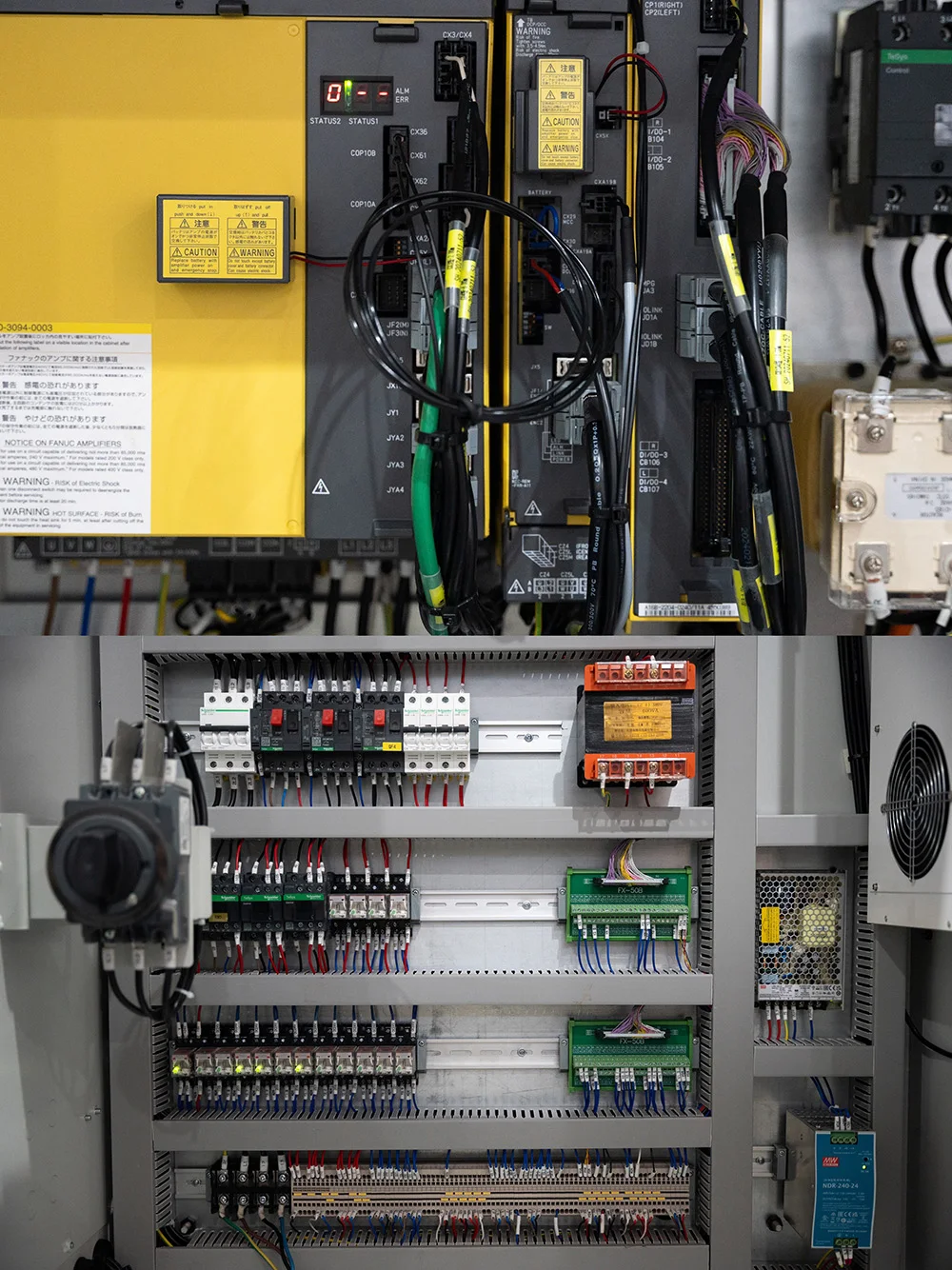

Electrical cabinet: Famous brand electrical components such as Schneider and Omron are adopted, and the overall protection level of the electrical cabinet is IP54.

The receiving tray can realize an automated module.

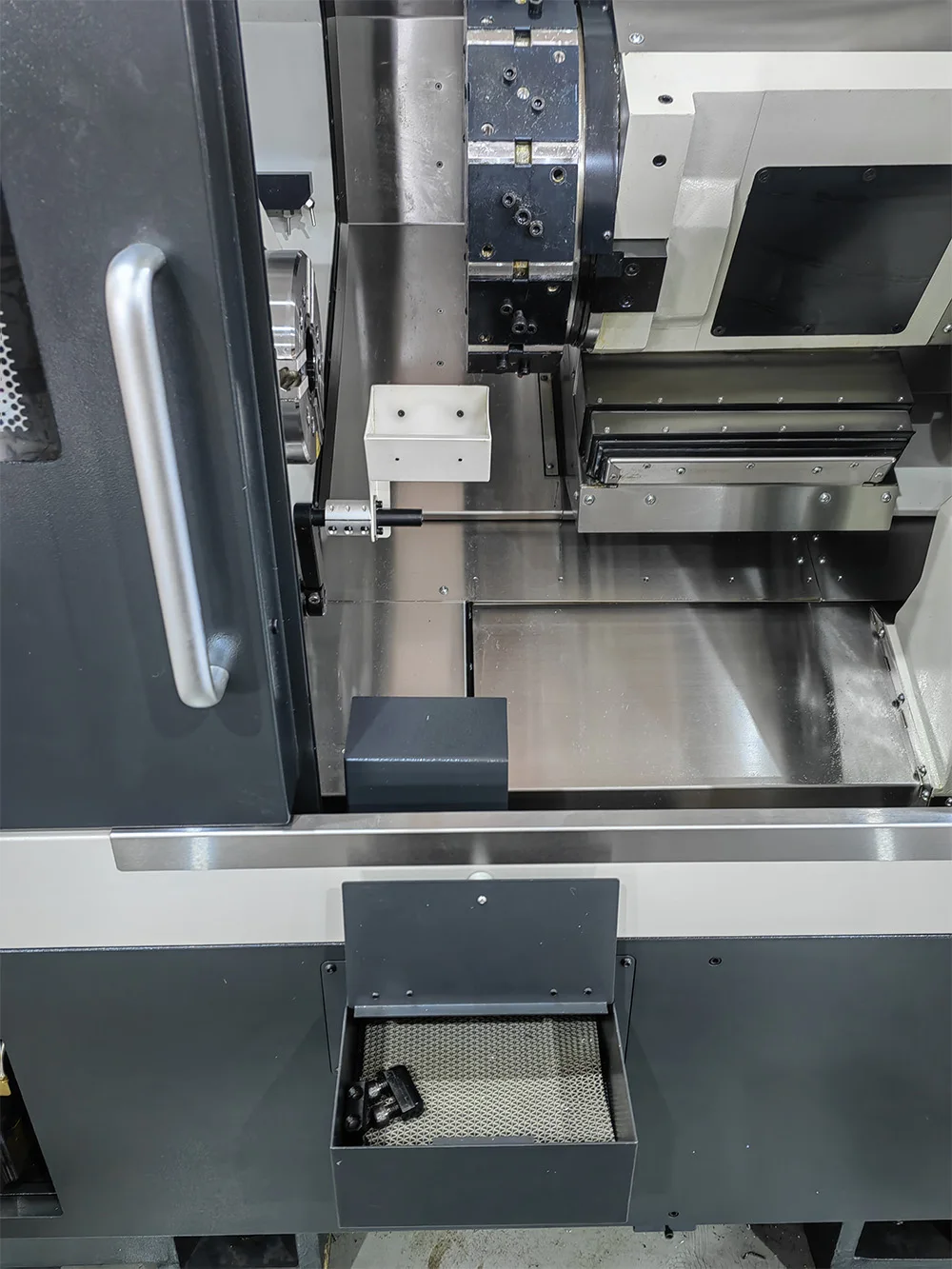

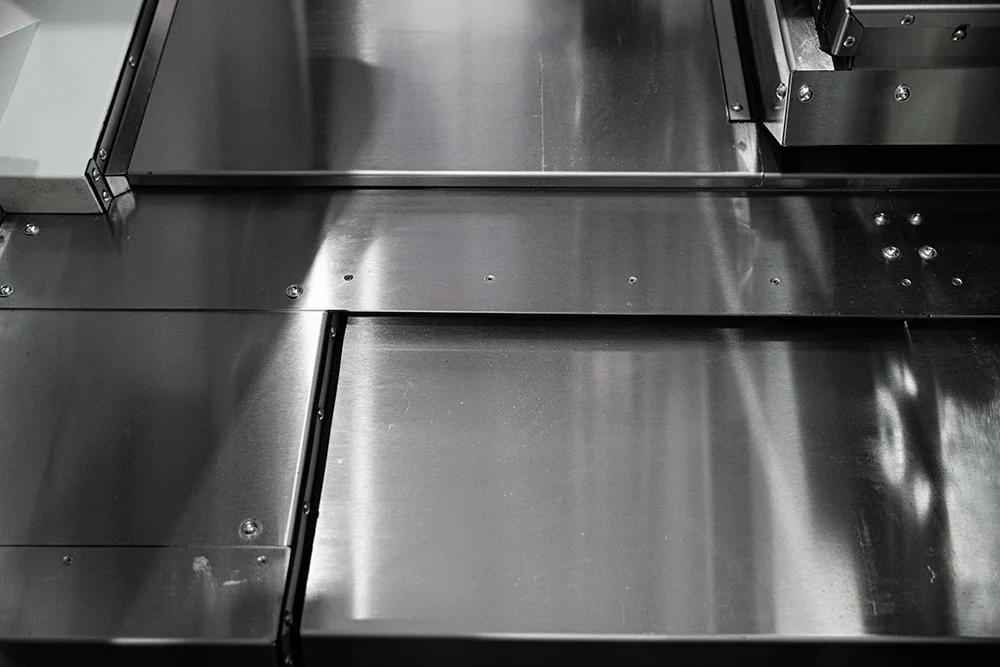

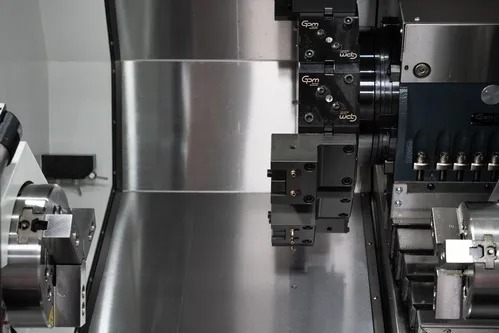

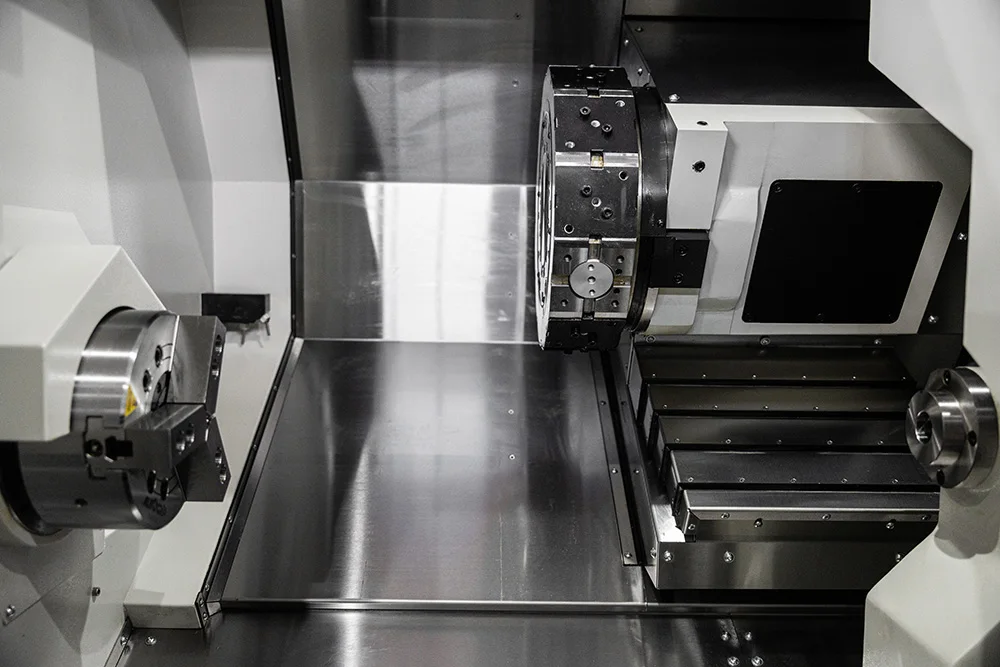

The XY axes are made of stainless steel, which is aesthetically pleasing. Secondary internal protection is provided around them, enabling precise interception, reducing cleaning costs and maintenance costs, and effectively preventing iron chips from splashing.

The product can be optionally equipped with a tool setter, tailstock, receiving tray, etc., which can be combined and matched in a modular way.

Product Paramenters

	Project			Unit	Specifications/Parameters
Processing capacity	Chuck size			inch	8
		The rotation diameter of the bed			mm	Ф700
		The rotary diameter of the drag plate			mm	Ф200
		Maximum processing length			mm	530
		Maximum processing diameter			mm	Ф370
Main shaft	Maximum rotational speed			rpm	4500
		Spindle end form			ISO	A2-6
		Diameter of the main shaft through hole			mm	Ф63
		The pull rod has a through hole			mm	Ф52
		Main motor power			KW	11/15
		C-axis indexing capability			Deg	0.001°
Dota	Form			/	Power tool turret
		Number of workstations			a	12
		The rotation time of adjacent tool positions			S	0.2
		The farthest tool position rotation time			S	0.5
		The maximum size of the square knife handle			mm	□25×25
		The maximum size of the round knife handle			mm	φ40
Power cutting tools	Tool motor power			KW	3.3（Siemens）/4.5（Fanuc）/3.1（SYNTEC CNC System）
		Maximum rotational speed			RPM	4000（Siemens）/6000（Fanuc/SYNTEC CNC System）
		Motor torque			N.M	16（Siemens）/18（Fanuc）/15（SYNTEC CNC System）
		Tool specification				BMT55
Mobile	X-axis fast shift			m/min	30
		Z-axis fast shift			m/min	30
		Y-axis fast shift			m/min	12
		X-axis travel			mm	185+15
		Z-axis travel			mm	550
		Y-axis travel			mm	±50
Tailseat	Tailstock movement range (programmable range)			mm	500
		Tailstock quick shift speed	Servo tailstock	m/min	30
		Tailstock quick shift speed		Hydraulic tailstock	m/min	10
		Sleeve conical hole			ISO	MT4
Cooling	Power			W	480
Cooling		Traffic			m³/h	2.5
Precision	Precision turning outer circle accuracy				IT6
		Surface roughness of precision machined parts			mm	Ra 0.4～1.6
		The roundness of finely turned parts			mm	≤0.003
		Positioning accuracy (X, Z)			mm	X：0.005 Z：0.008
		Repeat positioning accuracy (X, Z）			mm	X：0.002 Z：0.004
Others	Weight			Kg	4150
		Numerical control system				FANUC 0I TF / SYNTEC CNC System22TB / Siemens
		External dimensions (length, width, height)			mm	2585×1750×1870No chip conveyor included）
The above parameters are for reference only. In case of any discrepancy in color or size, the actual product shall prevail.

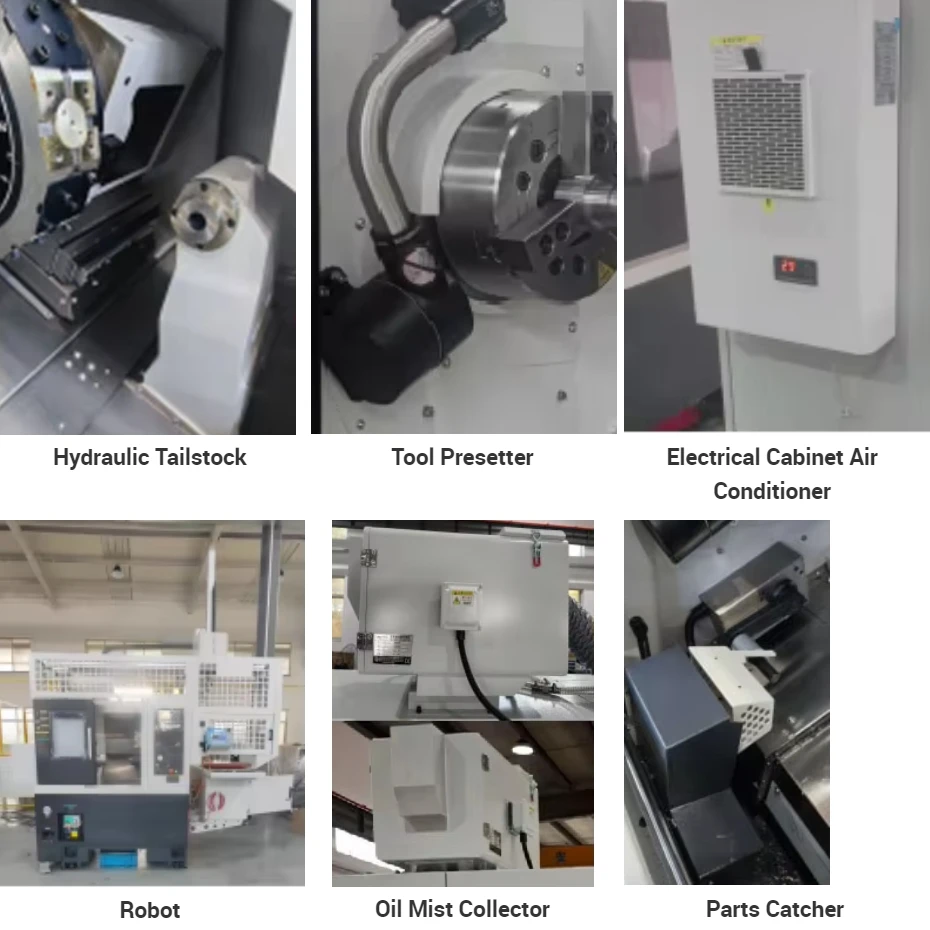

Optional configuration

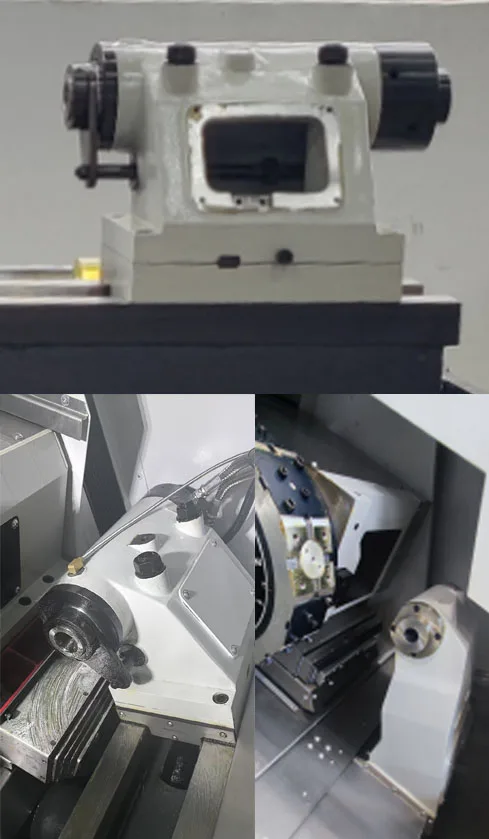

Hydraulic Tailstock

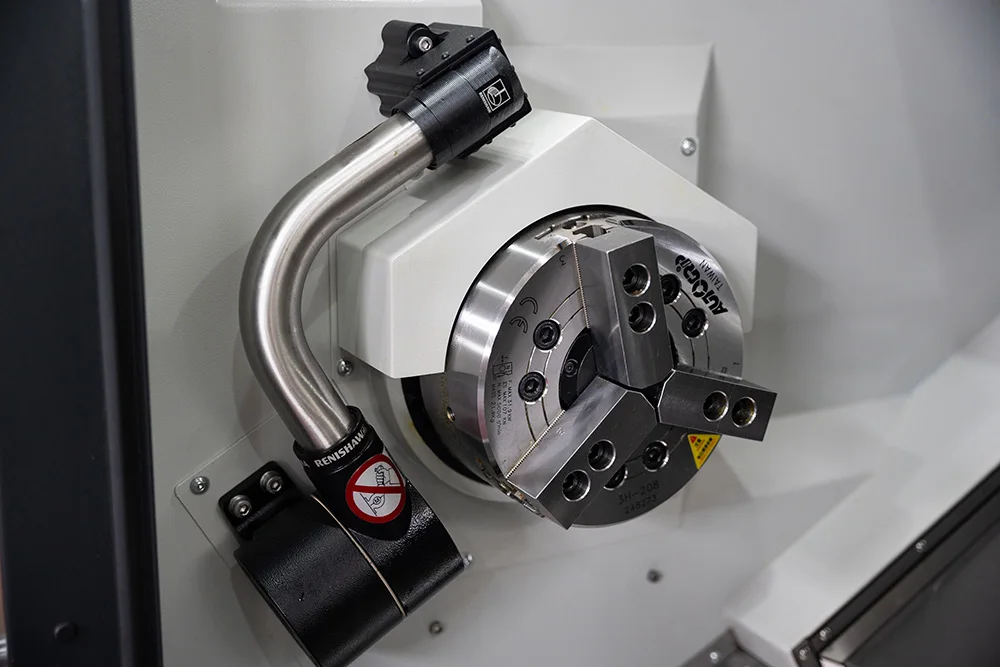

Tool Presetter

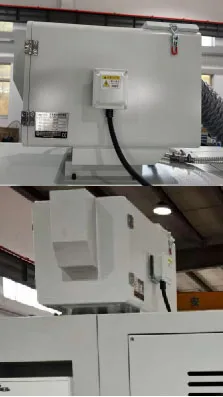

Electrical Cabinet Air Conditioner

Robot

Oil Mist Collector

Non-standard WF-ET205Y Medium Duty 4-Axis CNC Turning Center FANUC Control System Slant Bed WEIFU Processing 12 Tool Stations details

Parts Catcher

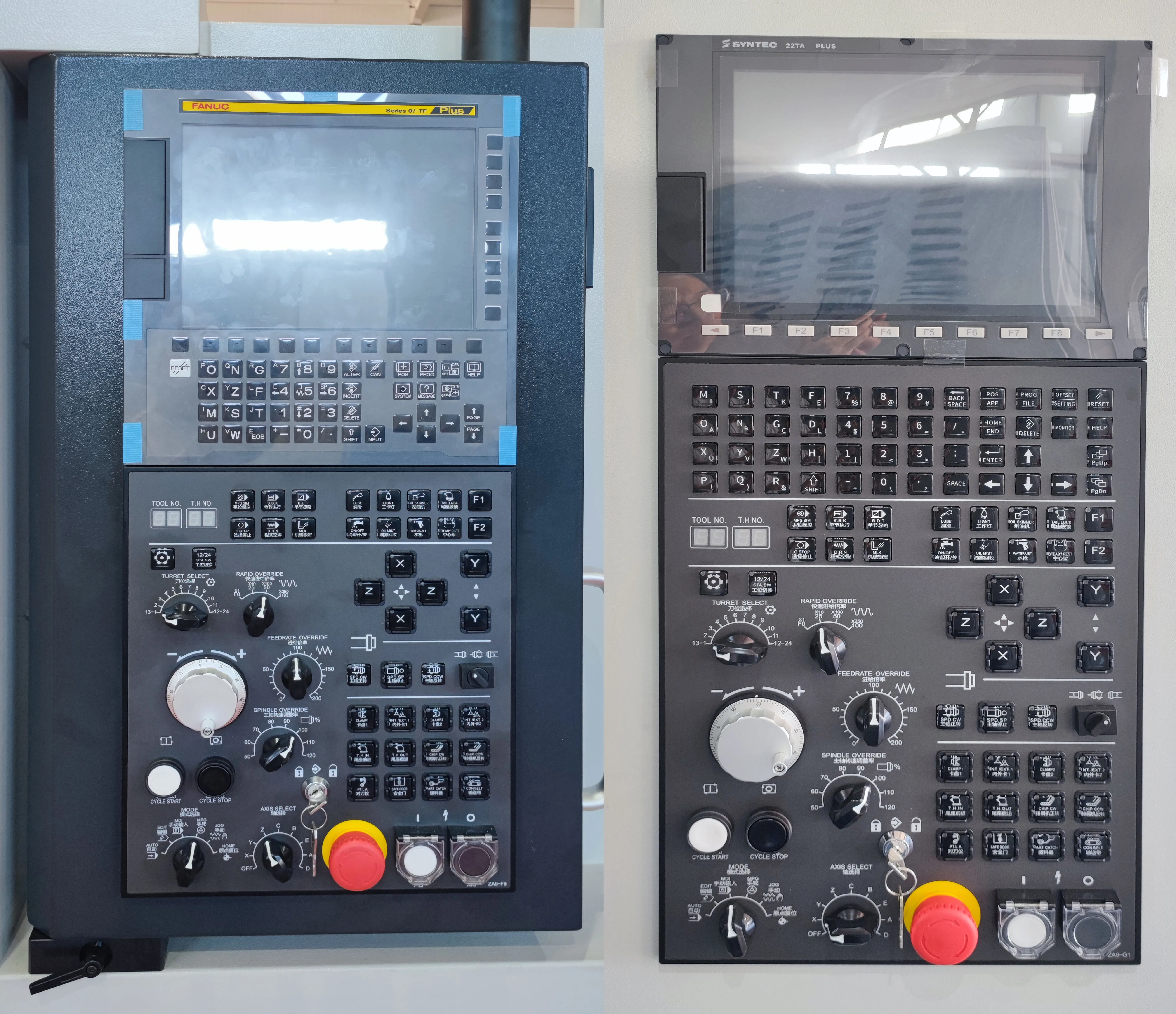

CNC System
