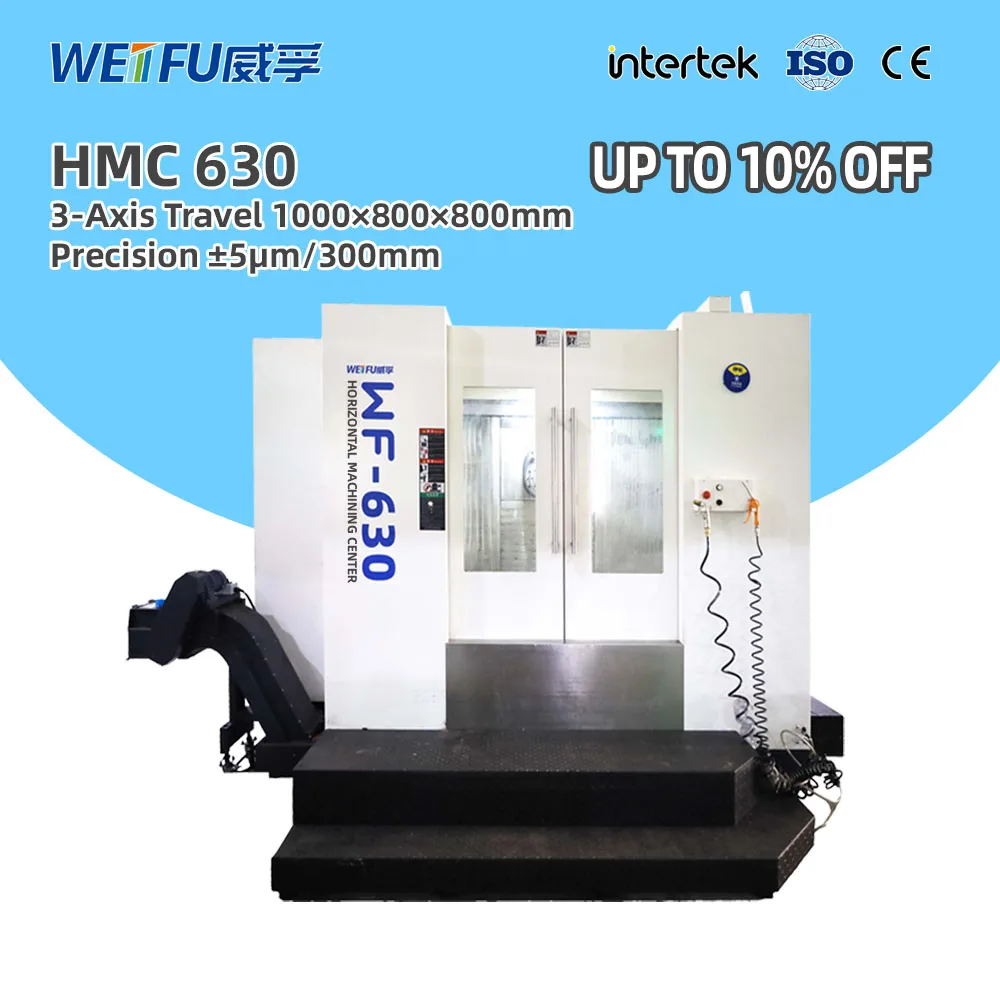

Heavy Duty Horizontal Milling CNC Machine HMC WF-630 Mitsubishi System Automatic BT50 Spindle High Accuracy Machine Center for

Heavy Duty Horizontal Milling CNC Machine HMC WF-630 Mitsubishi System Automatic BT50 Spindle High Accuracy Machine Center for

Description

Is there a problem? Please contact us to serve you!

0510-80509544

[email protected]

Description

Products Description

The machine price various according to different configurations, contact sales manager for more details.

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-0

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-1

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-2

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-3

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-4

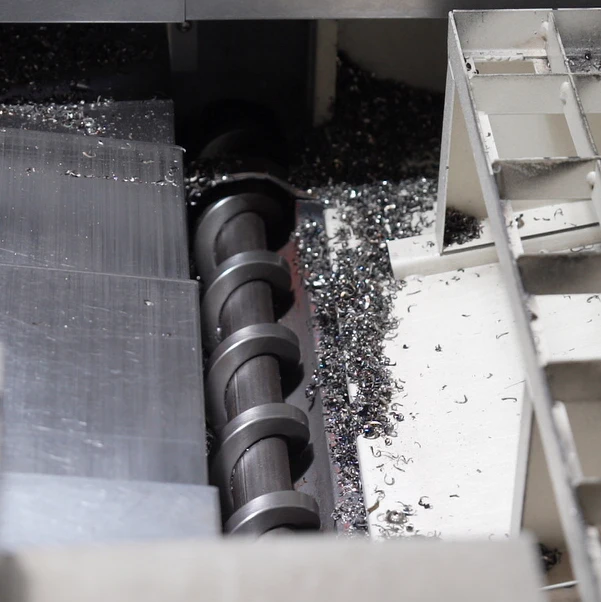

Double-Screw & Chain Conveyor: Auto Chip Cleaning

Equipped with a double-screw and single-chain chip conveyor, it automatically cleans machining chips, eliminating the trouble of manual cleaning, and is efficient and environmentally friendly.

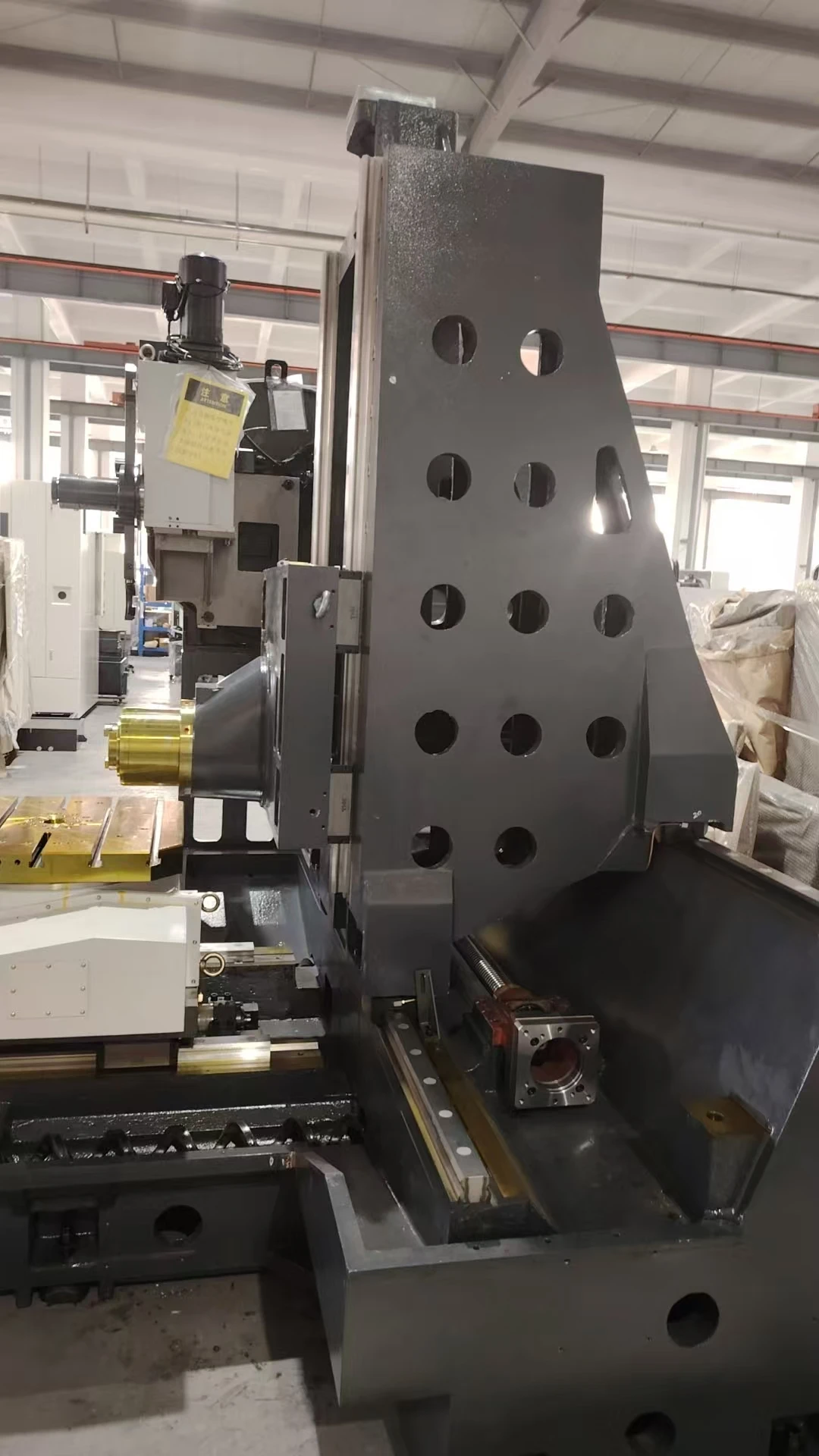

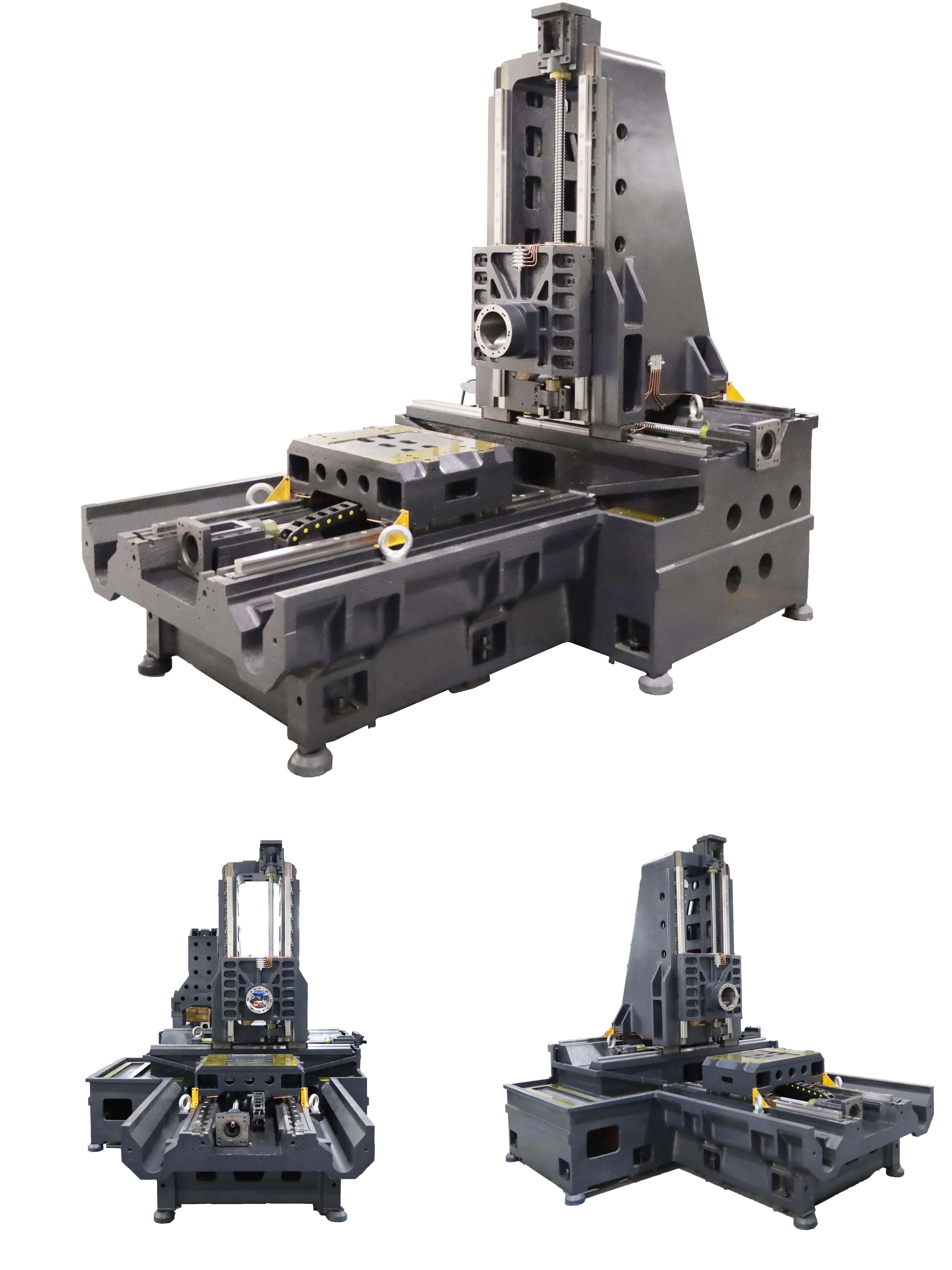

Positive T Integrated Base: High Rigidity & Stable Machining

Positive T-integrated, multi-layer reinforced rib box-type base design. The base fully supports the X-axis and Z-axis, featuring high rigidity, excellent dynamic performance and stable high-speed machining.

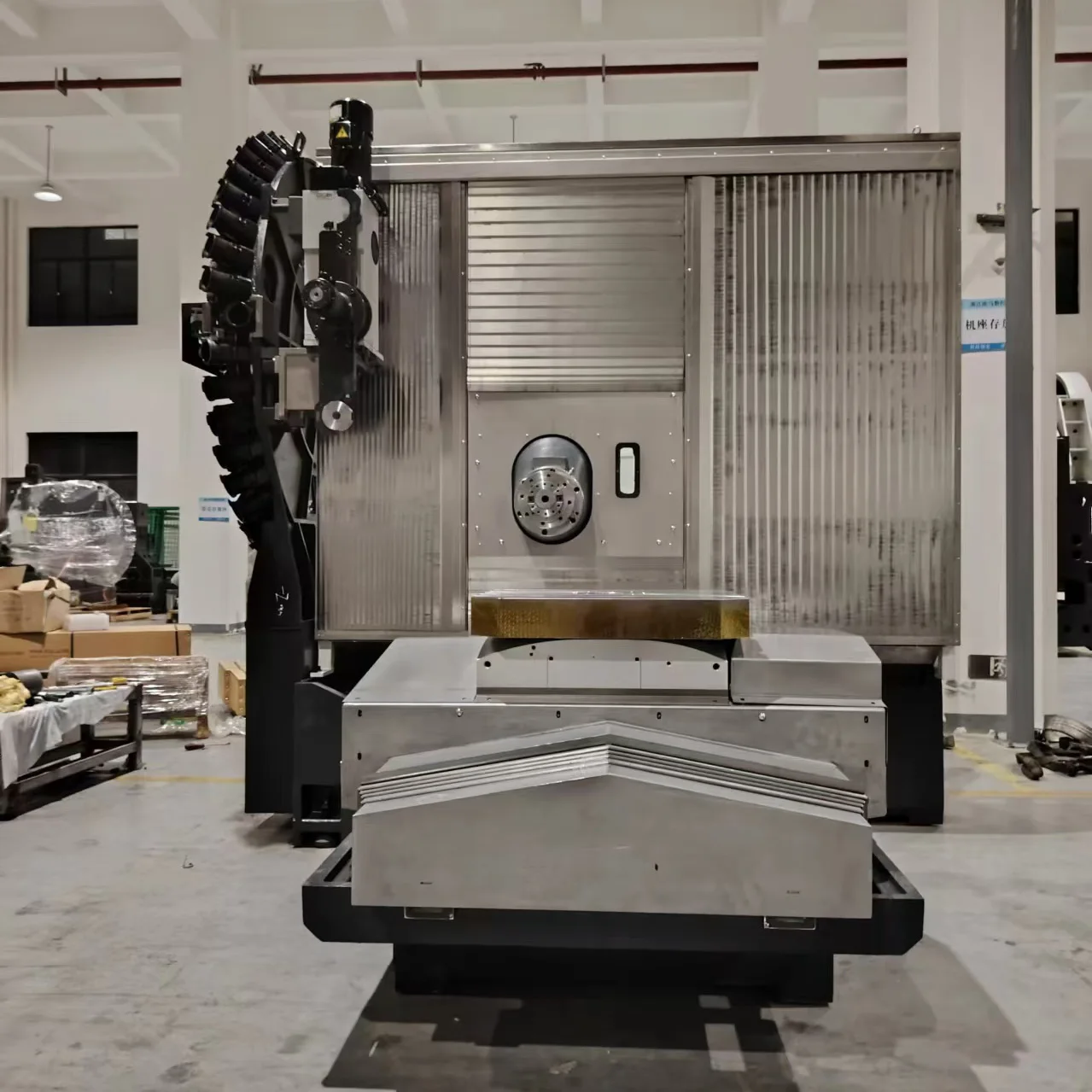

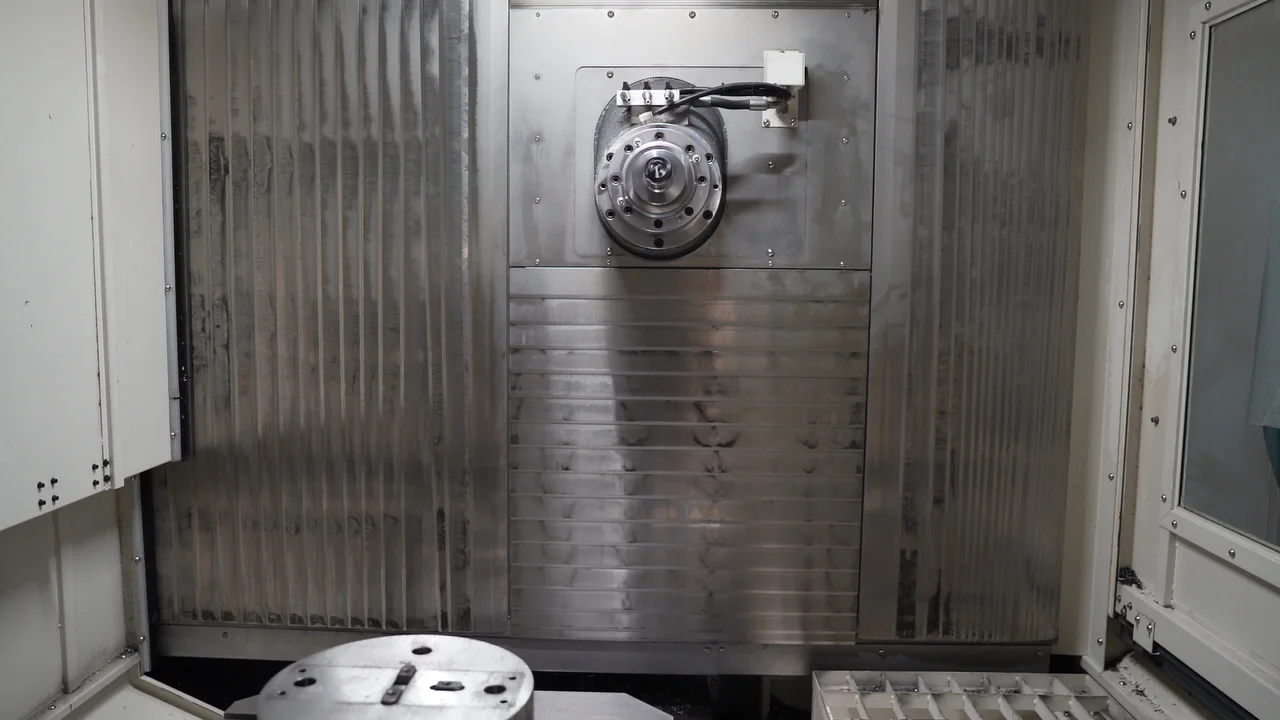

XY Armor Shield: Impenetrable Protection & Quiet High-Speed Run

The XY integrated wall-type armor shield provides impenetrable protection for the machine tool, and the machine tool runs quietly at high speed.

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-5

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-6

Heavy-Duty Cam: 25KG Capacity, Fast Tool Change

Heavy-duty cam, supporting a maximum tool weight of 25KG. The tool arm has a small radius, enabling fast and stable tool changing.

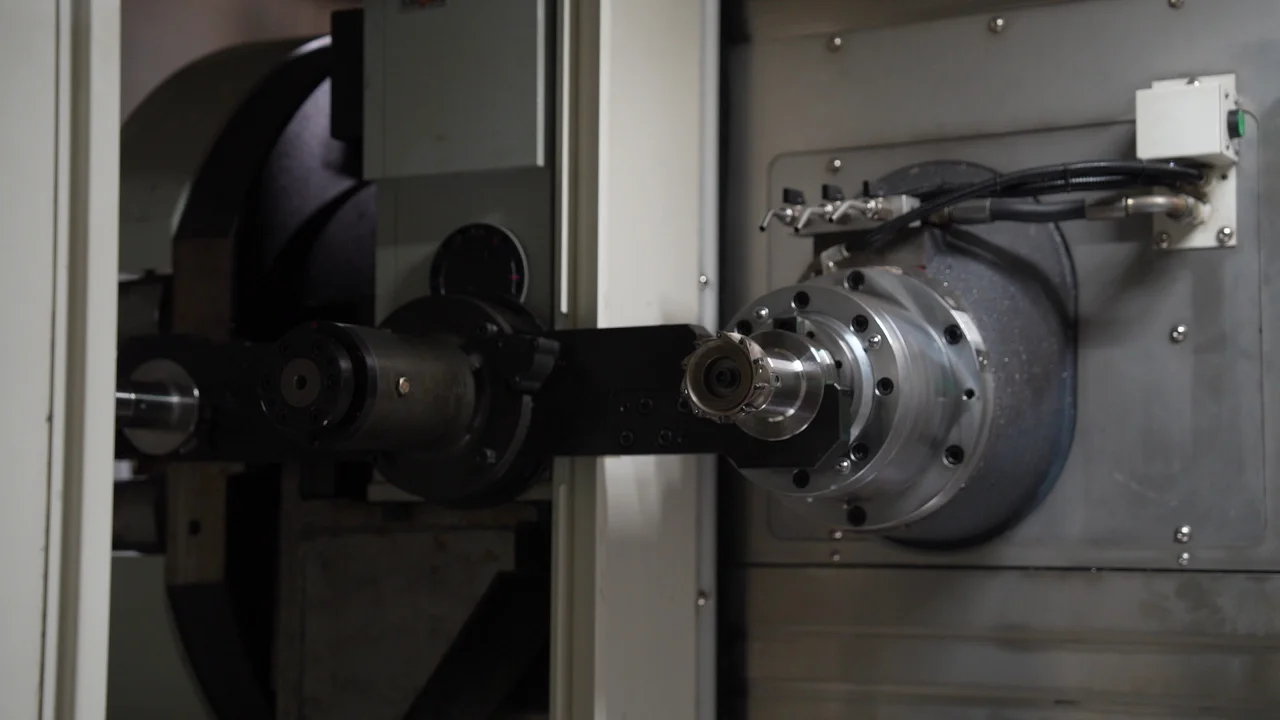

Taiwan Yuchang Spindle: 3+3 Bearings, Central Water Outlet

Original imported Taiwanese turntables (Baojiacheng, Tanjia) are adopted, with optional 1 degree 1 minute and 1/1000 degree. The turntable features high precision, high rigidity and long service life.

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-7

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-8

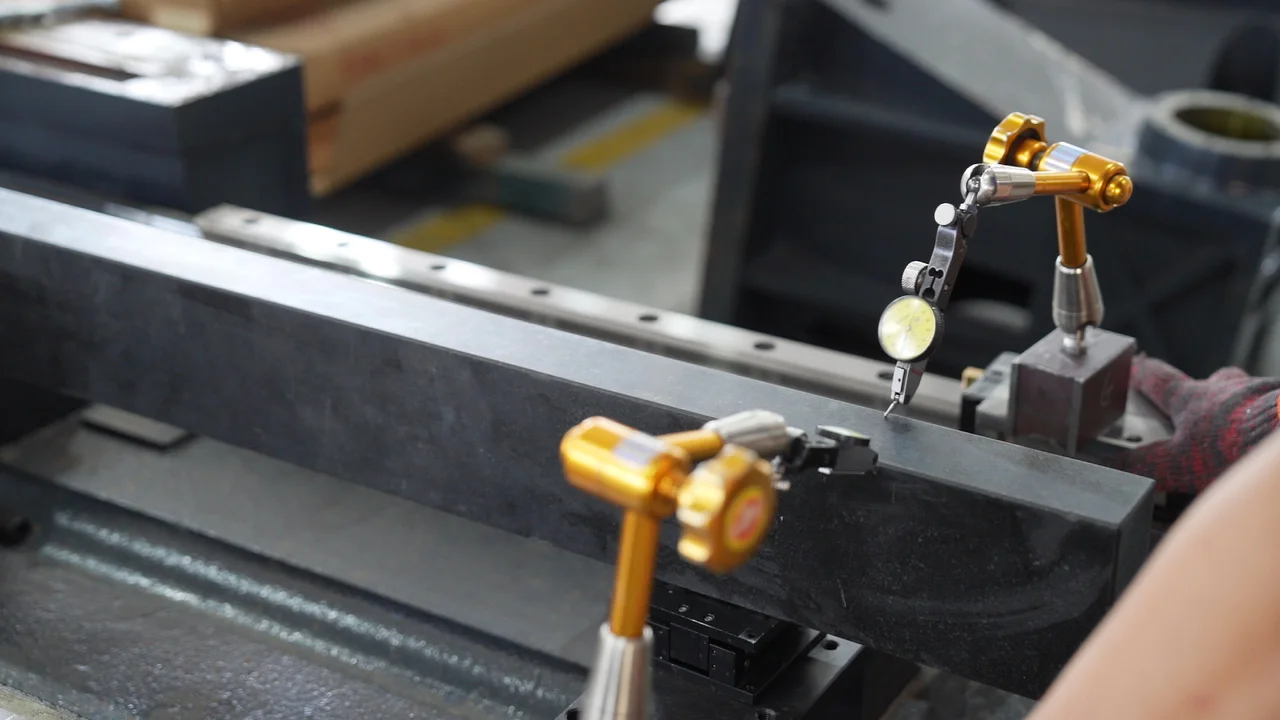

Straightness detection

Straightness detection involves using precision instruments to inspect the accuracy of linear guideway sliders, ensuring high precision of the products.

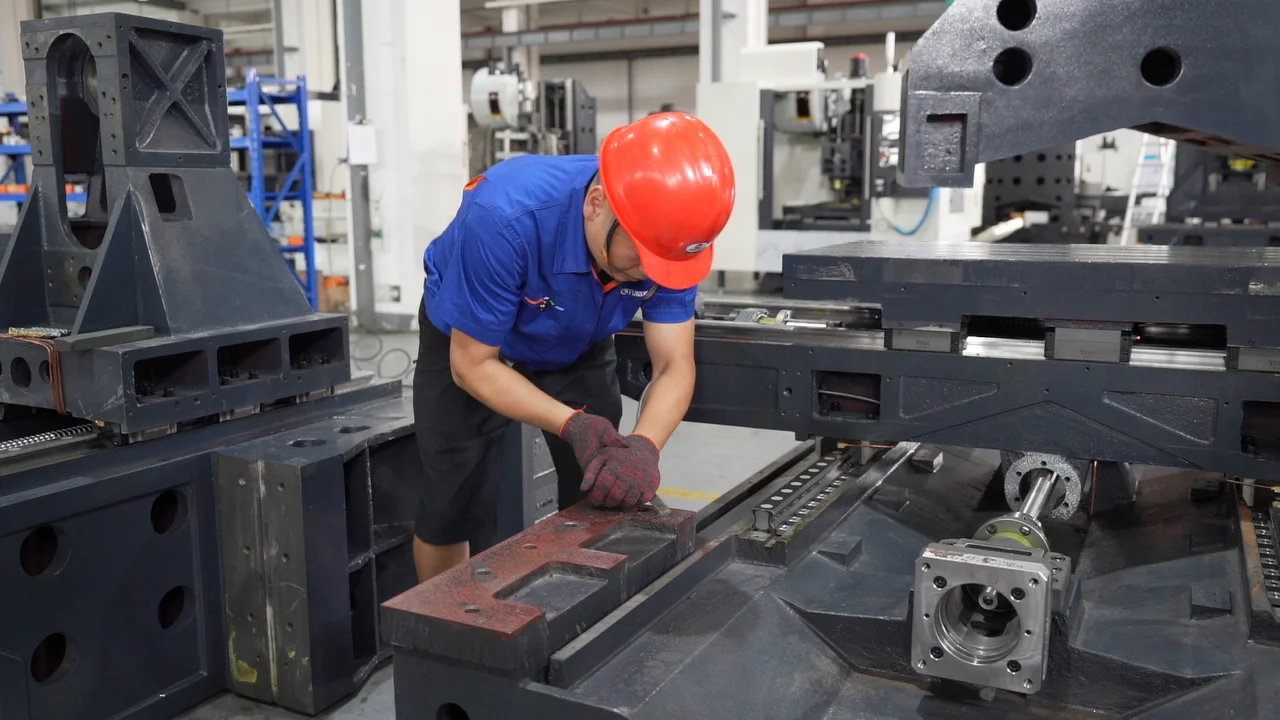

Full Manual Scraping Boosts Precision & Stability

The base, mounting surface, bearings, etc., are 100% manually scraped, which improves the machine precision and enables the machine tool to maintain stability during long-term operation.

Product Paramenters

Project	Single position	WF-630
X-axis travel	mm	1000
Y-axis travel	mm	800
Z-axis travel	mm	800
Workbench area	mm	630*630
Maximum load capacity of the workbench	kg	1200
T-slot (slot - width X center distance)	mm	4*100/18H7
The distance from the nose end of the main shaft to the worktable surface	mm	150-950
The distance from the centerline of the main shaft to the worktable surface	mm	150-950
Maximum rotational diameter	mm	1500
Spindle speed	rpm	Belt 6000
Taper of the spindle diameter		190-BT50
Tool specification		BT-50
Tool magazine form		Knife arm type (700 arm length)
The number of cutting tools	T	24
Maximum tool diameter/adjacent no tool	Mm	100-200
Maximum tool length	Mm	400
Maximum tool weight	Kg	20
Spindle motor	kw	BIL-30
X/Y/Z axis motor	kw	BIS40-40-40B
X-axis rapid displacement	m/min	24
Y-axis rapid displacement	m/min	24
Z-axis rapid displacement	m/min	24
Cutting feed rate	mm/min	1—24000
Positioning accuracy	mm	±0.005/300mm
Repeat positioning accuracy	mm	±0.003/300mm
Controller	Fanuc	OI-MF
Machine weight	T	13
Power supply requirements	KVA	40
Water tank capacity	L	200
Air compressor source	kg/cm2	6
Overall dimensions (length * width * height)	mm	500045004350
The above parameters are for reference only. In case of any discrepancy in color or size, the actual product shall prevail.

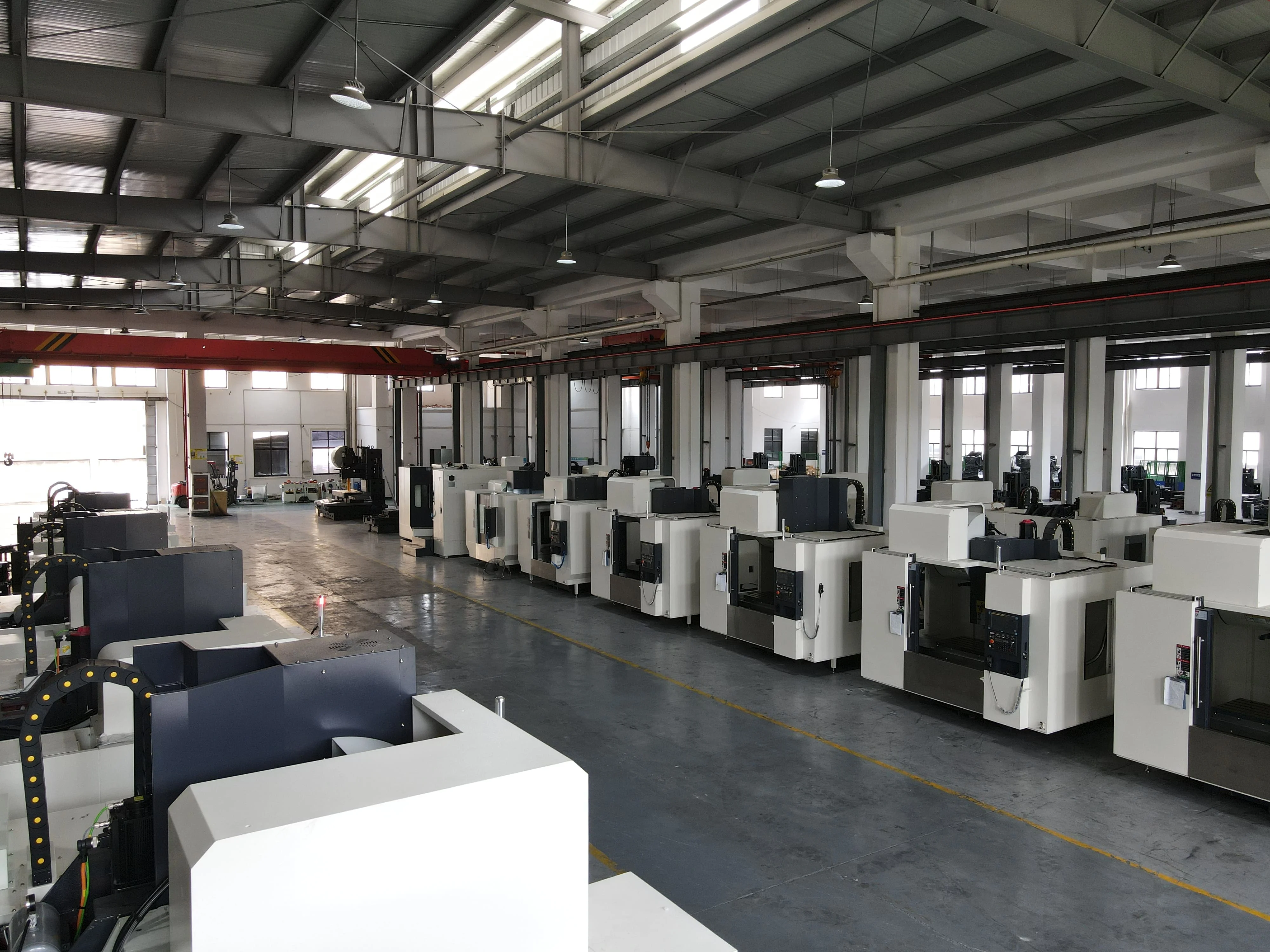

Company Profile

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-9

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-10

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-11

·Factory with ISO, IAF, IAS, EAC, ZZEC, BCZ, ISD, Intertek, and SONCAP ·Over 33,000 m2 of the factory with more than 300 employees ·Strict quality control is implemented with over 24 testing steps ·20+ years CNC machine manufacturing experience ·24/7 online service is available at any time ·ODM and OEM are supported ·Trade with more than 100 countries worldwide ·Cooperate with well-known brands such as Siemens, Fanuc, Mitsubishi, and Heidenhain ·A professional elite team is engaged in manufacturing machine tools, machinery, numerical control equipment, production equipment, etc ·The warranty period is 18 months.

Certificate

Our certificates

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-12

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-13

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-14

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-15

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-16

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-17

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-18

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-19

Exhibitions and customer visits

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-20

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-21

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-22

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-23

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-24

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-25

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-26

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-27

Packaging

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-28

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-29

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-30

PACKING AND TRANSPORTATION

All our machine include cnc lathe machine, cnc milling machine , lathemachine , milling machine , drilling machine will running 24hours .And ithave finished all test , then we will arrange package

Quality inspection

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-31

01

Machine tool leveling

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-32

02

Spindle vibration detection

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-33

03

Processing inspection

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-34

04

Spindle coupling inspection, balance test inspection

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-35

05

Spindle deflection detection

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-36

06

Precision linear guide rail straightness inspection

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-37

07

X/Y verticality detection

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-38

08

Electrical cabinet air conditioning

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-39

09

Precision screw inspection

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-40

10

Table flatness

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-41

11

Laser Inspection (Correction Compensation)

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-42

12

Noise detection

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-43

13

48h tool change test in the factory tool magazine

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-44

14

3D detection

product heavy duty horizontal milling cnc machine hmc wf 630 mitsubishi system automatic bt50 spindle high accuracy machine center for-45

15

Hardness testing

FAQ

1,What is the payment term?
For standard product: payment by T/T, 30% down payment upon ordering, 70% balance payment before shipment.
For non-standard customized products: payment by T/T, 50% down payment upon order placement, and the remaining 50% to be paid before shipment.
2,What are your minimum order quantity and warranty period?
MOQ is one set, and warranty is one year.
3,What is the packaging for the machine?
The machines standard will be packed in plywood case
4,How to choose the most suitable machine?
Please tell me your requirements, and I will recommend the most suitable machine model for you according to your needs.
5,What are your trade terms?
EXW，FOB, CFR, CIF or other terms are acceptable.
6,Where is your factory located?
It is located in Wuxi City, Jiangsu Province, China. Welcome you to visit us.
7,What are the main products of your company?
CNC Milling Machine，CNC Machining Center，CNC Turning Center，Vertical Drilling-Tapping Machine，5-Axis，CNC Lathe，Lathe，Milling Machine and Accessories.
