Factory Supply 4 Axis Turning Center HT300 Machine Tool Equipment Slant Bed FANUC WF-ET205Y Core Component Motor High-Accuracy

Factory Supply 4 Axis Turning Center HT300 Machine Tool Equipment Slant Bed FANUC WF-ET205Y Core Component Motor High-Accuracy

Description

Is there a problem? Please contact us to serve you!

0510-80509544

[email protected]

Description

Products Description

product factory supply 4 axis turning center ht300 machine tool equipment slant bed fanuc wf et205y core component motor high accuracy-0

product factory supply 4 axis turning center ht300 machine tool equipment slant bed fanuc wf et205y core component motor high accuracy-1

product factory supply 4 axis turning center ht300 machine tool equipment slant bed fanuc wf et205y core component motor high accuracy-2

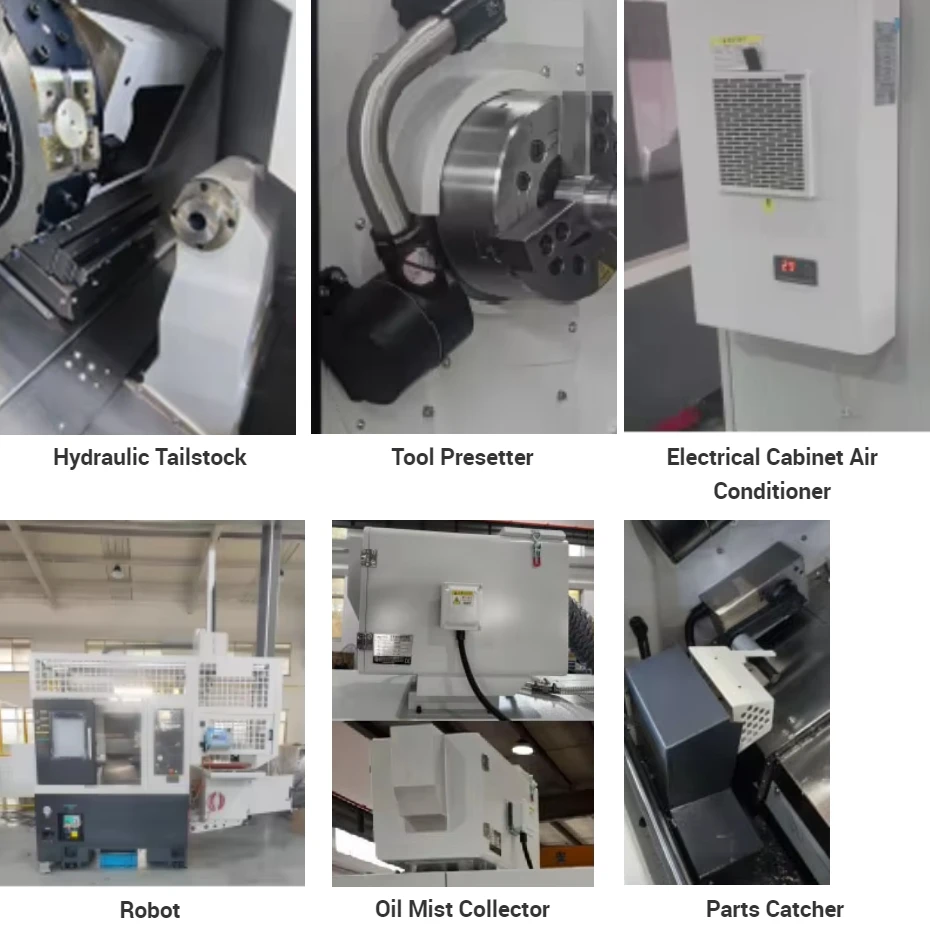

1.Hydraulic 12-position turret

2.NSK spindle bearings and X/Z axis bearings

3.X/Z ball screws&linear guideways

4.Non through-hole hydraulic chuck

5.Hydraulic tailstock

6.Heat exchanger

7.Chip collection box

8.Automatic lubrication system

9.Standard toolkit

product factory supply 4 axis turning center ht300 machine tool equipment slant bed fanuc wf et205y core component motor high accuracy-3

product factory supply 4 axis turning center ht300 machine tool equipment slant bed fanuc wf et205y core component motor high accuracy-4

product factory supply 4 axis turning center ht300 machine tool equipment slant bed fanuc wf et205y core component motor high accuracy-5

Product Paramenters

	Project			Unit	Specifications/Parameters
Processing capacity	Chuck size			inch	8
		The rotation diameter of the bed			mm	Ф700
		The rotary diameter of the drag plate			mm	Ф200
		Maximum processing length			mm	530
		Maximum processing diameter			mm	Ф370
Main shaft	Maximum rotational speed			rpm	4500
		Spindle end form			ISO	A2-6
		Diameter of the main shaft through hole			mm	Ф63
		The pull rod has a through hole			mm	Ф52
		Main motor power			KW	11/15
		C-axis indexing capability			Deg	0.001°
Dota	Form			/	Power tool turret
		Number of workstations			a	12
		The rotation time of adjacent tool positions			S	0.2
		The farthest tool position rotation time			S	0.5
		The maximum size of the square knife handle			mm	□25×25
		The maximum size of the round knife handle			mm	φ40
Power cutting tools	Tool motor power			KW	3.3（Siemens）/4.5（Fanuc）/3.1（SYNTEC CNC System）
		Maximum rotational speed			RPM	4000（Siemens）/6000（Fanuc/SYNTEC CNC System）
		Motor torque			N.M	16（Siemens）/18（Fanuc）/15（SYNTEC CNC System）
		Tool specification				BMT55
Mobile	X-axis fast shift			m/min	30
		Z-axis fast shift			m/min	30
		Y-axis fast shift			m/min	12
		X-axis travel			mm	185+15
		Z-axis travel			mm	550
		Y-axis travel			mm	±50
Tailseat	Tailstock movement range (programmable range)			mm	500
		Tailstock quick shift speed	Servo tailstock	m/min	30
		Tailstock quick shift speed		Hydraulic tailstock	m/min	10
		Sleeve conical hole			ISO	MT4
Cooling	Power			W	480
Cooling		Traffic			m³/h	2.5
Precision	Precision turning outer circle accuracy				IT6
		Surface roughness of precision machined parts			mm	Ra 0.4～1.6
		The roundness of finely turned parts			mm	≤0.003
		Positioning accuracy (X, Z)			mm	X：0.005 Z：0.008
		Repeat positioning accuracy (X, Z）			mm	X：0.002 Z：0.004
Others	Weight			Kg	4150
		Numerical control system				FANUC 0I TF / SYNTEC CNC System22TB / Siemens

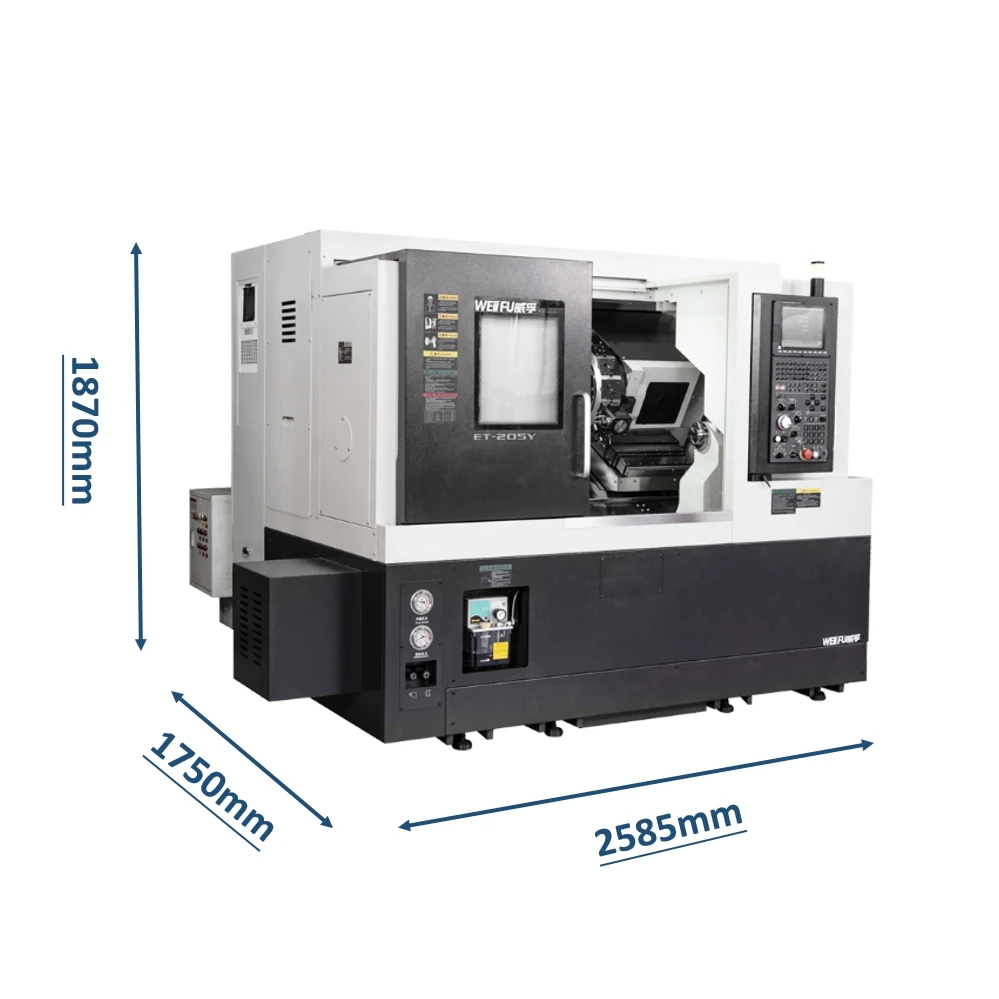

		External dimensions (length, width, height)			mm	2585×1750×1870No chip conveyor included）
The above parameters are for reference only. In case of any discrepancy in color or size, the actual product shall prevail.

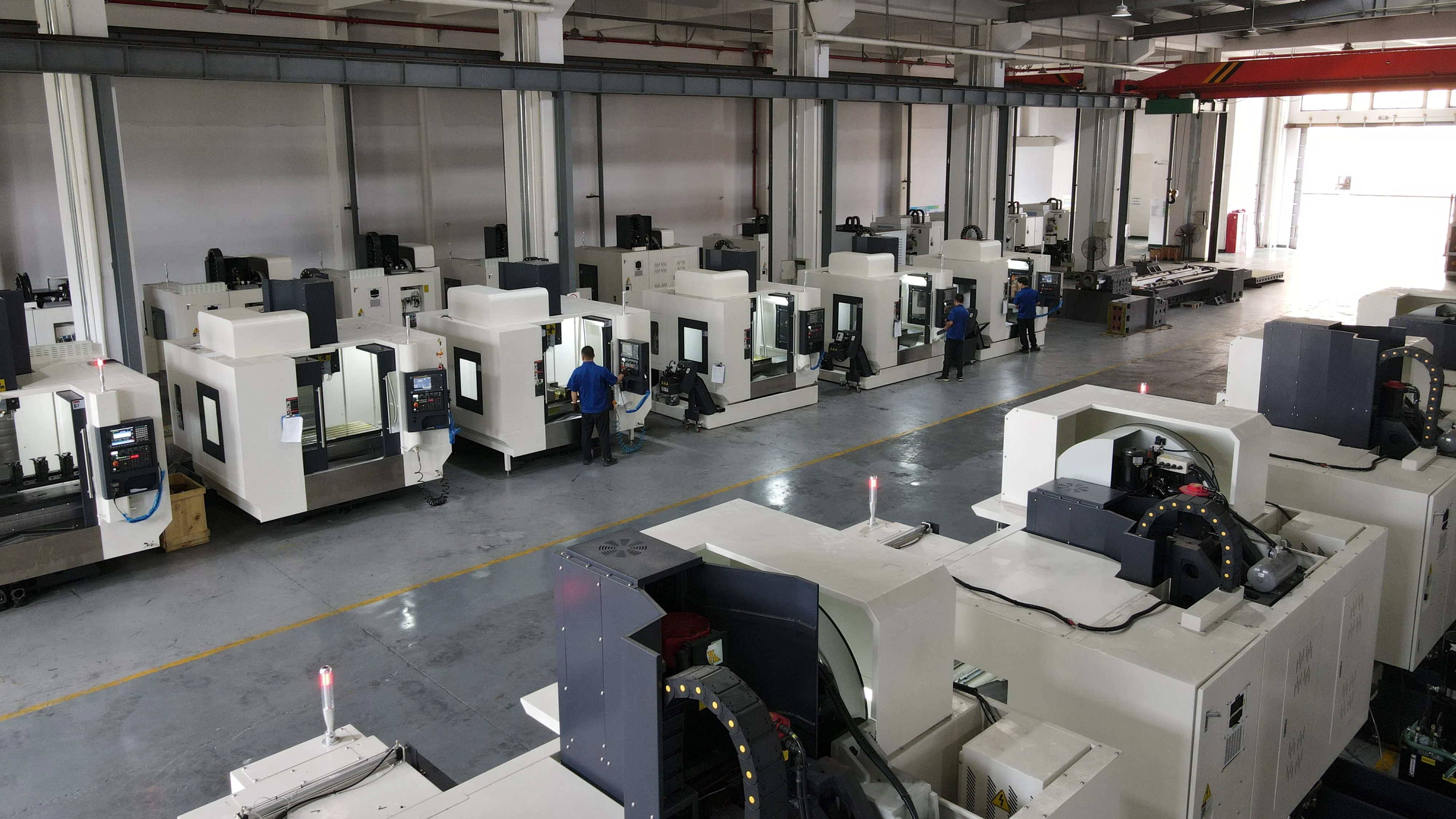

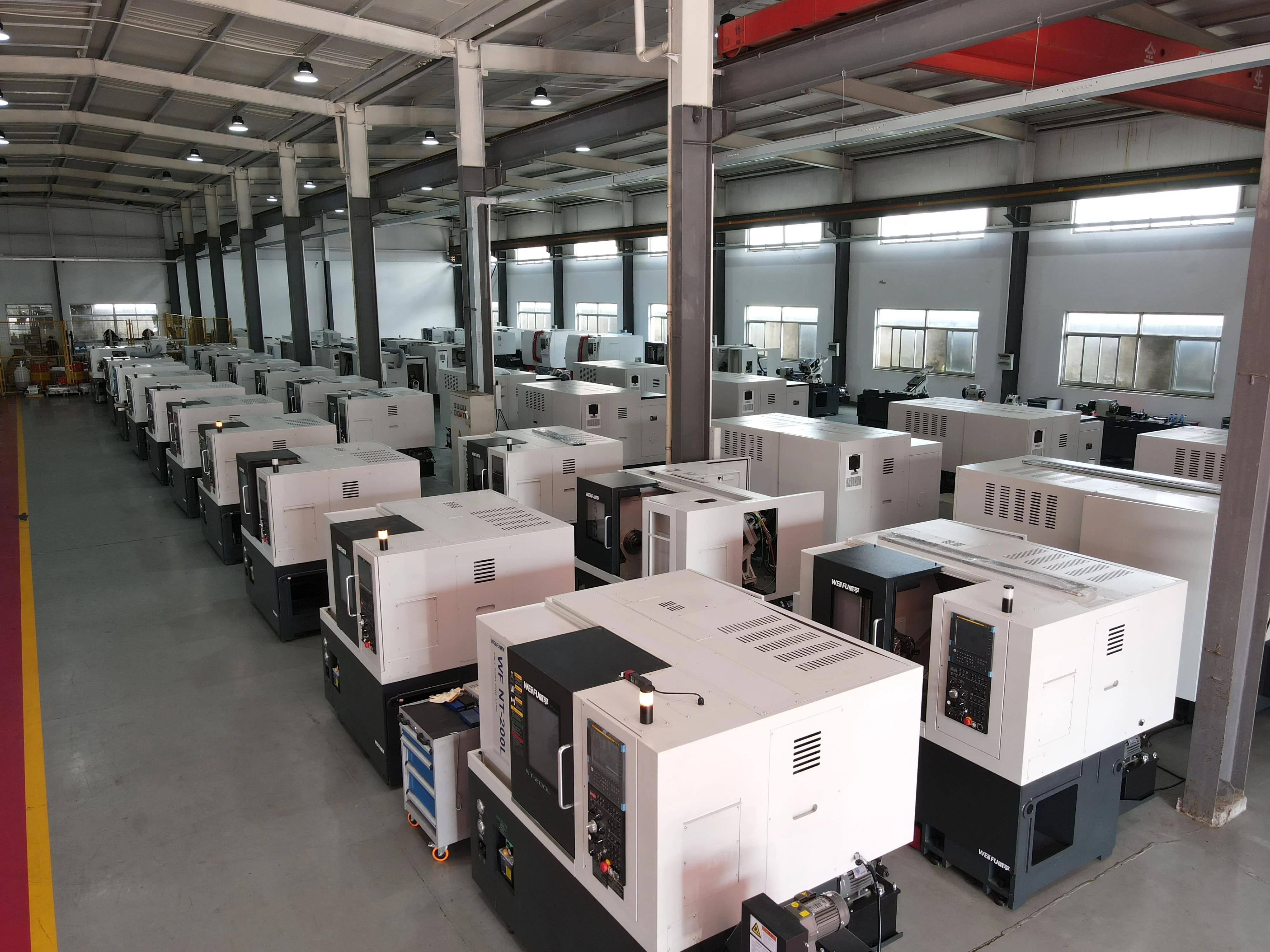

Company Profile

product factory supply 4 axis turning center ht300 machine tool equipment slant bed fanuc wf et205y core component motor high accuracy-6

product factory supply 4 axis turning center ht300 machine tool equipment slant bed fanuc wf et205y core component motor high accuracy-7

product factory supply 4 axis turning center ht300 machine tool equipment slant bed fanuc wf et205y core component motor high accuracy-8

·Factory with ISO, IAF, IAS, EAC, ZZEC, BCZ, ISD, Intertek, and SONCAP ·Over 33,000 m2 of the factory with more than 300 employees ·Strict quality control is implemented with over 24 testing steps ·20+ years CNC machine manufacturing experience ·24/7 online service is available at any time ·ODM and OEM are supported ·Trade with more than 100 countries worldwide ·Cooperate with well-known brands such as Siemens, Fanuc, Mitsubishi, and Heidenhain ·A professional elite team is engaged in manufacturing machine tools, machinery, numerical control equipment, production equipment, etc ·The warranty period is 18 months.

product factory supply 4 axis turning center ht300 machine tool equipment slant bed fanuc wf et205y core component motor high accuracy-9

Certificate

Our certificates

product factory supply 4 axis turning center ht300 machine tool equipment slant bed fanuc wf et205y core component motor high accuracy-10

product factory supply 4 axis turning center ht300 machine tool equipment slant bed fanuc wf et205y core component motor high accuracy-11

product factory supply 4 axis turning center ht300 machine tool equipment slant bed fanuc wf et205y core component motor high accuracy-12

product factory supply 4 axis turning center ht300 machine tool equipment slant bed fanuc wf et205y core component motor high accuracy-13

product factory supply 4 axis turning center ht300 machine tool equipment slant bed fanuc wf et205y core component motor high accuracy-14

product factory supply 4 axis turning center ht300 machine tool equipment slant bed fanuc wf et205y core component motor high accuracy-15

product factory supply 4 axis turning center ht300 machine tool equipment slant bed fanuc wf et205y core component motor high accuracy-16

product factory supply 4 axis turning center ht300 machine tool equipment slant bed fanuc wf et205y core component motor high accuracy-17

Exhibitions and customer visits

product factory supply 4 axis turning center ht300 machine tool equipment slant bed fanuc wf et205y core component motor high accuracy-18

product factory supply 4 axis turning center ht300 machine tool equipment slant bed fanuc wf et205y core component motor high accuracy-19

product factory supply 4 axis turning center ht300 machine tool equipment slant bed fanuc wf et205y core component motor high accuracy-20

product factory supply 4 axis turning center ht300 machine tool equipment slant bed fanuc wf et205y core component motor high accuracy-21

product factory supply 4 axis turning center ht300 machine tool equipment slant bed fanuc wf et205y core component motor high accuracy-22

product factory supply 4 axis turning center ht300 machine tool equipment slant bed fanuc wf et205y core component motor high accuracy-23

product factory supply 4 axis turning center ht300 machine tool equipment slant bed fanuc wf et205y core component motor high accuracy-24

product factory supply 4 axis turning center ht300 machine tool equipment slant bed fanuc wf et205y core component motor high accuracy-25

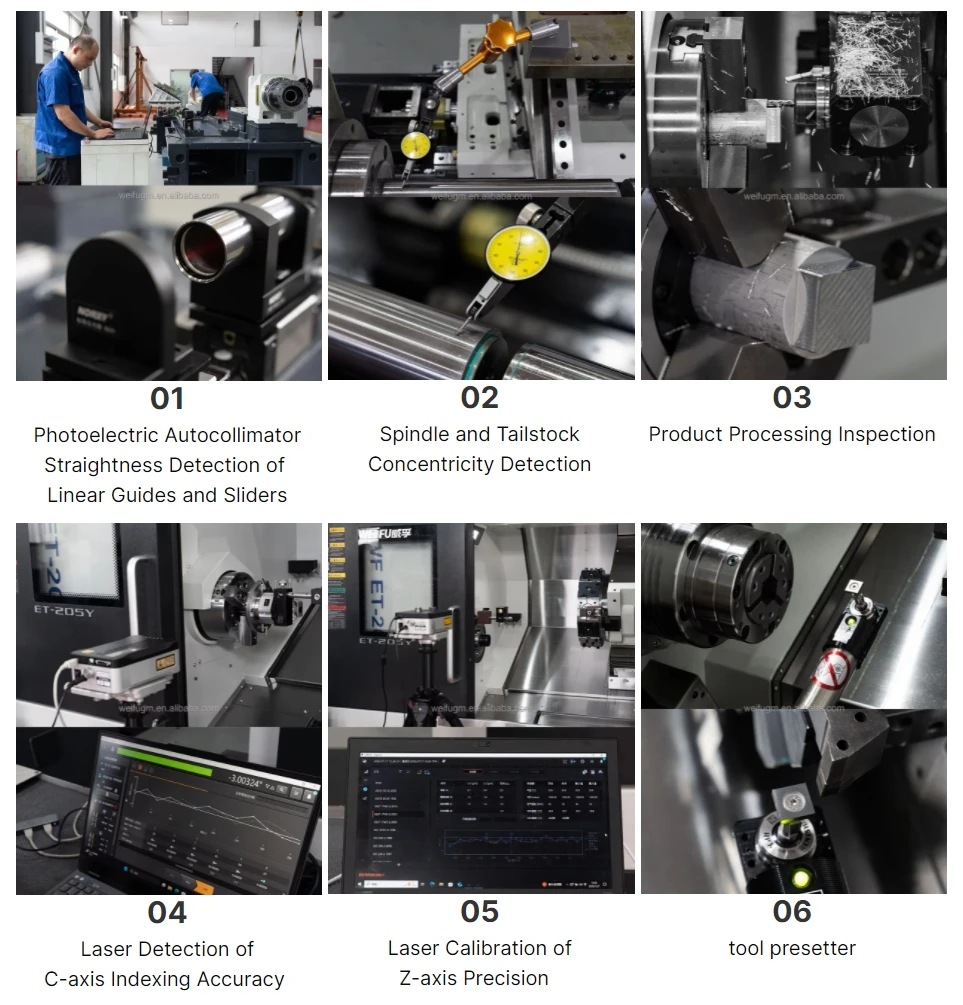

Quality inspection

product factory supply 4 axis turning center ht300 machine tool equipment slant bed fanuc wf et205y core component motor high accuracy-26

01

Photoelectric Autocollimator

Straightness Detection of Linear Guides and Sliders

product factory supply 4 axis turning center ht300 machine tool equipment slant bed fanuc wf et205y core component motor high accuracy-27

02

Spindle and Tailstock

Concentricity Detection

product factory supply 4 axis turning center ht300 machine tool equipment slant bed fanuc wf et205y core component motor high accuracy-28

03

Product Processing Inspection

product factory supply 4 axis turning center ht300 machine tool equipment slant bed fanuc wf et205y core component motor high accuracy-29

04

Laser Detection of

C-axis Indexing Accuracy

product factory supply 4 axis turning center ht300 machine tool equipment slant bed fanuc wf et205y core component motor high accuracy-30

05

Laser Calibration of

Z-axis Precision

product factory supply 4 axis turning center ht300 machine tool equipment slant bed fanuc wf et205y core component motor high accuracy-31

06

tool presetter

FAQ

1,What is the payment term?
For standard product: payment by T/T, 30% down payment upon ordering, 70% balance payment before shipment.
For non-standard customized products: payment by T/T, 50% down payment upon order placement, and the remaining 50% to be paid before shipment.
2,What are your minimum order quantity and warranty period?
MOQ is one set, and warranty is one year.
3,What is the packaging for the machine?
The machines standard will be packed in plywood case
4,How to choose the most suitable machine?
Please tell me your requirements, and I will recommend the most suitable machine model for you according to your needs.
5,What are your trade terms?
EXW，FOB, CFR, CIF or other terms are acceptable.
6,Where is your factory located?
It is located in Wuxi City, Jiangsu Province, China. Welcome you to visit us.
7,What are the main products of your company?
CNC Milling Machine，CNC Machining Center，CNC Turning Center，Vertical Drilling-Tapping Machine，5-Axis，CNC Lathe，Lathe，Milling Machine and Accessories.
