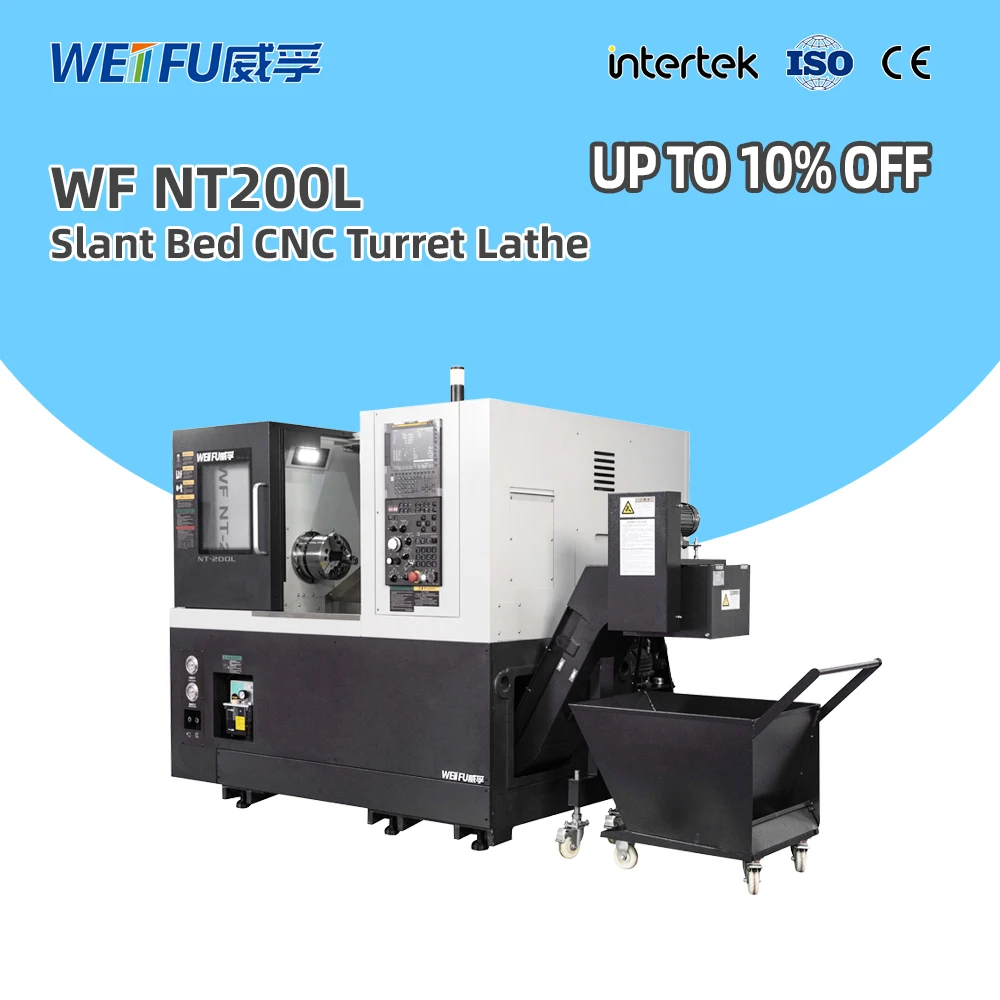

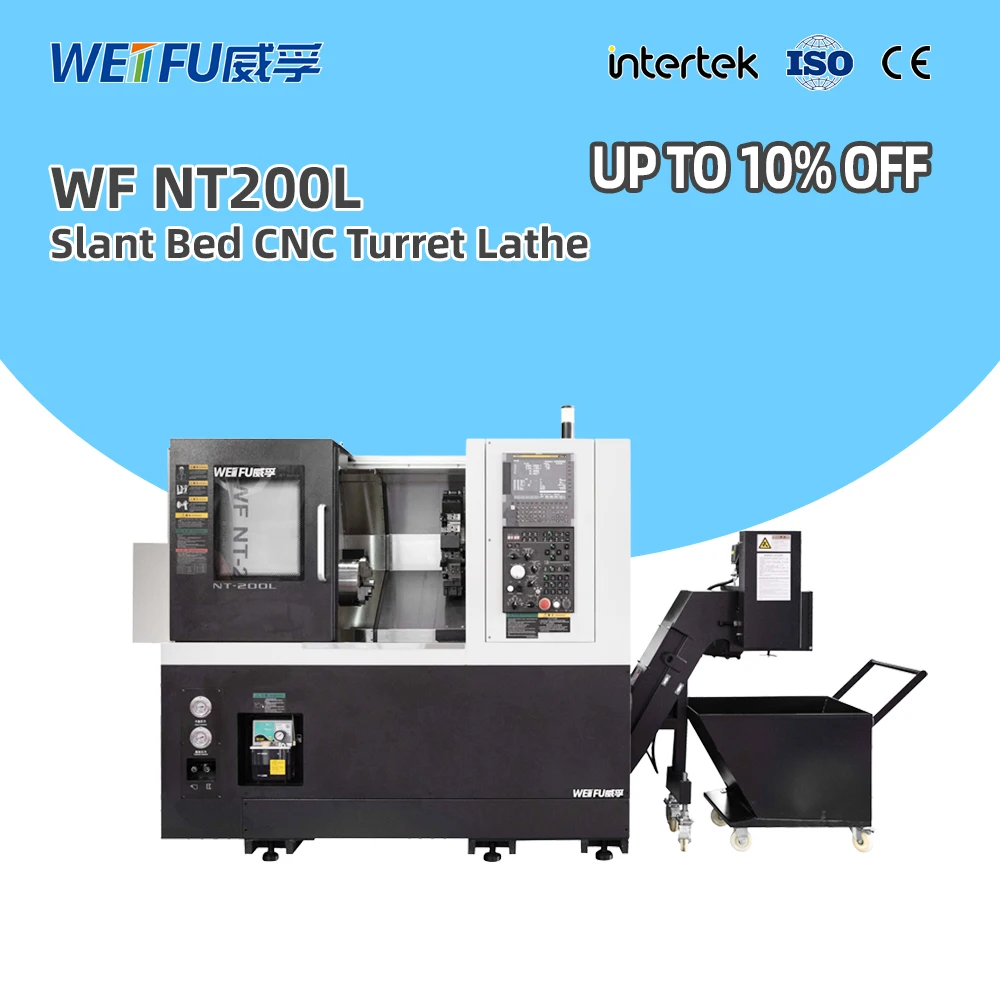

Project |
Unit |
Specifications/Parameters |
||||
Processing capacity |
Chuck size |
inch |
8 |
|||
The rotation diameter of the bed |
mm |
Ф510 |
||||
The rotary diameter of the drag plate |
mm |
Ф260 |
||||
Maximum processing length |
mm |
500 |
||||
Maximum machined parts |
mm |
Ф360（8Station）/Ф350（12Station） |
||||
Main shaft |
Maximum rotational speed |
rpm |
4000 |
|||
Spindle end form |
ISO |
A2-6 |
||||
Diameter of the main shaft through hole |
mm |
Ф66 |
||||
The pull rod has a through hole |
mm |
Ф52 |
||||
Main motor power |
KW |
11 |
||||

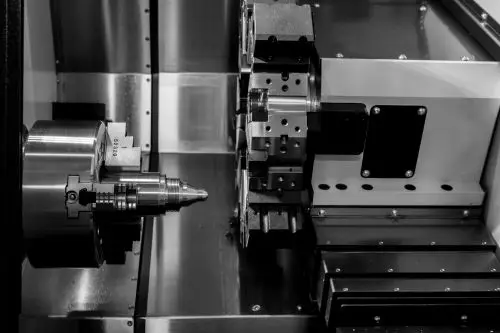

Dota |
Form |
/ |
Servo tool turret |
|||
Number of workstations |
piece |
8/12 |
||||
The rotation time of adjacent tool positions |
S |
0.28 |
||||
The farthest tool position rotation time |
S |
0.4 |
||||
The maximum size of the square knife handle |
mm |
□25×25 |
||||
The maximum size of the round knife handle |
mm |
φ40 |
||||

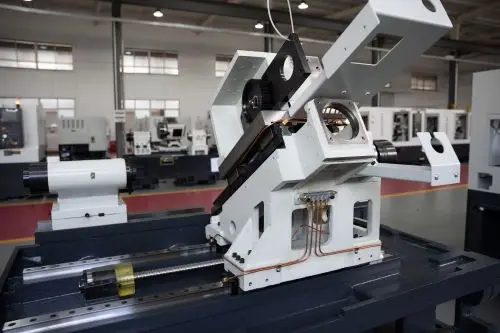

Mobile |
X-axis fast shift |
m/min |
30 |
|||
Z-axis fast shift |
m/min |
30 |
||||
X-axis travel |
mm |
180+20（8Station）/175+35（12Station） |
||||
Z-axis travel |
mm |
540（8Station）/500（12Station） |
||||
The width of the X/Z axis rail |
30/35Roller |
|||||
X/ Z-axis lead screw |
3210 |
|||||
Tailseat |
Sleeve stroke |
mm |
90 |
|||
Sleeve diameter |
mm |
Ф75 |
||||
Sleeve conical hole |
ISO |
MT4 |
||||

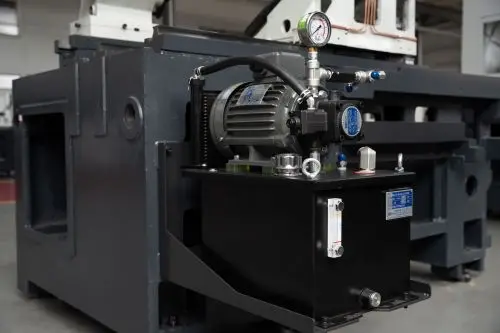

Cooling |
Power |
W |
370 |
|||
Traffic |
m³/h |
2.5～4.0 |
||||
Precision |
Precision turning outer circle accuracy |
IT6 |
||||
Surface roughness of precision machined parts |
mm |
Ra 0.4～1.6 |
||||
The roundness of finely turned parts |
mm |
≤0.003 |
||||
Positioning accuracy (X, Z） |
mm |
X：0.005 Z：0.008 |
||||
Repeat positioning accuracy (X, Z） |
mm |
X：0.002 Z：0.004 |
||||
Others |
Weight |
Kg |
3200 |
|||
Numerical control system |
SYNTEC CNC System 22Ta |
|||||
External dimensions (length, width, height) |
mm |
2022×1600×1690（No chip conveyor included） |
||||
The above parameters are for reference only. In case of any discrepancy in color or size, the actual product shall prevail. |
||||||
