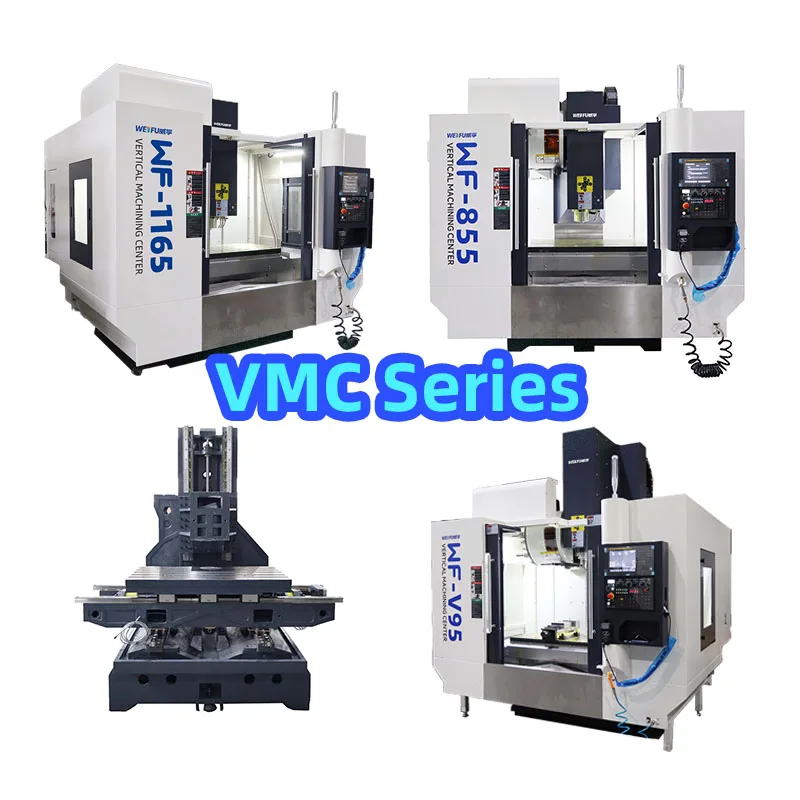

CNC 5 Axis Vertical Siemens BT40 Automatic Metal Milling Machine VMC 850 Heavy Duty High Quality WF-855 China Machine Tool

CNC 5 Axis Vertical Siemens BT40 Automatic Metal Milling Machine VMC 850 Heavy Duty High Quality WF-855 China Machine Tool

Description

Is there a problem? Please contact us to serve you!

0510-80509544

[email protected]

Description

Products Description

The machine price various according to different configurations, contact sales manager for more details.

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-0

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-1

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-2

Machine features of cnc milling machine:

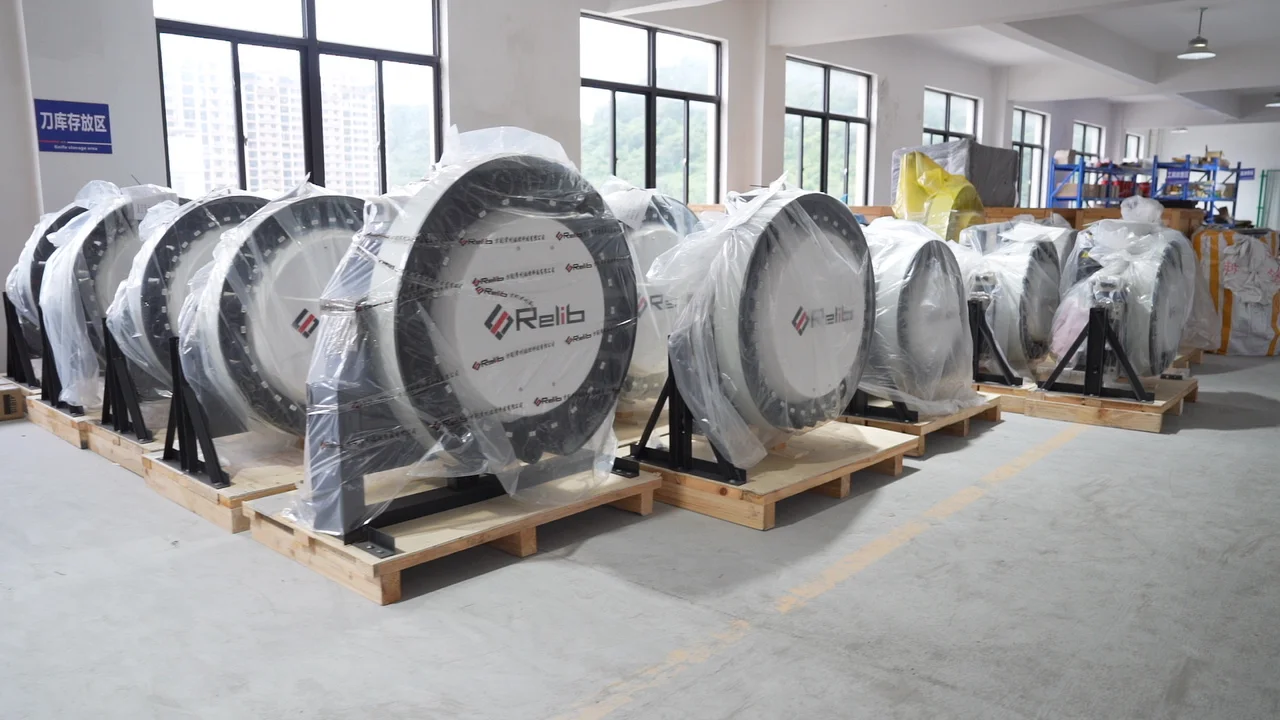

1. High Precision Hard guideway and screw. 2. Taiwan-made spindle unit, 8000, 12000rpm speed available. 3. Taiwan Relib Knife arm type BT-40 12T/24T ATC can be choosen. 4. Reliable Control System: Fanuc, Siemens, Mitsubishi. 5. Automatic Central Lubrication System.

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-3

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-4

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-5

Project	Single position	WF-855
X-axis travel	mm	850
Y-axis travel	mm	550
Z-axis travel	mm	550
Workbench area	mm	1000*500
Maximum load capacity of the workbench	kg	800
T-slot (slot - width X center distance)	mm	5-18*100
The distance from the nose end of the main shaft to the worktable surface	mm	100/650
The distance from the center of the main shaft to the surface of the column	mm	580
Spindle speed	rpm	12000
Spindle taper		BT-40
Tool specification		BT-40
Tool magazine form		Knife arm type
The number of cutting tools	T	24
Pull nail form		MAS407 P40T-1
Maximum tool diameter/adjacent no tool	Mm	75/150
Maximum tool length	Mm	300
Maximum tool weight	Kg	8
Spindle motor	kw	7.5/11
X/Y/Z axis motor	kw	2.0/2.0/3.0
Rapid X-axis displacement	m/min	48
Rapid Y-axis displacement	m/min	48
Rapid Z-axis displacement	m/min	48
Cutting feed rate	mm/min	1—10000
Positioning accuracy	mm	±0.003/300mm(JIS standard)
Repeat positioning accuracy	mm	±0.002/300mm(JIS standard)
Controller	Fanuc	mf
Machine weight	kg	5300
Power supply requirements	KVA	20
Water tank capacity	L	200
Air compressor source	kg/cm2	6
Overall dimensions (length * width * height)	mm	260020002500
The above parameters are for reference only. In case of any discrepancy in color or size, the actual product shall prevail.

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-6

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-7

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-8

Quality inspection

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-9

01

Machine tool leveling

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-10

02

Spindle vibration detection

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-11

03

Processing inspection

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-12

04

Spindle coupling inspection, balance test inspection

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-13

05

Spindle deflection detection

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-14

06

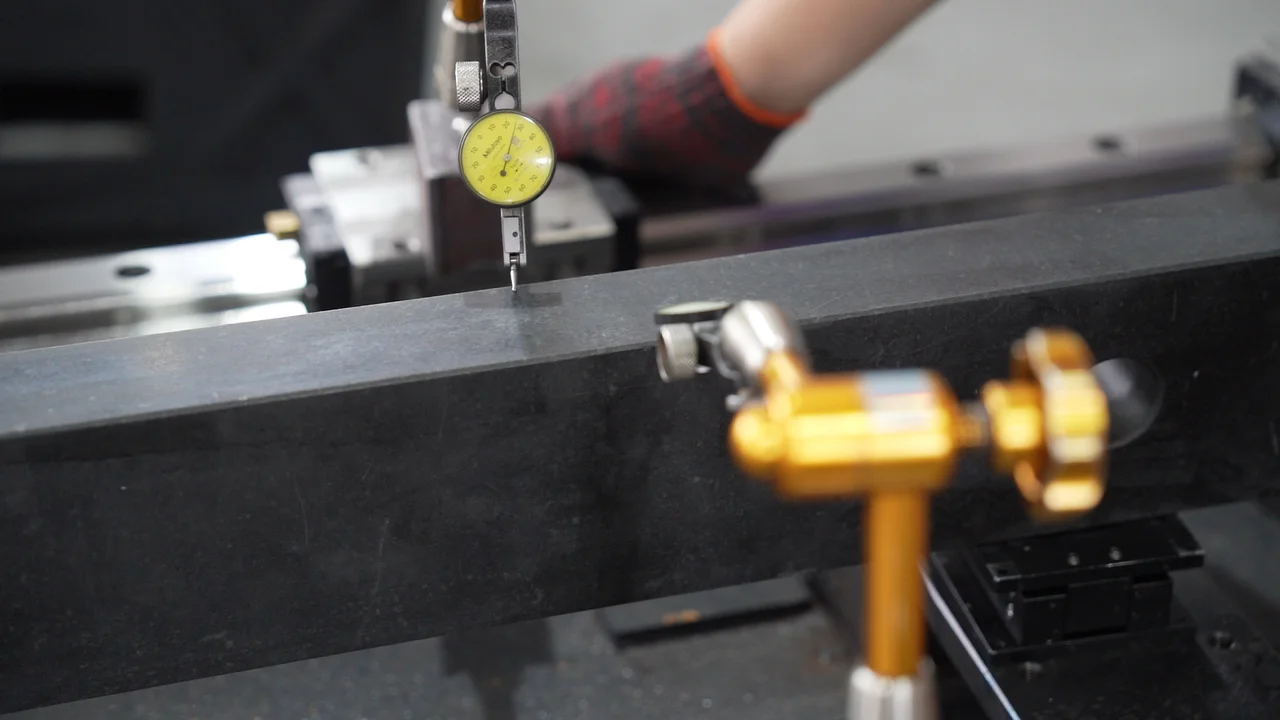

Precision linear guide rail straightness inspection

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-15

07

X/Y verticality detection

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-16

08

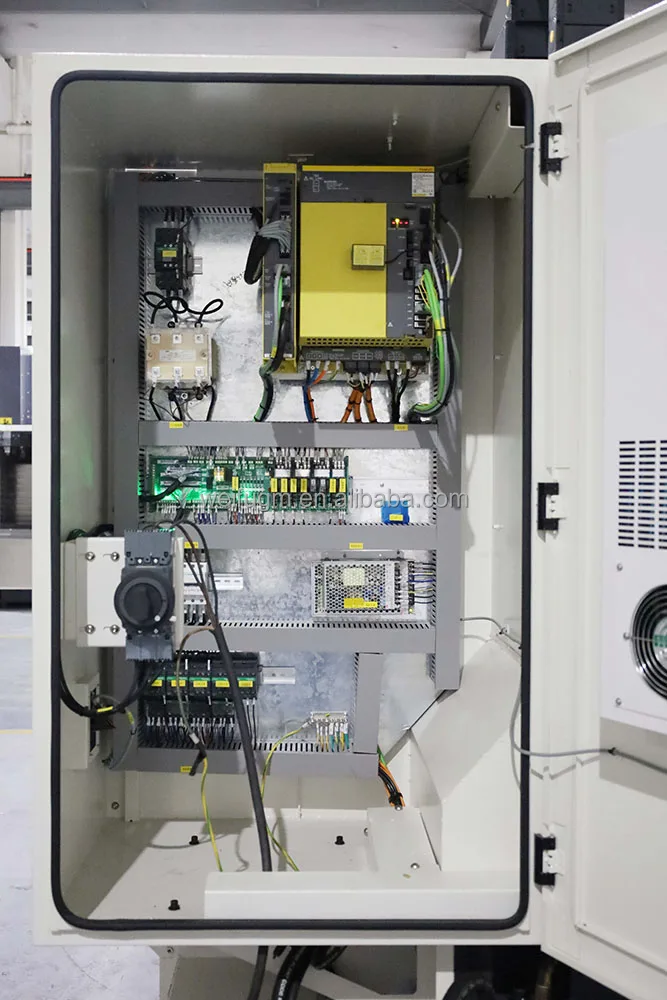

Electrical cabinet air conditioning

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-17

09

Precision screw inspection

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-18

10

Table flatness

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-19

11

Laser Inspection (Correction Compensation)

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-20

12

Noise detection

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-21

13

48h tool change test in the factory tool magazine

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-22

14

3D detection

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-23

15

Hardness testing

Packaging

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-24

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-25

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-26

PACKING AND TRANSPORTATION

All our machine include cnc lathe machine, cnc milling machine , lathemachine , milling machine , drilling machine will running 24hours .And ithave finished all test , then we will arrange package

Company Profile

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-27

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-28

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-29

·Factory with ISO, IAF, IAS, EAC, ZZEC, BCZ, ISD, Intertek, and SONCAP ·Over 33,000 m2 of the factory with more than 300 employees ·Strict quality control is implemented with over 24 testing steps ·20+ years CNC machine manufacturing experience ·24/7 online service is available at any time ·ODM and OEM are supported ·Trade with more than 100 countries worldwide ·Cooperate with well-known brands such as Siemens, Fanuc, Mitsubishi, and Heidenhain ·A professional elite team is engaged in manufacturing machine tools, machinery, numerical control equipment, production equipment, etc ·The warranty period is 12 months.

Certificate

Our certificates

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-30

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-31

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-32

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-33

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-34

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-35

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-36

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-37

Exhibitions and customer visits

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-38

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-39

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-40

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-41

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-42

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-43

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-44

product cnc 5 axis vertical siemens bt40 automatic metal milling machine vmc 850 heavy duty high quality wf 855 china machine tool-45

FAQ

1,What is the payment term?
For standard product: payment by T/T, 30% down payment upon ordering, 70% balance payment before shipment.
For non-standard customized products: payment by T/T, 50% down payment upon order placement, and the remaining 50% to be paid before shipment.
2,What are your minimum order quantity and warranty period?
MOQ is one set, and warranty is one year.
3,What is the packaging for the machine?
The machines standard will be packed in plywood case
4,How to choose the most suitable machine?
Please tell me your requirements, and I will recommend the most suitable machine model for you according to your needs.
5,What are your trade terms?
EXW，FOB, CFR, CIF or other terms are acceptable.
6,Where is your factory located?
It is located in Wuxi City, Jiangsu Province, China. Welcome you to visit us.
7,What are the main products of your company?
CNC Milling Machine，CNC Machining Center，CNC Turning Center，Vertical Drilling-Tapping Machine，5-Axis，CNC Lathe，Lathe，Milling Machine and Accessories.
